A Dissipation Theory for Three-Dimensional FDTD with Application to Stability Analysis and Subgridding

05/05/2017
by   Fadime Bekmambetova, et al.
0

The finite-difference time-domain (FDTD) algorithm is a popular numerical method for solving electromagnetic problems. FDTD simulations can suffer from instability due to the explicit nature of the method. Stability enforcement can be particularly challenging in scenarios where a setup is composed of multiple components, such as grids of different resolution, advanced boundary conditions, reduced-order models, and lumped elements. We propose a dissipation theory for 3-D FDTD inspired by the principle of energy conservation. We view the FDTD update equations for a 3-D region as a dynamical system, and show under which conditions the system is dissipative. By requiring each component of an FDTD-like scheme to be dissipative, the stability of the overall coupled scheme follows by construction. The proposed framework enables the creation of provably stable schemes in an easy and modular fashion, since conditions are imposed on the individual components, rather than on the overall coupled scheme as in existing approaches. With the proposed framework, we derive a new subgridding scheme with guaranteed stability, low reflections, support for material traverse and arbitrary (odd) grid refinement ratio.

READ FULL TEXT VIEW PDF

Authors

page 1

page 2

page 3

page 4

01/08/2020

On some stable boundary closures of finite difference schemes for the transport equation

We explore in this article the possibilities and limitations of the so-c...
09/11/2019

Discrete transparent boundary conditions for the two-dimensional leap-frog scheme

We develop a general strategy in order to implement (approximate) discre...
08/02/2019

Boundary treatment of implicit-explicit Runge-Kutta method for hyperbolic systems with source terms

In this paper, we develop a high order finite difference boundary treatm...
09/30/2020

Stability analysis of a singlerate and multirate predictor-corrector scheme for overlapping grids

We use matrix stability analysis for a singlerate and multirate predicto...
12/18/2019

Analysis of the SBP-SAT Stabilization for Finite Element Methods Part II: Entropy Stability

In the research community, there exists the strong belief that a continu...
02/22/2022

A SBP-SAT FDTD Subgridding Method Using Staggered Yee's Grids Without Modifying Field Components

A summation-by-parts simultaneous approximation term (SBP-SAT) finite-di...
10/18/2021

A Stable FDTD Subgridding Scheme with SBP-SAT for Transient Electromagnetic Analysis

We proposed a provably stable FDTD subgridding method for accurate and e...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Stability is a major challenge in explicit numerical schemes for solving differential equations. The conventional finite-difference time-domain (FDTD) algorithm for solving Maxwell’s equations [1] is stable when the iteration time step is below the Courant-Friedrichs-Lewy (CFL) limit [2]. However, stability enforcement becomes much more difficult in the case of more advanced FDTD schemes such as, for example, those including locally-refined grids [3, 4, 5], reduced-order models [6, 7], and hybridizations of FDTD with integral equation methods [8] or circuit simulators [9]. Many of these advanced schemes can be seen as the coupling of multiple blocks, such as FDTD grids of different resolution, reduced-order models, lumped components, boundary conditions, and so on. While the stability of each individual block may be well understood, analyzing and enforcing the stability of the overall coupled scheme can be a daunting task.

Several techniques have been proposed for FDTD stability analysis, such as von Neumann analysis [10], the iteration method [2] and the energy method [11]. Unfortunately, von Neumann analysis cannot be applied in presence of inhomogeneous materials. The iteration method [2, 12]

analyzes the eigenvalues of a matrix describing FDTD iterations. Even though an FDTD setup can often be divided into several subsystems, such as grids of different resolution, reduced-order models, interpolation conditions, and other blocks, the iteration matrix needs to be derived for the entire scheme, which can lead to lengthy derivations and make stability analysis very tedious. A similar issue arises in the case of the energy method

[11], where one must write an expression for the stored energy in the entire domain, and show that the coupled scheme satisfies the principle of energy conservation.

In this paper, we present a dissipation theory for modular stability enforcement of complex 3-D FDTD systems, generalizing previous work in two dimensions [13]. The method is based on the theory of dissipative dynamical systems [14]. First, we write the FDTD update equations for an arbitrary inhomogeneous region in the form of a discrete-time dynamical system. The tangential magnetic and electric field are seen as input and output, respectively. Suitable discrete expressions for the energy stored inside the region, and for the energy absorbed through the boundaries are proposed and used to investigate under which conditions the system is dissipative. This result becomes the basis for a powerful framework to create new FDTD algorithms with guaranteed stability. By imposing each subsystem to to be dissipative, the overall coupled scheme formed by these subsystems is dissipative by construction, and thus stable. The main virtue of this approach is that the stability of the overall scheme follows automatically from conditions imposed on each subsystem individually. This makes stability analysis simpler and more modular, which is a remarkable advantage over existing approaches that require the analysis of the overall coupled scheme. This modularity also facilitates the generation of new schemes, since proving a given subsystem (e.g. a sophisticated boundary condition) to be dissipative allows coupling it to any other dissipative block, with no need for additional analysis. Finally, we use the theory to derive a stable subgridding scheme for 3-D FDTD that works for any odd refinement ratio and naturally supports traversal of material boundaries by the subgridding interface.

This paper is structured as follows. In Sec. II, we show how the update equations for an FDTD region can be cast into the form of a dynamical system with suitable inputs and outputs. In Sec. III, we provide dissipativity conditions for the system and show their relation to the CFL limit. In Sec. IV, we describe the modular method for enforcing FDTD stability using the proposed theory, and in Sec. V we apply this method to derive a stable subgridding scheme. Numerical examples are given in Sec. VI.

Ii Dynamical System Formulation of a 3-D FDTD Region

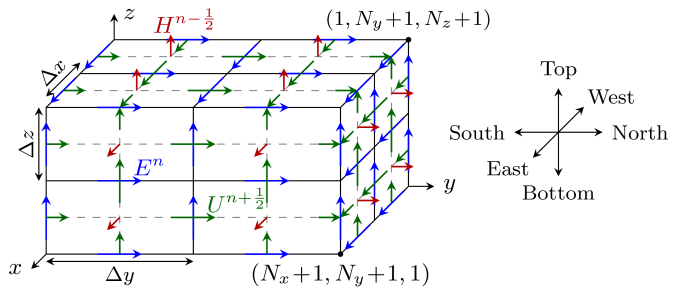

Fig. 1: Illustration of the 3-D FDTD region with the hanging variables shown in green and the regular electric and magnetic samples in blue and red, respectively. The secondary grid is shown with the dashed line.

Consider the FDTD region shown in Fig. 1, which contains , , and primary cells in the , , and directions, respectively. Electric field is sampled on the primary grid edges at the integer time points, , and magnetic field is sampled on the primary grid faces at the time points shifted by half of a time step,  [2]. For simplicity, we assume that the region is discretized uniformly with primary cells of dimensions . As shown in Fig. 1, we use cardinal directions in the -plane, with being the North. “Top” and “Bottom” denote the and directions, respectively.

In addition to the regular electric and magnetic field samples, denoted by and , respectively, we define the so-called hanging variables [15], , which are magnetic field samples collocated with the electric fields on the boundary of the region. The hanging variables, which are tangential to the boundary and perpendicular to the corresponding electric field samples, are used to define the power supplied to the region and to facilitate the derivation of a self-contained dynamical model for the region based on FDTD update equations.

In this section, we take the FDTD equations for the regular field samples, and , and cast them in the form of a dynamical system with the hanging variables, , as its inputs. The output consists of electric field samples on the boundary of the region.

Ii-a Equations at Each Node

(a) a(b) a(c)
a ab ac
Fig. 2: Variables involved in the recurrence relations for (a) internal samples (Type 1), (b) samples of Type 2 on the South face, and (c) the samples of Type 3 on the Bottom-South edge of the boundary. The common subscript “” is omitted for clarity.

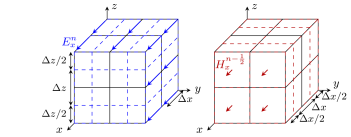

Fig. 3: Illustration of the volumes (shown in dashed lines), associated with each electric (left panel) and magnetic (right panel) field sample in (1)–(5).
