1 Introduction

In recent years, optical coherence tomography (OCT) imaging has become a well-established clinical tool for assessing optic nerve head (ONH) tissues, and for monitoring many ocular [1, 2] and neuro-ocular pathologies [3]. However, despite several advancements in OCT technology [4], the quality of B-scans is still hampered by speckle noise [5, 6, 7, 8, 9, 10, 11], low signal strength [12], blink [12, 13] and motion artefacts [12, 14].

Specifically, the granular pattern of speckle noise deteriorates the image contrast, making it difficult to resolve small and low-intensity structures (e.g., sub-retinal layers) [5, 6, 7], thus affecting the clinical interpretation of OCT data. Also, poor image contrast can lead to automated segmentation errors [15, 16, 17]

, and incorrect tissue thickness estimation

[18], potentially affecting clinical decisions. For instance, segmentation errors for the retinal nerve fiber layer (RNFL) thickness can lead to over/under estimation of glaucoma [19].

Currently, there exist many hardware [20, 21, 22, 23, 24, 25, 26, 27, 28] and software schemes [28, 29, 30] to de-noise OCT B-scans. Hardware approaches offer robust noise suppression through frequency compounding [25, 26, 27, 28] and multi-frame averaging (spatial compounding) [20, 21, 22, 23, 24]. While multi-frame averaging techniques have shown to enhance image quality and presentation [29, 30], they are sensitive to registration errors [30], and require longer scanning times [31]. Moreover, elderly patients often face discomfort and strain [32], when they remain fixated for long durations [32, 33]. Software techniques, on the other hand, attempt to denoise through numerical algorithms [5, 6, 7, 8, 9, 10, 11] or filtering techniques [34, 35, 36]. However, registration errors [37], computational complexity [5, 38, 39, 40], and sensitivity to choice of parameters [41] limit their usage in the clinic.

In this study, we propose a deep learning approach to denoise OCT B-scans. We aimed to obtain multi-frame quality B-scans (i.e. signal-averaged) from single-frame (without signal averaging) B-scans of the ONH. We hope to offer a denoising framework to obtain superior quality B-scans, with reduced scanning duration and minimal patient discomfort.

2 Methods

2.1 Patient Recruitment

A total of 20 healthy subjects were recruited at the Singapore National Eye Centre. All subjects gave written informed consent. This study adhered to the tenets of the Declaration of Helsinki and was approved by the institutional review board of the hospital. The inclusion criteria for healthy subjects were: an intraocular pressure (IOP) less than 21 mmHg, and healthy optic nerves with a vertical cup-disc ratio (VCDR) less than or equal to 0.5.

2.2 Optical Coherence Tomography Imaging

The subjects were seated and imaged under dark room conditions by a single operator (TAT). A spectral-domain OCT (Spectralis, Heidelberg Engineering, Heidelberg, Germany) was used to image both eyes of each subject. Each OCT volume consisted of 97 horizontal B-scans (m distance between B-scans; 384 A-scans per B-scan), covering a rectangular area of 15°x 10°centered on the ONH. For each eye, single-frame (without signal averaging), and multi-frame (75x signal averaging) volume scans were obtained. Enhanced depth imaging (EDI) [42] and eye tracking [43, 44] modalities were used during the acquisition. From all the subjects, we obtained a total of 3,880 B-scans for each type of scan (single-frame or multi-frame).

2.3 Volume Registration

The multi-frame volumes were reoriented to align with the single-frame volumes through rigid translation/rotation transformations using 3D software (Amira, version 5.6; FEI). This registration was performed using a voxel-based algorithm that maximized mutual information between two volumes [45]. Registration was essential to quantitatively validate the corresponding regions between the denoised and multi-frame B-scans. Note that Spectralis follow-up mode was not used in this study. Although the follow-up mode allows a new scanning of the same area by identifying previous scan locations, in many cases, it can distort B-scans and thus provide unrealistic tissue structures in the new scan.

2.4 Deep Learning Based Denoising

While deep learning has shown promising segmentation [46, 47, 48, 49], classification [50, 51, 52], and denoising [53, 54, 55] applications in the field of medical imaging for modalities such as magnetic resonance imaging (MRI), its application to OCT imaging is still in its infancy [56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67]. Although recent deep learning studies have shown successful segmentation [56, 57, 48, 59, 60, 61, 62, 63, 64] and classification applications [65, 66, 67] in OCT imaging, to the best of our knowledge no study exists yet to assess the success of denoising OCT B-scans. We believe, a denoising framework would not only increase the reliability of clinical information in single-frame B-scans, but also improve the robustness of segmentation and classification tools.

In this study, we developed a fully-convolutional neural network, inspired by our earlier DRUNET architecture

[63] to denoise single-frame OCT B-scans of the ONH. It leverages on the inherent advantages of U-Net [68], residual learning [69], dilated convolutions [70]

, and multi-scale hierarchical feature extraction

[71]

to obtain multi-frame quality B-scans. Briefly, the U-Net and its skip connections helped the network learn both the local (tissue texture) and contextual information (spatial arrangement of tissues). The contextual information was further exploited using dilated convolution filters. Residual connections improved the flow of the gradient information through the network, and multi-scale hierarchical feature extraction helped restore tissue boundaries in the B-scans.


2.5 Network Architecture

The network was composed of a downsampling and an upsampling tower, connected to each other via skip-connections (Figure 1). Each tower consisted of one standard block and two residual blocks. Both the standard and the residual blocks comprised of two dilated convolution layers (64 filters; size = 3x3). A 3x3 convolution layer was used to implement the identity connection in the residual block.

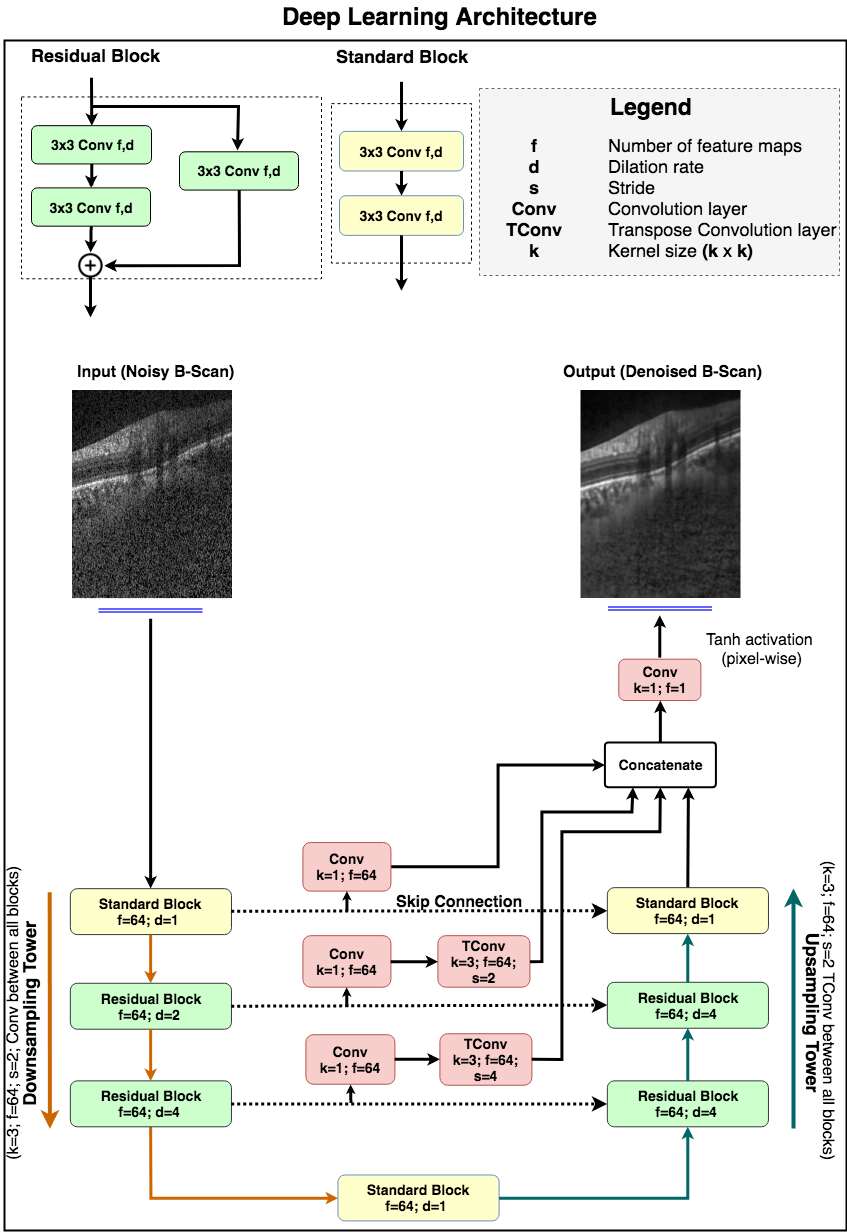

Figure 1: The architecture comprised of two towers: (1) A downsampling tower – to capture the contextual information (i.e., spatial arrangement of the tissues), and (2) an upsampling tower – to capture the local information (i.e., tissue texture). Each tower consisted of two blocks: (1) a standard block, and (2) a residual block. The latent space was implemented as a standard block. The multi-scale hierarchical feature extraction unit helped better recover tissue edges eroded by speckle noise. The network consisted of 900k trainable parameters.

In the downsampling tower, an input B-scan (size: 496x384) was fed to a standard block (dilation rate: 1) followed by two residual blocks (dilation rate: 2 and 4, respectively). A convolution layer (64 filters; size = 3x3; stride = 2) after every block sequentially reduced the dimensionality, enabling the network to understand the contextual information.


The latent space was implemented as a standard block (dilation rate: 1) to transfer the feature maps from the downsampling to the upsampling tower.

The upsampling tower helped the network capture the local information. It consisted of two residual blocks (dilation rate: 4) and a standard block (dilation rate: 1). After every block, a transpose convolution layer (64 filters; size = 3x3; stride = 2) was used to restore the B-scan sequentially to its original dimension.

Multi-scale hierarchical feature extraction [71] helped recover tissue boundaries eroded by speckle noise in the single-frame B-scans. It was implemented by passing the feature maps at each downsampling level through a convolution layer (64 filters; size = 1x1), followed by a transpose convolution layer (64 filters; size = 3x3) to restore the original B-scan resolution. The restored maps were then concatenated with the output feature maps from the upsampling tower.

Finally, the concatenated feature maps were fed to the output convolution layer (1 filter; size = 1x1), followed by pixel-wise hyperbolic tangent () activation to produce a denoised OCT B-scan.

In both towers, all layers except the last output layer, were activated by an exponential linear unit (ELU) [72]

function. In addition, in each residual block, the feature maps were batch normalized

[73] and ELU activated before addition.

The proposed network comprised of 900,000 trainable parameters. The network was trained end-to-end using the Adam optimizer [74]

, and we used the mean absolute error as loss function. We trained and tested the proposed network on an NVIDIA GTX 1080 founders edition GPU with CUDA v8.0 and cuDNN v5.1 acceleration. With the given hardware configuration, each single-frame OCT B-scan was denoised under 20 ms.


2.6 Training and Testing of the Network

From the dataset of 3,880 B-scans, 2,328 of them (from both eyes of 12 subjects) were used as a part of the training dataset. The training set consisted of ‘clean’ B-scans and their corresponding ‘noisy’ versions. The ‘clean’ B-scans were simply the multi-frame (75x signal averaging) B-scans. The ‘noisy’ B-scans were generated by adding Gaussian noise ( and ) to the respective ‘clean’ B-scans (Figure 2).

The testing set consisted of 1,552 single-frame B-scans (from both eyes of 8 subjects) to be denoised. We ensured that the scans from the same subject weren’t used in both training and testing sets.

2.7 Data Augmentation

An exhaustive offline data augmentation was done to circumvent the scarcity of training data. We used elastic deformations [75, 63], rotations (clockwise and anti-clockwise; ), occluding patches [63], and horizontal flipping for both ‘clean’ and ‘noisy’ B-scans. Briefly, elastic deformations were used to produce the combined effects of shearing and stretching in an attempt to make the network invariant to atypical morphologies (as seen in glaucoma [76]). Ten occluding patches of size 60 x 20 pixels were added at random locations to non-linearly reduce (pixel intensities multiplied by a random factor between 0.2 and 0.8) the visibility of the ONH tissues. This was done to make the network invariant to blood vessel shadows that are common in OCT B-scans [77]. Note that a full description of our data augmentation approach can be found in our previous paper [63].

Using data augmentation, we were able to generate a total of 23,280 ‘clean’ and 23,280 corresponding ‘noisy’ B-scans that were added to the training dataset. An example of data augmentation performed on a single ‘clean’ and corresponding ‘noisy’ B-scan is shown in (Figure 2).

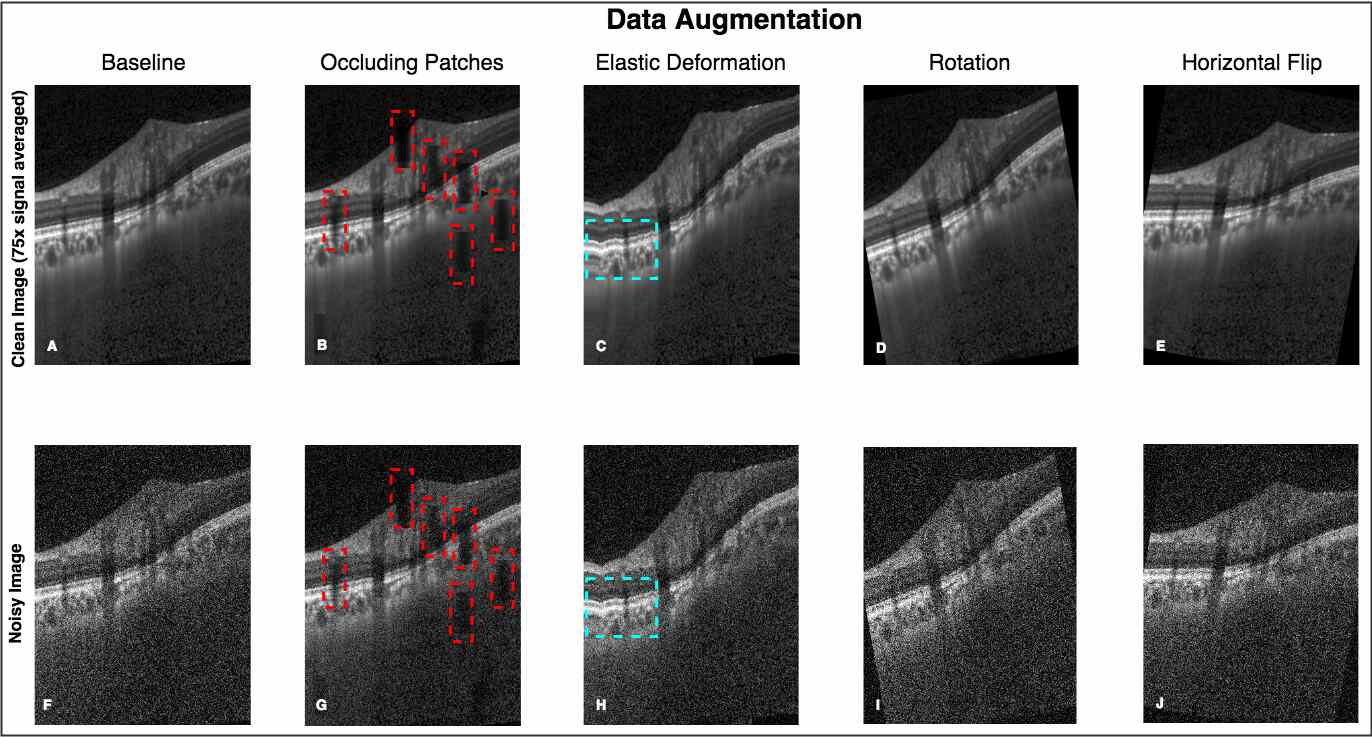

Figure 2: An exhaustive offline data augmentation was done to circumvent the scarcity of training data. (A-E) represent the original and the data augmented ‘clean’ B-scans (multi-frame). (F-J) represent the same for the corresponding ‘noisy’ B-scans. The occluding patches (B and G; red boxes) were added to make the network robust in the presence of blood vessel shadows. Elastic deformations (C and H; cyan boxes) were used to make the network invariant to atypical morphologies. A total of 23,280 B-scans of each type (clean/noisy) were generated from 2,328 baseline B-scans.

2.8 Denoising Performance – Qualitative Analysis

All denoised single-frame B-scans were manually reviewed by expert observers (SD & GS) and qualitatively compared against their corresponding multi-frame B-scans.

2.9 Denoising Performance – Quantitative Analysis

The following image quality metrics were used to assess the denoising performance of the proposed algorithm: (1) signal to noise ratio (SNR); (2) contrast to noise ratio (CNR); and (3) mean structural similarity index measure (MSSIM) [78]. These metrics were computed for the single-frame, multi-frame, and denoised OCT B-scans (all from the testing set; 1,552 B-scans of each type).

The SNR (expressed in dB) was a measure of signal strength relative to noise. It was defined as:

where is the ‘clean’(multi-frame) B-scan, and the B-scan to be compared with (either the ‘noisy’ [single frame] or the denoised B-scan). A high SNR value indicates low noise in the given B-scan with respect to the ‘clean’ B-scan.

The CNR was a measure of contrast difference between different tissue layers. It was defined as:

where and

denoted the mean and variance of pixel intensity for a chosen ROI within the tissue ‘i’ in a given B-scan, while

and represented the same for the background ROI. The background ROI was chosen as a 20 x 384 (in pixels) region at the top of the image (within the vitreous). A high CNR value suggested enhanced visibility of the given tissue.

The CNR was computed for the following tissues: (1) RNFL; (2) ganglion cell layer + inner plexiform layer (GCL + IPL); (3) all other retinal layers; (4) retinal pigment epithelium (RPE); (5) peripapillary choroid; (6) peripapillary sclera; and (7) lamina cribrosa (LC). Note that the CNR was computed only in the visible portions of the peripapillary sclera and LC. For each tissue, the CNR was computed as the mean of twenty five ROIs (8x8 pixels each) in a given B-scan.

The structural similarity index measure (SSIM) [78] was computed to assess the changes in tissue structures (i.e., edges) between the single-frame/denoised B-scans and the corresponding multi-frame B-scans (ground-truth). The SSIM was defined between -1 and +1, where -1 represented ‘no similarity’, and +1 ‘perfect similarity’. It was defined as:

where x and y represented the denoised and multi-frame B-scan respectively; ,

denoted the mean intensity and standard deviation of the chosen ROI in B-scan x, while

, represented the same for B-scan y; represented the cross-covariance of the ROIs in B-scans x and y. C1 and C2 (constants to stabilize the division) were chosen as 6.50 and 58.52, as recommended in a previous study [78].

The MSSIM was computed as the mean of SSIM from ROIs (8x8 pixels each) across an B-scan (stride=1; scanned horizontally). It was defined as:

Note that the SNR, and MSSIM were computed for an entire B-scan, as opposed to the CNR that was computed for individual tissues.

3 Results

3.1 Qualitative Analysis

When trained with the ‘clean’ B-scans (multi-frame) and the corresponding ‘noisy’ B-scans, our network was able to successfully denoise unseen single-frame B-scans. The single-frame, denoised and multi-frame B-scan for a healthy subject can be found in (Figure 3). In all the cases, the denoised B-scans were qualitatively similar to their corresponding multi-frame B-scans (Figure 4). Overall, the visibility of all ONH tissues were prominently enhanced (Figure 3; B).

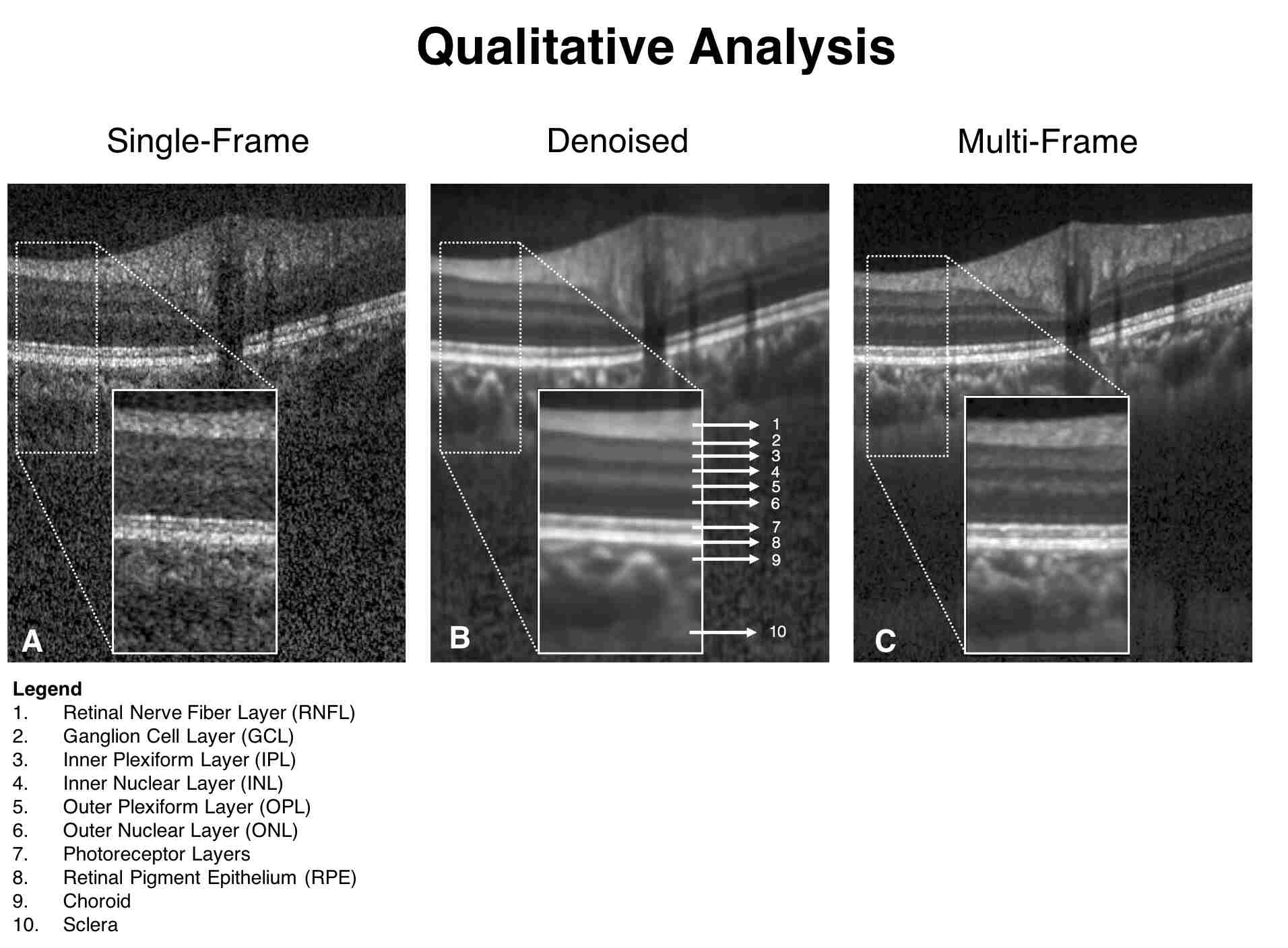

Figure 3: Single-frame (A), denoised (B), and multi-frame (C) B-scans for a healthy subject are shown. The denoised B-scan can be observed to be qualitatively similar to its corresponding multi-frame B-scan. Specifically, the visibility of the retinal layers, and choroid, and lamina cribrosa were prominently improved. Sharp and clear boundaries were also obtained for retinal layers, and the choroid-scleral interface.

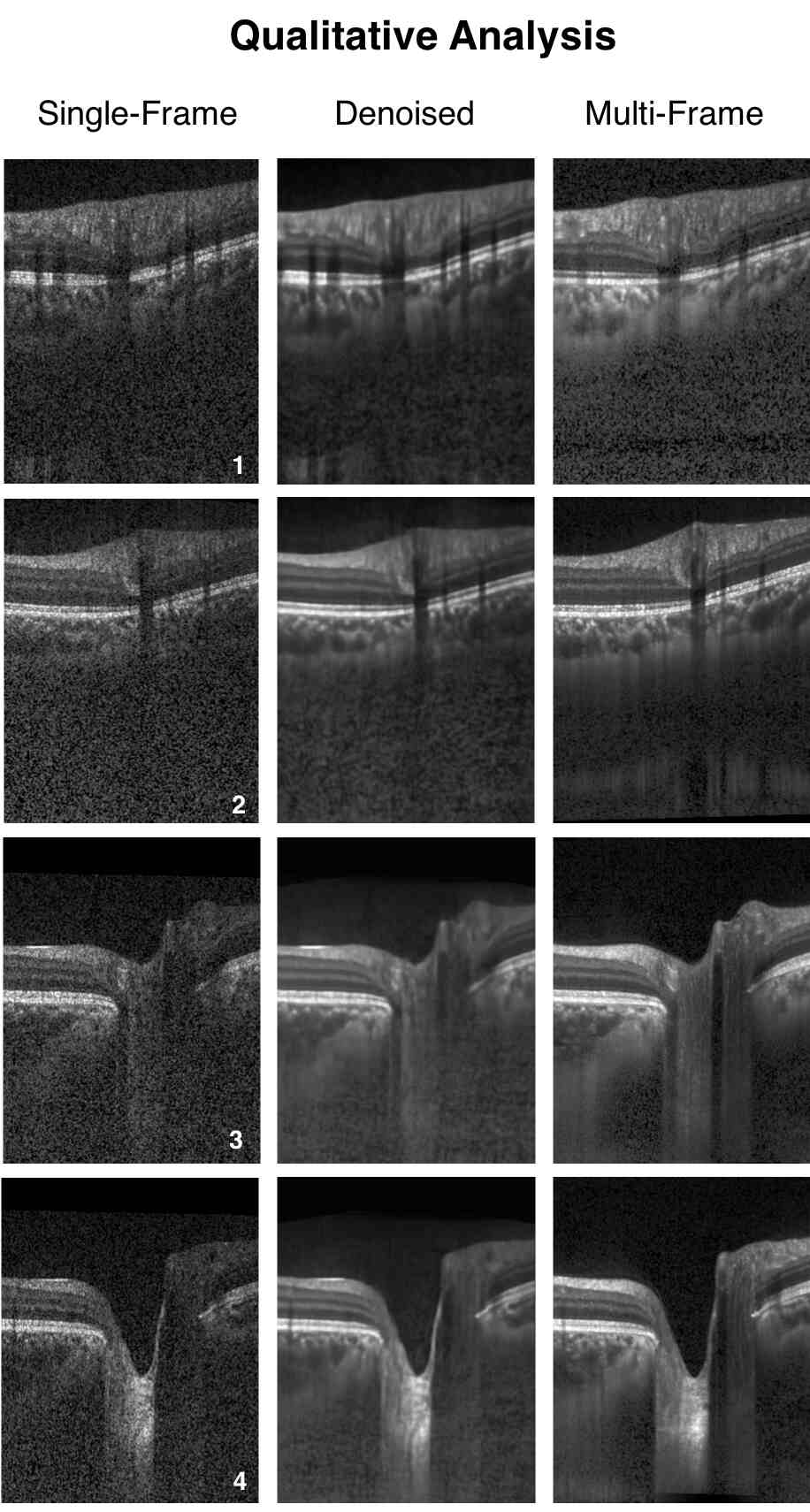

Figure 4: Single-frame, denoised and multi-frame B-scans for four healthy subjects (1-4) are shown. In all cases, the denoised B-scans (2nd column) were consistently similar (qualitatively) to their corresponding multi-frame B-scans (3rd column).

3.2 Quantitative Analysis

On average, we observed a two-fold increase in SNR upon denoising. Specifically, the mean SNR for the unseen single-frame/denoised B-scans were: dB / dB respectively, when computed against their respective multi-frame B-scans.

In all cases, the multi-frame B-scans always offered a higher CNR compared to their corresponding single-frame B-scans. Further, the denoised B-scans consistently offered a higher CNR compared to the single-frame B-scans, for all tissues. Specifically, the mean CNR (Table 1) for the for the single-frame/denoised/multi-frame B-scans were: for the RNFL, for the GCL + IPL, for all other retinal layers, for the RPE, for the choroid, for the sclera, and for the LC.

On average, our denoising approach offered a five-fold increase in MSSIM. Specifically, the mean MSSIM for the single-frame/denoised B-scans were: , when computed against their respective multi-frame B-scans.

4 Discussion

In this study, we present a custom deep learning approach to denoise single-frame OCT B-scans of the ONH. When trained with the ‘clean’ (multi-frame) and the corresponding ‘noisy’ B-scans, our network denoised unseen single-frame B-scans. The proposed network leveraged on the inherent advantages of U-Net, residual learning, and dilated convolutions [63]. Further, the multi-scale hierarchical feature extraction [71] pathway helped the network recover ONH tissue boundaries degraded by speckle noise. Having successfully trained, tested and validated our network on 1,552 single-frame OCT B-scans of the ONH, we observed a consistently higher SNR and CNR for all ONH tissues, and a consistent five-fold increase in the MSSIM in all the denoised B-scans. Thus, we may be able to offer a robust deep learning framework to obtain superior quality OCT B-scans with reduced scanning duration and minimal patient discomfort.

Using the proposed network, we obtained denoised B-scans that were qualitatively similar to their corresponding multi-frame B-scans (Figure 3) and (Figure 4), owing to the reduction in noise levels. The mean SNR for the denoised B-scans was dB, a two-fold improvement (reduction in noise level) from improvement from dB that was obtained for the single-frame B-scans, thus offering an enhanced visibility of the ONH tissues. Given the significance of the neural (retinal layers) [79, 80, 81, 82, 83] and connective tissues (sclera and LC) [84, 85, 86, 87, 88], in ocular pathologies such as glaucoma [2], and age-related macular degeneration [89], their enhanced visibility is critical in a clinical setting. Furthermore, reduced noise levels would likely increase the robustness of aligning/registration algorithms used to monitor structural changes over time [18]. This is crucial for the management of multiple ocular pathologies [90, 91].

In denoised B-scans (vs single-frame B-scans), we consistently observed higher contrast across tissues. Our approach enhanced the visibility of small (e.g. RPE and photoreceptors) and low-intensity tissues (e.g. GCL and IPL; Figure 3 B). For all tissues, the mean CNR increased from (single-frame) to (denoised). Since existing automated segmentation algorithms rely on high contrast, we believe that our approach could potentially reduce the likelihood of segmentation errors that are relatively common in commercial algorithms [15, 16, 17, 92]. For instance, the incorrect segmentation of the RNFL can lead to inaccurate thickness measurements, leading to under-/over- estimation of glaucoma [19]. By using the denoising framework as a precursor to automated segmentation/thickness measurement, we could increase the reliability [93] of such clinical tools.

Upon denoising, we observed a five-fold increase in MSSIM (single-frame/denoised: ), when validated against the multi-frame B-scans. The preservation of features and structural information plays an important role in accurately measuring cellular level disruption to determine retinal pathology. For instance, the measurement of the ellipsoid zone (EZ) disruption [94] provides an insight into the photoreceptor structure, that is significant in pathologies such as diabetic retinopathy [95], macular hole [96], macular degeneration [97], and ocular trauma [98]. Existing multi-frame averaging techniques [30] significantly enhance and preserve the integrity of the structural information by supressing speckle noise [31, 40, 41, 42]. However, they are limited by a major clinical challenge: the inability of the patients to remain fixated for long scanning times,[32, 33] and the resultant discomfort [32].

In this study, we are proposing a methodology to significantly reduce scanning time while enhancing OCT signal quality. In our healthy subjects, it took on average 3.5 min to capture a ‘clean’ (multi frame) volume, and 25 s for a ‘noisy’ (single frame) volume. Since we can denoise a single B-scan in 20 ms (or 2 s for a volume of 97 B-scans), this means that we can theoretically generate a denoised OCT volume in about 27 seconds (= time of acquisition of the ‘noisy’ volume [25 s] + denoising processing [2 s]). Thus, we may be able to drastically reduce the scanning duration by more than 7 folds, while maintaining superior image quality.

Besides speckle noise, patient dependent factors such as cataract [99, 100, 101, 102] and/ or lack of tear film in dry eye can significantly diminish OCT scan quality [12, 99, 100, 101, 102, 103]. While lubricating eye drops and frequent blinking can instantly improve image quality for patients with corneal drying [103, 104], the detrimental effects of cataract on OCT image quality might be reduced only if cataract surgery is performed [12, 99, 100]. Moreover, pupillary dilation might be needed especially in subjects with small pupil sizes to obtain acceptable quality B-scans [12, 105], which is highly crucial in the monitoring of glaucoma [105]. Pupillary dilation is also time consuming and may cause patient discomfort [106]. It is plausible that the proposed framework, when extended, could be a solution to the afore-mentioned factors that limit image quality, avoiding the need for any additional clinical procedure.

In this study, several limitations warrant further discussion. First, the proposed network was trained and tested only on B-scans from one device (Spectralis). Every commercial OCT device has its own proprietary algorithm to pre-process the raw OCT data, potentially presenting a noise distribution different from what our network was trained with. Hence, we are unsure of our network’s performance on other devices. Nevertheless, we offer a proof of concept which could be validated by other groups on multiple commercial OCT devices.

Second, we were unable to train our network with a speckle noise model representative of the Spectralis device. Such a model is currently not provided by the manufacturer and would be extremely hard to reverse-engineer because information about all pre- and post-processing done to the OCT signal is also not provided. While there exist a number of OCT denoising studies that assume a Rayleigh [8]

/ Generalized Gamma distribution to describe speckle noise

[40], we observed that they were ill-suited for our network. From our experiments, the best denoising performance was obtained when our network was trained with a simple Gaussian noise model ( and ). It is possible that a thorough understanding of the raw noise distribution prior to the custom pre-processing on the OCT device could improve the performance of our network. We aim to test this hypothesis with a custom-built OCT system in our future works.

Third, while we have discussed the need for reliable clinical information from poor quality OCT scans, that could be critical for the diagnosis and management of ocular pathology (e.g., glaucoma) , we have yet to test the networks’ performance on pathological B-scans.

Fourth, we observed that the SNR and CNR metrics were higher for the denoised B-scans than their corresponding multi-frame B-scans. This could be attributed to over-smoothening (or blurring) of tissue textures that was consistently present in the denoised B-scans. We are currently exploring other deep learning techniques to improve the B-scan sharpness that is lost during denoising.

Fifth, we were unable to provide further validation of our algorithm by comparing our outputs to histology data. Such a validation would be extremely difficult, as one would need to first image a human ONH with OCT, process with histology, and register both datasets. Furthermore, while we believe our algorithm is able to restore tissue texture accurately (when comparing denoised B-scans with multi-frame B-scans), an exact validation of our approach is not possible. Long fixation times in obtaining the multi-frame B-scans lead to subtle motion artifacts (eye movements caused by microsaccades or unstable fixation) [43], displaced optic disc center [107], and axial misalignment [12], causing minor registration errors between the single-frame and multi-frame B-scans, thus preventing an exact comparison between the denoised B-scans and the multi-frame B-scans.

Finally, no quantitative measurements were performed on the denoised images to assess differences in tissue morphology between the denoised and multi-frame B-scans. Undertaking this work in the future could increase the clinical relevance of the denoised B-scans.

In conclusion, we have developed a custom deep learning approach to denoise single-frame OCT B-scans. With the proposed network, we were able to denoise a single-frame OCT B-scan in under 20 ms. We hope that the proposed framework could resolve the current trade-off in obtaining reliable and superior quality scans, with reduced scanning times and minimal patient discomfort. Finally, we believe that our approach may be helpful for low-cost OCT devices, whose noisy B-scans may be enhanced by artificial intelligence (as opposed to expensive hardware) to the same quality as in current commercial devices.


Acknowledgments

Singapore Ministry of Education Academic Research Funds Tier 1 (R-155-000-168-112 [AHT];R-397-000-294-114 [MJAG]); National University of Singapore (NUS) Young Investigator Award Grant (NUSYIAFY16P16; R-155-000-180-133; AHT); National University of Singapore Young Investigator Award Grant (NUSYIAFY13P03; R-397-000-174-133 [MJAG]); Singapore Ministry of Education Academic Research Funds Tier 2 (R-397-000-280-112 [MJAG]);National Medical Research Council (Grant NMRC/STAR/0023/2014 [TA]).

Disclosures

The authors declare that there are no conflicts of interest related to this article.
