The cumulative number of COVID-19 positive subjects reported globally is now over 231 million and the cumulative number of deaths by COVID-19 is more than 4.7 million . Furthermore, the COVID-19 crisis now is spanning across 200 countries quickly and the number of COVID-19 infections per day is always counted in thousands without a sign of going down. It is vital that one of the effective solutions to prevent and control the current epidemic is to conduct a large number of COVID-19 testing in popularity which has been widely applied in many countries. Indeed, if COVID-19 positive subjects can be detected early, it is very useful for self-observation, isolation, and effective treatment methods. However, take a large number of rapid antigen or RT-PCR tests shows a very high cost of both time and money. As a result, the DiCOVA Challenges are designed to find scientific and engineering insights to the question - Can COVID-19 be detected from the cough, breathing, or speech sound signals of an individual? In particular, while the First 2021 DiCOVA Challenge  provides a dataset of cough sound, the Second 2021 DiCOVA Challenge  provides different sound signals of cough, speech, and breath. The audio recordings are gathered from both COVID-19 positive and non-COVID-19 individuals 111https://competitions.codalab.org/competitions/34801##learn_the_details. Given the cough, speech, and breath recordings, research community can propose systems for detecting the COVID-19, which is potentially applied on edge devices as a COVID-19 testing solution.
Focusing on cough sound, recent researchers show that it potential to detect COVID-19 through evaluating coughing. For an example, a machine learning-based framework proposed in
uses handcrafted features and Support Vector Machine (SVM) model, achieved the AUC score of 85.02 on the First 2021 DiCOVA dataset. On this dataset, a deep learning-base framework proposed in , which use the ConvNet model incorporated with Data Augmentation, achieved the best AUC score of 87.07 and claiming the 1st position on the First DiCOVA 2021 Challenge leaderboard. Focusing on feature extraction, Madhu et al.
combined the Mel-frequency cepstral coefficients (MFCC) with the delta features (i.e. The delta features are extracted from a complicated framework using Long Short-Term Memory (LSTM), Gabor filter bank, and the Teager energy operator (TEO) in the order). By using the combined feature and the LightGBM model, the authors can achieve the AUC score of 76.31 on the First 2021 DiCOVA dataset. Similarly, Vincent et al.  conducted extensive experiments to evaluate the role of the feature extraction. In particular, they proposed to use three types or features: (1) Handcrafted features extracted by openSMILE toolkit
, (2) the deep features extracted from different pre-trained VGGish networks which are trained with AudioSet
, and (3) the deep features extracted from different standard pre-trained models (ResNet50, DenseNet121, MobileNetV1, etc.) trained with Imagenet dataset. They then obtained the best AUC score of 72.8 on the First 2021 DiCOVA dataset by using the deep features extracted from the pre-trained VGG16 (i.e. The pre-trained VGG16 was trained with AudioSet) and the back-end LSTM-based classification. Recently, a benchmark dataset of cough sound for detecting COVID-19 [10, 11], which was recorded on mobile phone, has been published. Notably, the current achievement of 98% accuracy on this dataset shows potential to apply as an effective solution of COVID-19 testing.
In this paper, we also aim to explore cough sounds, then propose a framework for detecting COVID-19. We mainly contribute: (1) By conducting extensive experiments, we indicate that a combination of handcrafted feature and embedding-based feature is effective to representing cough sound input, and (2) we propose a robust framework which can be further developed on edge devices for an application of COVID-19 testing. Our experiments were conducted on the Second 2021 DiCOVA Challenge - Track 2 dataset (i.e. The Track 2 dataset only contains cough sounds).
The remaining of our paper is organized as follows: Section 2 presents the Second 2021 DiCOVA Challenge as well as the Track-2 dataset, evaluation setting, and metrics. Section 3 presents the proposed deep learning framework. Next, Section 4 presents and analyses the experimental results. Finally, Section 5 presents the conclusion and future work.
2 the Second 2021 DiCOVA Challenge - Track 2 dataset of cough sounds
2.1 The second DiCOVA Challenge

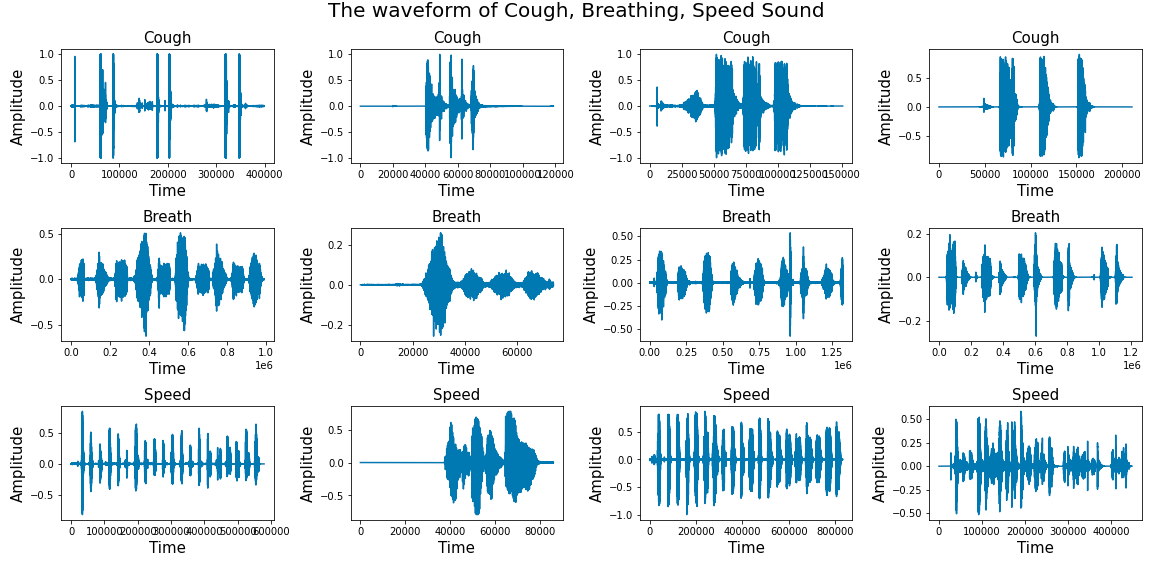

The Second 2021 DiCOVA Challenge uses a subset of the Coswara dataset  collected between April 2020 and July 2021 from the age group of 15 to 90. The challenge provided a dataset of different sound signals: cough, speech, and breath gathered from both COVID-19 positive and non-COVID-19 individuals as shown in Fig. 2. Given cough, speech, and breath sounds, the Second 2021 DiCOVA Challenge proposes four tracks which aim to detect COVID-19 positive subjects by exploring only breath (Track-1), only cough (Track-2), only speech (Track-3), or all sound signals (Track-4).
As we focus on cough sounds, which is also the First 2020 DICOVA Challenge , only Track-2 dataset is explored in this paper. The Second 2021 DiCOVA Challenge Track-2 dataset provided a Development set of 965 audio recordings and a blind Test set of 471 audio recordings. All audio recordings are not less than 500 milliseconds and recorded with different sample rates. While the Development set is used for training, and then obtaining the best model, the Blind Test set is used for evaluating and comparing the systems’ performance submitted. In the Development set, there are totally 793 negative labels and 172 positive labels, which shows an unbalanced dataset .
2.2 The evaluation setting

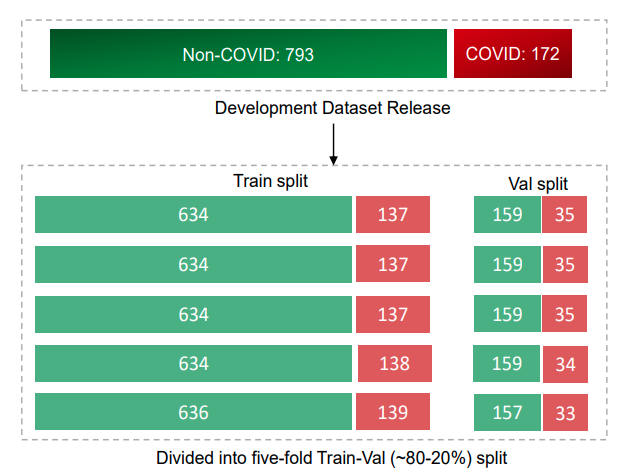

To evaluate on the Development set, the challenge requires to follow five-fold cross-validation , each fold comprises Train and Valid subsets as shown in Fig. 3. The evaluation result on the Development set is the average of results on all five folds. To evaluate on the blind Test set, the obtained result on this set is submitted to the Second 2021 DiCOVA Challenge for evaluating, ranking, and comparing with the other submitted systems.
2.3 The evaluation metrics
The ‘Area under the ROC curve’ (AUC) is used as the primary evaluation metric in the Second 2021 DiCOVA Challenge. The curve is obtained by varying the decision threshold between 0 and 1 with a step size of 0.0001. Additionally, the Sensitivity (Sen.) and the Specificity (Spec.), which are computed at every threshold value, are used as the secondary evaluation metrics (Note that Spec. is required to be equal or greater than 95%). The Leaderboard evaluates the submitted systems on the blind Test set as well as the average performance on five-fold cross validation from the Development set (Avg. AUC).
3 Framework architecture proposed
3.1 High-level framework architecture

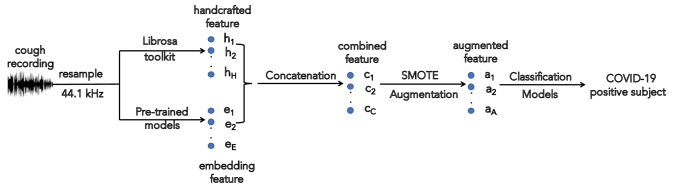

The overall framework architecture is described as Fig. 1. As the audio recordings show different sample rates, they are firstly re-sampled to 44.1 kHz using mono channel. Then, the re-sampled recordings are fed into the front-end feature extraction where embedding-based features and handcrafted features are extracted and concatenated to obtain the combined features. To deal with the issue of unbalanced dataset mentioned in Section 2.1, SVM-based SMOTE method  is applied on the combined features to make sure the equal number of positive and negative samples. Finally, the features after data augmentation are fed into different back-end classification models for detecting COVID-19 positive cases.
3.2 Front-end Feature Extraction
In this step, we propose a method to create a combined feature by combining handcrafted features and embedding features extracted from pre-trained models. Regarding handcrafted features, 64 Mel-frequency cepstral coefficients (MFCCs), 12 Chromatic (Chroma), 128 Mel Spectrogram (Mel), 1 Zero-Crossing rate, 1 Gender and 1 Duration are used in this paper. These handcrafted features are used as they are popular adoption in speech processing and show robust in the First 2021 DiCOVA Challenge [6, 7, 4]. To extract these handcrafted features, Librosa , a powerful library of audio signal processing, is used in this paper. As MFCC, Chromatic and Mel spectrogram are two-dimensional features, they are converted into one-dimensional shape before concatenating with the other features.
As regards the embedding features, we evaluate different embedding features which are extracted from different pre-trained models: YAMNet , Wave2Vec , TRILL , and the COMPARE 2016 feature sets  using OpenSMILE  toolkit. As using these pre-trained models shows effective for a wide range of classification tasks (i.e. For an example, the pre-trained TRILL model with AudioSet  proved robust for a wide range of classification tasks on non-semantic speech signal such as speaker identity, language, and emotional state in
), these embeddings are expected to work well with the 2021 DiCOVA Track-2 dataset of cough sounds. By using the pre-trained models, when we feed the cough recordings into the pre-trained models, two-dimensional embeddings are extracted. We then compute mean and standard deviation across the time dimension, concatenating mean and standard deviation to obtain one-dimensional embeddings. The embeddings are then concatenated with the handcrafted features mentioned above to create the combined features. Finally, the combined features are scaled into the range of [0:1] before doing data augmentation and then feeding into the back-end classification models.
3.3 Back-end Classification Models
In this paper, we evaluate different back-end classification models: Light Gradient Boosting Machine (LightGBM), Random Forrest (RF), Support Vector Machine (SVM), Multi-layer Perceptron (MLP), and Extra Tree Classifier (ETC). The setting of these back-end classification models are described in Table1 and all these models are implemented by using Scikit-Learn toolkit .
|Support Vector Machine (SVM)||C=1.0|
|Random Forest (RF)||Max Depth of Tree = 20,|
|Number of Trees = 100|
|Two hidden layer (4096 nodes),|
|Multilayer Perceptron (MLP)||Adam optimization,|
|Max iter = 200|
|Learning rate = 0.001,|
|ExtraTreesClassifier (ETC)||Max Depth of Tree = 20|
|learning rate = 0.03|
|LightGBM ||objective = ‘binary’|
|metric = ‘auc’|
|subsample = 0.68|
|colsample_bytree = 0.28|
|early_stopping_rounds = 100|
|num_iterations = 10000|
|subsample_freq = 1|
To obtain results, each classification model is run with 10 seeds numbered from 0 to 9. The output of the cross-validation session will calculated by using soft voting  between seeds. The GTX 1080 Titan GPU environment is used for running classification experiments.
4 Experimental results and discussion
4.1 Performance comparison across different features
|Extracted Features||AUC||Sens.||Spec.||Avg. AUC|
|(blind test)||(blind test)||(blind test)||(development)|
|COMPARE 2016 ||63.18||15.00||95.13||71.00|
|Handcraft + YAMNet||77.27||41.67||95.13||77.33|
|Handcraft + COMPARE 2016||69.14||25.00||95.13||77.19|
|Handcraft + Wave2Vec||71.00||25.00||95.13||71.47|
|Handcraft + TRILL||81.21||48.33||95.13||77.18|
|Classification||(blind test)||(blind test)||(blind test)||(development)|
To evaluate different features, we keep the back-end classification model of LightGBM unchanged while replacing different input features: handcrafted, YAMNet based embedding, COMPARE 2016 based embedding, Wave2Vec based embedding, TRILL based embedding, handcrafted & YAMNet, handcrafted & COMPARE 2016, handcrafted & Wave2Vec, and handcrafted & TRILL features. As the results are shown in Table 2, it can be seen that TRILL-based embedding outperforms the other single features, reporting an Avg. AUC score of 73.77 on the Development set. When we combine the handcrafted feature with different embedding-based features of YAMNet, COMPARE 2016, and TRILL, it is effective to improve the performance, reporting Avg. AUC scores of 77.33, 77.19, and 77.18, respectively compared with 72.62 of using handcrafted feature only. The best performance is obtained from the combination of the handcrafted feature and TRILL-based embedding feature, achieving the AUC, Sen., and Spec. scores of 81.21, 48.33, and 95.13 respectively on the blind Test set.
4.2 Performance comparison across different classification models
As we obtained the best handcrafted & TRILL-based embedding feature from the experiments above, we now evaluate how back-end classification models affect the performance. To this end, we keep the handcrafted & TRILL-based embedding feature unchanged while replacing the different back-end classification models: LightGBM, Support Vector Machine (SVM), Random Forest (RF), Extra Trees Classifier (ETC), and Multi-layer perceptron (MLP). As the results are shown in Table 3, the LightGBM model, which is used to evaluate different features, achieves the best scores. Meanwhile, the other models show competitive results, reporting Avg. AUC scores of 75.54, 74.04, 72.50, and 74.87 for SVM, RF, MLP, and ETC, respectively.
4.3 Performance comparison across the top-10 systems submitted for the Second 2021 DiCOVA Challenge Track-2
The Table 4 presents the performance comparison across the top-10 systems submitted for the Second 2021 DiCOVA Challenge Track-2. As shown in Table 4, our best results from handcrafted & TRILL-based embedding features and LightGBM model achieve the top-2 ranking, reporting the AUC score of 81.21, the Sen. score of 48.33, the Spec. score of 95.13 on the blind Test set, and the Avg. AUC score of 77.18 on the Development set. Notably, our Sen. result on blind Test set and Avg. AUC on the Development set achieve the top-1 ranking. These results prove that our proposed system is robust, competitive, and has the potential to be further applied on edge devices for detecting COVID-19.
|(blind test)||(blind test)||(blind test)||(development)|
|2nd (Our system)||81.21||48.33||95.13||77.18|
5 Conclusion and Future Work
This paper presents a deep learning-based framework for detecting COVID-19 positive subjects by exploring their cough sounds. By conducting extensive experiments on the Second 2021 DiCOVA Challenge Track-2 dataset, we showed that our best model, which uses a combination of handcrafted & TRILL-based embedding features and LightGBM model, achieve the top-2 ranking of the challenge and are competitive to the state-of-the-art systems.
Our further research are to focus on different sound representations such as Chroma Feature, Spectral Contrast, Tonnetz, etc , as well as to explore breathing, speech sounds provided by the Second 2021 DiCOVA Challenge.
