I Introduction
Wideband beamforming has been studied extensively in the past [1, 2]. It is well-known that in order to avoid the spatial aliasing problem for uniform linear arrays (ULAs), the adjacent sensor spacing has to be less than half of the minimum operating wavelength corresponding to the highest frequency of the signal of interest. On the other hand, sparse arrays allow adjacent sensor separations greater than half a wavelength while still avoiding grating lobes due to the randomness of sensor locations [3].
However, the unpredictable sidelobe behaviour associated with sparse arrays means some optimisation of sensor locations is required to reach an acceptable performance level. Various nonlinear methods have been used to achieve this required optimisation. For example, Genetic Algorithms (GAs) [4, 5, 6] and Simulated Annealing (SA) [7] have been regularly used. The disadvantage of these types of methods are the potentially extremely long computation times and the possibility of convergence to a non-optimal solution.
Recently, the area of compressive sensing (CS) has been explored [8], and CS-based methods have been proposed in the design of narrowband sparse arrays [9, 10, 11, 12]. Further work has also shown that it is possible to improve the sparseness of a solution by considering a reweighted minimisation problem [13, 14, 15, 16]. The aim of these methods is to bring the minimisation of the norm of the weight coefficients closer to that of the minimisataion of the norm.
However, for a wideband array to be sparse, all coefficients along the tapped delay-lines (TDLs) associated with an individual sensor have to be equal or very close to zero. Therefore, it is not sufficient to simply minimize the norm of the weight coefficients. Instead, a method similar to the technique employed in complex-valued norm minimization [17], is presented in this paper, which can be considered as an expanded version of the idea in [18]. As in the case with narrowband array design, it is possible to use a reweighted scheme for the wideband method as well.
Ii Wideband Array Model
A general linear array structure for wideband beamforming with a TDL length J is shown in Fig. 1, where is the sampling period or temporal delay between adjacent signal samples [2]. The beamformer output is a linear combination of differently delayed versions of the received array signals , . The distance from the zeroth sensor to the subsequent sensor is denoted by for , where as it is the distance from the zeroth sensor to itself.
The steering vector of the array as a function of the normalized frequency
and the angle of arrival is| (1) | |||||
where for and indicates transpose operation.
The response of the array is then given by
| (2) |
where is the Hermitian transpose of the weight coefficient vector of the array, given by
| (3) |
with
| (4) |
Iii Sparse Wideband Array Design via Compressive Sensing
As previously mentioned, CS has been employed in the design of sparse narrowband arrays by trying to match the array’s response to a desired/reference one, . Extending the design to the wideband case, we first consider Fig. 1 as being a grid of potential active sensor locations. In this instance, is the maximum aperture of the array and the values of , for , are selected to give a uniform grid, with being a large enough number to cover all potential locations of the sensors. Sparseness is then introduced by selecting the set of weight coefficients to give as few active locations as possible, while still giving a designed response that is close to the desired one.
In the first instance, this problem could be formulated as
| (5) | |||||
| subject to |
where is the number of nonzero weight coefficients in w, is the vector holding the desired beam response at sampled frequency points and angle , , , S is the matrix composed of the steering vectors at the corresponding frequency and angle , and places a limit on the allowed difference between the desired and the designed responses. In the constraint in (5) denotes the norm.
In detail, and S are respectively given by
and
| S | ||||
Here the desired response can be obtained from that of a traditional uniform linear array, or simply assumed to be an ideal response (i.e. one at the mainlobe area and zero for the sidelobe area) and this is adopted in what follows.
In practice, the cost function in (5) will be replaced by the norm,
| (6) | |||||
| subject to |
The above formulation is effective in the design of narrowband arrays, where the TDL length (i.e. each sensor has only one weight coefficient attached) and the number of nonzero coefficients will be the same as the number of active sensors. In other words, any coefficient with a zero value will mean that the associated sensor is inactive. However, in the wideband case, to guarantee a sparse solution, the weight coefficients along a TDL have to be simultaneously minimized. When all coefficients along a TDL are zero-valued, we can then consider the corresponding location to be inactive and sparsity is introduced. To achieve this, similar to the technique used in complex-valued norm minimization [17], we minimize a modified norm as follows [18],
| (7) | |||||
| subject to | |||||
where
| (8) |
Now define
| (11) |
| (12) |
and
| (13) | |||||
where is an all-zero row vector. A matrix similar to (III) can be created from , given by
Finally we arrive at the final formulation for the sparse wideband sensor array design problem
| subject to | ||||
In the above formulation, it is straightforward to add additional constraint to meet some specific design requirements. For example, we can add the response variation constraint derived in [22, 23] to design a sparse wideband array with frequency invariant beam response [19, 20, 21, 22], where the matrix L and the threshold value are formulated to make sure the change of response of the resultant beamformer with respect to different frequencies is limited to an acceptable level.
Iv Design Examples
In this section design examples are presented, which were all implemented on a computer with an Intel Core Duo CPU E6750 (2.66GHz) and 4GB of RAM. Comparisons will be drawn with a GA-based design method, which optimises the locations given a fixed number of sensors. In the GA based design, the fitness value was chosen to be , where is defined in [22].
In the following example, the reference pattern was that of an ideal array with the mainlobe at and sidelobe regions of , which were sampled every . The frequency range of interest was sampled every , with the reference frequency . A grid of potential sensor locations was spread uniformly over an aperture of , where the value of is the wavelength associated with a normalized frequency of . The values , , and TDL length were used.

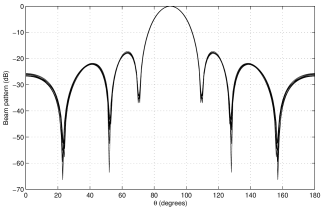

The resulting array using the reweighted method was made up of active sensor locations as given in Tab. I, with its beam response shown in Fig. 2. It can be seen that the mainlobe is at the desired location for each normalised frequency and sufficient attenuation has been achieved in the sidelobe regions. The response also shows a good level of performance in terms of the FI property.
| n | n | ||
| 0 | 6 | ||
| 1 | 7 | ||
| 2 | 8 | ||
| 3 | 9 | ||
| 4 | 10 | ||
| 5 |

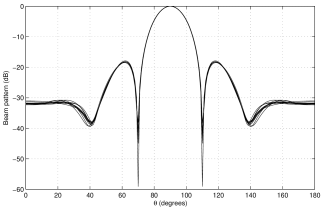

This was then compared to an array designed using the GA-based method. To allow a fair comparison, the GA was set to optimise sensor locations over an aperture of , the same as the example given in Tab. I. Fig. 3 shows the resulting array response.All these show a good performance in terms of both sidelobe attenuation and the FI property.
Tab. II summarises the different performance measures for each design method. The main disadvantage of the GA design method is clearly shown, i.e. the computation time is significantly longer. The mean adjacent sensor spacings are the same in both cases and larger than the spacing of an equivalent ULA. This suggest some sparsity has been achieved, with the same level in both cases. Finally the value of is slightly lower for reweighted CS designed array, suggesting that in this instance the reweighted wideband CS method has provided a more desirable response (the difference largely being the FI property in the extremes of the sidelobe regions). This will not be guaranteed to be the case all the time.
| Method | Reweighted | GA |
|---|---|---|
| Mean Spacing/ | 0.62 | 0.62 |
| 0.0372 | 0.0376 | |
| Computation Time (minutes) | 130 | 436 |
V Conclusions
In this paper, a CS-based method for the design of sparse wideband arrays has been proposed, where a modified norm minimization problem is derived to simultaneously minimize the coefficients along a tapped delay-line associated with each sensor. Extra constraints can then be added to meet the specific design requirements, such as the frequency invariant constraint. To further improve the sparsity of the final design result, an iterative process is employed with a reweighting term introduced in the cost function. Design examples have been presented, with comparisons also drawn with a GA-based method. Similar performance levels are achieved but the GA design takes considerably longer to reach the solution, highlighting the advantage of our proposed design methods.
References
-
[1]
H. L. Van Trees,
Optimum Array Processing, Part IV of Detection, Estimation, and Modulation Theory
. New York, U.S.A.: John Wiley & Sons, Inc., 2002. - [2] W. Liu and S. Weiss, Wideband Beamforming: Concepts and Techniqeus. Chichester, UK: John Wiley & Sons, 2010.
- [3] P. Jarske, T. Saramaki, S. K. Mitra, and Y. Neuvo, “On properties and design of nonuniformly spaced linear arrays,” IEEE Transactions on Acoustics, Speech, and Signal Processing, vol. 36, no. 3, pp. 372 –380, March 1988.
- [4] R. L. Haupt, “Thinned arrays using genetic algorithms,” IEEE Transactions on Antennas and Propagation, vol. 42, no. 7, pp. 993–999, July 1994.
- [5] K.-K. Yan and Y. Lu, “Sidelobe reduction in array-pattern synthesis using genetic algorithm,” IEEE Transactions on Antennas and Propagation, vol. 45, no. 7, pp. 1117 –1122, July 1997.
- [6] M. B. Hawes and W. Liu, “Location optimisation of robust sparse antenna arrays with physical size constraint,” IEEE Antennas and Wireless Propagation Letters, pp. 1303–1306, November 2012.
- [7] A. Trucco and V. Murino, “Stochastic optimization of linear sparse arrays,” IEEE Journal of Oceanic Engineering, vol. 24, no. 3, pp. 291–299, July 1999.
- [8] E. Candes, J. Romberg, and T. Tao, “Robust uncertainty principles: exact signal reconstruction from highly incomplete frequency information,” IEEE Transactions on Information Theory, vol. 52, no. 2, pp. 489 – 509, February 2006.
- [9] L. Li, W. Zhang, and F. Li, “The design of sparse antenna array,” CoRR, vol. arXiv.org/abs/0811.0705, 2008.
- [10] G. Prisco and M. D’Urso, “Exploiting compressive sensing theory in the design of sparse arrays,” in Proc. IEEE Radar Conference, May 2011, pp. 865 –867.
- [11] L. Carin, “On the relationship between compressive sensing and random sensor arrays,” IEEE Antennas and Propagation Magazine, vol. 51, no. 5, pp. 72 –81, October 2009.
- [12] M. B. Hawes and W. Liu, “Robust sparse antenna array design via compressive sensing,” in Proc. International Conference on Digital Signal Processing, July 2013.
- [13] E. J. Candes, M. B. Wakin, and S. P. Boyd, “Enhancing sparsity by reweighted minimization,” Journal of Fourier Analysis and Applications, vol. 14, pp. 877–905, 2008.
- [14] B. Fuchs, “Synthesis of sparse arrays with focused or shaped beampattern via sequential convex optimizations,” IEEE Transactions on Antennas and Propagation, vol. 60, no. 7, pp. 3499 –3503, july 2012.
- [15] G. Prisco and M. D’Urso, “Maximally sparse arrays via sequential convex optimizations,” IEEE Antennas and Wireless Propagation Letters, vol. 11, pp. 192 –195, 2012.
- [16] M. B. Hawes and W. Liu, “Compressive sensing based approach to the design of linear robust sparse antenna arrays with physical size constraint,” IET Microwaves, Antennas & Propagation, 2014, DOI: 10.1049/iet-map.2013.0469.
- [17] S. Winter, H. Sawada, and S. Makino, “On real and complex valued -norm minimization for overcomplete blind source separation,” in Proc. of IEEE Workshop on Applications of Signal Processing to Audio and Acoustics, October 2005, pp. 86 – 89.
- [18] M. B. Hawes and W. Liu, “Sparse microphone array design for wideband beamforming,” in Proc. International Conference on Digital Signal Processing, July 2013.
- [19] W. Liu, S. Weiss, J. G. McWhirter, and I. K. Proudler, “Frequency invariant beamforming for two-dimensional and three-dimensional arrays,” Signal Processing, vol. 87, pp. 2535–2543, November 2007.
- [20] W. Liu and S. Weiss, “Design of frequency invariant beamformers for broadband arrays,” IEEE Transactions on Signal Processing, vol. 56, no. 2, pp. 855–860, February 2008.
- [21] W. Liu, D. McLernon, and M. Ghogho, “Design of frequency invariant beamformer without temporal filtering,” IEEE Transactions on Signal Processing, vol. 57, no. 2, pp. 798–802, February 2009.
- [22] Y. Zhao, W. Liu, and R. J. Langley, “An application of the least squares approach to fixed beamformer design with frequency invariant constraints,” IET Signal Processing, vol. 5, pp. 281–291, June 2011.
- [23] ——, “Adaptive wideband beamforming with frequency invariance constraints,” IEEE Transactions on Antennas and Propagation, vol. 59, no. 4, pp. 1175–1184, April 2011.
- [24] C. Research, “CVX: Matlab software for disciplined convex programming, version 2.0 beta,” http://cvxr.com/cvx, September 2012.
- [25] M. Grant and S. Boyd, “Graph implementations for nonsmooth convex programs,” in Recent Advances in Learning and Control, ser. Lecture Notes in Control and Information Sciences, V. Blondel, S. Boyd, and H. Kimura, Eds. Springer-Verlag Limited, 2008, pp. 95–110, http://stanford.edu/~boyd/graph$_$dcp.html.
