1 Introduction

[PLEASE NOTE THAT THIS MANUSCRIPT HAS BEEN ACCEPTED BY IJCV. THE LATEST MANUSCRIPT CAN BE FOUND IN IBUG SITE (https://ibug.doc.ic.ac.uk/media/uploads/documents/ijcv_deformable_tracking_review.pdf) OR IN THE SPRINGER SITE/AUTHORS’ SITES.] The human face is arguably among the most well-studied deformable objects in the field of Computer Vision. This is due to the many roles it has in numerous applications. For example, accurate detection of faces is an essential step for tasks such as controller-free gaming, surveillance, digital photo album organization, image tagging, etc. Additionally, detection of facial features plays a crucial role for facial behaviour analysis, facial attributes analysis (e.g., gender and age recognition, etc.), facial image editing (e.g., digital make-up, etc.), surveillance, sign language recognition, lip reading, human-computer and human-robot interaction.

Due to the above applications, current research has been monopolised by the tasks of face detection, facial landmark localisation and face recognition or verification. Firstly, face detection, despite having permeated many forms of modern technology such as digital cameras and social networking, is still a challenging problem and a popular line of research, as shown by the recent surveys of Jain and Learned-Miller (2010); Zhang and Zhang (2010); Zafeiriou et al (2015). Although face detection on well-lit frontal facial images can be performed reliably on an embedded device, face detection on arbitrary images of people is still extremely challenging (Jain and Learned-Miller (2010)). Images of faces under these unconstrained conditions are commonly referred to as “in-the-wild” and may include scenarios such as extreme facial pose, defocus, faces occupying a very small number of pixels or occlusions. Given the fact that face detection is still regarded as a challenging task, many generic object detection architectures such as Yan et al (2014); King (2015) are either directly assessed on in-the-wild facial data, or are appropriately modified in order to explicitly perform face detection as done by Zhu and Ramanan (2012); Felzenszwalb and Huttenlocher (2005). The interested reader may refer to the most recent survey by Zafeiriou et al (2015) for more information on in-the-wild face detection. The problem of localising facial landmarks that correspond to fiducial facial parts (e.g., eyes, mouth, etc.) is still extremely challenging and has only been possible to perform reliably relatively recently. Although the history of facial landmark localisation spans back many decades (Cootes et al (1995, 2001)), the ability to accurately recover facial landmarks on in-the-wild images has only become possible in recent years (Matthews and Baker (2004); Papandreou and Maragos (2008); Saragih et al (2011); Cao et al (2014)). Much of this progress can be attributed to the release of large annotated datasets of facial landmarks (Sagonas et al (2013b, a); Zhu and Ramanan (2012); Le et al (2012); Belhumeur et al (2013); Köstinger et al (2011)) and very recently the area of facial landmark localisation has become extremely competitive with recent works including Xiong and De la Torre (2013); Ren et al (2014); Kazemi and Sullivan (2014); Zhu et al (2015); Tzimiropoulos (2015). For a recent evaluation of facial landmark localisation methods the interested reader may refer to the survey by Wang et al (2014) and to the results of the 300W competition by Sagonas et al (2015)

. Finally, face recognition and verification are extremely popular lines of research. For the past two decades, the majority of statistical machine learning algorithms spanning from linear/non-linear subspace learning techniques (

De la Torre (2012); Kokiopoulou et al (2011)

) to Deep Convolutional Neural Networks (DCNNs) (

Taigman et al (2014); Schroff et al (2015); Parkhi et al (2015)) have been applied to the problem of face recognition and verification. Recently, due to the revival of DCNNs, as well as the development of Graphics Processing Units (GPUs), remarkable face verification performance has been reported (Taigman et al (2014)). The interested reader may refer to the recent survey by Learned-Miller et al (2016) as well as the most popular benchmark for face verification in-the-wild in Huang et al (2007).

In all of the aforementioned fields, significant progress has been reported in recent years. The primary reasons behind these advances are:

  • The collection and annotation of large databases. Given the abundance of facial images available primarily through the Internet via services such as Flickr, Google Images and Facebook, the collection of facial images is extremely simple. Some examples of large databases for face detection are FDDB (Jain and Learned-Miller (2010)), AFW (Zhu and Ramanan (2012)) and LFW (Huang et al (2007)). Similar large-scale databases for facial landmark localisation include 300W (Sagonas et al (2013b)) LFPW (Belhumeur et al (2013)), AFLW (Köstinger et al (2011)) and HELEN (Le et al (2012)). Similarly, for face recognition there exists LFW (Huang et al (2007)), FRVT (Phillips et al (2000)) and the recently introduced Janus database (IJB-A) (Klare et al (2015)).

  • The establishment of in-the-wild benchmarks and challenges that provide a fair comparison between state of the art techniques. FDDB (Jain and Learned-Miller (2010)), 300W (Sagonas et al (2013a, 2015)) and Janus (Klare et al (2015)) are the most characteristic examples for face detection, facial landmark localisation and face recognition, respectively.

Contrary to face detection, facial landmark localisation and face recognition, the problem of deformable face tracking across long-term sequences has yet to attract much attention, despite its crucial role in numerous applications. Given the fact that cameras are embedded in many common electronic devices, it is surprising that current research has not yet focused towards providing robust and accurate solutions for long-term deformable tracking. Almost all face-based applications, including facial behaviour analysis, lip reading, surveillance, human-computer and human-robot interaction etc., require accurate continuous tracking of the facial landmarks. The facial landmarks are commonly used as input signals of higher-level methodologies to compute motion dynamics and deformations. The performance of currently available technologies for facial deformable tracking has not been properly assessed (Yacoob and Davis (1996); Essa et al (1996, 1997); Decarlo and Metaxas (2000); Koelstra et al (2010); Snape et al (2015)). This is attributed to the fact that, until recently, there was no established benchmark for the task. At ICCV 2015, the first benchmark for facial landmark tracking (so-called 300VW) was presented by Shen et al (2015), providing a large number of annotated videos captured in-the-wild 111The results and dataset of the 300VW Challenge by Shen et al (2015) can be found at http://ibug.doc.ic.ac.uk/resources/300-VW/. This is the first facial landmark tracking challenge on challenging long-term sequences.. In particular, the benchmark provides 114 videos with average duration around 1 minute, split into three categories of increasing difficulty. The frames of all videos (218595 in total) were annotated by applying semi-automatic procedures, as shown in Chrysos et al (2015). Five different facial tracking methodologies were evaluated in the benchmark (Rajamanoharan and Cootes (2015); Yang et al (2015a); Wu and Ji (2015); Uricar and Franc (2015); Xiao et al (2015)) and the results are indicative of the current state-of-the-art performance.

In this paper, we make a significant step further and present the first, to the best of our knowledge, comprehensive evaluation of multiple deformable face tracking pipelines. In particular, we assess:

  • A pipeline which combines a generic face detection algorithm with a facial landmark localisation method. This is the most common method for facial landmark tracking. It is fairly robust since the probability of drifting is reduced due to the application of the face detector at each frame. Nevertheless, it does not exploit the dynamic characteristics of the tracked face. Many state-of-the-art face detectors as well as facial landmark localisation methodologies are evaluated in this pipeline.

  • A pipeline which combines a model free tracking system with a facial landmark localisation method. This approach takes into account the dynamic nature of the tracked face, but is susceptible to drifting and thus losing the tracked object. We evaluate the combinations of multiple state-of-the-art model free trackers, as well as landmark localisation techniques.

  • Hybrid pipelines that include mechanisms for detecting tracking failures and performing re-initialisation, as well as using models for ensuring robust tracking.

Summarising, the findings of our evaluation show that current face detection and model free tracking technologies are advanced enough so that even a naive combination with landmark localisation techniques is adequate to achieve state-of-the-art performance on deformable face tracking. Specifically, we experimentally show that model free tracking based pipelines are very accurate when applied on videos with moderate lighting and pose circumstances. Furthermore, the combination of state-of-the-art face detectors with landmark localisation systems demonstrates excellent performance with surprisingly high true positive rate on videos captured under arbitrary conditions (extreme lighting, pose, occlusions, etc.). Moreover, we show that hybrid approaches provide only a marginal improvement, which is not worth their complexity and computational cost. Finally, we compare these approaches with the systems that participated in the 300VW competition of Shen et al (2015).

The rest of the paper is organised as follows. Section 2 presents a survey of the current literature on both rigid and deformable face tracking. In Section 3, we present the current state-of-the-art methodologies for deformable face tracking. Since, modern face tracking consists of various modules, including face detection, model free tracking and facial landmark localisation, Sections 3.13.2 and 3.3 briefly outline the state-of-the-art in each of these domains. Experimental results are presented in Section 4. Finally, in Section 5 we discuss the challenges that still remain to be addressed, provide future research directions and draw conclusions.

2 Related Work

Rigid and non-rigid tracking of faces and facial features have been a very popular topic of research over the past twenty years (Black and Yacoob (1995); Lanitis et al (1995); Sobottka and Pitas (1996); Essa et al (1996, 1997); Oliver et al (1997); Decarlo and Metaxas (2000); Jepson et al (2003); Matthews and Baker (2004); Matthews et al (2004); Xiao et al (2004); Patras and Pantic (2004); Kim et al (2008); Ross et al (2008); Papandreou and Maragos (2008); Amberg et al (2009); Kalal et al (2010a); Koelstra et al (2010); Tresadern et al (2012); Tzimiropoulos and Pantic (2013); Xiong and De la Torre (2013); Liwicki et al (2013); Smeulders et al (2014); Asthana et al (2014); Tzimiropoulos and Pantic (2014); Li et al (2015a); Xiong and De la Torre (2015); Snape et al (2015); Wu et al (2015); Tzimiropoulos (2015)). In this section we provide an overview of face tracking spanning over the past twenty years up to the present day. In particular, we will outline the methodologies regarding rigid 2D/3D face tracking, as well as deformable 2D/3D face tracking using a monocular camera222The problem of face tracking using commodity depth cameras, which has received a lot of attention (Göktürk and Tomasi (2004); Cai et al (2010); Weise et al (2011)), falls outside the scope of this paper.. Finally, we outline the benchmarks for both rigid and deformable face tracking.

2.1 Prior Art

The first methods for rigid 2D tracking generally revolved around the use of various features or transformations and mainly explored various color-spaces for robust tracking (Crowley and Berard (1997); Bradski (1998b); Qian et al (1998); Toyama (1998); Jurie (1999); Schwerdt and Crowley (2000); Stern and Efros (2002); Vadakkepat et al (2008)). The general methods of choice for tracking were Mean Shift and variations such as the Continuously Adaptive Mean Shift (Camshift) algorithm (Bradski (1998a); Allen et al (2004)

). The Mean Shift algorithm is a non-parametric technique that climbs the gradient of a probability distribution to find the nearest dominant mode (peak) (

Comaniciu and Meer (1999); Comaniciu et al (2000)

). Camshift is an adaptation of the Mean Shift algorithm for object tracking. The primary difference between CamShift and Mean Shift is that the former uses continuously adaptive probability distributions (i.e., distributions that may be recomputed for each frame) while the latter is based on static distributions, which are not updated unless the target experiences significant changes in shape, size or color. Other popular methods of choice for tracking are linear and non-linear filtering techniques including Kalman filters, as well as methodologies that fall in the general category of particle filters (

Del Moral (1996); Gordon et al (1993)), such as the popular Condensation algorithm by Isard and Blake (1998)

. Condensation is the application of Sampling Importance Resampling (SIR) estimation by

Gordon et al (1993) to contour tracking. A recent successful 2D rigid tracker that updates the appearance model of the tracked face was proposed in Ross et al (2008)

. The algorithm uses incremental Principal Component Analysis (PCA) (

Levey and Lindenbaum (2000)) to learn a statistical model of the appearance in an on-line manner and contrary to other eigentrackers, such as Black and Jepson (1998), it does not contain any training phase. The method in Ross et al (2008) uses a variant of the Condensation algorithm to model the distribution over the object’s location as it evolves over time. The method has initiated a line of research on robust incremental object tracking including the works of Liwicki et al (2012b, 2013, a, 2015b). Rigid 3D tracking has also been studied by using generic 3D models of the face (Malciu and Prěteux (2000); La Cascia et al (2000)). For example, La Cascia et al (2000) formulate the tracking task as an image registration problem in the cylindrically unwrapped texture space and Sung et al (2008) combine Active Appearance Models (AAMs) with a cylindrical head model for robust recovery of the global rigid motion. Currently, rigid face tracking is generally treated along the same lines as general model free object tracking (Jepson et al (2003); Smeulders et al (2014); Liwicki et al (2013, 2012b); Ross et al (2008); Wu et al (2015); Li et al (2015a)). An overview of model free object tracking is given in Section 3.2.

Non-rigid tracking of faces is important in many applications, spanning from facial expression analysis to motion capture for graphics and game design. Non-rigid tracking of faces can be further subdivided into tracking of certain facial landmarks (Lanitis et al (1995); Black and Yacoob (1995); Sobottka and Pitas (1996); Xiao et al (2004); Matthews and Baker (2004); Matthews et al (2004); Patras and Pantic (2004); Papandreou and Maragos (2008); Amberg et al (2009); Tresadern et al (2012); Xiong and De la Torre (2013); Asthana et al (2014); Xiong and De la Torre (2015)) or tracking/estimation of dense facial motion (Essa et al (1996); Yacoob and Davis (1996); Essa et al (1997); Decarlo and Metaxas (2000); Koelstra et al (2010); Snape et al (2015)). The first series of model-based methods for dense facial motion tracking were proposed by MIT Media lab in mid 1990’s (Essa et al (1997, 1996, 1994); Basu et al (1996)). In particular, the method by Essa and Pentland (1994) tracks facial motion using optical flow computation coupled with a geometric and a physical (muscle) model describing the facial structure. This modeling results in a time-varying spatial patterning of facial shape and a parametric representation of the independent muscle action groups which is responsible for the observed facial motions. In Essa et al (1994) the physically-based face model of Essa and Pentland (1994) is driven by a set of responses from a set of templates that characterise facial regions. Model generated flow has been used by the same group in Basu et al (1996) for motion regularisation. 3D motion estimation using sparse 3D models and optical flow estimation has also been proposed by Li et al (1993); Bozdaği et al (1994). Dense facial motion tracking is performed in Decarlo and Metaxas (2000) by solving a model-based (using a facial deformable model) least-squares optical flow problem. The constraints are relaxed by the use of a Kalman filter, which permits controlled constraint violations based on the noise present in the optical flow information, and enables optical flow and edge information to be combined more robustly and efficiently. Free-form deformations (Rueckert et al (1999)) are used in Koelstra et al (2010) for extraction of dense facial motion for facial action unit recognition. Recently, Snape et al (2015) proposed a statistical model of the facial flow for fast and robust dense facial motion extraction.

Arguably, the problem that has received the majority of attention is tracking of a set of sparse facial landmarks. The landmarks are either associated to a particular sparse facial model, i.e. the popular Candide facial model by Li et al (1993), or correspond to fiducial facial regions/parts (e.g., mouth, eyes, nose etc.) (Cootes et al (2001)). Even earlier attempts such as Essa and Pentland (1994) understood the usefulness of tracking facial regions/landmarks in order to perform robust fitting of complex facial models (currently the vast majority of dense 3D facial model tracking techniques, such as Wei et al (2004); Zhang et al (2008); Amberg (2011), rely on the robust tracking of a set of facial landmarks). Early approaches for tracking facial landmarks/regions included: (i) the use of templates built around certain facial regions (Essa and Pentland (1994)

), (ii) the use of facial classifiers to detect landmarks (

Colmenarez et al (1999)) where tracking is performed using modal analysis (Tao and Huang (1998)) or (iii) the use of face and facial region segmentation to detect the features where tracking is performed using block matching (Sobottka and Pitas (1996)). Currently, deformable face tracking has converged with the problem of facial landmark localisation on static images. That is, the methods generally rely on fitting generative or discriminative statistical models of appearance and 2D/3D sparse facial shape at each frame. Arguably, the most popular methods are generative and discriminative variations of Active Appearance Models (AAMs) and Active Shape Models (ASMs) (Pighin et al (1999); Cootes et al (2001); Dornaika and Ahlberg (2004); Xiao et al (2004); Matthews and Baker (2004); Dedeoğlu et al (2007); Papandreou and Maragos (2008); Amberg et al (2009); Saragih et al (2011); Xiong and De la Torre (2013, 2015)). The statistical models of appearance and shape can either be generic as in Cootes et al (2001); Matthews and Baker (2004); Xiong and De la Torre (2013) or incrementally updated in order to better capture the face at hand, as in Sung and Kim (2009); Asthana et al (2014). The vast majority of the facial landmark localisation methodologies require an initialisation provided by a face detector. More details regarding current state-of-the-art in facial landmark localisation can be found in Section 3.3.

Arguably, the current practise regarding deformable face tracking includes the combination of a generic face detection and generic facial landmark localisation technique (Saragih et al (2011); Xiong and De la Torre (2013, 2015); Alabort-i-Medina and Zafeiriou (2015); Asthana et al (2015)). For example, popular approaches include successive application of the face detection and facial landmark localisation procedure at each frame. Another approach performs face detection in the first frame and then applies facial landmark localisation at each consecutive frame using the fitting result of the previous frame as initialisation. Face detection can be re-applied in case of failure. This is the approach that is used by popular packages such as Asthana et al (2014). In this paper, we thoroughly evaluate variations of the above approaches. Furthermore, we consider the use of modern model free state-of-the-art trackers for rigid 2D tracking in order to be used as initialisation for the facial landmark localisation procedure. This is pictorially described in Figure 1.

2.2 Face Tracking Benchmarking

For assessing the performance of rigid 2D face tracking several short face sequences have been annotated with regards to the facial region (using a bounding box style annotation). One of the first sequences that has been annotated for this task is the so-called Dudek sequence by Ross et al (2015)333The Dudek sequence has been annotated with regards to certain facial landmarks only to be used for the estimation of an affine transformation.. Nowadays, several such sequences have been annotated and are publicly available, such as the ones by Liwicki et al (2015a); Li et al (2015b); Wu et al (2015).

The performance of non-rigid dense facial tracking methodologies was usually assessed by using markers (Decarlo and Metaxas (2000)), simulated data (Snape et al (2015)), visual inspection (Decarlo and Metaxas (2000); Essa et al (1997, 1996); Yacoob and Davis (1996); Snape et al (2015); Koelstra et al (2010)) or indirectly by the use of the dense facial motion for certain tasks, such as expression analysis (Essa et al (1996); Yacoob and Davis (1996); Koelstra et al (2010)). Regarding tracking of facial landmarks, up until recently, the preferred method for assessing the performance was visual inspection in a number of selected facial videos (Xiong and De la Torre (2013); Tresadern et al (2012)). Other methods were assessed on a small number of short (a few seconds in length) annotated facial videos (Sagonas et al (2014); Asthana et al (2014)). Until recently the longest annotated facial video sequence was the so-called talking face of Cootes (2015) which was used to evaluate many tracking methods including Orozco et al (2013); Amberg et al (2009). The talking face video comprises of 5000 frames (around 200 seconds) taken from a video of a person engaged in a conversation. The talking face video was initially tracked using an Active Appearance Model (AAM) that had a shape model and a total of 68 landmarks are provided. The tracked landmarks were visually checked and manually corrected where necessary.

Recently, Xiong and De la Torre (2015) introduced a benchmark for facial landmark tracking using videos from the Distracted Driver Face (DDF) and Naturalistic Driving Study (NDS) in Campbell (2015)444In a private communication, the authors of Xiong and De la Torre (2015) informed us that the annotated data, as described in the paper, will not be made publicly available (at least not in the near future).. The DDF dataset contains 15 sequences with a total of 10,882 frames. Each sequence displays a single subject posing as the distracted driver in a stationary vehicle or indoor environment. 12 out of 15 videos were recorded with subjects sitting inside of a vehicle. Five of them were recorded during the night under infrared (IR) light and the rest were recorded during the daytime under natural lighting. The remaining three were recorded indoors. The NDS database contains 20 sub-sequences of driver faces recorded during a drive conducted between the Blacksburg, VA and Washington, DC areas (NDS is more challenging than DDF since its videos are of lower spatial and temporal resolution). Each video of the NDS database has one minute duration recorded at 15 frames per second (fps) with a resolution. For both datasets one in every ten frames was annotated using either 49 landmarks for near-frontal faces or 31 landmarks for profile faces. The database contains many extreme facial poses (90 yaw, 50 pitch) as well as many faces under extreme lighting condition (e.g., IR). In total the dataset presented in Xiong and De la Torre (2015) contains between 2,000 to 3,000 annotated faces (please refer to Xiong and De la Torre (2015) for exemplar annotations).

The only existing large in-the-wild benchmark for facial landmark tracking was recently introduced by Shen et al (2015). The benchmark consists of 114 with varying difficulty and provides annotations generated in a semi-automatic manner (Chrysos et al (2015); Shen et al (2015); Tzimiropoulos (2015)). This challenge, called 300VW, is the only existing large-scale comprehensive benchmark for deformable model tracking. More details regarding the dataset of the 300VW benchmark can be found in Section 4.1. The performance of the pipelines considered in this paper are compared with the participating methods of the 300VW challenge in Section 4.8.

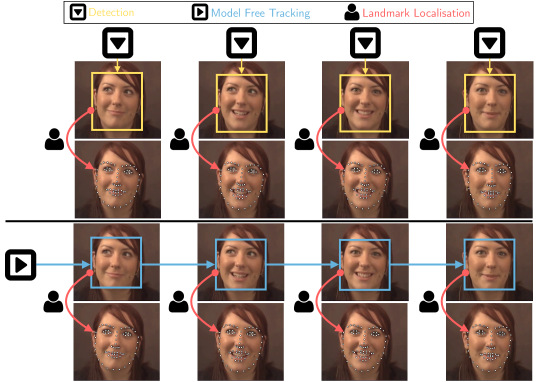

Figure 1: Overview of the standard approaches for deformable face tracking. (Top): Face detection is applied independently at each frame of the video followed by facial landmark localisation. (Bottom): Model free tracking is employed, initialised with the bounding box of the face at the first frame, followed by facial landmark localisation.

3 Deformable Face Tracking

In this paper, we focus on the problem of performing deformable face tracking across long-term sequences within unconstrained videos. The problem of tracking across long-term sequences is particularly challenging as the appearance of the face may change significantly during the sequence due to occlusions, illumination variation, motion artifacts and head pose. For the problem of deformable tracking, however, the problem is further complicated by the expectation of recovering a set of accurate fiducial points in conjunction with successfully tracking the object. As described in Section 2, current deformable facial tracking methods mainly concentrate on performing face detection per frame and then performing facial landmark localisation. However, we consider the most important metric for measuring the success of deformable face tracking as the facial landmark localisation accuracy. Given this, there are a number of strategies that could feasibly be employed in order to attempt to minimise the total facial landmark localisation error across the entire sequence. Therefore, we take advantage of current advances in face detection, model free tracking and facial landmark localisation techniques in order to perform deformable face tracking. Specifically, we investigate three strategies for deformable tracking:

  1. Detection + Landmark Localisation. Face Detection per frame, followed by facial landmark localisation initialised within the facial bounding boxes. This scenario is visualised in Figure 1 (top).

  2. Model Free Tracking + Landmark Localisation. Model free tracking, initialised around the interior of the face within the first frame, followed by facial landmark localisation within the tracked box. This scenario is visualised in Figure 1 (bottom).

  3. Hybrid Systems. Hybrid methods that attempt to improve the robustness of the placement of the bounding box for landmark localisation. Namely, we investigate methods for failure detection, trajectory smoothness and reinitialisation. Examples of such methods are pictorially demonstrated in Figures 10 and 23.

Note that we focus on combinations of methods that provide bounding boxes of the facial region followed by landmark localisation. This is due to the fact that the current set of state-of-the-art landmark localisation methods are all local methods and require initialisation within the facial region. Although joint face detection and landmark localisation methods have been proposed (Zhu and Ramanan (2012); Chen et al (2014)), they are not competitive with the most recent set of landmark localisation methods. For this reason, in this paper we focus on the combination of bounding box estimators with state-of-the-art local landmark localisation techniques.

The remainder of this Section will give a brief overview of the literature concerning face detection, model free tracking and facial landmark localisation.

3.1 Face Detection

Face detection is among the most important and popular tasks in Computer Vision and an essential step for applications such as face recognition and face analysis. Although it is one of the oldest tasks undertaken by researchers (the early works appeared about 45 years ago (Sakai et al (1972); Fischler and Elschlager (1973))), it is still an open and challenging problem. Recent advances can achieve reliable performance under moderate illumination and pose conditions, which led to the installation of simple face detection technologies in everyday devices such as digital cameras and mobile phones. However, recent benchmarks (Jain and Learned-Miller (2010)) show that the detection of faces on arbitrary images is still a very challenging problem.

Since face detection has been a research topic for so many decades, the existing literature is, naturally, extremely extensive. The fact that all recent face detection surveys (Hjelmås and Low (2001); Yang et al (2002); Zhang and Zhang (2010); Zafeiriou et al (2015)) provide different categorisations of the relative literature is indicative of the huge range of existing techniques. Consequently, herein, we only present a basic outline of the face detection literature. For an extended review, the interested reader may refer to the most recent face detection survey in Zafeiriou et al (2015).

According to the most recent literature review Zafeiriou et al (2015), existing methods can be separated in two major categories. The first one includes methodologies that learn a set of rigid templates, which can be further split in the following groups: (i) boosting-based methods, (ii) approaches that utilise SVM classifiers, (ii) exemplar-based techniques, and (iv) frameworks based on Neural Networks. The second major category includes deformable part models, i.e. methodologies that learn a set of templates per part as well as the deformations between them.

Method Citation(s) Rigid Template DPM Implementation
DPM Felzenszwalb et al (2010) https://github.com/menpo/ffld2
Mathias et al (2014)
Alabort-i-Medina et al (2014)
SS-DPM Zhu and Ramanan (2012) https://www.ics.uci.edu/~xzhu/face
SVM+HOG King (2015) https://github.com/davisking/dlib
King (2009)
VJ Viola and Jones (2004) http://opencv.org
Bradski (2000)
Table 1: The set of detectors used in this paper. The table reports the short name of the method, the relevant citation(s) as well as the link to the implementation used.

Boosting Methods. Boosting combines multiple “weak” hypotheses of moderate accuracy in order to determine a highly accurate hypothesis. The most characteristic example is Adaptive Boosting (AdaBoost) which is utilised by the most popular face detection methodology, i.e. the Viola-Jones (VJ) detector of Viola and Jones (2001, 2004). Characteristic examples of other methods that employ variations of AdaBoost include Li et al (2002); Wu et al (2004); Mita et al (2005). The original VJ algorithm used Haar features, however boosting (or cascade of classifiers methodologies in general) have been shown to greatly benefit from robust features (Köstinger et al (2012); Jun et al (2013); Li et al (2011); Li and Zhang (2013); Mathias et al (2014); Yang et al (2014)), such as HOG (Dalal and Triggs (2005)), SIFT (Lowe (1999)), SURF (Bay et al (2008)) and LBP (Ojala et al (2002)). For example, SURF features have been successfully combined with a cascade of weak classifiers in Li et al (2011); Li and Zhang (2013), achieving faster convergence. Additionally, Jun et al (2013) propose robust face specific features that combine both LBP and HOG. Mathias et al (2014) recently proposed an approach (so called HeadHunter) with state-of-the-art performance that employs various robust features with boosting. Specifically, they propose the adaptation of Integral Channel Features (ICF) (Dollár et al (2009)) with HOG and LUV colour channels, combined with global feature normalisation. A similar approach is followed by Yang et al (2014), in which they combine gray-scale, RGB, HSV, LUV, gradient magnitude and histograms within a cascade of weak classifiers.

SVM Classifiers.

Maximum margin classifiers, such as Support Vector Machines (SVMs), have become popular for face detection (

Romdhani et al (2001); Heisele et al (2003); Rätsch et al (2004); King (2015)). Even though their detection speed was initially slow, various schemes have been proposed to speed up the process. Romdhani et al (2001) propose a method that computes a reduced set of vectors from the original support vectors that are used sequentially in order to make early rejections. A similar approach is adopted by Rätsch et al (2004). A hierarchy of SVM classifiers trained on different resolutions is applied in Heisele et al (2003). King (2015) proposes an algorithm for efficient learning of a max-margin classifier using all the sub-windows of the training images, without applying any sub-sampling, and formulates a convex optimisation that finds the global optimum. Moreover, SVM classifiers have also been used for multi-view face detection (Li et al (2000); Wang and Ji (2004)). For example, Li et al (2000) first apply a face pose estimator based on Support Vector Regression (SVR), followed by an SVM face detector for each pose.

Exemplar-based Techniques.

These methods aim to match a test image against a large set of facial images. This approach is inspired by principles used in image retrieval and requires that the exemplar set covers the large appearance variation of human face.

Shen et al (2013) employ bag-of-word image retrieval methods to extract features from each exemplar, which creates a voting map for each exemplar that functions as a weak classifier. Thus, the final detection is performed by combining the voting maps. A similar methodology is applied in Li et al (2014), with the difference that specific exemplars are used as weak classifiers based on a boosting strategy. Recently, Kumar et al (2015) proposed an approach that enhances the voting procedure by using semantically related visual words as well as weighted occurrence of visual words based on their spatial distributions.

Convolutional Neural Networks. Another category, similar to the previous rigid template-based ones, includes the employment of Convolutional Neural Networks (CNNs) and Deep CNNs (DCNNs) (Osadchy et al (2007); Zhang and Zhang (2014); Ranjan et al (2015); Li et al (2015c); Yang et al (2015b)). Osadchy et al (2007) use a network with four convolution layers and one fully connected layer that rejects the non-face hypotheses and estimates the pose of the correct face hypothesis. Zhang and Zhang (2014) propose a multi-view face detection framework by employing a multi-task DCNN for face pose estimation and landmark localization in order to obtain better features for face detection. Ranjan et al (2015) combine deep pyramidal features with Deformable Part Models. Recently, Yang et al (2015b) proposed a DCNN architecture that is able to discover facial parts responses from arbitrary uncropped facial images without any part supervision and report state-of-the-art performance on current face detection benchmarks.

Deformable Part Models. DPMs (Schneiderman and Kanade (2004); Felzenszwalb and Huttenlocher (2005); Felzenszwalb et al (2010); Zhu and Ramanan (2012); Yan et al (2013); Li et al (2013a); Yan et al (2014); Mathias et al (2014); Ghiasi and Fowlkes (2014); Barbu et al (2014)) learn a patch expert for each part of an object and model the deformations between parts using spring-like connections based on a tree structure. Consequently, they perform joint facial landmark localisation and face detection. Even though they are not the best performing methods for landmark localisation, they are highly accurate for face detection in-the-wild. However, their main disadvantage is their high computational cost. Pictorial Structures (PS) (Fischler and Elschlager (1973); Felzenszwalb and Huttenlocher (2005)

) are the first family of DPMs that appeared. They are generative DPMs that assume Gaussian distributions to model the appearance of each part, as well as the deformations. They became a very popular line of research after the influential work in

Felzenszwalb and Huttenlocher (2005) that proposed a very efficient dynamic programming algorithm for finding the global optimum based on Generalized Distance Transform. Many discriminatively trained DPMs (Felzenszwalb et al (2010); Zhu and Ramanan (2012); Yan et al (2013, 2014)) appeared afterwards, which learn the patch experts and deformation parameters using discriminative classifiers, such as latent SVM.

DPMs can be further separated with respect to their training scenario into: (i) weakly supervised and (ii) strongly supervised. Weakly-supervised DPMs (Felzenszwalb et al (2010); Yan et al (2014)) are trained using only the bounding boxes of the positive examples and a set of negative examples. The most representative example is the work by Felzenszwalb et al (2010), which has proved to be very efficient for generic object detection. Under a strongly supervised scenario, it is assumed that a training database with images annotated with figucial landmarks is available. Several strongly supervised methods exist in the literature (Felzenszwalb and Huttenlocher (2005); Zhu and Ramanan (2012); Yan et al (2013); Ghiasi and Fowlkes (2014)). Ghiasi and Fowlkes (2014) propose an hierarchical DPM that explicitly models parts’ occlusions. In Zhu and Ramanan (2012) it is shown that a strongly supervised DPM outperforms, by a large margin, a weakly supervised one. In contrast, HeadHunter by Mathias et al (2014) shows that a weakly supervised DPM can outperform all current state-of-the-art face detection methodologies including the strongly supervised DPM of Zhu and Ramanan (2012).

According to FDDB (Jain and Learned-Miller (2010)), which is the most well established face detection benchmark, the currently top-performing methodology is the one by Ranjan et al (2015), which combines DCNNs with a DPM. However, it is impossible to use most DCNN-based techniques, because their authors do not provide publicly available implementations and it is very complicated and time-consuming to train and fine-tune such networks. Thus, even though many DCNN-based techniques are proved to achieve state-of-the-art performance, it was not feasible to use them for deformable face tracking pipelines. Nevertheless, we employ the top performing SVM-based method for learning rigid templates (King (2015)), as well as the best weakly and strongly supervised DPM implementations of Mathias et al (2014) and Zhu and Ramanan (2012). Finally, we also use the popular VJ algorithm (Viola and Jones (2001, 2004)) as a baseline face detection method. The employed face detection implementations are summarised in Table 1.

Method Citation(s) D G P K Implementation
CMT Nebehay and Pflugfelder (2015) https://github.com/gnebehay/CppMT
DF Sevilla-Lara and Learned-Miller (2012) http://goo.gl/YmG6W4
DSST Danelljan et al (2014) https://github.com/davisking/dlib
King (2009)
FCT Zhang et al (2014a) http://goo.gl/Ujc5B0
IVT Ross et al (2008) http://goo.gl/WtbOIX
KCF Henriques et al (2015) https://github.com/joaofaro/KCFcpp
LRST Zhang et al (2014b) http://goo.gl/ZC9JbQ
MIL Babenko et al (2011) http://opencv.org
Bradski (2000)
ORIA Wu et al (2012) https://goo.gl/RT3zNC
RPT Li et al (2015d) https://github.com/ihpdep/rpt
SPOT Zhang and van der Maaten (2014) http://visionlab.tudelft.nl/spot
SRDCF Danelljan et al (2015) https://goo.gl/Q9d1O5
STRUCK Hare et al (2011) http://goo.gl/gLR93b
TLD Kalal et al (2012) https://github.com/zk00006/OpenTLD
Table 2: The set of trackers that are used in this paper. The table reports the short name of the method, the relevant citation(s) as well as the link to the implementation used. The initials stand for: (D)iscriminative, (G)enerative, (P)art-based and (K)eypoint trackers.

3.2 Model Free Tracking

Model free tracking is an extremely active area of research. Given the initial state (e.g., position and size of the containing box) of a target object in the first image, model free tracking attempts to estimate the states of the target in subsequent frames. Therefore, model free tracking provides an excellent method of initialising landmark localisation methods.

The literature on model free tracking is vast. For the rest of this section, we will provide an extremely brief overview of model free tracking that focuses primarily on areas that are relevant to the tracking methods we investigated in this paper. We refer the interested reader to the wealth of tracking surveys (Li et al (2013b); Smeulders et al (2014); Salti et al (2012); Yang et al (2011)) and benchmarks (Wu et al (2013, 2015); Kristan et al (2013, 2014, 2015, 2016); Smeulders et al (2014)) for more information on model free tracking methods.

Generative Trackers. These trackers attempt to model the objects appearance directly. This includes template based methods, such as those by Matthews et al (2004); Baker and Matthews (2004); Sevilla-Lara and Learned-Miller (2012), as well as parametric generative models such as Balan and Black (2006); Ross et al (2008); Black and Jepson (1998); Xiao et al (2014). The work of Ross et al (2008) introduces online subspace learning for tracking with a sample mean update, which allows the tracker to account for changes in illumination, viewing angle and pose of the object. The idea is to incrementally learn a low-dimensional subspace and adapt the appearance model on object changes. The update is based on an incremental principal component analysis (PCA) algorithm, however it seems to be ineffective at handling large occlusions or non-rigid movements due to its holistic model. To alleviate the partial occlusion, Xiao et al (2014) suggest the use of square templates along with PCA. Another popular area of generative tracking is the use of sparse representations for appearance. In Mei and Ling (2011), a target candidate is represented by a sparse linear combination of target and trivial templates. The coefficients are extracted by solving an minimisation problem with non-negativity constraints, while the target templates are updated online. However, solving the minimisation for each particle is computationally expensive. A generalisation of this tracker is the work of Zhang et al (2012), which learns the representation for all particles jointly. It additionally improves the robustness by exploiting the correlation among particles. An even further abstraction is achieved in Zhang et al (2014b) where a low-rank sparse representation of the particles is encouraged. In Zhang et al (2014a), the authors generalise the low-rank constraint of Zhang et al (2014b)

and add a sparse error term in order to handle outliers. Another low-rank formulation was used by

Wu et al (2012) which is an online version of the RASL (Peng et al (2012)) algorithm and attempts to jointly align the input sequence using convex optimisation.

Keypoint Trackers. These trackers (Pernici and Del Bimbo (2014); Poling et al (2014); Hare et al (2012); Nebehay and Pflugfelder (2015)) attempt to use the robustness of keypoint detection methodologies like SIFT (Lowe (1999)) or SURF (Bay et al (2008)) in order to perform tracking. Pernici and Del Bimbo (2014) collected multiple descriptors of weakly aligned keypoints over time and combined these matched keypoints in a RANSAC voting scheme. Nebehay and Pflugfelder (2015)

utilises keypoints to vote for the object center in each frame. A consensus-based scheme is applied for outlier detection and the votes are transformed based on the current key point arrangement to consider scale and rotation. However, keypoint methods may suffer from difficulty in capturing the global information of the tracked target by only considering the local points.

Discriminative Trackers. These trackers attempt to explicitly model the difference between the object appearance and the background. Most commonly, these methods are named “tracking-by-detection” techniques as they involve classifying image regions as either part of the object or the background. In their work, Grabner et al (2006) propose an online boosting method to select and update discriminative features which allows the system to account for minor changes in the object appearance. However, the tracker fails to model severe changes in appearance. Babenko et al (2011)

advocate the use of a multiple instance learning boosting algorithm to mitigate the drifting problem. More recently, discriminative correlation filters (DCF) have become highly successful at tracking. The DCF is trained by performing a circular sliding window operation on the training samples. This periodic assumption enables efficient training and detection by utilizing the Fast Fourier Transform (FFT).

Danelljan et al (2014) learn separate correlation filters for the translation and the scale estimation. In Danelljan et al (2015)

, the authors introduce a sparse spatial regularisation term to mitigate the artifacts at the boundaries of the circular correlation. In contrast to the linear regression commonly used to learn DCFs,

Henriques et al (2015) apply a kernel regression and propose its multi-channel extension to enable to the use of features such as HOG Dalal and Triggs (2005). Li et al (2015d) propose a new use for particle filters in order to choose reliables patches to consider part of the object. These patches are modelled using a variant of the method proposed by Henriques et al (2015). Hare et al (2011) propose the use of structured output prediction. By explicitly allowing the outputs to parametrize the needs of the tracker, an intermediate classification step is avoided.

Part-based Trackers. These trackers attempt to implicitly model the parts of an object in order to improve tracking performance. Adam et al (2006) represent the object with multiple arbitrary patches. Each patch votes on potential positions and scales of the object and a robust statistic is employed to minimise the voting error. Kalal et al (2010b) sample the object and the points are tracked independently in each frame by estimating optical flow. Using a forward-backward measure, the erroneous points are identified and the remaining reliable points are utilised to compute the optimal object trajectory. Yao et al (2013) adapt the latent SVM of Felzenszwalb et al (2010) for online tracking, by restricting the search in the vicinity of the location of the target object in the previous frame. In comparison to the weakly supervised part-based model of Yao et al (2013), in Zhang and van der Maaten (2013) the authors recommend an online strongly supervised part-based deformable model that learns the representation of the object and the representation of the background by training a classifier. Wang et al (2015) employ a part-based tracker by estimating a direct displacement prediction of the object. A cascade of regressors is utilised to localise the parts, while the model is updated online and the regressors are initialised by multiple motion models at each frame.

Method Citation(s) Discriminative Generative Implementation
AAM Tzimiropoulos (2015) https://github.com/menpo/menpofit
Alabort-i-Medina et al (2014)
ERT Kazemi and Sullivan (2014) https://github.com/davisking/dlib
King (2009)
CFSS Zhu et al (2015) https://github.com/zhusz/CVPR15-CFSS
SDM Xiong and De la Torre (2013) https://github.com/menpo/menpofit
Alabort-i-Medina et al (2014)
Table 3: The landmark localisation methods employed in this paper. The table reports the short name of the method, the relevant citation(s) as well as the link to the implementation used.

Given the wealth of available trackers, selecting appropriate trackers for deformable tracking purposes poses a difficult proposition. In order to attempt to give as broad an overview as possible, we selected a representative tracker from each of the categories described previously. Therefore, in this paper we compare against 14 trackers which are outlined in Table 2. SRDCF (Danelljan et al (2015)), KCF (Henriques et al (2015)) and DSST (Danelljan et al (2014)) are all discriminative trackers based on DCFs. They all performed well in the VOT 2015 (Kristan et al (2015)) challenge and DSST was the winner of VOT 2014 (Kristan et al (2014)). STRUCK (Hare et al (2011)) is a discriminative tracker that performed very well in the Online Object Tracking benchmark (Wu et al (2013)). SPOT (Zhang and van der Maaten (2014)) is a strong performing part based tracker, CMT (Nebehay and Pflugfelder (2015)) is a strong performing keypoint based tracker and LRST (Zhang et al (2014b)) and ORIA (Wu et al (2012)) are recent generative trackers. RPT (Li et al (2015d)) is a recently proposed technique that reported state-of-the-art results on the Online Object Tracking benchmark (Wu et al (2013)). Finally, TLD (Kalal et al (2012)), MIL (Babenko et al (2011)), FCT (Zhang et al (2014a)), DF (Sevilla-Lara and Learned-Miller (2012)) and IVT (Ross et al (2008)) were included as baseline tracking methods with publicly available implementations.

3.3 Facial Landmark Localisation

Statistical deformable models have emerged as an important research field over the last few decades, existing at the intersection of computer vision, statistical pattern recognition and machine learning. Statistical deformable models aim to solve generic object alignment in terms of localisation of fiducial points. Although deformable models can be built for a variety of object classes, the majority of ongoing research has focused on the task of facial alignment. Recent large-scale challenges on facial alignment (

Sagonas et al (2013b, a, 2015)) are characteristic examples of the rapid progress being made in the field.

Currently, the most commonly-used and well-studied face alignment methods can be separated into two major families: (i) discriminative models that employ regression in a cascaded manner, and (ii) generative models that are iteratively optimised.

Regression-based models.

The methodologies of this category aim to learn a regression function that regresses from the object’s appearance (e.g. commonly handcrafted features) to the target output variables (either the landmark coordinates or the parameters of a statistical shape model). Although the history behind using linear regression in order to tackle the problem of face alignment spans back many years (

Cootes et al (2001)), the research community turned towards alternative approaches due to the lack of sufficient data for training accurate regression functions. Nevertheless, recently regression-based techniques have prevailed in the field thanks to the wealth of annotated data and effective handcrafted features (Lowe (1999); Dalal and Triggs (2005)). Recent works have shown that excellent performance can be achieved by employing a cascade of regression functions (Burgos-Artizzu et al (2013); Xiong and De la Torre (2013, 2015); Dollár et al (2010); Xiong and De la Torre (2013); Cao et al (2014); Kazemi and Sullivan (2014); Ren et al (2014); Asthana et al (2014); Tzimiropoulos (2015); Zhu et al (2015)). Regression based methods can be approximately seperated into two categories depending on the nature of the regression function employed. Methods that employ a linear regression such as the Supervised Descent Method (SDM) of Xiong and De la Torre (2013) tend to employ robust hand-crafted features (Xiong and De la Torre (2013); Asthana et al (2014); Xiong and De la Torre (2015); Tzimiropoulos (2015); Zhu et al (2015)). On the other hand, methods that employ tree-based regressors such as the Explicit Shape Regression (ESR) method of Cao et al (2014), tend to rely on data driven features that are optimised directly by the regressor (Burgos-Artizzu et al (2013); Cao et al (2014); Dollár et al (2010); Kazemi and Sullivan (2014)).

Generative models. The most dominant representative algorithm of this category is, by far, the Active Appearance Model (AAM). AAMs consist of parametric linear models of both shape and appearance of an object, typically modelled by Principal Component Analysis (PCA). The AAM objective function involves the minimisation of the appearance reconstruction error with respect to the shape parameters. AAMs were initially proposed by Cootes et al (1995, 2001), where the optimisation was performed by a single regression step between the current image reconstruction residual and an increment to the shape parameters. However, Matthews and Baker (2004); Baker and Matthews (2004) linearised the AAM objective function and optimised it using the Gauss-Newton algorithm. Following this, Gauss-Newton optimisation has been the modern method for optimising AAMs. Numerous extensions have been published, either related to the optimisation procedure (Papandreou and Maragos (2008); Tzimiropoulos and Pantic (2013); Alabort-i-Medina and Zafeiriou (2014, 2015); Tzimiropoulos and Pantic (2014)) or the model structure (Tzimiropoulos et al (2012); Antonakos et al (2014); Tzimiropoulos et al (2014); Antonakos et al (2015b, a)).

In recent challenges by Sagonas et al (2013a, 2015), discriminative methods have been shown to represent the current state-of-the-art. However, in order to enable a fair comparison between types of methods we selected a representative set of landmark localisation methods to compare with in this paper. The set of landmark localisation methods used in the paper is given in Table 3. We chose to use ERT (Kazemi and Sullivan (2014)) as it is extremely fast and the implementation provided by King (2009) is the best known implementation of a tree-based regressor. We chose CFSS (Zhu et al (2015)) as it is the current state-of-the-art on the data provided by the 300W competition of Sagonas et al (2013a). We used the Gauss-Newton Part-based AAM of Tzimiropoulos and Pantic (2014) as the top performing generative localisation method, as provided by the Menpo Project (Alabort-i-Medina et al (2014)). Finally, we also demonstrated an SDM (Xiong and De la Torre (2013)) as implemented by Alabort-i-Medina et al (2014) as a baseline.

Experiment Section Tracking Detection Landmark Failure Re-initialisation Kalman
Localisation Checking Smoothing
1 4.3
2 4.4
3 4.5
4 4.6
5 4.7
6 4.8 Comparison against state-of-the-art of 300VW competition (Shen et al (2015)).
Table 4: The set of experiments conducted in this paper. This table is intended as an overview of the battery of experiments that were conducted, as well as providing a reference to the relevant section.

4 Experiments

In this section, details of the experimental evaluation are established. Firstly, the datasets employed for the evaluation, training and validation are introduced in Section 4.1. Next, Section 4.2 provides details of the training procedures and of the implementations that are relevant to all experiments. Following this, in Sections 4.34.7, we describe the set of experiments that were conducted in this paper, which are summarised in Table 4. Finally, experimental Section 4.8 compares the best results from the previous experiments to the winners of the 300VW competition in Shen et al (2015).

In the following sections, due to the very large amount of methodologies taken into account, we provide a summary of all the results as tables and only the top 5 methods as graphs for clarity. Please refer to the supplementary material for an extensive report of the experimental results. Additionally, we provide videos with the tracking results for the experiments of Sections 4.3, 4.4 and 4.5 for qualitative comparison555In https://www.youtube.com/watch?v=6bzgmsWgK20 we provide a video with the tracking results of the top methods for face detection followed by landmark localisation (Section 4.3, Table 6, Figure 9) for qualitative comparison.,666In https://www.youtube.com/watch?v=peQYzqgG2UA we provide a video with the tracking results of the top methods for face detection followed by landmark localisation using re-initialisation in case of failure (Section 4.4, Table 7, Figure 14) for qualitative comparison.,777In https://www.youtube.com/watch?v=RXo9hZAaQVQ we provide a video with the tracking results of the top methods for model free tracking followed by landmark localisation (Section 4.5, Table 8, Figure 22) for qualitative comparison..

(a)
(b)
(c)
Figure 5: Example frames from the 300VW dataset by Shen et al (2015). Each row contains 10 exemplar images from each category, that are indicative of the challenges that characterise the videos of the category.

4.1 Dataset

All the comparisons are conducted in the testset of the 300VW dataset collected by Shen et al (2015). This recently introduced dataset contains 114 videos (50 for training and 64 for testing). The videos are separated into the following 3 categories:

  • Category 1: This category is composed of videos captured in well-lit environments without any occlusions.

  • Category 2: The second category includes videos captured in unconstrained illumination conditions.

  • Category 3: The final category consists of video sequences captured in totally arbitrary conditions (including severe occlusions and extreme illuminations).

Each video includes only one person and is annotated using the 68 point mark-up employed by Gross et al (2010) and Sagonas et al (2015) for Multi-PIE and 300W databases, respectively. All videos are between 1500 frames and 3000 frames with a large variety of expressions, poses and capturing conditions, which makes the dataset very challenging for deformable facial tracking. A number of exemplar images, which are indicative of the challenges of each category, are provided in Figure 5. We note that, in contrast to the results of Shen et al (2015) in the original 300VW competition, we used the most recently provided annotations1 which have been corrected and do not contain missing frames. Therefore, we also provide updated results following the participants of the 300VW competition.

The public datasets of IBUG (Sagonas et al (2013a)), HELEN (Le et al (2012)), AFW (Zhu and Ramanan (2012)) and LFPW (Belhumeur et al (2013)) are employed for training all the landmark localisation methods. This is further explained in Section 4.2.1 below.

4.2 Implementation Details

The authors’ implementations are utilised for the trackers, as outlined in Table 2. Similarly, the face detectors’ implementations are outlined in Table 1. HOG+SVM was provided by the Dlib project of King (2015, 2009), the Weakly Supervised DPM (DPM) (Felzenszwalb et al (2010)) was the model provided by Mathias et al (2014) and the code of Dubout and Fleuret (2012, 2013) was used to perform the detection. Moreover, the Strongly Supervised DPM (SS-DPM) of Zhu and Ramanan (2012) was provided by the authors and, finally, the OpenCV implementation by Bradski (2000) was used for the VJ detector (Viola and Jones (2004)). The default parameters were used in all cases.

For face alignment, as outlined in Table 3, the implementation of CFSS provided by Zhu et al (2015) is adopted, while the implementations provided by Alabort-i-Medina et al (2014) in the Menpo Project are employed for the patch-based AAM of Tzimiropoulos and Pantic (2014) and the SDM of Xiong and De la Torre (2013). Lastly, the implementation of ERT (Kazemi and Sullivan (2014)) is provided by King (2009) in the Dlib library. For the three latter methods, following the original papers and the code’s documentation, several parameters were validated and chosen based on the results in a validation set that consisted of a few videos from the 300VW training set.

The details of the parameters utilised for the patch-based AAM, SDM and ERT are mentioned below. For AAM, we used the algorithm of Tzimiropoulos and Pantic (2014) and applied a 2-level Gaussian pyramid with 4 and 10 shape components, and 60 and 150 appearance components in each scale, respectively. For the SDM, a 4-level Gaussian pyramid was employed. SIFT (Lowe (1999)) feature vectors of length 128 were extracted at the first 3 scales, using RootSIFT by Arandjelović and Zisserman (2012). Raw pixel intensities were used at the highest scale. Finally, part of the experiments were conducted on the cloud software of Koukis et al (2013).

4.2.1 Landmark Localisation Training

All the landmark localisation methods were trained with respect to the 68 facial points mark-up employed by Sagonas et al (2013a, 2015) in 300W, while the rest of the parameters were determined via cross-validation. Again, this validation set consisted of frames from the 300VW trainset, as well as 60 privately collected images with challenging poses. All of the discriminative landmark localisation methods (SDM, ERT, CFSS) were trained from images in the public datasets of IBUG (Sagonas et al (2013a)), HELEN (Le et al (2012)), AFW (Zhu and Ramanan (2012)) and LFPW (Belhumeur et al (2013)). The generative AAM was trained on less data, since generative methods do not benefit as strongly from large training datasets. The training data used for the AAM was the recently released 300 images from the 600W dataset (Sagonas et al (2015)), 500 challenging images from LFPW (Belhumeur et al (2013)) and the 135 images of the IBUG dataset (Sagonas et al (2013a)).

Discriminative landmark localisation methods are tightly coupled with the initialisation statistics, as they learn to model a given variance of initialisations. Therefore, it is necessary to re-train each discriminative method for each face detection method employed. This allows the landmark localisation methods to correctly model the large amount of variance present between detectors. On aggregate 5 different detector and landmark localisation models are trained. One for each detector and landmark localisation pair (totalling 4) and a single model trained using a validation set that estimates the variance of the ground truth bounding box throughout the sequences. This model is used for all trackers.

Category Error
1
2
3
Table 5: Exemplar deformable tracking results that are indicative of the fitting quality that corresponds to each error value for all video categories. The Area Under the Curve (AUC) and Failure Rate for all the experiments are computed based on the Cumulative Error Distributions (CED) limited at maximum error of .
Method Category 1 Category 2 Category 3
Detection Landmark AUC Failure AUC Failure AUC Failure
Localisation Rate (%) Rate (%) Rate (%)
DPM AAM 0.447 29.445 0.466 21.158 0.376 33.261
CFSS 0.764 3.789 0.767 1.363 0.717 5.259
ERT 0.772 3.493 0.765 1.558 0.714 6.100
SDM 0.673 3.800 0.646 1.369 0.585 5.880
SS-DPM AAM 0.474 37.473 0.502 33.807 0.161 77.932
CFSS 0.609 21.773 0.566 24.261 0.244 65.926
ERT 0.635 21.445 0.608 21.638 0.243 67.407
SDM 0.582 21.225 0.537 21.748 0.217 67.602
SVM-HOG AAM 0.493 25.891 0.487 22.414 0.380 36.728
CFSS 0.707 12.953 0.663 16.318 0.579 21.422
ERT 0.705 13.285 0.653 16.500 0.570 22.303
SDM 0.654 13.252 0.619 16.312 0.480 21.367
VJ AAM 0.453 24.277 0.532 19.500 0.413 25.640
CFSS 0.660 18.986 0.651 17.805 0.641 15.061
ERT 0.658 19.292 0.646 17.839 0.653 14.942
SDM 0.524 19.249 0.548 17.769 0.505 15.347
Colouring denotes the methods’ performance ranking per category:    first    second    third    fourth
Table 6: Results for Experiment 1 of Section 4.3 (Detection + Landmark Localisation). The Area Under the Curve (AUC) and Failure Rate are reported. The top 4 performing curves are highlighted for each video category.
(a)
(b)
(c)
Figure 9: Results for Experiment 1 of Section 4.3 (Detection + Landmark Localisation). The top 5 performing curves are highlighted in each legend. Please see Table 6 for a full summary.

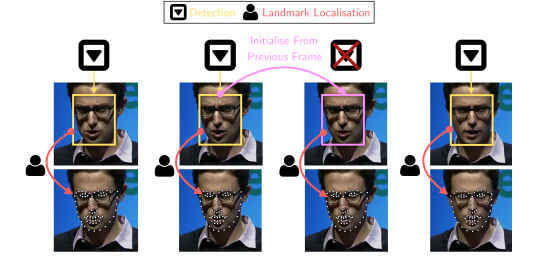

Figure 10: This figure gives a diagram of the reinitialisation scheme proposed in Section 4.4. Specifically, in case the face detector does not return a bounding box for a frame, the bounding box of the previous frame is used as a successful detection for the missing frame.

4.2.2 Quantitative Metrics

The errors reported for all the following experiments are with respect to the landmark localisation error. The error metric employed is the mean Euclidean distance of the 68 points, normalised by the diagonal of the ground truth bounding box (). This metric was chosen as it is robust to changes in head pose which are frequent within the 300VW sequences. The graphs that are shown are cumulative error distribution (CED) plots that provide the proportion of images less than or equal to a particular error. We also provide summary tables with respect to the Area Under the Curve (AUC) of the CED plots, considered up to a maximum error. Errors above this maximum threshold, which is fixed to , are considered failures to accurately localise the facial landmarks. Therefore, we also report the failure rate, as a percentage, which marks the proportion of images that are not considered within the CED plots. Table 5 shows some indicative examples of the deformable fitting quality that corresponds to each error value for all video categories. When ranking methods, we consider the AUC as the primary statistic and only resort to considering the failure rate in cases where there is little distinction between methods’ AUC values.

Method Category 1 Category 2 Category 3
Detection Landmark AUC Failure AUC Failure AUC Failure
Localisation Rate (%) Rate (%) Rate (%)
DPM AAM 0.572 18.840 0.621 10.617 0.493 21.711
CFSS 0.765 3.415 0.769 0.815 0.720 4.786
ERT 0.773 3.221 0.767 1.156 0.716 5.620
SDM 0.674 3.727 0.654 1.129 0.579 6.006
SS-DPM AAM 0.507 32.867 0.526 28.781 0.175 75.646
CFSS 0.609 21.734 0.576 22.070 0.248 65.421
ERT 0.636 21.397 0.622 18.459 0.246 66.905
SDM 0.594 21.306 0.569 18.444 0.227 67.653
SVM-HOG AAM 0.627 13.770 0.643 11.210 0.526 20.215
CFSS 0.759 5.009 0.747 4.186 0.632 12.179
ERT 0.750 6.002 0.717 6.428 0.615 13.963
SDM 0.685 6.218 0.676 6.325 0.522 13.234
VJ AAM 0.570 18.339 0.593 15.612 0.546 16.831
CFSS 0.685 14.945 0.686 12.619 0.660 11.612
ERT 0.679 15.783 0.675 12.862 0.672 11.543
SDM 0.536 16.452 0.573 13.175 0.530 12.779
Colouring denotes the methods’ performance ranking per category:    first    second    third    fourth
Table 7: Results for Experiment 2 of Section 4.4 (Detection + Landmark Localisation + Initialisation From Previous Frame). The Area Under the Curve (AUC) and Failure Rate are reported. The top 4 performing curves are highlighted for each video category.

4.3 Experiment 1: Detection and Landmark Localisation

In this experiment, we validate the most frequently used facial deformable tracking strategy, i.e. performing face detection followed by landmark localisation on each frame independently. If a detector fails to return a frame, that frame is considered as having infinite error and thus will appear as part of the failures in Table 6. Note that the AUC is robust to the use of infinite errors. In frames where multiple bounding boxes are returned, the box with the highest confidence is kept, limiting the results of the detectors to a single bounding box per image. A high level diagram explaining the detection procedure for this experiment is given by Figure 1.

Specifically, in this experiment we consider the 4 face detectors of Table 1 (DPM, SS-DPM, HOG+SVM, VJ) with the 4 landmark localisation techniques of Table 3 (AAM, CFSS, ERT, SDM), for a total of 16 results. The results of the experiment are given in Table 6 and Figure 9. The results indicate that the AAM performs poorly as it achieves the lowest performance across all face detectors. The discriminative CFSS and ERT landmark localisation methods consistently outperform SDM. From the detectors point of view, it seems that the strongly supervised DPM (SS-DPM) is the worst and provides the highest failure rates. On the other hand, the weakly supervised DPM (DPM) outperforms the rest of the detectors for all video categories in terms of both accuracy (i.e. AUC) and robustness (i.e. Failure Rate). For the graphs that correspond to all 16 methods, as well as a video with the results of the top 5 methods5, please refer to the supplementary material.

(a)
(b)
(c)
Figure 14: Results for Experiment 2 of Section 4.4 (Detection + Landmark Localisation + Initialisation From Previous Frame). The top 5 performing curves are highlighted in each legend. Please see Table 7 for a full summary.
(a)
(b)
(c)
Figure 18: Results for Experiment 2 of Section 4.4 (Detection + Landmark Localisation + Initialisation From Previous Frame). These results show the effect of initialisation from the previous frame, in comparison to missing detections. The top 3 performing results are given in red, green and blue, respectively, and the top 3 most improved are given in cyan, yellow and brown, respectively. The dashed lines represent the results before the reinitialisation strategy is applied, solid lines are after.

4.4 Experiment 2: Detection and Landmark Localisation with Reinitialisation

Complementing the experiments of Section 4.3, the same set-up was utilised to study the effect of missed frames by assuming a first order Markov dependency. If the detector does not return a bounding box in a frame, the bounding box of the previous frame is used as a successful detection for the missing frame. This procedure is depicted in Figure 10. Given that the frame rate of the input videos is adequately high (over 20fps), this assumption is a reasonable one. The results of this experiment are summarised in Table 7 and in Figure 14. As expected, the ranking of the methods remains the same as the previous experiment of Section 4.3.

In order to better investigate the effect of this reinitialisation scheme, we also provide Figure 18 that directly shows the improvement. Specifically, we plot the CED curves with and without the reinitialisation strategy for the 3 best performing methods, as well as the 3 techniques for which the highest improvement is achieved. It becomes evident that the top performing methods from Section 4.3 do not benefit from reinitialisation, since the improvement is marginal. This is explained by the fact that these methods already achieve a very high true positive rate. The largest difference is observed for methods that utilise AAM. As shown by Antonakos et al (2015b), AAMs are very sensitive to initialisation, due to the nature of Gauss-Newton optimisation. Additionally, note that we have not attempted to apply any kind of greedy approach for improving the detectors’ bounding boxes in order to provide a better AAM initialisation. Since the initialisation of a frame with failed detection is achieved by the bounding box of the previous frame’s landmarks, it is highly likely that its area will be well constrained to include only the facial parts and not the forehead or background. This kind of initialisation is very beneficial for AAMs, which justifies the large improvements that are shown in Figure 18. For the graphs that correspond to all 16 methods as well as a video with the results of the top 5 methods6, please refer to the supplementary material.

4.5 Experiment 3: Model-free Tracking and Landmark Localisation

In this section, we provide, to the best of our knowledge, the first detailed analysis of the performance of model free trackers for tracking “in-the-wild” facial sequences. For this reason, we have considered a large number of trackers in order to attempt to give a balanced overview of the performance of modern model trackers for deformable face alignment. The 14 trackers considered in this section are summarised in Table 2. To initialise all trackers, the tightest possible bounding box of the ground truth facial landmarks is provided as the initial tracker state. We also include a baseline method, which appears in results Table 8, referred to as PREV, which is defined as applying the landmark localisation methods initialised from the bounding box of the result in the previous frame. Obviously this scheme is highly sensitive to drifting and therefore we have included it as a basic baseline that does not include any model free tracking. A high level diagram explaining the detection procedure for this experiment is given by Figure 1.

Method Category 1 Category 2 Category 3
Rigid Landmark AUC Failure AUC Failure AUC Failure
Tracking Localisation Rate (%) Rate (%) Rate (%)
PREV AAM 0.375 50.652 0.465 38.273 0.095 87.734
CFSS 0.545 27.358 0.618 19.865 0.199 72.991
ERT 0.340 57.266 0.438 42.011 0.073 89.959
SDM 0.497 36.606 0.505 32.843 0.194 74.111
CMT AAM 0.574 20.323 0.691 8.424 0.478 26.334
CFSS 0.748 2.635 0.758 1.871 0.595 16.506
ERT 0.653 6.950 0.716 2.847 0.498 21.136
SDM 0.669 3.808 0.706 2.184 0.529 18.427
DSST AAM 0.510 28.620 0.675 8.442 0.246 59.761
CFSS 0.670 13.018 0.764 0.605 0.380 44.205
ERT 0.549 17.341 0.686 2.434 0.286 48.893
SDM 0.552 14.509 0.686 1.558 0.304 46.433
FCT AAM 0.341 51.592 0.549 20.288 0.148 76.888
CFSS 0.527 29.347 0.706 9.409 0.319 53.043
ERT 0.384 40.603 0.619 11.989 0.187 65.215
SDM 0.418 38.522 0.627 12.524 0.203 63.803
IVT AAM 0.429 40.724 0.424 42.699 0.245 61.675
CFSS 0.580 28.005 0.533 28.225 0.423 42.244
ERT 0.507 31.802 0.477 32.773 0.329 47.033
SDM 0.517 30.971 0.464 33.706 0.348 45.664
KCF AAM 0.550 25.025 0.672 8.731 0.376 39.221
CFSS 0.693 11.221 0.741 2.847 0.554 16.889
ERT 0.642 13.318 0.716 3.714 0.438 24.838
SDM 0.626 12.119 0.694 3.069 0.444 22.686
LRST AAM 0.537 26.997 0.633 13.419 0.426 32.878
CFSS 0.704 10.873 0.759 1.600 0.649 13.526
ERT 0.629 13.191 0.698 4.429 0.531 16.712
SDM 0.643 12.730 0.696 4.040 0.580 15.249
MIL AAM 0.445 32.327 0.544 21.654 0.185 67.093
CFSS 0.683 11.420 0.710 4.128 0.380 45.910
ERT 0.536 16.881 0.603 10.413 0.237 57.771
SDM 0.589 14.693 0.626 8.746 0.268 56.023
RPT AAM 0.477 32.206 0.617 12.181 0.379 39.640
CFSS 0.725 5.751 0.768 0.271 0.627 13.324
ERT 0.587 12.897 0.709 2.388 0.506 18.698
SDM 0.620 9.191 0.708 0.925 0.538 17.539
SPOT AAM 0.535 25.227 0.680 7.058 0.253 57.121
CFSS 0.769 2.330 0.774 0.435 0.546 27.414
ERT 0.638 6.809 0.728 1.095 0.411 30.458
SDM 0.679 3.244 0.715 0.532 0.472 28.562
SRDCF AAM 0.545 26.056 0.675 7.824 0.437 31.827
CFSS 0.731 6.810 0.779 0.155 0.687 8.145
ERT 0.636 11.251 0.743 0.980 0.544 11.666
SDM 0.650 7.929 0.726 0.435 0.587 10.788
STRUCK AAM 0.543 25.041 0.648 13.282 0.360 42.496
CFSS 0.728 7.741 0.741 4.411 0.585 21.050
ERT 0.596 11.148 0.685 5.528 0.430 27.139
SDM 0.643 8.866 0.681 4.965 0.488 25.156
TLD AAM 0.373 42.618 0.507 18.837 0.269 55.885
CFSS 0.622 14.940 0.678 7.502 0.469 29.592
ERT 0.410 30.337 0.544 14.952 0.302 38.877
SDM 0.456 25.006 0.564 11.676 0.333 37.440
Colouring denotes the methods’ performance ranking per category:   first   second   third   fourth   fifth
Table 8: Results for Experiment 3 of Section 4.5 (Model Free Tracking + Landmark Localisation).
(a)
(b)
(c)
Figure 22: Results for Experiment 3 of Section 4.5 (Model Free Tracking + Landmark Localisation). The top 5 performing curves are highlighted in each legend. Please see Table 8 for a full summary.

Specifically, in this experiment we consider the 14 model free trackers of Table 2, plus the PREV baseline, with the 4 landmark localisation techniques of Table 3 (AAM, CFSS, ERT, SDM), for a total of 60 results. The results of the experiment are given in Table 8 and Figure 22. Note that the results for ORIA (Wu et al (2012)) and DF (Sevilla-Lara and Learned-Miller (2012)) do not appear in Table 8 due to lack of space and the fact that they did not perform well in comparison to PREV. Please see the supplementary material for full statistics.

By inspecting the results, we can firstly notice that most generative trackers perform poorly (i.e. ORIA, DF, FCT, IVT), except LRST which achieves the second best performance for the most challenging video category. On the other hand, the discriminative approaches of SRDCF and SPOT are consistently performing very well. Additionally, similar to the face detection experiments, the combination of all trackers with CFSS returns the best result, whereas AAM constantly demonstrates the poorest performance. Finally, it becomes evident that a straightforward application of the simplistic baseline approach (PREV) is not suitable for deformable tracking, even though it is surprisingly outperforming some model free trackers, such as DF, ORIA and FCT. For the curves that correspond to all 60 methods as well as a video with the tracking result of the top 5 methods7, please refer to the supplementary material.

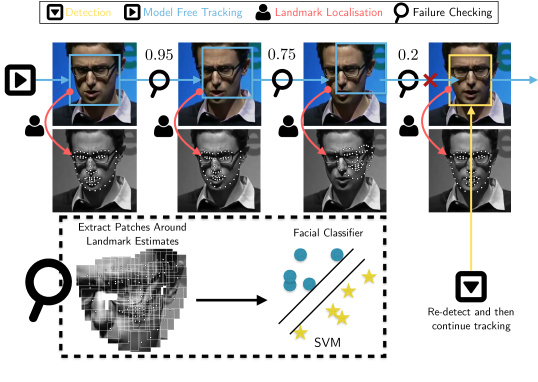

Figure 23: This figure gives a diagram of the reinitialisation scheme proposed in Section 4.6 for tracking with failure detection. For all frames after the first, the result of the current landmark localisation is used to decide whether or not a face is still being tracked. If the classification fails, a re-detection is performed and the tracker is reinitialised with the bounding box returned by the detector.
Method Category 1 Category 2 Category 3
Rigid Landmark AUC Failure AUC Failure AUC Failure
Tracking Localisation Rate (%) Rate (%) Rate (%)
FCT CFSS 0.693 13.414 0.763 1.661 0.516 32.376
RPT 0.745 6.239 0.769 0.697 0.704 6.108
SPOT 0.688 13.342 0.751 2.896 0.570 22.913
SRDCF 0.748 5.999 0.772 0.505 0.698 6.657
Colouring denotes the methods’ performance ranking per category:    first    second    third
Table 9: Results for Experiment 4 of Section 4.6 (Model Free Tracking + Landmark Localisation + Failure Checking). The Area Under the Curve (AUC) and Failure Rate are reported. The top 3 performing curves are highlighted for each video category.
(a)
(b)
(c)
Figure 27: Results for Experiment 4 of Section 4.6 (Model Free Tracking + Landmark Localisation + Failure Checking). The top 5 performing curves are highlighted in each legend. Please see Table 9 for a full summary.
(a)
(b)
(c)
Figure 31: Results for Experiment 4 of Section 4.6 (Model Free Tracking + Landmark Localisation + Failure Checking). These results show the effect of the failure checking, in comparison to only tracking. The results are coloured by their performance red, green, blue and orange, respectively. The dashed lines represent the results before the reinitialisation strategy is applied, solid lines are after.

4.6 Experiment 4: Failure Checking and Tracking Reinitialisation

Complementing the experiments of Section 4.5, we investigate the improvement in performance of performing failure checking during tracking. Here we define failure checking as the process of determining whether or not the currently tracked object is a face. Given that we have prior knowledge of the class of object we are tracking, namely faces, this enables us to train an offline classifier that attempts to determine whether a given input is a face or not. Furthermore, since we are also applying landmark localisation, we can perform a strong classification by using the facial landmarks as position priors when extracting features for the failure checking. To train the failure checking classifier, we perform the following methodology:

  1. For all images in the Landmark Localisation training set, extract a fixed sized patch around each of the 68 landmarks and compute HOG (Dalal and Triggs (2005)) features for each patch. These patches are the positive training samples.

  2. Generate negative training samples by perturbing the ground truth bounding box, extracting fixed size patches and computing HOG.

  3. Train an SVM classifier using the positive and negative samples.

For the experiments in this section, we use a fixed patch size of pixels, with 100 negative patches sampled for each positive patch. The failure checking classification threshold is chosen via cross-validation on two sequences from the 300VW training videos. Any hyper-parameters of the SVM are also trained using these two validation videos.

Given the failure detector, our restart procedure, is as follows:

  • Classify the current frame to determine if the tracking has failed. If a failure is verified, perform a restart, otherwise continue.

  • Following the convention of the VOT challenges by Kristan et al (2013, 2014, 2015), we attempt to reduce the probability that poor trackers will overly rely on the output of the failure detection system. In the worst case, a very poor tracker would fail on most frames and thus the accuracy of the detector would be validated rather than the tracker itself. Therefore, when a failure is identified, the tracker is allowed to continue for 10 more frames. The results from the drifting tracker are used in these 10 frames in order reduce the affect of the detector. The tracker is then reinitialised at the frame it was first detected as failing at. The next 10 frames, as previously described, already have results computed and therefore no landmark localisation or failure checking is performed in these frames. At the 11th frame, the tracker continues as normal, with landmark localisation and failure checking.

  • In the unlikely event that the detector fails to detect the face, the previous frame is used as described in Section 4.4.

The diagram given in Figure 23 gives a pictorial representation of this scheme.

The results of this experiment are given in Table 9 and Figure 27. In contrast to Section 4.5, we only perform the experiments on a subset of the total trackers using CFSS. We use the top 3 performing trackers (SRDCF, RPT, SPOT) as well as FCT which had mediocre performance in Section 4.5. The results indicate that SRDCF is the best model free tracking methodology for the task.

In order to better investigate the effect of this failure checking scheme, we also provide Figure 18 which shows the differences between the initial tracking results of Section 4.5 and the results after applying failure detection. The performance of the top trackers (i.e. SRDCF, SPOT, RPT) does not improve much, which is expected since they are already able to return a robust tracking result. However, FCT benefits from the failure checking process, which apparently minimises its drifting issues.

Method Category 1 Category 2 Category 3
Detection or Landmark AUC Failure AUC Failure AUC Failure
Tracking Localisation Rate (%) Rate (%) Rate (%)
DPM CFSS 0.766 3.741 0.770 1.317 0.724 5.234
ERT 0.777 3.442 0.772 1.509 0.721 6.082
SDM 0.678 3.728 0.652 1.354 0.592 5.786
FCT AAM 0.342 51.503 0.552 20.172 0.149 76.765
CFSS 0.529 29.283 0.709 9.358 0.320 53.061
ERT 0.386 40.506 0.623 11.937 0.188 65.121
SDM 0.419 38.506 0.629 12.515 0.204 63.730
RPT CFSS 0.727 5.722 0.772 0.252 0.632 13.331
ERT 0.589 12.765 0.713 2.303 0.507 18.687
SDM 0.622 9.169 0.710 0.888 0.539 17.535
SPOT AAM 0.536 24.998 0.682 6.957 0.254 56.803
CFSS 0.773 2.237 0.777 0.417 0.551 27.323
ERT 0.640 6.745 0.731 1.074 0.412 30.296
SDM 0.681 3.194 0.717 0.508 0.474 28.548
SRDCF AAM 0.546 25.988 0.676 7.697 0.440 31.499
CFSS 0.734 6.815 0.783 0.131 0.693 8.134
ERT 0.637 11.145 0.746 0.922 0.544 11.572
SDM 0.652 7.905 0.729 0.414 0.588 10.774
TLD CFSS 0.624 14.827 0.681 7.477 0.473 29.548
SDM 0.457 24.965 0.566 11.645 0.335 37.389
Colouring denotes the methods’ performance ranking per category:    first    second    third    fourth
Table 10: Results for Experiment 5 of Section 4.7 (Kalman Smoothing). The Area Under the Curve (AUC) and Failure Rate are reported. The top 4 performing curves are highlighted for each video category.
(a)
(b)
(c)
Figure 35: Results for Experiment 5 of Section 4.7 (Kalman Smoothing). The top 5 performing curves are highlighted in each legend. Please see Table 10 for a full summary.
(a)
(b)
(c)
Figure 39: Results for Experiment 5 of Section 4.7 (Kalman Smoothing). These results show the effect of Kalman smoothing on the final landmark localisation results. The top 3 performing results are given in red, green and blue, respectively, and the top 3 most improved are given in cyan, yellow and brown, respectively. The dashed lines represent the results before the smoothing is applied, solid lines are after.

4.7 Experiment 5: Kalman Smoothing

In this section, we report the effect of performing Kalman Smoothing (Kalman (1960)) on the results of the detectors of Section 4.3 and the trackers of Section 4.5. This experiment is designed to highlight the stability of the current landmark localisation methods with respect to noisy movement between frames (or jittering as it often known). However, when attempting to smooth the trajectories of the tracked bounding boxes themselves, we found an extremely negative effect on the results. Therefore, to remove jitter from the results we perform Kalman smoothing on the landmarks themselves. To robustly smooth the landmark trajectories, a generic facial shape model is constructed in a similar manner as described in the AAM literature by Cootes et al (2001). Specifically, given the sparse shape of the face consisting of landmark points, we denote the coordinates of the -th landmark point within the Cartesian space of the image as . Then a shape instance of the face is given by the vector . Given a set of such shape samples , a parametric statistical subspace of the object’s shape variance can be retrieved by first applying Generalised Procrustes Analysis on the shapes to normalise them with respect to the global similarity transform (i.e., scale, in-plane rotation and translation) and then using Principal Component Analysis (PCA). The resulting shape model, denoted as , consists of the orthonormal basis with eigenvectors and the mean shape vector

. This parametric model can be used to generate new shape instances as

where is the vector of shape parameters that control the linear combination of the eigenvectors. The Kalman smoothing is thus learnt via Expectation-Maximisation (EM) for the parameters of each shape within a sequence.

The results of this experiment are given in Table 10 and Figure 35. These experiments also provide a direct comparison between the best detection and model free tracking based techniques. For the videos of categories 1 and 3, the Kalman smoothing applied on DPM followed by a discriminative landmark localisation method (CFSS, ERT) outperforms all the combinations that involve model free rigid tracking. The combination of SRDCF with CFSS with Kalman smoothing achieves the best performance for Category 2.

In order to better investigate the effect of the smoothing, we also provide Figure 39 which shows the differences between the initial tracking results and the results after applying Kalman smoothing. This comparison is shown for the best methods of Table 10. It becomes obvious that the improvement introduced by Kalman smoothing is marginal.

Method Category 1 Category 2 Category 3
AUC Failure AUC Failure AUC Failure
Rate (%) Rate (%) Rate (%)
DPM + ERT + Kalman 0.775 3.472 0.770 1.527 0.719 6.111
DPM + ERT + previous 0.771 3.262 0.764 1.205 0.714 5.692
DPM + CFSS + Kalman 0.764 3.784 0.767 1.326 0.721 5.255
SRDCF + CFSS + Kalman 0.732 6.847 0.780 0.131 0.690 8.206
SRDCF + CFSS 0.729 6.849 0.777 0.167 0.684 8.242
Yang et al (2015a) 0.791 2.400 0.788 0.322 0.710 4.461
Uricar and Franc (2015) 0.657 7.622 0.677 4.131 0.574 7.957
Xiao et al (2015) 0.760 5.899 0.782 3.845 0.695 7.379
Rajamanoharan and Cootes (2015) 0.735 6.557 0.717 3.906 0.659 8.289
Wu and Ji (2015) 0.674 13.925 0.732 5.601 0.602 13.161
Colouring denotes the methods’ performance ranking per category:    first    second    third    fourth    fifth
Table 11: Comparison between the best methods of Sections 4.3-4.7 and the participants of the 300VW challenge by Shen et al (2015). The Area Under the Curve (AUC) and Failure Rate are reported. The top 5 performing curves are highlighted for each video category.
(a)
(b)
(c)
Figure 43: Comparison between the best methods of Sections 4.3-4.7 and the participants of the 300VW challenge by Shen et al (2015). The top 5 methods are shown and are coloured red, blue, green, orange and purple, respectively. Please see Table 11 for a full summary.

4.8 300VW Comparison

In this section we provide results that compare the best performing methods of the previous sections (4.3-4.7) to the participants of the 300VW challenge by Shen et al (2015). The challenge had 5 competitors. Rajamanoharan and Cootes (2015) employ a multi-view Constrained Local Model (CLM) with a global shape model and different response maps per pose and explore shape-space clustering strategies to determine the optimal pose-specific CLM. Uricar and Franc (2015) apply a DPM at each frame as well as Kalman smoothing on the face positions. Wu and Ji (2015) utilise a shape augmented regression model, where the regression function is automatically selected based on the facial shape. Xiao et al (2015) propose a multi-stage regression-based approach that progressively provides initialisations for ambiguous landmarks such as boundary and eyebrows, based on landmarks with semantically strong meaning such as eyes and mouth corners. Finally, Yang et al (2015a) employ a multi-view spatio-temporal cascade shape regression model along with a novel reinitialisation mechanism.

The results are summarised in Table 11 and Figure 43. Note that the error metric considered in this paper (as described in Section 4.2.2) differs from that of the original competition. This was intended to improve the robustness of the results with respect to variation in pose. Also, as noted in Section 4.2, the 300VW annotations have been corrected and thus this experiment represents updated results for the 300VW competitors. The results indicate that Yang et al (2015a) outperform the rest of the methods for the videos of Categories 1 and 2, whereas a weakly supervised DPM combined with CFSS and Kalman smoothing is the top performing for the challenging videos of Category 3. Moreover, it becomes evident that methodologies which employ face detection dominate Categories 1 and 3. Category 2 is dominated by approaches that utilise a model free tracker.

5 Discussion and Conclusions

In Section 4 we presented a number of experiments on deformable tracking of sequences containing a single face. We investigated the performance of state-of-the-art face detectors and model free trackers on the recently released 300VW dataset1. We also devised a number of hybrid systems that attempt to improve the performance of both detectors and trackers with respect to tracking failures. A summary of the proposed experiments are given in Table 4.

Overall, it appears that modern detectors are capable of handling videos of the complexity provided by the 300VW dataset. This supports the most commonly proposed deformable face tracking methodology that couples a detector with a landmark localisation algorithm. More interestingly, it appears that modern model free trackers are also highly capable of tracking videos that contain variations in pose, expression and illumination. This is particularly evident in the videos of Category 2 where the model free trackers perform the best. The performance on the videos of Category 2 is likely due to the decreased amount of pose variation in comparison to the other two categories. Category 2 contains many illumination variations which model free trackers appear invariant to. Our work also supports the most recent model free tracking benchmarks (Kristan et al (2015) and Wu et al (2015)) which have demonstrated that DCF-based trackers are currently the most competitive. However, the performance of the trackers does deteriorate significantly in Category 3 which supports the categorisation of these videos in the 300VW as the most difficult category. The difficulty in the videos of Category 3 largely stems from the amount of pose variation present, which both detectors and model free trackers struggle with.

The DPM detector provided by Mathias et al (2014) is very robust across a variety of poses and illumination conditions. Overall, it outperformed the other methods by a fairly significant margin, particularly when failure rate is considered. Even in the most challenging videos of Category 3, the failure rate of DPM is only approximately , which is over less than the next best performing method, SRDCF, at . The CFSS landmark localisation method of Zhu et al (2015)

outperforms all other considered landmark localisation methods, although the random forest based ERT method of

Kazemi and Sullivan (2014) also performed very well. The difference between CFSS and SDM supports the findings of Zhu et al (2015) as the videos contain very challenging pose variations.

The stable performance of both the best model free trackers and detectors on these videos is further demonstrated by the minimal improvement gained from the proposed hybrid systems. Neither reinitialisation from the previous frame (Section 4.4), nor the failure detection methodology proposed (Section 4.6) improved the best performing methods with any significance. Furthermore, Kalman smoothing the facial shapes across the sequences also had a very minimal positive improvement.

In comparison to the recent results of the 300VW competition (Shen et al (2015)), our review of combinations of modern state-of-the-art detectors and trackers found that very strong performance can be obtained through fairly simple deformable tracking schemes. In fact, only the work of Yang et al (2015a) outperforms our best performing method and the difference shown by Figure 43 appears to be marginal, particular in Category 3. However, the overall results show that, particularly for videos that contain significant pose, there are still improvements to be made.

To summarise, there are a number of important issues that must be tackled in order to improve deformable face tracking:

  1. Pose is still a challenging issue for landmark localisation methods. In fact, the videos of 300VW do not even exhibit the full range of possible facial pose as they do not contain profile faces. The challenges of considering profile faces have yet to be adequately addressed and have not be verified with respect to current state-of-the-art benchmarks.

  2. In this work, we only consider videos that contain a single visible face. However, there are many scenarios in which multiple faces may be present and this represents further challenges to deformable tracking. Detectors for example, are particularly vulnerable to multi-object tracking scenarios as they require extending with the ability to determine whether the object being localised is the same as in the previous frame.

  3. It is very common for objects to leave the frame of the camera during a sequence, and then reappear. Few model free trackers are robust to reinitialisation after an object has disappeared and then reappeared. When combined with multiple objects, this scenario becomes particularly challenging as it requires a re-identification step in order to verify whether the object to be tracked is one that was seen before.

We believe that deformable face tracking is a very exciting line of research and future advances on the field can have an important impact on several areas of Computer Vision.

References

  • Adam et al (2006) Adam A, Rivlin E, Shimshoni I (2006) Robust fragments-based tracking using the integral histogram. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, vol 1, pp 798–805
  • Alabort-i-Medina and Zafeiriou (2014) Alabort-i-Medina J, Zafeiriou S (2014) Bayesian active appearance models. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 3438–3445
  • Alabort-i-Medina and Zafeiriou (2015) Alabort-i-Medina J, Zafeiriou S (2015) Unifying holistic and parts-based deformable model fitting. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 3679–3688
  • Alabort-i-Medina et al (2014) Alabort-i-Medina J, Antonakos E, Booth J, Snape P, Zafeiriou S (2014) Menpo: A comprehensive platform for parametric image alignment and visual deformable models. In: Proceedings of ACM International Conference on Multimedia (ACM’MM), ACM, pp 679–682, [Code: http://www.menpo.org/]
  • Allen et al (2004) Allen JG, Xu RY, Jin JS (2004) Object tracking using camshift algorithm and multiple quantized feature spaces. In: Proceedings of the Pan-Sydney area workshop on Visual information processing, Australian Computer Society, Inc., pp 3–7
  • Amberg (2011) Amberg B (2011) Editing faces in videos. PhD thesis, University of Basel
  • Amberg et al (2009) Amberg B, Blake A, Vetter T (2009) On compositional image alignment, with an application to active appearance models. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1714–1721
  • Antonakos et al (2014) Antonakos E, Alabort-i-Medina J, Tzimiropoulos G, Zafeiriou S (2014) Hog active appearance models. In: IEEE Proceedings of International Conference on Image Processing (ICIP), pp 224–228
  • Antonakos et al (2015a) Antonakos E, Alabort-i Medina J, Zafeiriou S (2015a) Active pictorial structures. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 5435–5444
  • Antonakos et al (2015b) Antonakos E, i medina JA, Tzimiropoulos G, Zafeiriou S (2015b) Feature-based lucas-kanade and active appearance models. IEEE Transactions in Image Processing (TIP) 24(9):2617–2632
  • Arandjelović and Zisserman (2012) Arandjelović R, Zisserman A (2012) Three things everyone should know to improve object retrieval. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 2911–2918
  • Asthana et al (2014) Asthana A, Zafeiriou S, Cheng S, Pantic M (2014) Incremental face alignment in the wild. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 1859–1866
  • Asthana et al (2015) Asthana A, Zafeiriou S, Tzimiropoulos G, Cheng S, Pantic M (2015) From pixels to response maps: Discriminative image filtering for face alignment in the wild. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 37(6):1312–1320
  • Babenko et al (2011) Babenko B, Yang MH, Belongie S (2011) Robust object tracking with online multiple instance learning. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 33(8):1619–1632, DOI 10.1109/TPAMI.2010.226
  • Baker and Matthews (2004) Baker S, Matthews I (2004) Lucas-kanade 20 years on: A unifying framework. International Journal of Computer Vision (IJCV) 56(3):221–255
  • Balan and Black (2006) Balan AO, Black MJ (2006) An adaptive appearance model approach for model-based articulated object tracking. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, vol 1, pp 758–765
  • Barbu et al (2014) Barbu A, Lay N, Gramajo G (2014) Face detection with a 3d model. arXiv preprint arXiv:14043596
  • Basu et al (1996) Basu S, Essa I, Pentland A (1996) Motion regularization for model-based head tracking. In: IEEE International Conference on Pattern Recognition (ICPR), IEEE, vol 3, pp 611–616
  • Bay et al (2008) Bay H, Ess A, Tuytelaars T, Van Gool L (2008) Speeded-up robust features (surf). Computer Vision and Image Understanding 110(3):346–359
  • Belhumeur et al (2013) Belhumeur PN, Jacobs DW, Kriegman DJ, Kumar N (2013) Localizing parts of faces using a consensus of exemplars. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 35(12):2930–2940
  • Black and Jepson (1998) Black MJ, Jepson AD (1998) Eigentracking: Robust matching and tracking of articulated objects using a view-based representation. International Journal of Computer Vision (IJCV) 26(1):63–84
  • Black and Yacoob (1995) Black MJ, Yacoob Y (1995) Tracking and recognizing rigid and non-rigid facial motions using local parametric models of image motion. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 374–381
  • Bozdaği et al (1994) Bozdaği G, Tekalp AM, Onural L (1994) 3-d motion estimation and wireframe adaptation including photometric effects for model-based coding of facial image sequences. IEEE Transactions on Circuits and Systems for Video Technology 4(3):246–256
  • Bradski (2000) Bradski G (2000) The opencv library. Dr Dobb’s Journal of Software Tools [Code: http://opencv.org]
  • Bradski (1998a) Bradski GR (1998a) Conputer vision face tracking for use in a perceptual user interface. Proceedings of Intel Technology Journal
  • Bradski (1998b) Bradski GR (1998b) Real time face and object tracking as a component of a perceptual user interface. In: Applications of Computer Vision, 1998. WACV’98. Proceedings., Fourth IEEE Workshop on, IEEE, pp 214–219
  • Burgos-Artizzu et al (2013) Burgos-Artizzu XP, Perona P, Dollár P (2013) Robust face landmark estimation under occlusion. In: IEEE Proceedings of International Conference on Computer Vision (ICCV)
  • Cai et al (2010) Cai Q, Gallup D, Zhang C, Zhang Z (2010) 3d deformable face tracking with a commodity depth camera. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 229–242
  • Campbell (2015) Campbell KL (2015) Transportation Research Board of the National Academies of Science. The 2nd strategic highway research program naturalistic driving study dataset. https://insight.shrp2nds.us/, [Online; accessed 30-September-2015]
  • Cao et al (2014) Cao X, Wei Y, Wen F, Sun J (2014) Face alignment by explicit shape regression. International Journal of Computer Vision (IJCV) 107(2):177–190
  • Chen et al (2014) Chen D, Ren S, Wei Y, Cao X, Sun J (2014) Joint cascade face detection and alignment. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 109–122
  • Chrysos et al (2015) Chrysos G, Antonakos E, Zafeiriou S, Snape P (2015) Offline deformable face tracking in arbitrary videos. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Colmenarez et al (1999) Colmenarez A, Frey B, Huang TS (1999) Detection and tracking of faces and facial features. In: IEEE Proceedings of International Conference on Image Processing (ICIP), IEEE, vol 1, pp 657–661
  • Comaniciu and Meer (1999) Comaniciu D, Meer P (1999) Mean shift analysis and applications. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), IEEE, vol 2, pp 1197–1203
  • Comaniciu et al (2000) Comaniciu D, Ramesh V, Meer P (2000) Real-time tracking of non-rigid objects using mean shift. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, vol 2, pp 142–149
  • Cootes (2015) Cootes TF (2015) Talking face video. http://personalpages.manchester.ac.uk/staff/timothy.f.cootes/data/talking_face/talking_face.html, [Online; accessed 30-September-2015]
  • Cootes et al (1995) Cootes TF, Taylor CJ, Cooper DH, Graham J (1995) Active shape models-their training and application. Computer vision and image understanding 61(1):38–59
  • Cootes et al (2001) Cootes TF, Edwards GJ, Taylor CJ (2001) Active appearance models. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 23(6):681–685
  • Crowley and Berard (1997) Crowley JL, Berard F (1997) Multi-modal tracking of faces for video communications. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 640–645
  • Dalal and Triggs (2005) Dalal N, Triggs B (2005) Histograms of oriented gradients for human detection. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 886–893
  • Danelljan et al (2014) Danelljan M, Häger G, Khan FS, Felsberg M (2014) Accurate scale estimation for robust visual tracking. In: Proceedings of British Machine Vision Conference (BMVC)
  • Danelljan et al (2015) Danelljan M, Häger G, Shahbaz Khan F, Felsberg M (2015) Learning spatially regularized correlation filters for visual tracking. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), pp 4310–4318, [Code: https://www.cvl.isy.liu.se/en/research/objrec/visualtracking/regvistrack/]
  • Decarlo and Metaxas (2000) Decarlo D, Metaxas D (2000) Optical flow constraints on deformable models with applications to face tracking. International Journal of Computer Vision (IJCV) 38(2):99–127
  • Dedeoğlu et al (2007) Dedeoğlu G, Kanade T, Baker S (2007) The asymmetry of image registration and its application to face tracking. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 29(5):807–823
  • Del Moral (1996) Del Moral P (1996) Non-linear filtering: interacting particle resolution. Markov processes and related fields 2(4):555–581
  • Dollár et al (2009) Dollár P, Tu Z, Perona P, Belongie S (2009) Integral channel features. In: Proceedings of British Machine Vision Conference (BMVC)
  • Dollár et al (2010) Dollár P, Welinder P, Perona P (2010) Cascaded pose regression. In: Computer Vision and Pattern Recognition (CVPR), 2010 IEEE Conference on, IEEE, pp 1078–1085
  • Dornaika and Ahlberg (2004) Dornaika F, Ahlberg J (2004) Fast and reliable active appearance model search for 3-d face tracking. IEEE Transactions On Systems, Man, and Cybernetics, Part B: Cybernetics 34(4):1838–1853
  • Dubout and Fleuret (2012) Dubout C, Fleuret F (2012) Exact acceleration of linear object detectors. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 301–311
  • Dubout and Fleuret (2013) Dubout C, Fleuret F (2013) Deformable part models with individual part scaling. In: Proceedings of British Machine Vision Conference (BMVC), EPFL-CONF-192393
  • Essa et al (1996) Essa I, Basu S, Darrell T, Pentland A (1996) Modeling, tracking and interactive animation of faces and heads using input from video. In: Proceedings of Computer Animation, pp 68–79
  • Essa et al (1997) Essa I, Pentland AP, et al (1997) Coding, analysis, interpretation, and recognition of facial expressions. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 19(7):757–763
  • Essa and Pentland (1994) Essa IA, Pentland A (1994) A vision system for observing and extracting facial action parameters. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 76–83
  • Essa et al (1994) Essa IA, Darrell T, Pentland A (1994) Tracking facial motion. In: IEEE Proceedings of Workshop on Motion of Non-Rigid and Articulated Objects, IEEE, pp 36–42
  • Felzenszwalb and Huttenlocher (2005) Felzenszwalb PF, Huttenlocher DP (2005) Pictorial structures for object recognition. International Journal of Computer Vision (IJCV) 61(1):55–79
  • Felzenszwalb et al (2010) Felzenszwalb PF, Girshick RB, McAllester D, Ramanan D (2010) Object detection with discriminatively trained part-based models. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 32(9):1627–1645
  • Fischler and Elschlager (1973) Fischler MA, Elschlager RA (1973) The representation and matching of pictorial structures. IEEE Transactions on Computers 22(1):67–92
  • Ghiasi and Fowlkes (2014) Ghiasi G, Fowlkes C (2014) Occlusion coherence: Localizing occluded faces with a hierarchical deformable part model. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 2385–2392
  • Göktürk and Tomasi (2004)

    Göktürk SB, Tomasi C (2004) 3d head tracking based on recognition and interpolation using a time-of-flight depth sensor. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, vol 2, pp II–211

  • Gordon et al (1993) Gordon NJ, Salmond DJ, Smith AF (1993) Novel approach to nonlinear/non-gaussian bayesian state estimation. In: Radar and Signal Processing, IEE Proceedings F, IET, vol 140, pp 107–113
  • Grabner et al (2006) Grabner H, Grabner M, Bischof H (2006) Real-time tracking via on-line boosting. In: Proceedings of British Machine Vision Conference (BMVC), 5, p 6
  • Gross et al (2010) Gross R, Matthews I, Cohn J, Kanade T, Baker S (2010) Multi-pie. Image and Vision Computing 28(5):807–813
  • Hare et al (2011) Hare S, Saffari A, Torr PH (2011) Struck: Structured output tracking with kernels. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), IEEE, pp 263–270, [Code: http://www.samhare.net/research/struck]
  • Hare et al (2012) Hare S, Saffari A, Torr PH (2012) Efficient online structured output learning for keypoint-based object tracking. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1894–1901
  • Heisele et al (2003)

    Heisele B, Serre T, Prentice S, Poggio T (2003) Hierarchical classification and feature reduction for fast face detection with support vector machines. Pattern Recognition 36(9):2007–2017

  • Henriques et al (2015) Henriques JF, Caseiro R, Martins P, Batista J (2015) High-speed tracking with kernelized correlation filters. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 37(3):583–596, [Code: https://github.com/joaofaro/KCFcpp]
  • Hjelmås and Low (2001) Hjelmås E, Low BK (2001) Face detection: A survey. Computer Vision and Image Understanding 83(3):236–274
  • Huang et al (2007) Huang GB, Ramesh M, Berg T, Learned-Miller E (2007) Labeled faces in the wild: A database for studying face recognition in unconstrained environments. Tech. Rep. 07-49, University of Massachusetts, Amherst
  • Isard and Blake (1998) Isard M, Blake A (1998) Condensation—conditional density propagation for visual tracking. International Journal of Computer Vision (IJCV) 29(1):5–28
  • Jain and Learned-Miller (2010) Jain V, Learned-Miller E (2010) Fddb: A benchmark for face detection in unconstrained settings. Tech. Rep. UM-CS-2010-009, University of Massachusetts, Amherst
  • Jepson et al (2003) Jepson AD, Fleet DJ, El-Maraghi TF (2003) Robust online appearance models for visual tracking. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 25(10):1296–1311
  • Jun et al (2013) Jun B, Choi I, Kim D (2013) Local transform features and hybridization for accurate face and human detection. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 35(6):1423–1436
  • Jurie (1999) Jurie F (1999) A new log-polar mapping for space variant imaging.: Application to face detection and tracking. Pattern Recognition 32(5):865–875
  • Kalal et al (2010a) Kalal Z, Mikolajczyk K, Matas J (2010a) Face-tld: Tracking-learning-detection applied to faces. In: IEEE Proceedings of International Conference on Image Processing (ICIP), pp 3789–3792
  • Kalal et al (2010b) Kalal Z, Mikolajczyk K, Matas J (2010b) Forward-backward error: Automatic detection of tracking failures. In: IEEE International Conference on Pattern Recognition (ICPR), IEEE, pp 2756–2759
  • Kalal et al (2012) Kalal Z, Mikolajczyk K, Matas J (2012) Tracking-learning-detection. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 34(7):1409–1422, [Code: https://github.com/zk00006/OpenTLD]
  • Kalman (1960) Kalman RE (1960) A new approach to linear filtering and prediction problems. Journal of basic Engineering 82(1):35–45
  • Kazemi and Sullivan (2014) Kazemi V, Sullivan J (2014) One millisecond face alignment with an ensemble of regression trees. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 1867–1874
  • Kim et al (2008) Kim M, Kumar S, Pavlovic V, Rowley H (2008) Face tracking and recognition with visual constraints in real-world videos. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1–8
  • King (2009) King DE (2009) Dlib-ml: A machine learning toolkit. The Journal of Machine Learning Research 10:1755–1758, [Code: http://dlib.net/]
  • King (2015) King DE (2015) Max-margin object detection. arXiv preprint arXiv:150200046
  • Klare et al (2015) Klare BF, Klein B, Taborsky E, Blanton A, Cheney J, Allen K, Grother P, Mah A, Burge M, Jain AK (2015) Pushing the frontiers of unconstrained face detection and recognition: Iarpa janus benchmark a. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1931–1939
  • Koelstra et al (2010) Koelstra S, Pantic M, Patras IY (2010) A dynamic texture-based approach to recognition of facial actions and their temporal models. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 32(11):1940–1954
  • Kokiopoulou et al (2011) Kokiopoulou E, Chen J, Saad Y (2011) Trace optimization and eigenproblems in dimension reduction methods. Numerical Linear Algebra with Applications 18(3):565–602
  • Köstinger et al (2011) Köstinger M, Wohlhart P, Roth PM, Bischof H (2011) Annotated facial landmarks in the wild: A large-scale, real-world database for facial landmark localization. In: IEEE Proceedings of International Conference on Computer Vision Workshops (ICCV’W), pp 2144–2151
  • Köstinger et al (2012) Köstinger M, Wohlhart P, Roth PM, Bischof H (2012) Robust face detection by simple means. In: DAGM 2012 CVAW workshop
  • Koukis et al (2013) Koukis V, Venetsanopoulos C, Koziris N (2013) ~ okeanos: Building a cloud, cluster by cluster. IEEE internet computing 17(3):67–71
  • Kristan et al (2013) Kristan M, Pflugfelder R, Leonardis A, Matas J, Porikli F, Čehovin L, Nebehay G, et al (2013) The visual object tracking vot2013 challenge results. In: IEEE Proceedings of International Conference on Computer Vision Workshops (ICCV’W)
  • Kristan et al (2014) Kristan M, Pflugfelder R, Leonardis A, Matas J, Čehovin L, Nebehay G, et al (2014) The visual object tracking vot2014 challenge results. In: Proceedings of European Conference on Computer Vision Workshops (ECCV’W), URL http://www.votchallenge.net/vot2014/program.html
  • Kristan et al (2015) Kristan M, Matas J, Leonardis A, Felsberg M, Čehovin L, Fernandez G, Vojir T, Häger G, Nebehay G, et al (2015) The visual object tracking vot2015 challenge results. In: IEEE Proceedings of International Conference on Computer Vision Workshops (ICCV’W)
  • Kristan et al (2016) Kristan M, Matas J, Leonardis A, Vojir T, Pflugfelder R, Fernandez G, Nebehay G, Porikli F, Čehovin L (2016) A novel performance evaluation methodology for single-target trackers. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI)
  • Kumar et al (2015) Kumar V, Namboodiri A, Jawahar C (2015) Visual phrases for exemplar face detection. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), pp 1994–2002
  • La Cascia et al (2000) La Cascia M, Sclaroff S, Athitsos V (2000) Fast, reliable head tracking under varying illumination: An approach based on registration of texture-mapped 3d models. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 22(4):322–336
  • Lanitis et al (1995) Lanitis A, Taylor CJ, Cootes TF (1995) A unified approach to coding and interpreting face images. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 368–373
  • Le et al (2012) Le V, Brandt J, Lin Z, Bourdev L, Huang TS (2012) Interactive facial feature localization. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 679–692
  • Learned-Miller et al (2016) Learned-Miller E, Huang G, RoyChowdhury A, Li H, Hua G, Huang GB (2016) Labeled faces in the wild: A survey. Advances in Face Detection and Facial Image Analysis
  • Levey and Lindenbaum (2000) Levey A, Lindenbaum M (2000) Sequential karhunen-loeve basis extraction and its application to images. Image Processing, IEEE Transactions on 9(8):1371–1374
  • Li et al (2015a) Li A, Lin M, Wu Y, Yang MH, Yan S (2015a) Nus-pro: A new visual tracking challenge. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI)
  • Li et al (2015b) Li A, Lin M, Wu Y, Yang MH, Yan S (2015b) Nus-pro tracking challenge. http://www.lv-nus.org/pro/nus_pro.html, [Online; accessed 30-September-2015]
  • Li et al (1993) Li H, Roivainen P, Forchheimer R (1993) 3-d motion estimation in model-based facial image coding. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 15(6):545–555
  • Li et al (2013a) Li H, Hua G, Lin Z, Brandt J, Yang J (2013a) Probabilistic elastic part model for unsupervised face detector adaptation. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), pp 793–800
  • Li et al (2014) Li H, Lin Z, Brandt J, Shen X, Hua G (2014) Efficient boosted exemplar-based face detection. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 1843–1850
  • Li et al (2015c) Li H, Lin Z, Shen X, Brandt J, Hua G (2015c) A convolutional neural network cascade for face detection. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 5325–5334
  • Li and Zhang (2013) Li J, Zhang Y (2013) Learning surf cascade for fast and accurate object detection. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp 3468–3475
  • Li et al (2011) Li J, Wang T, Zhang Y (2011) Face detection using surf cascade. In: IEEE Proceedings of International Conference on Computer Vision Workshops (ICCV’W), IEEE, pp 2183–2190
  • Li et al (2002) Li SZ, Zhu L, Zhang Z, Blake A, Zhang H, Shum H (2002) Statistical learning of multi-view face detection. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 67–81
  • Li et al (2013b) Li X, Hu W, Shen C, Zhang Z, Dick A, Hengel AVD (2013b) A survey of appearance models in visual object tracking. ACM transactions on Intelligent Systems and Technology (TIST) 4(4):58
  • Li et al (2000) Li Y, Gong S, Liddell H (2000) Support vector regression and classification based multi-view face detection and recognition. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), IEEE, pp 300–305
  • Li et al (2015d) Li Y, Zhu J, Hoi SC (2015d) Reliable patch trackers: Robust visual tracking by exploiting reliable patches. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 353–361, [Code: https://github.com/ihpdep/rpt]
  • Liwicki et al (2012a) Liwicki S, Zafeiriou S, Pantic M (2012a) Incremental slow feature analysis with indefinite kernel for online temporal video segmentation. In: Asian Conference on Computer Vision (ACCV), Springer, pp 162–176
  • Liwicki et al (2012b) Liwicki S, Zafeiriou S, Tzimiropoulos G, Pantic M (2012b) Efficient online subspace learning with an indefinite kernel for visual tracking and recognition. IEEE Transactions on Neural Networks and Learning Systems (T-NN) 23(10):1624–1636
  • Liwicki et al (2013) Liwicki S, Tzimiropoulos G, Zafeiriou S, Pantic M (2013) Euler principal component analysis. International Journal of Computer Vision (IJCV) 101(3):498–518
  • Liwicki et al (2015a) Liwicki S, Zafeiriou S, Tzimiropoulos G, Pantic M (2015a) Annotated face videos. http://www.robots.ox.ac.uk/~stephan/dikt/, [Online; accessed 30-September-2015]
  • Liwicki et al (2015b) Liwicki S, Zafeiriou SP, Pantic M (2015b) Online kernel slow feature analysis for temporal video segmentation and tracking. IEEE Transactions in Image Processing (TIP) 24(10):2955–2970
  • Lowe (1999) Lowe DG (1999) Object recognition from local scale-invariant features. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), pp 1150–1157
  • Malciu and Prěteux (2000) Malciu M, Prěteux F (2000) A robust model-based approach for 3d head tracking in video sequences. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), IEEE, pp 169–174
  • Mathias et al (2014) Mathias M, Benenson R, Pedersoli M, Van Gool L (2014) Face detection without bells and whistles. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 720–735
  • Matthews and Baker (2004) Matthews I, Baker S (2004) Active appearance models revisited. International Journal of Computer Vision (IJCV) 60(2):135–164
  • Matthews et al (2004) Matthews I, Ishikawa T, Baker S (2004) The template update problem. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 26(6):810–815
  • Mei and Ling (2011) Mei X, Ling H (2011) Robust visual tracking and vehicle classification via sparse representation. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 33(11):2259–2272
  • Mita et al (2005) Mita T, Kaneko T, Hori O (2005) Joint haar-like features for face detection. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), IEEE, vol 2, pp 1619–1626
  • Nebehay and Pflugfelder (2015) Nebehay G, Pflugfelder R (2015) Clustering of Static-Adaptive correspondences for deformable object tracking. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, [Code: https://github.com/gnebehay/CppMT]
  • Ojala et al (2002) Ojala T, Pietikäinen M, Mäenpää T (2002) Multiresolution gray-scale and rotation invariant texture classification with local binary patterns. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 24(7):971–987
  • Oliver et al (1997) Oliver N, Pentland AP, Berard F (1997) Lafter: Lips and face real time tracker. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 123–129
  • Orozco et al (2013) Orozco J, Rudovic O, Gonzàlez J, Pantic M (2013) Hierarchical on-line appearance-based tracking for 3d head pose, eyebrows, lips, eyelids and irises. Image and Vision Computing 31(4):322–340
  • Osadchy et al (2007)

    Osadchy M, Cun YL, Miller ML (2007) Synergistic face detection and pose estimation with energy-based models. Journal of Machine Learning Research 8:1197–1215

  • Papandreou and Maragos (2008) Papandreou G, Maragos P (2008) Adaptive and constrained algorithms for inverse compositional active appearance model fitting. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1–8
  • Parkhi et al (2015) Parkhi OM, Vedaldi A, Zisserman A (2015) Deep face recognition. Proceedings of the British Machine Vision 1(3):6
  • Patras and Pantic (2004) Patras I, Pantic M (2004) Particle filtering with factorized likelihoods for tracking facial features. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), pp 97–102
  • Peng et al (2012) Peng Y, Ganesh A, Wright J, Xu W, Ma Y (2012) Rasl: Robust alignment by sparse and low-rank decomposition for linearly correlated images. Pattern Analysis and Machine Intelligence, IEEE Transactions on 34(11):2233–2246
  • Pernici and Del Bimbo (2014) Pernici F, Del Bimbo A (2014) Object tracking by oversampling local features. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 36(12):2538–2551
  • Phillips et al (2000) Phillips PJ, Moon H, Rizvi SA, Rauss PJ (2000) The feret evaluation methodology for face-recognition algorithms. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 22(10):1090–1104
  • Pighin et al (1999) Pighin F, Szeliski R, Salesin DH (1999) Resynthesizing facial animation through 3d model-based tracking. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), IEEE, vol 1, pp 143–150
  • Poling et al (2014) Poling B, Lerman G, Szlam A (2014) Better feature tracking through subspace constraints. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 3454–3461
  • Qian et al (1998) Qian RJ, Sezan MI, Matthews KE (1998) A robust real-time face tracking algorithm. In: IEEE Proceedings of International Conference on Image Processing (ICIP), IEEE, vol 1, pp 131–135
  • Rajamanoharan and Cootes (2015) Rajamanoharan G, Cootes T (2015) Multi-view constrained local models for large head angle face tracking. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Ranjan et al (2015) Ranjan R, Patel VM, Chellappa R (2015) A deep pyramid deformable part model for face detection. In: IEEE International Conference on Biometrics Theory, Applications and Systems (BTAS), IEEE, pp 1–8
  • Rätsch et al (2004) Rätsch M, Romdhani S, Vetter T (2004) Efficient face detection by a cascaded support vector machine using haar-like features. In: Pattern Recognition, Springer, pp 62–70
  • Ren et al (2014) Ren S, Cao X, Wei Y, Sun J (2014) Face alignment at 3000 fps via regressing local binary features. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1685–1692
  • Romdhani et al (2001) Romdhani S, Torr P, Schölkopf B, Blake A (2001) Computationally efficient face detection. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), IEEE, vol 2, pp 695–700
  • Ross et al (2015) Ross D, Lim J, Lin RS, Yang MH (2015) Dudek Face Sequence. http://www.cs.toronto.edu/~dross/ivt/, [Online; accessed 14-March-2016]
  • Ross et al (2008) Ross DA, Lim J, Lin RS, Yang MH (2008) Incremental learning for robust visual tracking. International Journal of Computer Vision (IJCV) 77(1-3):125–141, [Code: http://www.cs.toronto.edu/~dross/ivt/]
  • Rueckert et al (1999) Rueckert D, Sonoda LI, Hayes C, Hill DL, Leach MO, Hawkes DJ (1999) Nonrigid registration using free-form deformations: application to breast mr images. IEEE Transactions on Medical Imaging 18(8):712–721
  • Sagonas et al (2013a) Sagonas C, Tzimiropoulos G, Zafeiriou S, Pantic M (2013a) 300 faces in-the-wild challenge: The first facial landmark localization challenge. In: IEEE Proceedings of International Conference on Computer Vision (ICCV-W), 300 Faces In-the-Wild Challenge (300-W), pp 397–403
  • Sagonas et al (2013b) Sagonas C, Tzimiropoulos G, Zafeiriou S, Pantic M (2013b) A semi-automatic methodology for facial landmark annotation. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR-W), 5th Workshop on Analysis and Modeling of Faces and Gestures, pp 896–903
  • Sagonas et al (2014) Sagonas C, Panagakis Y, Zafeiriou S, Pantic M (2014) Raps: Robust and efficient automatic construction of person-specific deformable models. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 1789–1796
  • Sagonas et al (2015) Sagonas C, Antonakos E, Tzimiropoulos G, Zafeiriou S, Pantic M (2015) 300 faces in-the-wild challenge: Database and results. In: Image and Vision Computing
  • Sakai et al (1972) Sakai T, Nagao M, Kanade T (1972) Computer analysis and classification of photographs of human faces. In: Proceedings of First USA-JAPAN Computer Conference, pp 55–62
  • Salti et al (2012) Salti S, Cavallaro A, Stefano LD (2012) Adaptive appearance modeling for video tracking: Survey and evaluation. IEEE Transactions in Image Processing (TIP) 21(10):4334–4348
  • Saragih et al (2011) Saragih JM, Lucey S, Cohn JF (2011) Deformable model fitting by regularized landmark mean-shift. International Journal of Computer Vision 91(2):200–215
  • Schneiderman and Kanade (2004) Schneiderman H, Kanade T (2004) Object detection using the statistics of parts. International Journal of Computer Vision (IJCV) 56(3):151–177
  • Schroff et al (2015) Schroff F, Kalenichenko D, Philbin J (2015) Facenet: A unified embedding for face recognition and clustering. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 815–823
  • Schwerdt and Crowley (2000) Schwerdt K, Crowley JL (2000) Robust face tracking using color. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), IEEE, pp 90–95
  • Sevilla-Lara and Learned-Miller (2012) Sevilla-Lara L, Learned-Miller E (2012) Distribution fields for tracking. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1910–1917, [Code: http://people.cs.umass.edu/~lsevilla/trackingDF.html]
  • Shen et al (2015) Shen J, Zafeiriou S, Chrysos G, Kossaifi J, Tzimiropoulos G, Pantic M (2015) The first facial landmark tracking in-the-wild challenge: Benchmark and results. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Shen et al (2013) Shen X, Lin Z, Brandt J, Wu Y (2013) Detecting and aligning faces by image retrieval. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 3460–3467
  • Smeulders et al (2014) Smeulders AW, Chu DM, Cucchiara R, Calderara S, Dehghan A, Shah M (2014) Visual tracking: An experimental survey. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 36(7):1442–1468
  • Snape et al (2015) Snape P, Roussos A, Panagakis Y, Zafeiriou S (2015) Face flow. In: IEEE Proceedings of International Conference on Computer Vision (ICCV)
  • Sobottka and Pitas (1996)

    Sobottka K, Pitas I (1996) Face localization and facial feature extraction based on shape and color information. In: IEEE Proceedings of International Conference on Image Processing (ICIP), IEEE, vol 3, pp 483–486

  • Stern and Efros (2002) Stern H, Efros B (2002) Adaptive color space switching for face tracking in multi-colored lighting environments. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), IEEE, pp 249–254
  • Sung and Kim (2009) Sung J, Kim D (2009) Adaptive active appearance model with incremental learning. Pattern recognition letters 30(4):359–367
  • Sung et al (2008) Sung J, Kanade T, Kim D (2008) Pose robust face tracking by combining active appearance models and cylinder head models. International Journal of Computer Vision (IJCV) 80(2):260–274
  • Taigman et al (2014) Taigman Y, Yang M, Ranzato M, Wolf L (2014) Deepface: Closing the gap to human-level performance in face verification. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 1701–1708
  • Tao and Huang (1998) Tao H, Huang TS (1998) Connected vibrations: a modal analysis approach for non-rigid motion tracking. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 735–740
  • De la Torre (2012) De la Torre F (2012) A least-squares framework for component analysis. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 34(6):1041–1055
  • Toyama (1998) Toyama K (1998) Look, ma-no hands! hands-free cursor control with real-time 3d face tracking. PUI98
  • Tresadern et al (2012) Tresadern PA, Ionita MC, Cootes TF (2012) Real-time facial feature tracking on a mobile device. International Journal of Computer Vision (IJCV) 96(3):280–289
  • Tzimiropoulos (2015) Tzimiropoulos G (2015) Project-out cascaded regression with an application to face alignment. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 3659–3667
  • Tzimiropoulos and Pantic (2013) Tzimiropoulos G, Pantic M (2013) Optimization problems for fast aam fitting in-the-wild. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), IEEE, pp 593–600
  • Tzimiropoulos and Pantic (2014) Tzimiropoulos G, Pantic M (2014) Gauss-newton deformable part models for face alignment in-the-wild. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 1851–1858
  • Tzimiropoulos et al (2012) Tzimiropoulos G, Alabort-i-Medina J, Zafeiriou S, Pantic M (2012) Generic active appearance models revisited. In: Asian Conference on Computer Vision (ACCV), Springer, pp 650–663
  • Tzimiropoulos et al (2014) Tzimiropoulos G, Alabort-i Medina J, Zafeiriou S, Pantic M (2014) Active orientation models for face alignment in-the-wild. IEEE Transactions on Information Forensics and Security 9(12):2024–2034
  • Uricar and Franc (2015) Uricar M, Franc V (2015) Real-time facial landmark tracking by tree-based deformable part model based detector. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Vadakkepat et al (2008) Vadakkepat P, Lim P, De Silva LC, Jing L, Ling LL (2008) Multimodal approach to human-face detection and tracking. IEEE Transactions on Industrial Electronics 55(3):1385–1393
  • Viola and Jones (2001) Viola P, Jones M (2001) Rapid object detection using a boosted cascade of simple features. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, vol 1, pp I–511
  • Viola and Jones (2004) Viola P, Jones MJ (2004) Robust real-time face detection. International Journal of Computer Vision (IJCV) 57(2):137–154
  • Wang et al (2014) Wang N, Gao X, Tao D, Li X (2014) Facial feature point detection: A comprehensive survey. arXiv preprint arXiv:14101037
  • Wang and Ji (2004) Wang P, Ji Q (2004) Multi-view face detection under complex scene based on combined svms. In: IEEE International Conference on Pattern Recognition (ICPR), pp 179–182
  • Wang et al (2015) Wang X, Valstar M, Martinez B, Haris Khan M, Pridmore T (2015) Tric-track: Tracking by regression with incrementally learned cascades. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), pp 4337–4345
  • Wei et al (2004) Wei X, Zhu Z, Yin L, Ji Q (2004) A real time face tracking and animation system. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition Workshops (CVPR’W), IEEE, pp 71–71
  • Weise et al (2011) Weise T, Bouaziz S, Li H, Pauly M (2011) Realtime performance-based facial animation. In: ACM Transactions on Graphics (TOG), ACM, vol 30, p 77
  • Wu et al (2004) Wu B, Ai H, Huang C, Lao S (2004) Fast rotation invariant multi-view face detection based on real adaboost. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), IEEE, pp 79–84
  • Wu and Ji (2015) Wu Y, Ji Q (2015) Shape augmented regression method for face alignment. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Wu et al (2012) Wu Y, Shen B, Ling H (2012) Online robust image alignment via iterative convex optimization. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1808–1814, [Code: https://sites.google.com/site/trackerbenchmark/benchmarks/v10]
  • Wu et al (2013) Wu Y, Lim J, Yang MH (2013) Online object tracking: A benchmark. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR)
  • Wu et al (2015) Wu Y, Lim J, Yang MH (2015) Object tracking benchmark. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 37(9):1834–1848
  • Xiao et al (2004) Xiao J, Baker S, Matthews I, Kanade T (2004) Real-time combined 2d+ 3d active appearance models. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 535–542
  • Xiao et al (2015) Xiao S, Yan S, Kassim A (2015) Facial landmark detection via progressive initialization. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Xiao et al (2014) Xiao Z, Lu H, Wang D (2014) L2-rls-based object tracking. IEEE Transactions on Circuits and Systems for Video Technology 24(8):1301–1309
  • Xiong and De la Torre (2013) Xiong X, De la Torre F (2013) Supervised descent method and its applications to face alignment. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 532–539
  • Xiong and De la Torre (2015) Xiong X, De la Torre F (2015) Global supervised descent method. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 2664–2673
  • Yacoob and Davis (1996) Yacoob Y, Davis LS (1996) Recognizing human facial expressions from long image sequences using optical flow. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 18(6):636–642
  • Yan et al (2013) Yan J, Zhang X, Lei Z, Yi D, Li SZ (2013) Structural models for face detection. In: IEEE Proceedings of International Conference on Automatic Face and Gesture Recognition (FG), IEEE, pp 1–6
  • Yan et al (2014) Yan J, Lei Z, Wen L, Li S (2014) The fastest deformable part model for object detection. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 2497–2504
  • Yang et al (2014) Yang B, Yan J, Lei Z, Li SZ (2014) Aggregate channel features for multi-view face detection. In: IEEE International Joint Conference on Biometrics (IJCB), IEEE, pp 1–8
  • Yang et al (2011) Yang H, Shao L, Zheng F, Wang L, Song Z (2011) Recent advances and trends in visual tracking: A review. Neurocomputing 74(18):3823–3831
  • Yang et al (2015a) Yang J, Deng J, Zhang K, Liu Q (2015a) Facial shape tracking via spatio-temporal cascade shape regression. In: IEEE Proceedings of International Conference on Computer Vision, 300 Videos in the Wild (300-VW): Facial Landmark Tracking in-the-Wild Challenge & Workshop (ICCV-W)
  • Yang et al (2002) Yang MH, Kriegman DJ, Ahuja N (2002) Detecting faces in images: A survey. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 24(1):34–58
  • Yang et al (2015b)

    Yang S, Luo P, Loy CC, Tang X (2015b) From facial parts responses to face detection: A deep learning approach. In: IEEE Proceedings of International Conference on Computer Vision (ICCV), pp 3676–3684

  • Yao et al (2013) Yao R, Shi Q, Shen C, Zhang Y, Hengel A (2013) Part-based visual tracking with online latent structural learning. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 2363–2370
  • Zafeiriou et al (2015) Zafeiriou S, Zhang C, Zhang Z (2015) A survey on face detection in the wild past, present and future. Computer Vision and Image Understanding 138:1–24
  • Zhang and Zhang (2010) Zhang C, Zhang Z (2010) A survey of recent advances in face detection. Tech. rep., Tech. rep., Microsoft Research
  • Zhang and Zhang (2014) Zhang C, Zhang Z (2014) Improving multiview face detection with multi-task deep convolutional neural networks. In: IEEE Winter Conference on Applications of Computer Vision (WACV), IEEE, pp 1036–1041
  • Zhang et al (2014a) Zhang K, Zhang L, Yang MH (2014a) Fast compressive tracking. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 36(10):2002–2015, [Code: http://www4.comp.polyu.edu.hk/~cslzhang/FCT/FCT.htm]
  • Zhang and van der Maaten (2013) Zhang L, van der Maaten L (2013) Structure preserving object tracking. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 1838–1845
  • Zhang and van der Maaten (2014) Zhang L, van der Maaten L (2014) Preserving structure in model-free tracking. IEEE Transactions on Pattern Analysis and Machine Intelligence (T-PAMI) 36(4):756–769, [Code: http://visionlab.tudelft.nl/spot]
  • Zhang et al (2012) Zhang T, Ghanem B, Liu S, Ahuja N (2012) Robust visual tracking via multi-task sparse learning. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 2042–2049
  • Zhang et al (2014b) Zhang T, Liu S, Ahuja N, Yang MH, Ghanem B (2014b) Robust visual tracking via consistent low-rank sparse learning. International Journal of Computer Vision (IJCV) 111(2):171–190, [Code: http://nlpr-web.ia.ac.cn/mmc/homepage/tzzhang/Project_Tianzhu/zhang_IJCV14/Robust%20Visual%20Tracking%20Via%20Consistent%20Low-Rank%20Sparse.html]
  • Zhang et al (2008) Zhang W, Wang Q, Tang X (2008) Real time feature based 3-d deformable face tracking. In: Proceedings of European Conference on Computer Vision (ECCV), Springer, pp 720–732
  • Zhu et al (2015) Zhu S, Li C, Loy CC, Tang X (2015) Face alignment by coarse-to-fine shape searching. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), pp 4998–5006, [Code: https://github.com/zhusz/CVPR15-CFSS]
  • Zhu and Ramanan (2012) Zhu X, Ramanan D (2012) Face detection, pose estimation, and landmark localization in the wild. In: IEEE Proceedings of International Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, pp 2879–2886, [Code: https://www.ics.uci.edu/~xzhu/face]
