I Introduction

Quantitative structure-activity relationship (QSAR) is a computer or mathematical modeling method for identifying the relationship between biological activity and the structural properties of chemical compounds. The underlying principle is that variations in structural properties cause different biological activities [1]. Structural properties refer to physicochemical properties, and biological activity corresponds to various pharmacokinetic properties, such as absorption, distribution, metabolism, excretion and toxicity.

QSAR simulations help rank the hit line of a large number of chemicals in terms of their desired biological activity and greatly reduces the number of candidates for testing. QSAR modeling has become a common process in pharmacology, but with all the progress of QSAR, even after the well-known article by a group of co-authors [2] , there are many limitations [3, 4].

For example: the data may include more than hundreds of thousands of compounds, or, on the contrary, a very small sample; each compound can be represented by multiple descriptors; some features are highly correlated; it is assumed that the dataset contains some errors as relationships are estimated through in-situ experiments. Due to these and other limitations for predicting a QSAR based model, it is difficult to achieve a reliable prediction result.

In forecasting based on QSAR, machine learning approaches were applied: linear regression models [5] and Bayesian neural networks [6-8] were used. The random forest (RF) [9,10] deserves special mention - it is the most frequently used algorithm with a high level of predictability, simplicity, and reliability. RF is a kind of ensemble method based on sets of decision trees that can prevent overfitting. RF is considered the gold standard in this area, so new QSAR forecasting methods are often compared in performance with this algorithm.

The well-known Merck Kaggle competition in 2012 drew people’s attention to neural networks. The winning team used multitasking neural networks (MTNN) [11]. The fundamental learning structure is based on simple feedforward neural networks; it avoids overfitting by studying multiple biological analyzes at the same time. The team achieved results that consistently outperformed the random forest algorithm. Despite achieving high performance with a multitasking neural network, this team ended up using an ensemble combining different methods. RF, and many of the algorithms in the famous Kaggle competition used ensemble learning, a technique that creates a set of training models and combines multiple models to produce final predictions. It has been shown theoretically and empirically that the predictive power of ensemble learning is superior to the predictive power of an individual algorithm even if the last are accurate and diverse [12-15]. Ensemble learning manages the strengths and weaknesses of learning individual algorithms, similar to consensus decision making in critical situations.

Thus, it is popular to use algorithm ensembles by using several algorithms and combining their results. In ensembles, the base algorithms generate partially dependent or independent results on the same or a different part of a dataset, and then results are combined in several ways. The success of an ensemble depends on two main properties: the first is the individual success of the base algorithms of the ensemble, and the second one is the independence of base algorithms’ results from each other (low error, high diversity)[16].

Ensemble methods, including an ensemble of neural networks based on bootstrap sampling in QSAR (data sampling ensemble) [17]; ensemble versus different training methods for drug interactions [18], Bayesian ensemble model with various QSAR instruments (ensemble method) [8], ensemble training based on qualitative and quantitative SAR models [19], hybrid QSAR prediction model with various training methods [20 ], ensembles with different boosting methods [21], hybrid feature selection and training in QSAR simulations [22], and ensemble against various chemicals to predict carcinogenicity (representative ensembles) [23] have been widely used in drug-like studies.

In contrast to the work in which the results of a comparative analysis of ensemble algorithms are presented [24],this study aims at overcoming the difficulties of QSAR modeling by using ensembles. Our experiments focus on regression ensembles because this type of models is simpler and easier to understand for medical chemists. The performance of ensemble algorithms is investigated with respect to ensemble algorithms themselves, and the base algorithms used within the ensemble algorithms.

The article consists of the following sections: in section 2 we described ensemble and base regression algorithms, dimension reduction process, dataset collection. In section 3 presented the results of simulation running and their discussion. In conclude part (section 4) we showed the previous works in order to detailed the success of our results in comparing with achievements from different studies.

Ii Materials and Methods

In this section, the base and ensemble algorithms used in our study are briefly described. For the evaluation of the algorithms, the scikit-learn library was used [25]. Each ensemble algorithm was used with each of the base algorithms. The base algorithms were also used alone. With this configuration (2 ensemble + 1 single) x (19 base) = 57 different algorithms were obtained and used.

We ran our experiments on Windows 10 (Intel(R) Core(TM) i7-9700 CPU © 3.00GHz 3.00 GHz). We used the Scikit-learn library package (version 0.23.2) for conventional machine learning methods.

ii.1 Ensemble algorithms

Bagging/bootstrapping (BG): Bagging generates N new equal-sized datasets from the original dataset by selecting samples with a replacement [26]. The base algorithms are trained with the datasets. The independence of the individual results is confirmed in the experiments to some degree. N was chosen as 10 in our experiments. The results of the base algorithms are simply averaged to produce the ensemble result.

Additive regression (AR): This is the adaptation of the AdaBoost algorithm to regression types of problems [27]. At each iteration, the samples having big errors at the previous iteration are considered. The iteration number was chosen as 10 in our study. The ensemble result is the weighted mean of the base algorithms. The weights are inversely proportional to the errors of the base algorithms.

ii.2 Base regression algorithms

In our study, 19 regression algorithms were used as base learners in the ensembles. They are as follows:

Lasso: The Lasso is a linear model that estimates sparse coefficients. It is useful in some contexts due to its tendency to prefer solutions with fewer non-zero coefficients, effectively reducing the number of features upon which the given solution is dependent. For this reason Lasso and its variants are fundamental to the field of compressed sensing. Under certain conditions, it can recover the exact set of non-zero coefficients [26].

Ridge: This model solves a regression model where the loss function is the linear least squares function and regularization is given by the l2-norm. Also known as Ridge Regression or Tikhonov regularization. This estimator has built-in support for multi-variate regression[27].

ElasticNet: ElasticNet is a linear regression model trained with both 1 and 2-norm regularization of the coefficients. This combination allows for learning a sparse model where few of the weights are non-zero like Lasso, while still maintaining the regularization properties of Ridge[28].

Orthogonal Matching Pursuit (OMP): OMP is based on a greedy algorithm that includes at each step the atom most highly correlated with the current residual. It is similar to the simpler matching pursuit (MP) method, but better in that at each iteration, the residual is recomputed using an orthogonal projection on the space of the previously chosen dictionary elements[29].

Bayesian Regression: Bayesian regression techniques can be used to include regularization parameters in the estimation procedure: the regularization parameter is not set in a hard sense but tuned to the data at hand[30].

Automatic Relevance Determination: Fit the weights of a regression model, using an ARD prior. The weights of the regression model are assumed to be in Gaussian distributions. Also estimate the parameters lambda (precisions of the distributions of the weights) and alpha (precision of the distribution of the noise). The estimation is done by an iterative procedures (Evidence Maximization)[31].

Passive Aggressive Algorithms: The passive-aggressive algorithms are a family of algorithms for large-scale learning. They are similar to the Perceptron in that they do not require a learning rate. However, contrary to the Perceptron, they include a regularization parameter C [32].

Theil-Sen estimator: TheilSenRegressor is comparable to the Ordinary Least Squares (OLS) in terms of asymptotic efficiency and as an unbiased estimator. In contrast to OLS, Theil-Sen is a non-parametric method which means it makes no assumption about the underlying distribution of the data. Since Theil-Sen is a median-based estimator, it is more robust against corrupted data aka outliers. In univariate setting, Theil-Sen has a breakdown point of about 29.3% in case of a simple linear regression which means that it can tolerate arbitrary corrupted data of up to 29.3% [33].

Huber Regression: This makes sure that the loss function is not heavily influenced by the outliers while not completely ignoring their effect[34].

Kernel ridge regression (KRR): Kernel ridge regression combines ridge regression (linear least squares with l2-norm regularization) with the kernel trick. It thus learns a linear function in the space induced by the respective kernel and the data. For non-linear kernels, this corresponds to a non-linear function in the original space [35].

Support Vector Regression (SVR): The model produced by support vector classification (as described above) depends only on a subset of the training data, because the cost function for building the model does not care about training points that lie beyond the margin. Analogously, the model produced by Support Vector Regression depends only on a subset of the training data, because the cost function ignores samples whose prediction is close to their target [36].

Decision Tree Regressor (DTR): The goal is to create a model that predicts the value of a target variable by learning simple decision rules inferred from the data features [37].

Random Forest Regressora: Random forest is a meta estimator that fits a number of classifying decision trees on various sub-samples of the dataset and uses averaging to improve the predictive accuracy and control over-fitting[38].

Extra-Trees Regressor: This class implements a meta estimator that fits a number of randomized decision trees various sub-samples of the dataset and uses averaging to improve the predictive accuracy and control over-fitting[39].

Nearest Neighbors Regression: Neighbors-based regression can be used in cases where the data labels are continuous rather than discrete variables. The label assigned to a query point is computed based on the mean of the labels of its nearest neighbors [40].

Multi-layer Perceptron regressor(MLPR): MLPRegressor trains iteratively since at each time step the partial derivatives of the loss function with respect to the model parameters are computed to update the parameters. It can also have a regularization term added to the loss function that shrinks model parameters to prevent overfitting. This implementation works with data represented as dense and sparse numpy arrays of floating point values [41].

ii.3 Dimension reduction process

Drug design datasets generally have a very large number of features. In our study, the original datasets and their dimensionally reduced versions are used. By doing so, the effects of the feature selection process on the accuracies of the algorithms are investigated. The accuracies over the original and dimensionally reduced datasets are compared. The Random Forest Importances method is used for feature selection [42].

ii.4 Dataset collection

Our drug data collection consists of 4 drug datasets obtained from several studies. The datasets are shown in Table 1. The datasets with 2075 descriptors were formed using the Dragon [43]. The molecules and outputs were obtained from the original studies.

Dataset ID Dataset name Number of samples Original number of descriptors Number of selected features Reference
1 polymer_133 133 836 10 [44]
2 alkaloid_53 53 2221 10 [45]
3 alkaloid_103 103 355 10 [46]
4 Polymer_150 150 474 10 [47]
Table 1: The 4 original datasets used in study

Iii Results and Discussion

Nineteen base regressors were used together with each ensemble algorithm on 4 regression-type drug design problems. Before simulation we have posed the same questions as in the article [24], since these are the most important characteristics of ensemble methods:

  • Do the algorithm ensembles generate more successful results than a single algorithm?

  • What is the most successful ensemble algorithm?

  • What is the base algorithm-ensemble pair with the best results?

  • Which algorithm performs well with the ensembles?

  • What is the most successful single algorithm?

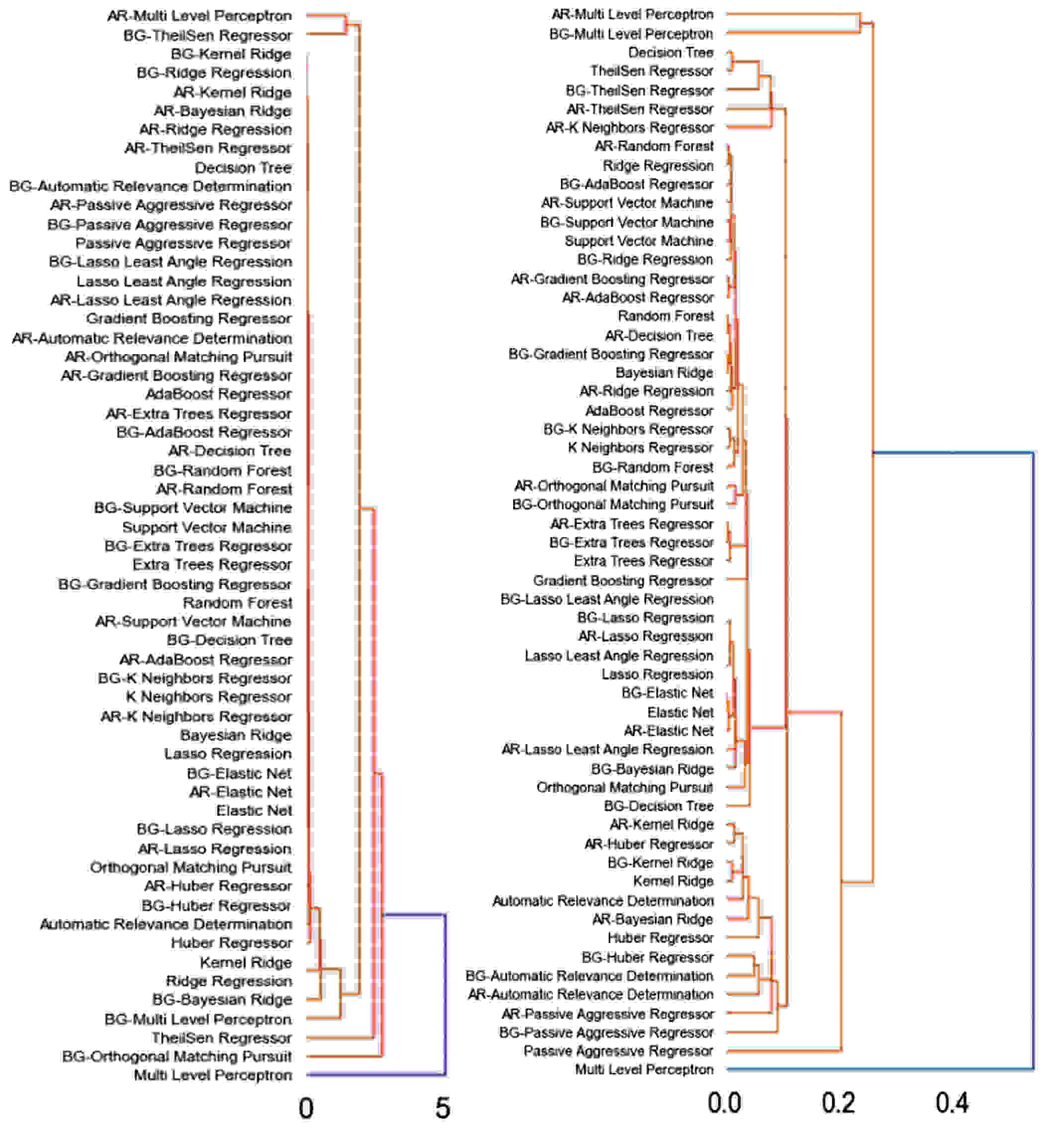

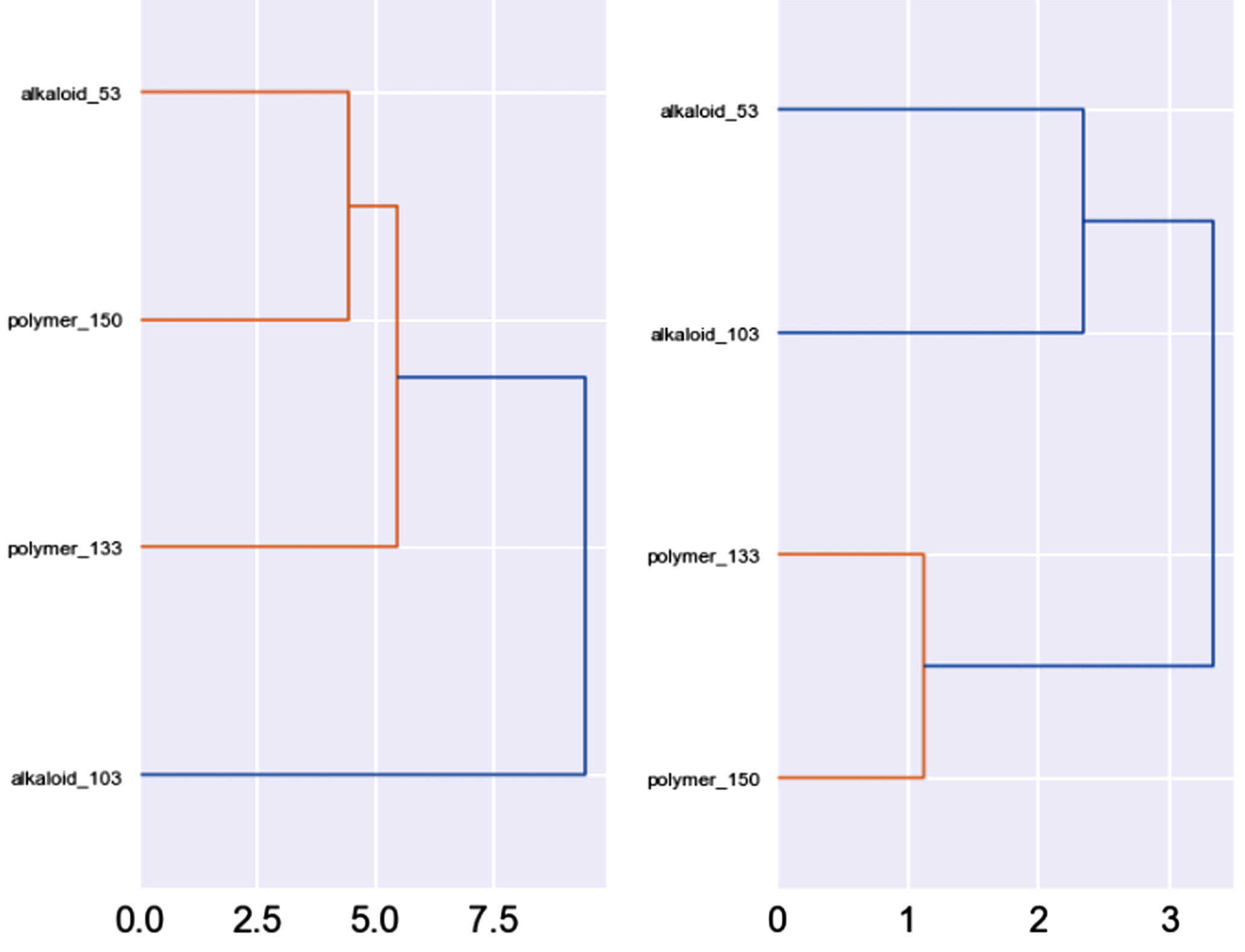

  • How are the algorithms and datasets grouped according to their performances?

  • How does the dimension reduction process affect the results?

To answer these questions, 57 algorithms ((2 ensemble + 1 single) x (19 base algorithms) = 57) were employed on the 4 drug design datasets described in Table 1 and their dimensionally reduced versions. A cross validation was used and the RMSE results were averaged.

The RMSE is defined as:

where is the prediction of alg.name for the ith test sample, is the actual output value of the ith test sample, and N is the number of test samples.

Our base and ensemble algorithms have some hyperparameters to optimize. We used the default hyperparameters.

In the cross-validation methodology, the dataset is randomly divided after shuffling into 2 halves. One half is used in the training and the other is used in the testing. This validation is repeated 5 times. In the results of this validation, 5 estimates of testing the RMSE were obtained for each algorithm and each dataset. In some experiments, very high RMSE results were obtained, especially with the simple linear regression algorithm disturbing the overall averages. Because of this, the performance comparisons of the algorithms were done with the algorithms’ success ranking instead of the averaged RMSEs. In each experiment, the averaged cross-validation RMSEs were sorted in ascending order. The algorithm with the lowest RMSE got the 1st ranking. The worst got the 57th ranking. These success rankings are given in Tables 2 and 3. In Table 2. the results with the original datasets are shown. In Table 3, the results with the dimensionally reduced datasets are shown. The 4 datasets are ordered along the columns of the tables. The algorithms are ordered along the rows of the tables. The average success rate and standard deviation of each algorithm are shown in the last 2 columns.

In Tables 4 and 5, the summaries of Tables 2 and 3 are given, respectively. Each cell is the averaged success ranking of the experiments with the base algorithm in the cell’s row and the ensemble algorithm in the cell’s column. The average success rankings of the single algorithms used are given in the ‘Single’ column. In the Avg. column, the averaged success rankings of the experiments with respect to the base algorithms are given. In the ‘Avg.’ row, the averaged success rankings of the experiments with respect to the ensemble algorithms are given.

When Tables 2, 3,4,5 are investigated, the following conclusions are reached. For the experiments with the original datasets (Tables 2 and 4): –The best ranking performance (5.75) is obtained with the Extra Trees Regressor algorithm.
–The best performed ensemble algorithms are additive regression (AR).

–The best performed base algorithm is Support Vector Machine.


–All of the ensemble algorithms generally increased the performance of each base algorithm. The exceptions are Bayesian Ridge, Support Vector Machine and K Neighbors Regressor.
–The Decision Tree and Support Vector Machine base algorithms had their best performances with BG. The Decision Tree and Automatic Relevance Determination algorithms with AR, achieved their best performances.

No. Algorithm Dataset’s ID
1 2 3 4 Avg.
0 Lasso Regression 25 2 25 44 24
1 BG-Lasso Regression 18 6 18 43 21,25
2 AR-Lasso Regression 31 4 31 40 26,5
3 Ridge Regression 52 55 52 27 46,5
4 BG-Ridge Regression 47 39 47 28 40,25
5 AR-Ridge Regression 43 29 43 32 36,75
6 Elastic Net 28 1 28 37 23,5
7 BG-Elastic Net 21 3 21 38 20,75
8 AR-Elastic Net 29 0 29 36 23,5
9 Lasso Least Angle Regression 34 44 34 45 39,25
10 BG-Lasso Least Angle Regression 32 43 32 46 38,25
11 AR-Lasso Least Angle Regression 36 42 36 47 40,25
12 Orthogonal Matching Pursuit 48 48 48 0 36
13 BG-Orthogonal Matching Pursuit 30 24 30 6 22,5
14 AR-Orthogonal Matching Pursuit 24 19 24 1 17
15 Bayesian Ridge 26 5 26 29 21,5
16 BG-Bayesian Ridge 49 35 49 23 39
17 AR-Bayesian Ridge 41 32 41 30 36
18 Automatic Relevance Determination 45 50 45 4 36
19 BG-Automatic Relevance Determination 38 17 38 3 24
20 AR-Automatic Relevance Determination 20 13 20 5 14,5
21 Passive Aggressive Regressor 37 40 37 51 41,25
22 BG-Passive Aggressive Regressor 35 30 35 52 38
23 AR-Passive Aggressive Regressor 40 14 40 53 36,75
24 TheilSen Regressor 55 56 55 2 42
25 BG-TheilSen Regressor 53 53 53 12 42,75
26 AR-TheilSen Regressor 44 34 44 24 36,5
27 Huber Regressor 23 52 23 48 36,5
28 BG-Huber Regressor 27 49 27 49 38
29 AR-Huber Regressor 33 46 33 50 40,5
30 Kernel Ridge 51 54 51 25 45,25
31 BG-Kernel Ridge 46 47 46 26 41,25
32 AR-Kernel Ridge 42 31 42 31 36,5
33 Support Vector Machine 4 16 4 41 16,25
34 BG-Support Vector Machine 1 23 1 39 16
35 AR-Support Vector Machine 14 26 14 42 24
36 K Neighbors Regressor 19 41 19 33 28
37 BG-K Neighbors Regressor 16 37 16 34 25,75
38 AR-K Neighbors Regressor 22 38 22 35 29,25
39 Decision Tree 39 8 39 19 26,25
40 BG-Decision Tree 15 10 15 20 15
41 AR-Decision Tree 0 18 0 15 8,25
42 Random Forest 12 12 12 18 13,5
43 BG-Random Forest 8 15 8 21 13
44 AR-Random Forest 13 28 13 11 16,25
45 Extra Trees Regressor 3 7 3 10 5,75
46 BG-Extra Trees Regressor 6 9 6 16 9,25
47 AR-Extra Trees Regressor 11 20 11 14 14
48 AdaBoost Regressor 9 25 9 17 15
49 BG-AdaBoost Regressor 2 21 2 22 11,75
50 AR-AdaBoost Regressor 5 33 5 13 14
51 Gradient Boosting Regressor 17 22 17 8 16
52 BG-Gradient Boosting Regressor 10 11 10 9 10
53 AR-Gradient Boosting Regressor 7 27 7 7 12
54 Multi Level Perceptron 56 51 56 56 54,75
55 BG-Multi Level Perceptron 50 36 50 55 47,75
56 AR-Multi Level Perceptron 54 45 54 54 51,75
Table 2: The success ranking of 57 algorithms on 4 original datasets (see.Table 1) (best to worst, 0 to 56).
No. Algorithm Dataset’s ID
1 2 3 4 Avg.
0 Lasso Regression 41 36 41 46 41
1 BG-Lasso Regression 38 32 38 48 39
2 AR-Lasso Regression 37 31 37 45 37,5
3 Ridge Regression 9 7 9 26 12,75
4 BG-Ridge Regression 12 3 12 23 12,5
5 AR-Ridge Regression 19 15 19 17 17,5
6 Elastic Net 33 34 33 39 34,75
7 BG-Elastic Net 31 29 31 40 32,75
8 AR-Elastic Net 34 28 34 38 33,5
9 Lasso Least Angle Regression 42 35 42 47 41,5
10 BG-Lasso Least Angle Regression 39 33 39 49 40
11 AR-Lasso Least Angle Regression 45 30 45 50 42,5
12 Orthogonal Matching Pursuit 25 26 25 37 28,25
13 BG-Orthogonal Matching Pursuit 44 12 44 36 34
14 AR-Orthogonal Matching Pursuit 43 5 43 35 31,5
15 Bayesian Ridge 20 21 20 9 17,5
16 BG-Bayesian Ridge 35 27 35 18 28,75
17 AR-Bayesian Ridge 30 53 30 5 29,5
18 Automatic Relevance Determination 28 45 28 8 27,25
19 BG-Automatic Relevance Determination 47 43 47 11 37
20 AR-Automatic Relevance Determination 48 52 48 4 38
21 Passive Aggressive Regressor 55 56 55 53 54,75
22 BG-Passive Aggressive Regressor 27 41 27 52 36,75
23 AR-Passive Aggressive Regressor 29 54 29 51 40,75
24 TheilSen Regressor 52 37 52 6 36,75
25 BG-TheilSen Regressor 53 40 53 3 37,25
26 AR-TheilSen Regressor 54 44 54 7 39,75
27 Huber Regressor 40 55 40 25 40
28 BG-Huber Regressor 49 46 49 16 40
29 AR-Huber Regressor 23 50 23 31 31,75
30 Kernel Ridge 11 49 11 27 24,5
31 BG-Kernel Ridge 17 48 17 22 26
32 AR-Kernel Ridge 16 51 16 29 28
33 Support Vector Machine 15 8 15 43 20,25
34 BG-Support Vector Machine 14 4 14 41 18,25
35 AR-Support Vector Machine 7 10 7 42 16,5
36 K Neighbors Regressor 36 13 36 33 29,5
37 BG-K Neighbors Regressor 32 11 32 32 26,75
38 AR-K Neighbors Regressor 50 23 50 44 41,75
39 Decision Tree 51 38 51 21 40,25
40 BG-Decision Tree 46 24 46 24 35
41 AR-Decision Tree 22 17 22 12 18,25
42 Random Forest 24 18 24 10 19
43 BG-Random Forest 26 6 26 15 18,25
44 AR-Random Forest 8 9 8 20 11,25
45 Extra Trees Regressor 0 2 0 0 0,5
46 BG-Extra Trees Regressor 2 0 2 1 1,25
47 AR-Extra Trees Regressor 1 1 1 2 1,25
48 AdaBoost Regressor 13 22 13 34 20,5
49 BG-AdaBoost Regressor 10 14 10 28 15,5
50 AR-AdaBoost Regressor 4 16 4 30 13,5
51 Gradient Boosting Regressor 3 25 3 19 12,5
52 BG-Gradient Boosting Regressor 18 20 18 13 17,25
53 AR-Gradient Boosting Regressor 6 19 6 14 11,25
54 Multi Level Perceptron 56 47 56 56 53,75
55 BG-Multi Level Perceptron 21 42 21 55 34,75
56 AR-Multi Level Perceptron 5 39 5 54 25,75
Table 3: The success ranking of 57 algorithms on the 4 dimensionally reduced datasets (best to worst, 0 to 56).
Algorithm BG AG Single Avg.
Lasso Regression 21,25 26,5 24 23,92
Ridge Regression 40,25 36,75 46,5 41,17
Elastic Net 20,75 23,5 23,5 22,58
Lasso Least Angle Regression 38,25 40,25 39,25 39,25
Orthogonal Matching Pursuit 22,5 17 36 25,17
Bayesian Ridge 39 36 21,5 32,17
Automatic Relevance Determination 24 14,5 36 24,83
Passive Aggressive Regressor 38 36,75 41,25 38,67
TheilSen Regressor 42,75 36,5 42 40,42
Huber Regressor 38 40,5 36,5 38,33
Kernel Ridge 41,25 36,5 45,25 41,00
Support Vector Machine 16 24 16,25 18,75
K Neighbors Regressor 25,75 29,25 28 27,67
Decision Tree 15 8,25 26,25 16,50
Random Forest 13 16,25 13,5 14,25
Extra Trees Regressor 9,25 14 5,75 9,67
AdaBoost Regressor 11,75 14 15 13,58
Gradient Boosting Regressor 10 12 16 12,67
Multi Level Perceptron 47,75 51,75 54,75 51,42
Avg. 27,08 27,07 29,86
Table 4: The averaged success rankings of the algorithms on the original datasets (best to worst, 0 to 56).
Algorithm BG AG Single Avg.
Lasso Regression 39 37,5 41 39,17
Ridge Regression 12,5 17,5 12,75 14,25
Elastic Net 32,75 33,5 34,75 33,67
Lasso Least Angle Regression 40 42,5 41,5 41,33
Orthogonal Matching Pursuit 34 31,5 28,25 31,25
Bayesian Ridge 28,75 29,5 17,5 25,25
Automatic Relevance Determination 37 38 27,25 34,08
Passive Aggressive Regressor 36,75 40,75 54,75 44,08
TheilSen Regressor 37,25 39,75 36,75 37,92
Huber Regressor 40 31,75 40 37,25
Kernel Ridge 26 28 24,5 26,17
Support Vector Machine 18,25 16,5 20,25 18,33
K Neighbors Regressor 26,75 41,75 29,5 32,67
Decision Tree 35 18,25 40,25 31,17
Random Forest 18,25 11,25 19 16,17
Extra Trees Regressor 1,25 1,25 0,5 1,00
AdaBoost Regressor 15,5 13,5 20,5 16,50
Gradient Boosting Regressor 17,25 11,25 12,5 13,67
Multi Level Perceptron 34,75 25,75 53,75 38,08
Avg. 27,95 26,83 29,22
Table 5: The averaged success rankings of the algorithms on the dimensionally reduced datasets (best to worst, 0 to 56).

For the experiments with the dimensionally reduced datasets (Tables 3 and 5):
         –The best ranking performance (0.5) is obtained with the Extra Trees Regressor algorithm.
         –The best performed ensemble algorithms are additive regression (AR) and bagging (BG).
         –The best performed base algorithm is Ridge Regression.
         –All of the ensemble algorithms generally increased the performance of each base algorithm. The exceptions          are Orthogonal Matching Pursuit, Bayesian Ridge, Automatic Relevance Determination, TheilSen Regressor          and Kernel Ridge.
         –The Ridge Regression and Support Vector Machine base algorithms had their best performances with BG.          The Ridge Regression, Support Vector Machine and Decision Tree algorithms with AR, achieved their best          performances.

The average successes of the algorithms were investigated above. Next, the best performing algorithm will be investigated over each individual dataset. In Table 6, the dataset name, and the error and the name of the best performing algorithm are shown for the original and dimensionally reduced datasets.

With the selected features
Dataset name Best performing algorithm RMSE Best performing algorithm RMSE
polymer_133 AR-Automatic Relevance Determination 0,01 BG-Gradient Boosting Regressor 0,01
alkaloid_53 AR-Elastic Net 0,29 BG-Extra Trees Regressor 0,31
alkaloid_103 AR-Decision Tree 0,57 Extra Trees Regressor 0,65
Polymer_150 Orthogonal Matching Pursuit 0,00 Orthogonal Matching Pursuit 0,02
Table 6: The averaged success rankings of the algorithms on the dimensionally reduced datasets (best to worst, 0 to 56).

When Table 6 is investigated, the following conclusions are reached:
         –The best performing algorithms are generally ensemble algorithms. This is in agreement with the average          success of the algorithms.
         –experiments with dimensional reduced data sets do not have better results than the original data sets, except          for 1 data set (polymer_133).

When the algorithms are clustered, the algorithms are represented by points having 4 (the number of datasets) features (dimensions). When the datasets are clustered, the datasets are represented by points having 57 (the number of algorithms) features (dimensions).

According to Figure 1, the following conclusions are reached:
         –In both figures, the ensemble-algorithm pairs are generally clustered with their base single algorithms.
         –The feature selection process does not affect the similarities of the algorithms dramatically.

According to Figure 2, the following conclusions are reached:
         –On the left side of Figure 2, there is no obvious pattern between the clusters and the number of features/samples.
         –To the right of Figure 2, the polymers and alkaloids are clustered separately.












Figure 1:

The hierarchical clusters of the algorithms according to their RMSE values on the original (left) and dimensionally reduced (right) 4 datasets.

Figure 2: The hierarchical clusters of the original (left) and dimensionally reduced (right) 4 datasets according to their RMSE values obtained with 57 algorithms. In the figures, the dataset names, the number of features, and the samples are given.

Iv Previous works

The selected previous studies in this area for both classification and regression are shown comparatively in Table 7.

According to Table 7, together with our experiments, the following conclusions are reached:
         –The number of drug design / chemical data sets used in our experiments is greater than in previous studies,          except for [24].
         –The number of base machine learning methods used in our experiments is greater than in previous studies.
         –The superior success of ensemble algorithms over single algorithms is confirmed.

Reference Compared methods in the study Datasets Results
[48] ctree, rtree, cforest, rforest, gbm, fnn, 1 regression-type RandomForest showed
earth, glmnet, ridge, lm, pcr, plsr, rsm, (chemical data). good results.
rvm, ksvm, ksvmfp, nnet, nneth2o
[24] (4 ensemble + 1 single) * (7 base) = 35 15 regression-type Ensemble methods showed
(chemical data). good results.
[49] AdaBoostM1+Bagging (Ada_Bag), Bagging (Ada_Bag)
AdaBoostM1+Jrip (Ada_Jrip), and Random Forest
AdaBoostM1+J48 (Ada_J48), (Ada_RF) algorithms
AdaBoostM1+PART (Ada_PART), showed good
AdaBoostM1+RandomForest (Ada_RF), MDDR database. results.
and
AdaBoostM1+REPTree (Ada_RT).
[50] EnsemDT, EnsemKRR and 2 classification datasets EnsemDT and EnsemKRR than
other single methods (chemical data) showed better results
other single methods.
Table 7: Previous works.

V Conclusion

In machine learning, committee algorithms (ensembles), especially those with classification applications, are highly popular because they have better performances than single algorithms.

In this study, the comparative performances of algorithm ensembles with drug design datasets in regression applications were investigated. A drug design dataset collection with 4 regression-type datasets was used for this purpose. We obtained the performances of the single algorithms and the algorithm ensembles on those datasets. The combinations of 19 base algorithms and 2 ensemble algorithms were investigated.

Acknowledgements.
The authors would like to express their sincere gratitude to the Ministry of innovative development of the Republic of Uzbekistan (Grant FA-tech-3018-4). The authors are is also thankful to several colleagues in both laboratories, who were engaged in many scientific discussions that helped the authors formulate the best current practices modeling discussed herein.

References
