1 Introduction

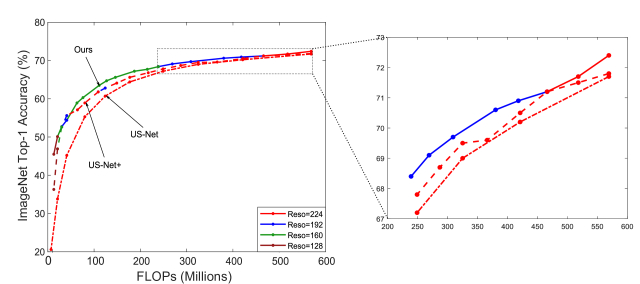

Figure 1: Accuracy-FLOPs curve of US-Net+ and US-Net. US-Net+ means simply applying different resolutions to US-Net during testing.

Deep neural networks have triumphed over various perception tasks such as image classification (He et al., 2016; Huang et al., 2017b; Simonyan and Zisserman, 2014), object detection (Ren et al., 2015; Redmon et al., 2016) and semantic segmentation (Chen et al., 2017). However, deep networks usually require large computational resources, making them hard to deploy on mobile devices and embedded systems. This motivates research in reducing the redundancy in deep neural networks or designing light-weight structures. Specifically, MobileNet (Howard et al., 2017) factorizes a standard convolution into a depth-wise convolution and a point-wise convolution. ShuffleNet (Zhang et al., 2018a) uses group convolution to further reduce computations and proposes the shuffle operation to help information flow among different groups. Another kind of approach is to prune redundant connections in the networks. Unstructured pruning methods (Han et al., 2015b, a) delete network connections which are thought unimportant. Structured pruning methods (Li et al., 2016; Anwar et al., 2017; Lemaire et al., 2018) prune the entire filters and feature maps. Recently, dynamic networks have been introduced which adopt a single model to meet varying computing resource constraints. For example, Huang et al. (2017a) proposes a multi-branch structure where early prediction can be made based on the current confidence and resource constraints. Kim et al. (2018) builds a network-in-network structure for multiple resources. Yu et al. (2019)

shares weights among different sub-networks and each sub-network has its own batch normalization layer. US-Net

(Yu and Huang, 2019) proposes to compute batch normalization statistics after training, and introduces two training techniques to train a network that is executable at any network widths. However, these works approach the problem only from network structure perspective, ignoring the importance of network input.

Reducing network input dimension (e.g., lowering image resolution) is a straightforward way to reduce computational cost. It can be applied to any network structure during testing. Besides, balancing between input resolution and network width can achieve better accuracy-efficiency tradeoffs. For example, to meet a dynamic resource constraint from 13 MFLOPs to 569 MFLOPs on MobileNet v1 backbone, US-Net (Yu and Huang, 2019) needs a network width range of [] given a 224224 input resolution. This constraint can also be met via a network width of [] by adjusting the input resolution from {224, 192, 160, 128} during test time. We denote the latter model as US-Net+. As shown in Figure 1, simply combining different resolutions with network widths during testing can already achieve a better accuracy-efficiency tradeoff than US-Net without additional efforts. EfficientNet (Tan and Le, 2019) also acknowledges the importance of balancing between depth, width and resolution. Moreover, reducing input resolution does not necessarily harm the performance, and may sometimes even be beneficial. Chin et al. (2019) points out that lower image resolution may produce better detection accuracy by reducing focus on redundant details. Chen et al. (2019b) claims that different scaled images contain different information. Sun et al. (2019) fuses multi-scale features with a multi-branch framework to learn robust representations.

Inspired by the observations above, we propose a unified framework to mutually learn from input resolution and network width. Our framework is able to achieve the optimal width-resolution balance under certain resource constraint. Since we share weights among different network widths, each network is able to capture multi-scale representations without any adjustments in the network structure. The whole framework is shown in Figure 2. We summarize our contributions as follows.

1. We highlight the importance of input resolution for efficient network design. Previous works either ignore it or treat it independently from network structure. In contrast, we propose a unified framework to mutually learn from input resolution and network width.

2. Our framework is simple and general. It is compatible with any network structures (i.e., network-agnostic) and is as simple as training an independent network. Moreover, it does not change network structure, meaning it can benefit from other add-on structural optimizations.

3. We conduct extensive experiments to verify the effectiveness of our framework. Our framework significantly outperforms US-MobileNets (Yu and Huang, 2019) and independently-trained MobileNets on ImageNet classification, as well as COCO object detection and instance segmentation. The experimental results on popular transfer learning datasets also demonstrate the generalization ability of the learned representations of our model.

2 Rethinking Reducing Computational Cost

In this section, we explore the importance of input resolution for efficient network design. The computational cost of a vanilla convolution is

(1)

where and are the number of input and output channels, is kernel size, and are output feature map size. Most previous works only focus on reducing computational cost from the structure level, that is, reducing the number of channels or reducing kernel size . MobileNets (Sandler et al., 2018; Howard et al., 2017) decompose the vanilla convolution into a depth-wise convolution and a 11 convolution, reducing the cost to . ShuffleNet (Zhang et al., 2018a) further divides convolution into several groups, shrinking the computational cost to , where is the number of groups. However, increasing the number of groups leads to high memory access cost (MAC) (Ma et al., 2018), which makes the network inefficient in practical applications. Pruning based methods aim to prune redundant connections in the network, cutting the computational cost to , where and are pruning ratios. Unstructured pruning methods (Han et al., 2015b, a) remove the network connections which are thought unimportant. The outcome is a sparsely connected network, which is not efficient on standard libraries and needs specialized software and hardware optimization (Han et al., 2016). Structured pruning methods (Li et al., 2016; Anwar et al., 2017; Lemaire et al., 2018) prune the entire filters and feature maps. The pruned network maintains structured but needs retraining to retain performance after pruning, which makes it hard to meet the dynamic resource constraints in real-world applications. US-Net (Yu and Huang, 2019) addresses the dynamic constraint problem by sharing weights among different sub-networks and optimizing them simultaneously. But it only considers reducing network width and the performance drops dramatically as computational resource goes down.

Instead of only focusing on , we shift our attention to reducing in Eq. 1, i.e., lowering input resolution for the following three reasons. First, reducing and can reduce the computational cost without making any adjustments to the network structure. Therefore, it does not require further hardware optimization (Han et al., 2016) or careful structure tuning (Ma et al., 2018). Second, balancing between input resolution and network width will produce better accuracy-efficiency tradeoffs as shown in Figure 1. Third, different resolutions contain different information. Lower resolution images may contain more global structures while higher resolution ones may encapsulate more fine-grained patterns. Several works (Chen et al., 2019b; Sun et al., 2019; Ke et al., 2017) have explored such multi-scale representation learning. However, they resort to a multi-path structure, which is unfriendly to parallelization (Ma et al., 2018).

Motivated by the discussion above, we propose a unified framework to mutually learn from network width and input resolution. Our framework is able to find the optimal width-resolution configuration under certain constraint, and captures multi-scale representations by sharing weights. In addition, it is compatible with any network structures and does not need further optimization and retraining.

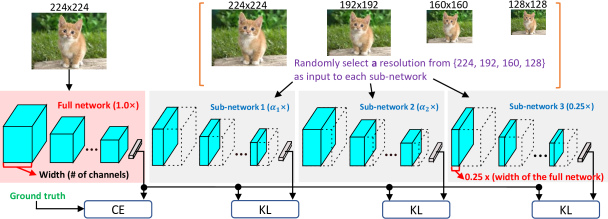

Figure 2: The training process of our proposed framework. The network width range is [0.25, 1.0], input resolution is chosen from {224, 192, 160, 128}. This can achieve a computation range of [13, 569] MFLOPs on MobileNet v1 backbone. We follow the sandwich rule (Yu and Huang, 2019) to sample 4 networks, i.e., upper-bound full width network (), lower-bound width network (), and two random width ratios . For the full-network, we constantly choose 224224 resolution. For the other three sub-networks, we randomly select its input resolution. The full-network is optimized with the ground-truth label. Sub-networks are optimized with the prediction of the full-network. Weights are shared among different networks to facilitate mutual learning. CE: Cross Entropy loss. KL: KL Divergence loss.

3 Methodology

3.1 Preliminary

Our framework leverages the training techniques in US-Net (Yu and Huang, 2019). Therefore, we first introduce these techniques in this section to make this paper self-contained.

Sandwich Rule. US-Net trains a network that is executable at any resource constraint. The solution is to randomly sample several network widths for training and accumulate their gradients for optimization. However, the performance of all the sub-networks is bounded by the smallest width (e.g., ) and the largest width (e.g., ). Thus, the authors introduce the sandwich rule that is always sampling the smallest and largest width plus two random widths for each training iteration.

Inplace Distillation. Knowledge distillation (Hinton et al., 2015) is an effective method to transfer knowledge from a teacher network to a student network. Following the sandwich rule, since the largest network is sampled in each iteration, it is natural to use the largest network as the teacher to guide smaller sub-networks. The largest network is supervised by the ground truth label. This gives a better performance than only training with ground truth labels.

Post-Statistics of Batch Normalization.

US-Net proposes that each sub-network needs their own batch normalization (BN) statistics (mean and variance), but it is insufficient to store the statistics of all the sub-networks. As a result, US-Net collects BN statistics for the desired sub-network after training. Experimental results show that 2,000 samples are sufficient to get accurate BN statistics, so this procedure is very efficient.

3.2 Mutual learning from width and resolution

As discussed in Section 2, different resolutions contain different information. We want to take full advantage of this attribute to learn robust representations. In US-Net, sandwich rule is proposed to train a network that is executable at any width. However, we view it as a scheme of mutual learning (Zhang et al., 2018b). Since networks with different widths share weights with each other, larger networks can take advantage of the features captured by smaller networks. Also, smaller networks can benefit from the stronger representation ability of larger networks. In light of this, we propose to mutually learn from network widths and resolutions.

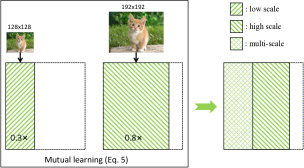

Figure 3: Illustration of the mutual learning from width and resolution scheme.

Training framework. Our proposed framework is presented in Figure 2. We train a network where its width ranges from to . We first follow the sandwich rule to sample four sub-networks, i.e., the smallest (), the largest () and two random ones. Then, unlike traditional ImageNet training with input, we resize the input image to four resolutions {224, 196, 160, 128} and feed them into different sub-networks. We denote the weights of a sub-network as , where is the width of the sub-network and means the sub-network adopts the first weights of each layer of the full network. represents a input image. Then represents a sub-network with width and input resolution . For the largest sub-network (i.e., the full-network in Figure 2), we always train it with the highest resolution () and ground truth label . The loss for the full network is

(2)

For the other sub-networks, we randomly pick an input resolution from {224, 196, 160, 128} and train it with the output of the full-network. The loss for the -th sub-network is

(3)

where

is the Kullback-Leibler divergence. The total loss is the summation of the full-network and sub-networks, i.e.,

(4)

The reason for training the full-network with the highest resolution is that the highest resolution contains more details. Also, the full-network has the strongest learning ability and captures the detailed dicriminatory information from the image data. We experiment with randomly selecting resolutions for all four widths, but it yields worse performance.

How mutual learning works. In this part, we are going to explain why the proposed framework can mutually learn from different widths and resolutions. For simplicity, we only consider two network widths and , and two resolutions 128 and 192 in this example. As shown in Figure 3, sub-network selects input resolution 128, sub-network selects input resolution 192. Then we can define the gradients for sub-network and as and , respectively. Since shares weights with , we can decompose its gradient as . The gradients of the two networks are accumulated during training, and the total gradients are computed as

(5)

Therefore, the gradient for sub-network is , which enables it to capture multi-scale representations from different input resolutions. Thanks to the random sampling of network width, every sub-network is able to learn multi-scale representations in our framework.

Model Inference. The trained model is executable at various width-resolution configurations. The goal is to find the best configuration under a particular resource constraint. A simple way to achieve this is via query table. Specifically, we sample network width from to with a step-size of , and sample network resolution from {224, 192, 160, 128}. We test all these width-resolution configurations on a validation set and choose the best one under a given constraint (FLOPs or latency). Since there is no retraining, the whole process is once for all.

4 Experiments

In this section, we first present our results on ImageNet classification (Deng et al., 2009). We conduct extensive experiments to illustrate the effectiveness of the proposed framework. Next, we fine-tune the pre-trained model on popular transfer learning datasets to demonstrate the robustness and generalization ability of the learned representations. We further apply our framework to COCO object detection and instance segmentation. To the best of our knowledge, we are the first to benchmark arbitrary-constraint dynamic networks on detection and instance segmentation.

4.1 ImageNet classification

We compare our framework with US-Net and independently-trained networks on the ImageNet dataset. We evaluated our framework on two popular light-weight structures, MobileNet v1 (Howard et al., 2017) and MobileNet v2 (Sandler et al., 2018). These two networks also represent non-residual and residual structures respectively. We follow the training setting in US-Net (Yu and Huang, 2019). Please refer to the details in Appendix A.1.

Compare with US-Net. We first compare our framework with US-Net on MobileNet v1 and MobileNet v2 backbones. The Accuracy-FLOPs curve is shown in Figure 4. We can see that our framework consistently outperforms US-Net on both MobileNet v1 and MobileNet v2 backbones. Specifically, we achieve significant improvement under small computational cost. This is because our framework can find a better balance between network width and resolution. For example, if the resource constraint is 150 MFLOPs, US-Net reduces the width to but our framework selects a balanced configuration of - 160. Moreover, our framework even improves on the full configuration ( - 224). This demonstrates that our framework is able to learn multi-scale representations by our mutual learning scheme, which further boosts the performance.

(a) MobileNet v1 backbone
(b) MobileNet v2 backbone
Figure 4: Accuracy-FLOPs curves of our proposed framework and US-Net. (a) is based on MobileNet v1 backbone. (b) is based on MobileNet v2 backbone.

Compare with US-Net plus resolution. As evident in Figure 1, applying different resolutions to US-Net during inference can already achieve improvements over the original US-Net. We denote this method as US-Net+. However, US-Net+ cannot achieve the optimal width-resolution balance due to lack of learning. In Figure 5, we plot the Accuracy-FLOPs curves of our framework and US-Net+ based on MobileNet v1 backbone, and highlight the selected input resolutions with different colors. We can see that as we decrease the FLOPs ( MFLPs), our framework first reduces network width to meet the constraint while keeping the 224224 resolution (red color line in Figure 5). After 468 MFLOPs, our framework selects lower input resolution (192) and then continues reducing the width to meet the constraint. On the other hand, US-Net+ cannot find such balance. It always slims the network width and uses the same (224) resolution as the FLOPs decreasing until it goes to really low. This is because US-Net+ does not incorporate input resolution into the learning framework. Simply applying different resolutions during testing cannot achieve the optimal width-resolution balance.

Figure 5: The Accuracy-FLOPs curve is based on MobileNet v1 backbone. We highlight the selected resolution under different FLOPs with different colors. For example, the solid green line indicates when the constraint range is [41, 215] MFLOPs, our framework constantly selects input resolution 160 but reduces the width to meet the resource constraint.

Compare with independently trained networks. To demonstrate that our framework is able to capture multi-scale representations for each sub-network, we compare with different width-resolution configurations. MobileNets (Howard et al., 2017; Sandler et al., 2018) have reported the results under different configurations. However, they consider width and resolution as independent factors, thus cannot take full advantage of the features contained in different resolutions. We compare the performance of our framework and independently-trained MobileNets in Figure 6. For MobileNet v1, widths are selected from {}, and resolutions are selected from {224, 192, 160, 128}, leading to 16 configurations in total. Similarly, MobileNet v2 selects configurations from {} and {224, 192, 160, 128}. Our framework is executable at any FLOPs between the lower bound and upper bound. From Figure 6, our framework consistently outperforms MobileNets. Even at the same width-resolution configurations, we can achieve much better performance. This demonstrates that our framework not only finds the optimal width-resolution balance but also learns stronger representations by our mutual learning scheme.

(a) MobileNet v1 backbone
(b) MobileNet v2 backbone
Figure 6: Accuracy-FLOPs curve of our framework and independently-trained MobileNets. (a) is MobileNet v1 backbone. (b) is MobileNet v2 backbone. The results for different MobileNets configuration are taken from the paper (Howard et al., 2017; Sandler et al., 2018)
Model Best Configuration FLOPs Top-1 Acc
EfficientNet (Tan and Le, 2019) 2.3B 75.6%
Ours 2.3B 77.1%
Table 1: ImageNet Top-1 accuracy on MobileNet v1 backbone.

To further validate the effectiveness of our mutual learning scheme, we compare our results with the state-of-the-art EfficientNet (Tan and Le, 2019). EfficientNet acknowledges the importance of balancing between network width, depth and resolution. But the authors also treat them as independent factors. They propose to grid search over these three dimensions to find the optimal configuration under certain constraint. Then the network can be scaled up to other constraints following this configuration. We compare with the best configuration they found for MobileNet v1 at 2.3 BFLOPs. To meet this constraint, we train our framework with a width range of [], and select resolutions from {224, 256, 288, 320}. This makes our framework executable in the range of [0.57, 4.5] BFLOPs. The results are compared in Table 1. Our framework finds similar configuration as EfficientNet, except that we arrive at a larger width since depth is not considered. But our framework achieves significantly better performance than EfficientNet. We attribute this to the mutual learning from width and resolution scheme.

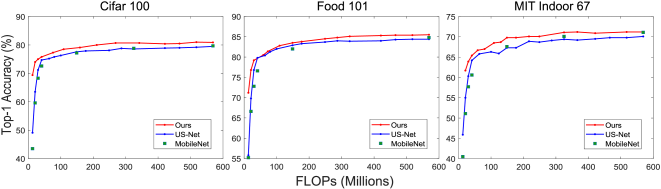

Figure 7: Accuracy-FLOPs curves on different transfer learning datasets.

4.2 Transfer learning

To evaluate the representations learned by our framework, we further conduct experiments on three popular transfer learning datasets, Cifar-100 (Krizhevsky, 2009), Food-101 (Bossard et al., 2014) and MIT-Indoor67 (Quattoni and Torralba, 2009)

. Cifar-100 is superordinate-level object classification, Food-101 is fine-grained classification and MIT-Indoor67 is scene classification. Such large variety is suitable to evaluate the robustness of the learned representations. We compare our framework with US-Net and independently-trained MobileNet v1. We fine-tune all the models with a batch size of 256, initial learning rate of 0.1 with cosine decay schedule and a total of 100 epochs. Following the setting in ImageNet training, we use width range [

] and resolutions {224, 192, 160, 128}. The results are shown in Figure 7. Again, our framework achieves consistently better performance than US-Net and MobileNet. This verifies that our framework is able to learn well-generalized representations.

4.3 Object detection and instance segmentation

We also apply our framework to COCO object detection and instance segmentation (Lin et al., 2014). Our experiments are based on Mask-RCNN-FPN (He et al., 2017; Lin et al., 2017) and MMDetection (Chen et al., 2019a) toolbox. We use VGG-16 (Simonyan and Zisserman, 2014) as backbone network to validate our proposed mutual learning scheme.

We first pre-train VGG-16 on ImageNet using US-Net and our framework respectively. The network width range is and resolutions are {224, 192, 160, 128}. Then we fine-tune the pre-trained models on COCO. The FPN neck and detection head are shared among different sub-networks. For simplicity, we don’t use inplace distillation. Rather, each sub-network is trained with the ground truth. The other training procedures are the same as training ImageNet classification. Following common settings in object detection, US-Net is trained with image resolution . Our framework randomly selects resolutions from . All models are trained on COCO 2017 training set and tested on COCO 2017 validation set with different image resolutions. The Average Precision (AP) results for object detection and instance segmentation under different computational cost are presented in Figure 8. These results reveal that our framework significantly outperforms US-Net under all resource constraints. Specifically, on the full configuration (1.0-600), US-Net achieves comparable results with independent VGG-16, while our framework performs much better. This again validates the effectiveness of our width-resolution mutual learning scheme. Please refer to Appendix A.3 for visual comparison results.

(a) Object Detection
(b) Instance Segmentation
Figure 8: Average Precision - FLOPs curves of our framework and US-Net. (a) is bounding box average precision. (b) is mask average precision.

5 Conclusion and Future work

This paper highlights the importance of simultaneously considering both network width and input resolution for designing efficient network structures. A new framework is defined capable of mutually learning from network width and input resolution. The proposed framework is demonstrated to significantly improve inference performance per FLOP for various datasets and tasks. The simplicity and generality of the framework allows it to translate well to generic problem domains. This also make logical extensions readily available by adding other network dimensions, e.g., network depth, to the framework. The framework can also be extended to video input and 3D neural networks, where we can leverage both spatial and temporal information.

References

  • S. Anwar, K. Hwang, and W. Sung (2017)

    Structured pruning of deep convolutional neural networks

    .
    ACM Journal on Emerging Technologies in Computing Systems (JETC) 13 (3), pp. 32. Cited by: §1, §2.
  • L. Bossard, M. Guillaumin, and L. Van Gool (2014)

    Food-101 – mining discriminative components with random forests

    .
    Cited by: §4.2.
  • K. Chen, J. Wang, J. Pang, Y. Cao, Y. Xiong, X. Li, S. Sun, W. Feng, Z. Liu, J. Xu, et al. (2019a) MMDetection: open mmlab detection toolbox and benchmark. arXiv preprint arXiv:1906.07155. Cited by: §4.3.
  • L. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. L. Yuille (2017) Deeplab: semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE transactions on pattern analysis and machine intelligence 40 (4), pp. 834–848. Cited by: §1.
  • Y. Chen, H. Fang, B. Xu, Z. Yan, Y. Kalantidis, M. Rohrbach, S. Yan, and J. Feng (2019b) Drop an octave: reducing spatial redundancy in convolutional neural networks with octave convolution. arXiv preprint arXiv:1904.05049. Cited by: §1, §2.
  • T. Chin, R. Ding, and D. Marculescu (2019) AdaScale: towards real-time video object detection using adaptive scaling. arXiv preprint arXiv:1902.02910. Cited by: §1.
  • J. Deng, W. Dong, R. Socher, L. Li, K. Li, and L. Fei-Fei (2009) Imagenet: a large-scale hierarchical image database. In

    2009 IEEE conference on computer vision and pattern recognition

    ,
    pp. 248–255. Cited by: §4.
  • S. Han, X. Liu, H. Mao, J. Pu, A. Pedram, M. A. Horowitz, and W. J. Dally (2016) EIE: efficient inference engine on compressed deep neural network. In 2016 ACM/IEEE 43rd Annual International Symposium on Computer Architecture (ISCA), pp. 243–254. Cited by: §2, §2.
  • S. Han, H. Mao, and W. J. Dally (2015a) Deep compression: compressing deep neural networks with pruning, trained quantization and huffman coding. arXiv preprint arXiv:1510.00149. Cited by: §1, §2.
  • S. Han, J. Pool, J. Tran, and W. Dally (2015b) Learning both weights and connections for efficient neural network. In Advances in neural information processing systems, pp. 1135–1143. Cited by: §1, §2.
  • K. He, G. Gkioxari, P. Dollár, and R. Girshick (2017) Mask r-cnn. pp. 2961–2969. Cited by: §4.3.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: §1.
  • G. Hinton, O. Vinyals, and J. Dean (2015) Distilling the knowledge in a neural network. arXiv preprint arXiv:1503.02531. Cited by: §3.1.
  • A. G. Howard, M. Zhu, B. Chen, D. Kalenichenko, W. Wang, T. Weyand, M. Andreetto, and H. Adam (2017) Mobilenets: efficient convolutional neural networks for mobile vision applications. arXiv preprint arXiv:1704.04861. Cited by: §1, §2, Figure 6, §4.1, §4.1.
  • G. Huang, D. Chen, T. Li, F. Wu, L. van der Maaten, and K. Q. Weinberger (2017a) Multi-scale dense networks for resource efficient image classification. arXiv preprint arXiv:1703.09844. Cited by: §1.
  • G. Huang, Z. Liu, L. Van Der Maaten, and K. Q. Weinberger (2017b) Densely connected convolutional networks. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 4700–4708. Cited by: §1.
  • T. Ke, M. Maire, and S. X. Yu (2017) Multigrid neural architectures. pp. 6665–6673. Cited by: §2.
  • E. Kim, C. Ahn, and S. Oh (2018) Nestednet: learning nested sparse structures in deep neural networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 8669–8678. Cited by: §1.
  • A. Krizhevsky (2009) Learning multiple layers of features from tiny images. Technical report . Cited by: §4.2.
  • C. Lemaire, A. Achkar, and P. Jodoin (2018) Structured pruning of neural networks with budget-aware regularization. arXiv preprint arXiv:1811.09332. Cited by: §1, §2.
  • H. Li, A. Kadav, I. Durdanovic, H. Samet, and H. P. Graf (2016) Pruning filters for efficient convnets. arXiv preprint arXiv:1608.08710. Cited by: §1, §2.
  • T. Lin, P. Dollár, R. Girshick, K. He, B. Hariharan, and S. Belongie (2017) Feature pyramid networks for object detection. pp. 2117–2125. Cited by: §4.3.
  • T. Lin, M. Maire, S. Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollár, and C. L. Zitnick (2014) Microsoft coco: common objects in context. pp. 740–755. Cited by: §4.3.
  • N. Ma, X. Zhang, H. Zheng, and J. Sun (2018) Shufflenet v2: practical guidelines for efficient cnn architecture design. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 116–131. Cited by: §2, §2.
  • A. Quattoni and A. Torralba (2009) Recognizing indoor scenes. 2009 IEEE Conference on Computer Vision and Pattern Recognition, pp. 413–420. Cited by: §4.2.
  • J. Redmon, S. Divvala, R. Girshick, and A. Farhadi (2016) You only look once: unified, real-time object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 779–788. Cited by: §1.
  • S. Ren, K. He, R. Girshick, and J. Sun (2015) Faster r-cnn: towards real-time object detection with region proposal networks. In Advances in neural information processing systems, pp. 91–99. Cited by: §1.
  • M. Sandler, A. Howard, M. Zhu, A. Zhmoginov, and L. Chen (2018) Mobilenetv2: inverted residuals and linear bottlenecks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4510–4520. Cited by: §2, Figure 6, §4.1, §4.1.
  • K. Simonyan and A. Zisserman (2014) Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556. Cited by: §1, §4.3.
  • K. Sun, B. Xiao, D. Liu, and J. Wang (2019)

    Deep high-resolution representation learning for human pose estimation

    .
    pp. 5693–5703. Cited by: §1, §2.
  • M. Tan and Q. Le (2019) EfficientNet: rethinking model scaling for convolutional neural networks. In Proceedings of the 36th International Conference on Machine LearningEuropean Conference on Computer VisionProceedings of the IEEE Conference on Computer Vision and Pattern RecognitionProceedings of the IEEE Conference on Computer Vision and Pattern RecognitionProceedings of the IEEE international conference on computer visionProceedings of the IEEE conference on computer vision and pattern recognitionEuropean conference on computer vision, K. Chaudhuri and R. Salakhutdinov (Eds.),

    Proceedings of Machine Learning Research

    , Vol. 97, Long Beach, California, USA, pp. 6105–6114.
    External Links: Link Cited by: A closer look at network resolution for efficient network design, §1, §4.1, Table 1.
  • J. Yu and T. Huang (2019) Universally slimmable networks and improved training techniques. arXiv preprint arXiv:1903.05134. Cited by: §A.1, A closer look at network resolution for efficient network design, §1, §1, §1, Figure 2, §2, §3.1, §4.1.
  • J. Yu, L. Yang, N. Xu, J. Yang, and T. Huang (2019) Slimmable neural networks. In International Conference on Learning Representations, External Links: Link Cited by: §1.
  • X. Zhang, X. Zhou, M. Lin, and J. Sun (2018a) Shufflenet: an extremely efficient convolutional neural network for mobile devices. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 6848–6856. Cited by: §1, §2.
  • Y. Zhang, T. Xiang, T. M. Hospedales, and H. Lu (2018b) Deep mutual learning. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4320–4328. Cited by: §3.2.

Appendix A Appendix

a.1 Training details

We follow the training settings in US-Net (Yu and Huang, 2019) when training on ImageNet. The batch size is 1024 on 8 GPUs. Initial learning rate is 0.5 and decreases to 0 with a cosine decay schedule. The momentum is set to 0.9 and weight decay is 0.0001. All models are trained for 250 epochs using SGD optimizer.

a.2 VGG-16 ImageNet pre-training

We use VGG-16 as the backbone network for object detection and instance segmentation. We first pretrain VGG on ImageNet following US-Net and our framework. The batch size is set to 512. The initial learning rate is 0.01 and decreases to 0 with a cosine decay schedule. Both frameworks are trained for 100 epochs. The Accuracy-FLOPs curves of different frameworks are shown in Figure 9. We can see that our framework still constantly outperforms US-Net on such large neural network. This further demonstrates the effectiveness and generalization ability of our framework.

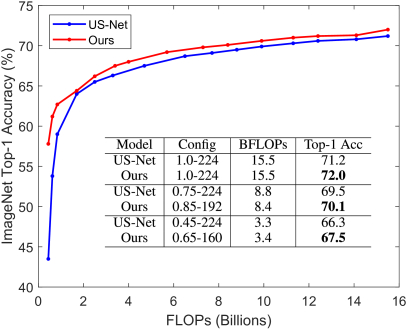

Figure 9: Accuracy-FLOPs curves of our framework and US-Net on VGG-16 backbone.

a.3 Object detection and instance segmentation examples

We show some visualization examples in Figure 10. We tested two model configurations -600 and -480. The upper pairs are -600, the lower pairs are -480. From Figure 10, we can see that our framework is able to detect both small-scale and large-scale objections in both configurations while US-Net fails. This is because our mutual learning scheme enables each sub-network to capture multi-scale representations.

Figure 10: Object detection and instance segmentation examples.
