A cautionary tale on using imputation methods for inference in matched pairs design

06/18/2018
by   Burim Ramosaj, et al.
Universität Ulm
0

Imputation procedures in biomedical fields have turned into statistical practice, since further analyses can be conducted ignoring the former presence of missing values. In particular, non-parametric imputation schemes like the random forest or a combination with the stochastic gradient boosting have shown favorable imputation performance compared to the more traditionally used MICE procedure. However, their effect on valid statistical inference has not been analyzed so far. This paper closes this gap by investigating their validity for inferring mean differences in incompletely observed pairs while opposing them to a recent approach that only works with the given observations at hand. Our findings indicate that machine learning schemes for (multiply) imputing missing values heavily inflate type-I-error in small to moderate matched pairs, even after modifying the test statistics using Rubin's multiple imputation rule. In addition to an extensive simulation study, an illustrative data example from a breast cancer gene study has been considered.

READ FULL TEXT VIEW PDF
11/30/2017

Who wins the Miss Contest for Imputation Methods? Our Vote for Miss BooPF

Missing data is an expected issue when large amounts of data is collecte...
12/10/2019

Asymptotic based bootstrap approach for matched pairs with missingness in a single-arm

The issue of missing values is an arising difficulty when dealing with p...
11/16/2020

Imputation techniques on missing values in breast cancer treatment and fertility data

Clinical decision support using data mining techniques offers more intel...
12/09/2021

On the Relation between Prediction and Imputation Accuracy under Missing Covariates

Missing covariates in regression or classification problems can prohibit...
08/30/2021

Multiple imputation and test-wise deletion for causal discovery with incomplete cohort data

Causal discovery algorithms estimate causal graphs from observational da...
01/26/2018

Multiplication-Combination Tests for Incomplete Paired Data

We consider statistical procedures for hypothesis testing of real valued...

1 Introduction

Repeated measure designs are commonly present in medical and scientific research. The simplest design captures the comparison of two different treatments or time points over repeatedly observed subjects. For inferring the predominance of a treatment the paired t-test is commonly applied. It is finitely exact under normality and asymptotically exact, if the latter assumption is dropped. However, first limitations of the paired t-test arise when missing values are present. This is frequently the case in biomedical studies, e.g. due to dropout or insufficient probes. In addition, rare diseases often lead to small sample sizes in matched pairs. Hence, conducting complete-case analyses through the paired t-test while neglecting all information from the incomplete observations might lead to improper inferences, especially when missing values are not occurring completely random resulting into selection bias or when sample sizes are small

(Schafer, 1999). Therefore, scientific research has been going on involving missing value mechanisms in the test statistic. One simple approach is to impute missing values singly and conduct statistical tests as if there has not been any missing values so far. However, this procedure fails to account for the uncertainty involved in the imputation technique and statistical inference can be heavily distorted (Schafer, 1999; Rubin, 2004; Sterne et al., 2009). Multiply imputing missing values overcome this issue and the combination of them into a potentially asymptotic exact test statistic has been derived by Rubin (2004). Various algorithms have been developed to impute missing values. For example, the mice package in R

is able to impute missing values multiple times by assuming a parametric model for the data generating process and iteratively draw through fully conditional specification missing values from a predictive posterior distribution. Recently, non-parametric regression and classification methods such as the random forest have been proposed for the imputation of missing values

(Stekhoven and Bühlmann, 2011). In extensive simulation studies (Stekhoven and Bühlmann, 2011; Waljee et al., 2013; Ramosaj and Pauly, 2017), the missForest approach accurately imputes missing values and outperforms existing procedures in simulations such as MICE in terms of normalizing root mean squared or miss-classification error. Thus, we would expect that inference drawn from the imputed data might lead to reliable conclusions. However, as recently pointed out by Dunson (2018) for machine learning techniques in general, ’there is a huge danger in doing so due to the lack of uncertainty quantification’. In the present paper, we investigate this issue by checking statistical validity for drawing inference after multiple imputation.

Differing to imputation, research has also been going on in developing statistical testing procedures that only take into account the observed information (Lin and Stivers, 1974; Ekbohm, 1976; Bhoj, 1978; Looney and Jones, 2003; Kim et al., 2005; Samawi and Vogel, 2014; Maritz, 1995; Yu et al., 2012). In particular, statistical permutation tests were provided recently by Amro and Pauly (2017) and Amro et al. (2018) that require no parametric assumptions and possess nice small and large sample properties while only using all observed information. Below we will compare them to the previously mentioned inference strategies based on imputation techniques.

Similar studies on classical imputation techniques have shown that inference based on classical multiple imputation techniques and incomplete data-analysis can differ, arising the question under which condition multiple imputation lead to correct statistical inference (Fay, 1992; Meng, 1994; Sterne et al., 2009; Peto, 2007). Meng (1994) for example, provided a general framework under which an imputation method leads to correct inference. He coined the term congeniality for assessing differences in imputation and analysis model under a Bayesian scheme. Under specific conditions defined in his work such as

second-moment properness, self-efficiency

and information regularity

, multiple imputation can lead to even more efficient estimates than solely based on incomplete data. However, if the imputation model is not correctly specified, inference is generally not valid. Therefore, the main task of the imputer is to deliver a predictive model that is generalizable, covering potential sub-models in the subsequent analysis while correctly reflecting the uncertainty by the imputation

(Meng, 1994). Due to the flexibility and predictive accuracy of the Random Forest model without making assumptions on the data generating process, this method might be regarded as a potential candidate model for imputing missing values according to Meng (1994). However, less attention has been paid to the interesting question, whether a Random Forest based imputation scheme leads to correct statistical inferences in e.g. matched pairs design. Therefore, the aim of the current paper is trilateral. First, we aim to i) enlighten the mystery of correct statistical inference in matched pairs design when advanced Machine Learning techniques are used for multiply imputing missing values, ii) to check whether imputation accuracy measures such as root mean squared errors are capable of reflecting correct statistical inferences and iii) recommend a valid statistical testing procedure in matched pairs under ignorable missing mechanisms such as missing completely at random.

After stating the statistical model and procedures of interest in Section 2, we describe multiple imputation techniques in Section 3. Section 4 explains the application of the weighted permutation procedure. In an extensive simulation study (Section 5) under various sample sizes and covariance structures, we then compute the type-I-error rate and the power of the paired t-test under different imputation schemes and oppose it to a recently proposed permutation test. The results are discussed in Sections and the analysis of a breast cancer gene study exemplifies potentially diverse findings in Section 6.

2 Statistical Model and Hypotheses

We consider the general matched pairs design given by a sample , where

are i.i.d. random vectors on some probability space

with mean vector and an arbitrary covariance matrix . Let the vectors indicate whether a certain component is observed or missing on subject . Denoting component-wise multiplication of vectors by , then we only observe . Hence our framework has the following form, where stands as a placeholder for :

(1)

Here, are the complete pairs and partially observed pairs. Rubin defines the missing mechanism through a parametric distributional model on

and classifies their presence through Missing Completely at Random (MCAR), Missing at Random (MAR) and Missing not at Random (MNAR) schemes

(Rubin, 2004). In our work, we restrict our attention to missing mechanisms being MCAR. To fix some notation, let denote the index set of the complete pairs, i.e. for all . Similarly, resp. denote the index sets of observations with missing second for resp. first for component and set , , . In this set-up (1

), we are now interested in testing the null hypothesis

of equal means against the two-sided alternative . Tests for the one-sided analogue can be achieved by transforming the corresponding two-sided -value to .

3 Imputing Incomplete Data

A usual habit is to impute missing values in the sample and conduct further statistical analyzes on the imputed data set . Various imputation schemes have been analyzed with respect to their imputation accuracy. Recently, promising results were obtained by a random forest based imputation scheme implemented as missForest in R (Stekhoven and Bühlmann, 2011)

. It is based on a non-parametric regression model combining several weak learners to construct strongly predictive models while including random subsampling in feature selection and bootstrapping. In several competitive simulation studies

(Stekhoven and Bühlmann, 2011; Waljee et al., 2013; Ramosaj and Pauly, 2017), missForest outperformed different imputation techniques as, e.g.,

-NN based techniques or the usually applied MICE algorithm. The latter is based on an iterative algorithm generating Markov-Chains for potential imputation values

(Van Buuren and Groothuis-Oudshoorn, 2011). However, imputation retrieves the risk that imputer and data analyst could share completely different viewpoints for subsequent analyses. While the imputer is interested in using a method that is generalizable and thus minimizes normalized root mean squared error (NRMSE) or proportion of false classification (PFC), the interest of a statistical data analyst lies more on uncertainty quantification and valid inference. From a biostatistical viewpoint, it is unclear whether a method with comparable low NRMSE results in a test-procedure that reasonably controls type-I-error under the null-hypothesis. For this task, an ideal imputation scheme should be based on preserving the distributional property of the data generating process. That is, should hold for , where is the imputed value of the -th observation. In this case, a natural test statistic for under a distribution-preserving imputation scheme would be the paired t-test statistic given by

(2)

Here, denotes the -dimensional vector of s, the difference contrasts, , and , the mean differences of the first and second components of the complete and imputed pairs, respectively, which are pooled in the vector . Moreover, building the quadratic form in the matrix

leads to the usual empirical variance estimator in the denominator. Althought the stated

-null-distribution in (2) is only valid for independent bivariate normal vectors

, the paired-t-test is asymptotically exact even under non-normal observations due to the central limit theorem and the law of large numbers.

3.1 Mice

Multiple Imputation by Chained Equations, often referred as fully conditional specification, uses a set of conditional parametric models for the imputation of missing values (Hughes et al., 2014). Imputation is then conducted by introducing a regression model for every variable with a suitable prior and draws are made iteratively form the corresponding predictive posterior of the regression model. That is, for every variable a separate model with parameter is assumed and simulation is conducted by the following iteration steps for ,

where and . The final imputation is then the -th draw, i.e. . This allows for a higher flexibility in contrast to joint modeling, where the specification of a parametric joint model with joint parameter

can be challenging under different variable types. Under the ignorability assumption, imputations in joint modeling using the Bayesian framework are then draws from the posterior predictive distribution of the missing data given the observed observations


(Schafer, 1997). In case of finite samples sizes, compatibility and a non-informative margins condition, both methods, MICE and joint modeling, draw from the same predictive distribution of

. This is especially the case if data results from a multivariate normal distribution

(Hughes et al., 2014) such that statistical inference should be - at least asymptotically - valid in our case.
Depending on the conditional distribution of resp. , , different algorithms have been proposed for MICE. In case of normally distributed conditionals, a linear model is assumed and missing values are drawn from it using a multi-stage wild-bootstrap approach (Van Buuren et al., 2006). In the sequel, this approach will be named NORM and is implemented in the R-package mice. Predictive Mean Matching (PMM

), is more flexible towards deviations from the normality assumption including nonlinear association and heteroscedasticity

(Schenker and Taylor, 1996; Morris et al., 2014; Vink et al., 2014; Yu et al., 2007). In contrast to NORM, PMM imputes values by randomly drawing from a set of possible donors, that are determined based on the euclidean distance between observed items and predicted values of missing variables under the same linear model as in NORM (Van Buuren et al., 2006). This way, the regression model is only used for finding appropriate matches between observed and missing cases.

3.2 Random Forest Imputation

Random Forest is a specific class of CART algorithms combining bagging and feature sub-spacing at each terminal node during the tree construction process. Due to its capability of detecting collinearity effects and accommodating nonlinear relations and interactions (Shah et al., 2014), the Random Forest has become popular for its usage in missing value estimation (Burgette and Reiter, 2010; Stekhoven and Bühlmann, 2011; Doove et al., 2014; Shah et al., 2014). In several simulation studies and medical data records, the implemented routine missForest in R has been used as a favorite choice for imputation (Stekhoven and Bühlmann, 2011; Waljee et al., 2013; Ramosaj and Pauly, 2017). Extending the usage of missForest and Random-Forest based imputation schemes to multiple imputations that account for uncertainty, some attempts have been made to incorporate these methods into the MICE framework (Doove et al., 2014; Shah et al., 2014). However, it seems that none of these methods simultaneously considered the validity of statistical inference and imputation accuracy, focusing for example on either high imputation accuracy (Stekhoven and Bühlmann, 2011) or the estimation of unbiased regression coefficients in two-way interaction regression models (Doove et al., 2014). In this paper, we aim to fill this gap by considering Random Forest based imputation methods within the framework of

  1. Multiple Imputation by repeatedly applying missForest (RF MI)

  2. Multiple imputation using Random Forest within the MICE framework (RF MICE) (Doove et al., 2014)

while comparing the corresponding type-I-error and power of the paired t-test and the NRMSE in matched pairs. There are a couple of differences between RF MI and RF MICE, focusing either on more stable prediction of missing values or on extra variability due to imputation. RF MI initially imputes mean resp. mode values for missing values originating from continuous resp. categorical outcomes. RF MICE, however, randomly selects one candidate from the observed part for imputation. In contrast to RF MI, where the prediction of missing values is based on averaging donors in each leaf, RF MICE randomly selects candidates among the donors. In addition, the iteration process in RF MICE is repeated for a fixed number of times, whereas in RF MI, iteration is stopped when a stopping criterion measuring the imputation accuracy is reached.

3.3 Rubin’s Rule

In the matched pairs design with imputed missing values, the quantity of interest in the null hypothesis is the difference in expectations

, where a natural unbiased estimate under a distribution-preserving imputation scheme is given by

. Rubin proposed to impute multiple times, in oder to reflect the uncertainty of the imputation scheme in later inference. Hence, if an imputation scheme estimates missing values times, leading to estimates of mean value differences and of empirical variances, i.e. for , a combination of them is given by and (Rubin, 2004). Rubin (2004) suggested to use as the total variance of the estimate , where is the variance between the complete-data estimates, i.e. . The combined test statistic for the matched pairs design can then be approximated by a t reference distribution with degrees of freedom, i.e.

(3)

where and being the relative increase in variance due to missingness. However, under small samples and a modest proportion of missing data, the approximation of the degrees of freedom for the t reference distribution in might be inappropriate (Barnard and Rubin, 1999). Adjusted degrees of freedom for are given by

(4)

where . In the sequel, we will restrict our attention to the choice given in , since is always smaller than and coincides with , if the sample size is sufficiently large (Barnard and Rubin, 1999). This is especially the case when considering datasets with sample size vectors of the form for larger in Section 5. So far, theoretical guarantees for the validity of (2) resp. (4) using the missForest imputation procedure have not been delivered. Hence, it is completely unclear whether the paired t-test under the random forest based imputation scheme will lead to valid inference.

4 Permuting Incomplete Data

Maritz (1995) and Yu et al. (2012) proposed permutation techniques for incomplete paired data. However, these methods have the drawback that certain distributional assumptions (such as -symmetry) are required to develop a valid level test even at least asymptotically. A novel permutation method overcame these problems while preserving the finite sample exactness property under similar assumptions (Amro and Pauly, 2017; Amro et al., 2018)

. Besides, the suggested method has the advantage that it is asymptotically robust against heteroscedasticity and skewed distributions. The idea of

Amro and Pauly (2017); Amro et al. (2018) is based on permuting the complete and the incomplete cases separately and then combining the results using either a general weighted test statistic or a multiplication combination test involving both, the paired t-test and the Welch-type test statistic.

Based on a simulation study (Amro et al., 2018), the two permutation methods showed similar behavior in most of the considered cases. Therefore, we only consider the method of Amro and Pauly (2017) for further analysis. Their suggested test statistic consists of the following weighting scheme:

(5)

where, is used to weight the inference from the complete pairs and the incomplete ones. Moreover, is the usual paired t-type statistic, , denote the differences of the first and second component for while is their empirical variance. Furthermore, is the Welch-type test statistic where and are the sample means and and the corresponding empirical variances. A recommended value of is (Amro and Pauly, 2017). This choice guarantees the correct treatment in the extreme scenarios of and

. In order to derive empirical quantiles of the test statistic

, a separate permutation technique for the complete and incomplete pairs has been used. While the components of the complete cases are permuted independently, for the missing parts , the components are shuffled together (Amro and Pauly, 2017). This method has the advantage of using all observed information while not being based on any parametric assumption. In particular, it was shown to be asymptotically correct in general and even finitely exact, if the distribution of the data is invariant with respect to the considered permutations (keyword: exchangeable in a certain way).

5 Simulation strategy

In our simulation study, we compare the methods described in Section 3 - 4 with respect to their

  1. type-I-error rate control at level and

  2. power to detect deviation from the null hypothesis.

We thereby restrict the analysis to the paired t-test based on four imputation techniques; The established and easy to use MICE approach by Van Buuren and Groothuis-Oudshoorn (2011) with NORM and PMM as well as the missForest procedures RF MI and RF MICE described in Section 3. The latter was shown to be the method of choice in terms of accuracy in several simulation studies (Stekhoven and Bühlmann, 2011; Waljee et al., 2013; Ramosaj and Pauly, 2017). The crucial simulation study was conducted within the statistical computing environment R based on Monte-Carlo runs. Small to large sized paired data samples are generated by

where is an i.i.d. bivariate random vector with zero mean and identity covariance matrix. Different choices of symmetric as well as skewed residuals are considered such as standardized normal, exponential, Assymetric Laplace or the distribution with degrees of freedom. For the covariance matrix , we considered a homoscedastic and a heteroscedastic setting given by the choices

for varying correlation factors . Missing values are generated under the MCAR scheme by randomly inserting them to the first or second component of the bivariate vector until a fixed amount of missing values of size for the second and for the first component is achieved. Furthermore, the sample sizes were chosen as and later increased by adding for to the balanced sample size and multiplying the unbalanced setting with a factor . In order to assess the power of the paired-t-test for imputation methods and the permutation test of Amro and Pauly (2017), we set with shifting parameter . Here, the permutation method was based on permutation runs. Furthermore, we used imputations for the multiple imputation settings. In addition to reporting type-I-error () and power of the tests, we also report the NRMSE of the imputation methods defined by

Where, , is the true value whenever missing values are present, , and with , is the imputed value of missing observations in the -th iteration using a multiple imputation procedure (Rubin, 2004).

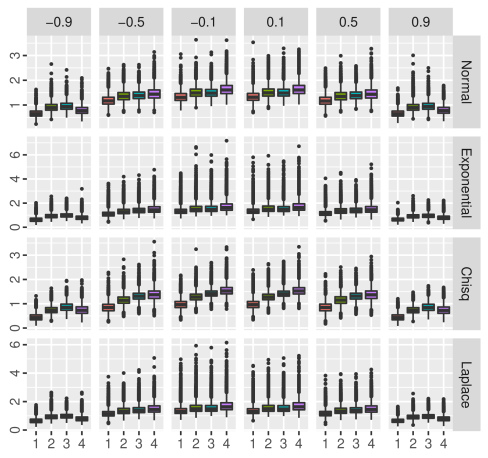

Figure 1: NRMSE for the Normal, Exponential, and Laplace distribution using Monte-Carlo runs under and the balanced scheme with under various correlations for (1) RFMI, (2) RFMICE, (3) PMM and (4) NORM.
(a)
(b)
Figure 2: Simulation results for type-I error level () for (–––), (bronze ), (byzantine ), (blue– –), (ao(english) - - -) for distribution under for varying values either multiplied to (a) or added to (b).
Dist
RF MI RF MICE PMM NORM RF MI RF MICE PMM NORM
Normal -0.9 0.052 0.070 0.058 0.061 0.045 0.056 0.073 0.063 0.062 0.047
-0.5 0.052 0.118 0.071 0.061 0.045 0.054 0.117 0.073 0.062 0.045
-0.1 0.050 0.163 0.077 0.055 0.038 0.054 0.162 0.077 0.057 0.042
0.1 0.054 0.201 0.085 0.055 0.041 0.064 0.188 0.085 0.051 0.041
0.5 0.052 0.260 0.085 0.048 0.039 0.052 0.216 0.078 0.047 0.040
0.9 0.051 0.302 0.048 0.036 0.038 0.058 0.167 0.054 0.046 0.042
Exp -0.9 0.049 0.070 0.060 0.059 0.046 0.074 0.085 0.075 0.076 0.058
-0.5 0.052 0.118 0.071 0.058 0.045 0.074 0.124 0.078 0.065 0.051
-0.1 0.048 0.165 0.076 0.052 0.039 0.077 0.173 0.088 0.063 0.045
0.1 0.052 0.195 0.078 0.050 0.040 0.083 0.190 0.091 0.065 0.052
0.5 0.050 0.262 0.084 0.048 0.040 0.084 0.221 0.092 0.06 0.056
0.9 0.045 0.295 0.043 0.034 0.038 0.097 0.183 0.065 0.056 0.049
Chisq -0.9 0.049 0.070 0.060 0.059 0.046 0.054 0.073 0.062 0.061 0.046
-0.5 0.052 0.118 0.071 0.058 0.045 0.055 0.115 0.073 0.056 0.041
-0.1 0.048 0.165 0.076 0.052 0.039 0.052 0.167 0.079 0.055 0.044
0.1 0.052 0.195 0.078 0.050 0.040 0.054 0.187 0.081 0.054 0.042
0.5 0.050 0.262 0.084 0.048 0.040 0.058 0.219 0.082 0.057 0.049
0.9 0.045 0.295 0.043 0.034 0.038 0.062 0.166 0.053 0.046 0.039
Ass. -0.9 0.050 0.070 0.060 0.061 0.045 0.065 0.076 0.066 0.066 0.075
Laplace -0.5 0.051 0.108 0.067 0.054 0.040 0.065 0.118 0.077 0.062 0.047
-0.1 0.050 0.167 0.077 0.055 0.040 0.069 0.170 0.083 0.061 0.048
0.1 0.056 0.194 0.083 0.050 0.042 0.069 0.191 0.083 0.057 0.046
0.5 0.052 0.252 0.082 0.046 0.046 0.070 0.217 0.085 0.053 0.044
0.9 0.049 0.278 0.037 0.031 0.047 0.090 0.182 0.061 0.051 0.049
Table 1: Simulation results for type-I error level () for different distributions under varying correlation values each with sample sizes and different covariance matrices (homoscedastic) and (heteroscedastic).
Dist
RF MI RF MICE PMM NORM RF MI RF MICE PMM NORM
Normal -0.9 0.260 0.315 0.299 0.300 0.264 0.733 0.792 0.780 0.780 0.747
-0.5 0.271 0.396 0.319 0.284 0.239 0.768 0.847 0.803 0.771 0.719
-0.1 0.306 0.477 0.349 0.290 0.238 0.832 0.909 0.846 0.788 0.734
0.1 0.338 0.551 0.383 0.306 0.250 0.858 0.934 0.869 0.799 0.729
0.5 0.439 0.703 0.463 0.345 0.302 0.947 0.985 0.924 0.864 0.805
0.9 0.869 0.967 0.657 0.605 0.628 1.000 1.000 0.973 0.967 0.957
Exp -0.9 0.287 0.332 0.312 0.315 0.269 0.777 0.814 0.800 0.801 0.760
-0.5 0.336 0.435 0.364 0.318 0.271 0.818 0.862 0.825 0.785 0.742
-0.1 0.379 0.516 0.394 0.328 0.269 0.863 0.909 0.857 0.796 0.745
0.1 0.408 0.570 0.414 0.332 0.279 0.888 0.928 0.861 0.813 0.756
0.5 0.528 0.727 0.496 0.380 0.343 0.952 0.978 0.918 0.841 0.810
0.9 0.876 0.950 0.676 0.617 0.661 1.000 0.998 0.968 0.954 0.958
Chisq -0.9 0.255 0.311 0.290 0.295 0.254 0.739 0.796 0.783 0.784 0.752
-0.5 0.278 0.391 0.322 0.287 0.243 0.776 0.848 0.810 0.774 0.729
-0.1 0.315 0.500 0.367 0.301 0.248 0.831 0.905 0.843 0.786 0.729
0.1 0.345 0.550 0.390 0.308 0.256 0.874 0.938 0.873 0.809 0.748
0.5 0.442 0.700 0.448 0.342 0.304 0.951 0.985 0.927 0.856 0.802
0.9 0.868 0.966 0.661 0.610 0.636 1.000 1.000 0.970 0.966 0.957
Ass. -0.9 0.287 0.336 0.315 0.316 0.270 0.767 0.812 0.791 0.792 0.753
Laplace -0.5 0.327 0.421 0.354 0.317 0.263 0.814 0.859 0.822 0.791 0.739
-0.1 0.367 0.519 0.385 0.322 0.267 0.858 0.908 0.851 0.798 0.743
0.1 0.400 0.572 0.412 0.336 0.277 0.889 0.935 0.874 0.812 0.754
0.5 0.504 0.726 0.497 0.375 0.342 0.952 0.979 0.920 0.846 0.815
0.9 0.877 0.950 0.669 0.614 0.660 1.000 0.999 0.971 0.955 0.959
Table 2: Power simulation results () for different distributions under varying correlation values for and for (homoscedastic).

The NRMSE has been reported as a key measure for assessing imputation quality of various imputation techniques (Stekhoven and Bühlmann, 2011; Waljee et al., 2013; Ramosaj and Pauly, 2017). However, it is completely unclear whether an imputation technique with relatively low NRMSE automatically lead to type-I-error rate control or higher power in incompletely observed matched pairs designs. Below, we shed light into this obstacle.

5.1 NRMSE Results

The simulation was conducted under with homogeneous covariance matrix and a sample size of for different correlation coefficients and different distributions as described above. It can be readily seen from Figure 1 that RF MI resulted in the lowest NRMSE overall settings under consideration. For low to moderate correlation factors (up to ) RF MICE showed the second best overall NRMSE, followed by PMM and NORM. For larger correlation factors this ordering changes with NORM showing the second lowest NRMSE, followed by RF MICE and NORM. Anyhow, our findings are in line with previous results (Waljee et al., 2013; Ramosaj and Pauly, 2017) in that they also result in a recommendation to apply RF MI if NRMSE is the major assessment criterion. However, we will see below that NRMSE is not a suitable measure for evaluating an imputation method when aiming to conduct inference on small to moderate sample sizes; at least in matched pairs designs.

5.2 Type-I- Error Control Results

Simulation results of type-I-error of the - permutation test as well as the paired t-test based on imputation are summarized in Table 1 under various covariance structures and residual distributions for . Starting with the permutation test of Amro and Pauly (2017) we see that it tends to be an adequate exact level test among all considered ranges of for homoscedastic covariance structures and most heteroscedastic settings. Only in the heteroscedastic cases with skewed exponential (and to some extend also for asymmetric Laplace) distributed residuals, the permutation test has some difficulties in controlling type-I-error rate. In those cases, the MICE procedure under the algorithmic implementation of NORM has shown favorable type-I error rate control, but this with the cost of considerably less power (Table 2). For other residual distributions, NORM obtains the significance level of well, while being slightly conservative, especially when the correlation structure turns positive. This effect of a decrease in type-I error with increasing positive correlation factors could also be obtained for the PMM procedure and partly for the RF MICE. Here, the permutation test seems not to be affected by the various degrees of correlations. In contrast to the permutation test and the MICE procedures, both RF MI and RF MICE, imputation procedures based on Random Forest models, failed to control type-I error rate in almost all settings. Especially RF MI, which is based on repeatedly using missForest, heavily inflates type-I error of the paired t-test. RF MICE, which introduces more variability in the imputation draws, could be able to reduce type-I error, but is only in strongly positive correlated settings able to drop below the threshold.

In addition to these small sample size settings, we are also interested in type-I error rate control when sample sizes increases, while missing rates remain nearly unchanged. For moderate to large sample sizes, we considered the choices and , where ranges from (balanced case) and (unbalanced), respectively. Figure 2 summarizes type-I error rate control at for these settings. The results indicate that the imputation procedures based on Random Forest models, RF MI and RF MICE, failed to control type-I error rate also in larger samples. This especially holds for RF MI with type-I error rates between and for the largest sample size setting () while RF MICE was only slightly liberal then (). Only the permutation test and the MICE procedure under the algorithmic implementation of NORM control the type-I error accurate for moderate to large sample sizes, while PMM even got more conservative.

Figure 3: Box plots of the Gene expression levels of the tumor and normal breast tissues for the eight different genes TP53, ABCC1, HRAS, GSTM1, ERBB2, CD8A, C1D and GBP3.

5.3 Power Results

In addition to the type-I-error rate, we simulated the power of the permutation test and the paired t-test based on the four imputation approaches. Table 2 summarizes the power analysis for the sample sizes under the range of and for a homoscedastic covariance structure. Power simulations for the other combinations of sample sizes and covariance structures were similar, see the supplement for details. It can be seen from Table 2 that RF MI combined with Rubin’s Rule has the largest power among all considered tests and procedures. However, this is not remarkable due to its extreme liberal behavior. Thereafter, RF MICE and the permutation test performed comparable in terms of power. Only in case of large positive correlation performed considerably better. Contrary, parametric imputation methods such as PMM and NORM resulted into much lower statistical power. For example NORM, which can be seen as very competitive to the permutation test in terms of type-I error rate control, often exhibits less power than . Hence, the permutation test qualifies as a suitable test statistic throughout different correlations while controlling type-I-error and delivering a comparably high power in matched pairs designs with partially observed data.

6 Analysis of the Cancer Genome Atlas Dataset

We consider data from a breast cancer study to illustrate the behavior of the considered imputation methods as opposed to the permutation method in a clinical study. Our data comes from the Cancer Genome Atlas (TCGA) project, which was launched in 2005 with a financial support from the National Institutes of Health. It aims to understand the genetic basis of several types of human cancers through the application of high-throughput genome analysis techniques. TCGA is willing to improve the ability of diagnosing, treating and even preventing cancer through discovering the genetic basis of carcinoma. Molecular information such as mRNA/miRNA expressions, protein expressions, weight of the sample as well as clinical information about the participants were collected. Clinical and RNA sequencing records could be obtained from breast cancer patient, where of them provided both, normal and tumor tissues. We used the

-transformed data set for gene expressions. Luckily, no missing values were present, so that the data could be analyzed by means of the classical paired t-test. The results are then compared with the above procedures after artificially inserting missing values as follows: we generated Bernoulli distributed random variables

such that with leading to an overall missing rate of .

Gene Group Selected Auxiliary Gene Expressions
TP53 Tumor Protein p53 TPCN2, TPD52L2, TPST1, TP63, TP53TG1, TPD52L1, TPRKB, TP53INP2, TP53BP1, TPRN, TPM4, TPRA1, TPP2, TPPP3, TPSB2, TPT1, TPM3, TPO, TPK1, TP53INP1, TPBG, TPX2, TPTE2P1, TPSAB1, TPMT, TP53BP2, TPR, TPRG1, TP53I13, TPCN1, TPI1P2, TPI1, TPRA1, TPM2, TPM1, TPST2, TPR, TPI1, TP53INP2, TPRN
ABCC1 Multidrug Resistance-associated Protein 1 ABCC10, ABCC11, ABCC3, ABCC4, ABCC5, ABCC6P2, ABCC6, ABCC9, ABCC10, ABCC11, ABCC2, ABCC3, ABCC4, ABCC5, ABCC6P2, ABCC6, ABCC9
HRAS Transforming Protein p21 HRASLS5, HRASLS2, HRASLS5, HRASLS
GSTM1 Glutathione S-transferase Mu 1 GSTA4, GSTCD, GSTK1, GSTM2, GSTM3, GSTM4, GSTM5, GSTO1, GSTO2, GSTP1, GSTT2, GSTZ1, GSTA4, GSTCD, GSTK1, GSTM2, GSTM3, GSTM4, GSTM5, GSTO1, GSTO2, GSTP1, GSTT2, GSTZ1
ERBB2 Erb-B2 Receptor Tyrosine Kinase 2 ERBB2IP, ERBB3, ERBB4, ERBB2IP, ERBB3, ERBB4
CD8A CD8a Molecule CD80, CD81, CD82, CD83, CD84, CD86, CD8B, CD80, CD81, CD82, CD83, CD84, CD86, CD8B
C1D Nuclear Nucleic Acid-Binding Protein PRKD1, PRKD2, PRKD3, PRKDC, TSNAX, PRKD1, PRKD2, PRKD3, PRKDC, TSNAXIP1, TSNAX
GBP3 Guanylate-Binding Protein GBP1, GBP2, GBP4, GBP5, GBP1, GBP2, GBP4, GBP5

*The sceintific names of the genes were provided from GeneCards; http://www.genecards.org.111Footnote

Table 3: Description of the genes that were selected as auxiliary variables.

Based on previous studies, six genes have been identified to be significantly related to breast cancer: TP53, ABCC1, HRAS, GSTM1, ERBB2 and CD8A (Finak et al., 2008; Harari and Yarden, 2000; Munoz et al., 2007; De Jong et al., 2002). Another two genes; C1D and GBP3 were under investigation but did not show any significant relation towards breast cancer patients (Qi et al., 2018). In this paper, we aim to test the hypothesis whether mean genetic expressions of the eight genes differ significantly between normal and tumor tissues of breast cancer patients. Boxplots representing the characteristics of the genes are shown in Figure 3. For more details regarding the dataset, we refer to Firehouse (www.gdac.broadinstitute.org).

Gene T(Comp) RF MI RF MICE PMM NORM
TP53 0.153 0.054 0.011 0.046 0.056 0.041
ABCC1 0.001 0.016 0.008 0.022 0.085 0.017
HRAS 0.008 0.002 0.001 0.001 0.001
GSTM1 0.002 0.008 0.001 0.001 0.003
ERBB2 0.000
CD8A 0.933 0.558 0.205 0.280 0.418 0.378
C1D 0.414 0.480 0.278 0.287 0.489 0.529
GBP3 0.006 0.01 0.064 0.135 0.103 0.059

The bold figures represent false decisions (rejecting a true or failing to reject a false at )222Footnote

Table 4: Two-sided P-values of the breast cancer study restricted to only the considered genes.
Gene RF MI RF MICE PMM NORM
TP53 0.021 0.054 0.04 0.069
ABCC1 0.001 0.009 0.011 0.007
HRAS 0.002 0.003 0.003
GSTM1 0.015 0.156 0.001 0.011
ERBB2
CD8A 0.559 0.682 0.618 0.621
C1D 0.217 0.292 0.297 0.364
GBP3 0.006 0.068 0.021 0.064

The bold figures represent false decisions (rejecting a true or failing to reject a false at ).333Footnote

Table 5: Two-sided P-values of the breast cancer study with auxiliary variables.

The data set delivers in total gene expressions. From the viewpoint of an imputer, a rich data base that can be used to impute missing values is not only restricted to the paired observations of the gene expressions required for analysis. Meng (1994), for example, mentioned that additional information (called auxiliary variables in the sequel) should be considered in an imputation method. Since in general, the number of available gene expression results into a problem, in which least square estimates used in PMM and NORM will suffer from instable estimation, restriction to a suitable subset is required. In Table 3, the gene expressions selected for auxiliary candidates are given. The selection of additional gene expressions was based on their membership to groups, that have been specified based on the biochemical structure of the eight genes. In addition, all gene expressions consisting of at least one missing values have been dropped, in oder to make the result comparable in the later analysis.

All eight genes have been tested separately for mean equality between normal and tumor tissue using the

  1. paired t-test in the complete-case analysis before artificially inserting missing values,

  2. the paired t-test after (multiple) imputing missing values with RF MI, RF MICE, PMM and NORM,

  3. the paired t-test after (multiple) imputing missing values with RF MI, RF MICE, PMM and NORM using auxiliary variables,

  4. the weighted permutation test after inserting missing values.

The resulting -values of the corresponding tests are summarized in Table 4 and 5. In contrast to the simulation study, we extended the number of imputation draws to . The paired t-test in the complete-case analysis identified five out of eight genes having significantly different genetic expressions in normal and tumor tissues; genes ABCC1, HRAS, GSTM1, ERBB2, and GBP3. Mean gene expressions in TP53, CD8A, and C1D have been identified as non significantly different between normal and tumor tissues. Same results for all eight genes could be obtained using the weighted permutation test . However, all considered imputation methods except PMM led to different results for the TP53 gene indicating significantly different results in mean gene expressions between normal and tumor tissues. Even NORM, which indicated favorable results among the imputation procedures during simulation, failed to deliver similar results as the paired t-test in complete case analysis or . Here, including auxiliary variables for TP53 gene helped NORM and also in case of RF MICE. However, this was not the case for RF MI or PMM. For example, the PMM test decisions were flipped after rerunning it with auxiliary variables, finding three more significant results of which one (TP53) was different to the the complete-case analysis before inserting missings. To discuss another example, all imputation techniques (RF MI, RF MICE, PMM and NORM) without auxiliary information had difficulties in rejecting the null hypothesis of equal mean gene expressions in GBP3 gene leading again to different results compared to the paired t-test in complete-case analysis or . After including auxiliary variables, only the imputation tests RF MI and PMM found the same significance. A similar observation can be made for gene expression GSTM1, where adding extra information lead to a non-rejection of the imputation test RF MICE.

7 Discussion

We investigated the effect of imputation procedures on inference in matched pairs designs. Our simulation results indicated that NRMSE is not a suitable measure for evaluating an imputation method with respect to subsequent inference. Although imputation methods based on the random forest have shown high predictive accuracy, they failed to control type-I-error under various settings and distributions. Moreover, even incorporating uncertainty in the test statistic by multiply imputing missing values as suggested by Rubin (2004) failed to deliver better type-I-error control for the random forest based methods. Results turn into the right direction, when a modified version called RF MICE in the mice

package is used. This because of the additional variance introduced in the random draws from observations falling in the corresponding leaf of a random decision tree. However, this imputation method realized a serious increase in NRMSE and a considerable loss of power while still exhibiting a rather liberal behavior under the null hypothesis. Parametric methods such as PMM and NORM in

mice performed better in terms of type-I error rate control, but realized even less power to detect deviations from the null hypothesis. In contrast, a recently proposed permutation test that only works with the observed data at least delivered acceptable results and can be considered as the favorite choice when testing the equality of means in matched pairs with missing values.

In a real data example with gene expressions form breast cancer patients, the effect of auxiliary variables in an imputation scheme has been considered as recommended by Meng (1994). For non-parametric imputation schemes based on random forest models, the effect of auxiliary variables were less effective compared to parametric choices such as PMM and NORM. Even-though, all the parametric and nonparametric imputation schemes; RF MI, RF MICE, PMM and NORM failed in mirroring all the significant and the non significant genes as obtained using the paired t-test in a complete case analysis before artificially inserting missing values. Contrary, the permutation procedure, capable of working with missings, led to the same conclusions. From these findings we recommend a cautionary use of imputation techniques (with or without auxiliary variables) for drawing inference.

In summary, it is important to which further extent statistical analysis will be conducted when dealing with missing values. In terms of inference, imputation methods can fail to deliver suitable results as shown in the simulation and data example. Here, the permutation test of Amro and Pauly (2017) appeared to be the more reasonable choice. However, if the statistical analysis on partially observed data aims to predict outcomes, imputation methods based on random forest models by Stekhoven and Bühlmann (2011) and Ramosaj and Pauly (2017) could be a suitable solution. Future research will extend the usual investigation to more complex designs involving more than two endpoints and possibly multiple groups as well as the inclusion of more auxiliary variables. Regarding the latter we avoided a situation as parametric imputation methods such as PMM and NORM may run into difficulties. However, random forest models are known to be capable of dealing with high-dimensional feature problems and it would be interesting to also investigate this in case of inference after imputation.

8 Acknowledgments

We acknowledge the support of the Daimler AG represented by the research department ’Computer Vision and Camera Systems’. This work was also supported by the German Academic Exchange Service (DAAD) under the project: Research Grants - Doctoral Programmes in Germany, 2015/16 (No. 57129429).


Conflict of Interest: None declared.

References

  • Amro et al. (2018) Amro, L., Konietschke, F., and Pauly, M. (2018). Multiplication-Combination Tests for Incomplete Paired Data. arXiv preprint arXiv:1801.08821.
  • Amro and Pauly (2017) Amro, L. and Pauly, M. (2017). Permuting incomplete paired data: A novel exact and asymptotic correct randomization test. Journal of Statistical Computation and Simulation, 87(6):1148–1159.
  • Barnard and Rubin (1999) Barnard, J. and Rubin, D. B. (1999). Small-sample degrees of freedom with multiple imputation. Biometrika, 86(4):948–955.
  • Bhoj (1978) Bhoj, D. S. (1978). Testing equality of means of correlated variates with missing observations on both responses. Biometrika, 65(1):225–228.
  • Burgette and Reiter (2010) Burgette, L. F. and Reiter, J. P. (2010). Multiple imputation for missing data via sequential regression trees. American Journal of Epidemiology, 172(9):1070–1076.
  • De Jong et al. (2002) De Jong, M., Nolte, I., Te Meerman, G., Van der Graaf, W., Oosterwijk, J., Kleibeuker, J., Schaapveld, M., and De Vries, E. (2002). Genes other than brca1 and brca2 involved in breast cancer susceptibility. Journal of Medical Genetics, 39(4):225–242.
  • Doove et al. (2014) Doove, L. L., Van Buuren, S., and Dusseldorp, E. (2014). Recursive partitioning for missing data imputation in the presence of interaction effects. Computational Statistics & Data Analysis, 72:92–104.
  • Dunson (2018) Dunson, D. B. (2018). Statistics in the big data era: Failures of the machine. Statistics & Probability Letters, 136:4–9.
  • Ekbohm (1976) Ekbohm, G. (1976). On comparing means in the paired case with incomplete data on both responses. Biometrika, 63(2):299–304.
  • Fay (1992) Fay, R. E. (1992). When are inferences from multiple imputation valid ? In Proceedings of the Survey Research Methods Section of the American Statistical Association, volume 81, pages 227–32.
  • Finak et al. (2008) Finak, G., Bertos, N., Pepin, F., Sadekova, S., Souleimanova, M., Zhao, H., Chen, H., Omeroglu, G., Meterissian, S., Omeroglu, A., et al. (2008). Stromal gene expression predicts clinical outcome in breast cancer. Nature Medicine, 14(5):518.
  • Harari and Yarden (2000) Harari, D. and Yarden, Y. (2000). Molecular mechanisms underlying erbb2/her2 action in breast cancer. Oncogene, 19(53):6102.
  • Hughes et al. (2014) Hughes, R. A., White, I. R., Seaman, S. R., Carpenter, J. R., Tilling, K., and Sterne, J. A. (2014). Joint modelling rationale for chained equations. BMC Medical Research Methodology, 14(1):28.
  • Kim et al. (2005) Kim, B. S., Kim, I., Lee, S., Kim, S., Rha, S. Y., and Chung, H. C. (2005). Statistical methods of translating microarray data into clinically relevant diagnostic information in colorectal cancer. Bioinformatics, 21(4):517–528.
  • Lin and Stivers (1974) Lin, P.-E. and Stivers, L. E. (1974). On difference of means with incomplete data. Biometrika, 61:325–334.
  • Looney and Jones (2003) Looney, S. W. and Jones, P. W. (2003). A method for comparing two normal means using combined samples of correlated and uncorrelated data. Statistics in Medicine, 22(9):1601–1610.
  • Maritz (1995) Maritz, J. S. (1995). A permutation paired test allowing for missing values. Australian Journal of Statistics, 37(2):153–159.
  • Meng (1994) Meng, X.-L. (1994). Multiple-imputation inferences with uncongenial sources of input. Statistical Science, pages 538–558.
  • Morris et al. (2014) Morris, T. P., White, I. R., and Royston, P. (2014). Tuning multiple imputation by predictive mean matching and local residual draws. BMC Medical Research Methodology, 14(1):75.
  • Munoz et al. (2007) Munoz, M., Henderson, M., Haber, M., and Norris, M. (2007). Role of the mrp1/abcc1 multidrug transporter protein in cancer. IUBMB life, 59(12):752–757.
  • Peto (2007) Peto, R. (2007). Doubts about QRISK score: total/HDL cholesterol should be important [electronic response to hippisley-cox j, et al]. British Medical Journal.
  • Qi et al. (2018) Qi, Q., Yan, L., and Tian, L. (2018). Testing equality of means in partially paired data with incompleteness in single response. Statistical Methods in Medical Research, 0(0).
  • Ramosaj and Pauly (2017) Ramosaj, B. and Pauly, M. (2017). Who wins the Miss Contest for Imputation Methods? Our Vote for Miss BooPF. arXiv preprint arXiv:1711.11394.
  • Rubin (2004) Rubin, D. B. (2004). Multiple imputation for nonresponse in surveys, volume 81. John Wiley & Sons.
  • Samawi and Vogel (2014) Samawi, H. M. and Vogel, R. (2014). Notes on two sample tests for partially correlated (paired) data. Journal of Applied Statistics, 41(1):109–117.
  • Schafer (1997) Schafer, J. L. (1997). Analysis of incomplete multivariate data. Chapman and Hall/CRC.
  • Schafer (1999) Schafer, J. L. (1999). Multiple imputation: a primer. Statistical Methods in Medical Research, 8(1):3–15.
  • Schenker and Taylor (1996) Schenker, N. and Taylor, J. M. (1996). Partially parametric techniques for multiple imputation. Computational Statistics & Data Analysis, 22(4):425–446.
  • Shah et al. (2014) Shah, A. D., Bartlett, J. W., Carpenter, J., Nicholas, O., and Hemingway, H. (2014). Comparison of random forest and parametric imputation models for imputing missing data using mice: a caliber study. American Journal of Epidemiology, 179(6):764–774.
  • Stekhoven and Bühlmann (2011) Stekhoven, D. J. and Bühlmann, P. (2011). Missforest: non-parametric missing value imputation for mixed-type data. Bioinformatics, 28(1):112–118.
  • Sterne et al. (2009) Sterne, J. A., White, I. R., Carlin, J. B., Spratt, M., Royston, P., Kenward, M. G., Wood, A. M., and Carpenter, J. R. (2009). Multiple imputation for missing data in epidemiological and clinical research: Potential and pitfalls. British Medical Journal, 338:b2393.
  • Van Buuren et al. (2006) Van Buuren, S., Brand, J. P., Groothuis-Oudshoorn, C. G., and Rubin, D. B. (2006). Fully conditional specification in multivariate imputation. Journal of Statistical Computation and Simulation, 76(12):1049–1064.
  • Van Buuren and Groothuis-Oudshoorn (2011) Van Buuren, S. and Groothuis-Oudshoorn, K. (2011). mice: Multivariate imputation by chained equations in R. Journal of Statistical Software, 45(3):1–67.
  • Vink et al. (2014) Vink, G., Frank, L. E., Pannekoek, J., and Van Buuren, S. (2014). Predictive mean matching imputation of semicontinuous variables. Statistica Neerlandica, 68(1):61–90.
  • Waljee et al. (2013) Waljee, A. K., Mukherjee, A., Singal, A. G., Zhang, Y., Warren, J., Balis, U., Marrero, J., Zhu, J., and Higgins, P. D. (2013). Comparison of imputation methods for missing laboratory data in medicine. British Medical Journal Open, 3(8):e002847.
  • Yu et al. (2012) Yu, D., Lim, J., Liang, F., Kim, K., Kim, B. S., and Jang, W. (2012). Permutation test for incomplete paired data with application to cDNA microarray data. Computational Statistics & Data Analysis, 56(3):510–521.
  • Yu et al. (2007) Yu, L.-M., Burton, A., and Rivero-Arias, O. (2007). Evaluation of software for multiple imputation of semi-continuous data. Statistical Methods in Medical Research, 16(3):243–258.
