## I Introduction

Millimeter wave (mmWave) has attracted a lot of attention in future wireless communication system due to huge available bandwidth [1]. However, the path loss in mmWave is much larger than that in low frequencies (e.g., sub-6GHz). Especially in dense urban areas, the coverage problem is more serious. Therefore, how to improve the coverage of mmWave system in dense urban areas is an important issue.

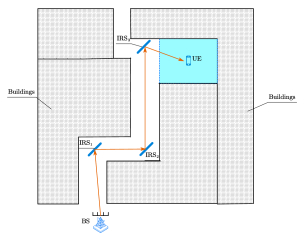

As shown in Fig. 1, an easy-to-think method is to convert the cascaded multi-IRSs problem into multiple single IRS problems, and employ the optimization algorithm of the single IRS system to solve it. Firstly, we treat the second IRS and subsequent IRS as a single UE. Then, we use a single IRS optimization algorithm to solve the PS of the first IRS and make the PS value fixed. Finally, we adopt a similar method to solve the all PS of the remaining IRS and precoding matrix of the BS. Based on the above results, we can get a sub-optimal solution of received power of the UE. However, this method is to solve the PS of each IRS individually rather than jointly. Therefore, the solution is not the global optimal, but the local optimal, and its performance is not .

In this paper, different from all the above algorithms, we employ a different method. we aim to study how to improve the coverage of the dense urban areas by employing a cascade multi-IRSs in a mmWave communication system. Our target is to maximize the SNR of the signal received by UE in the dense urban area by jointly optimizing the precoding vector of the BS and the PS of cascade multi-IRSs. However, this problem is difficult to solve, since it is a constrained non-convex optimization problem and NP hard.

In order to solve this problem, firstly, we utilize the channel sparsity of mmWave system to convert the problem into a simpler one. Secondly, by analyzing the characteristics of the mmWave channel and system model, we clarify that the PS of all IRSs are independent of each other. Simultaneously, according to literature [8], we can know that for the precoding vector of the BS, the maximum ratio transmission (MRT) method is usually employed to obtain a sub-optimal solution. Therefore, we can find that the precoding vector at the BS is independent of PS matrix of all the cascaded multi-IRSs. Based on above analysis, we can decompose our problem into multiple simpler sub-problems. Based on the solutions of above sub-problems and considering the asymptotic orthogonality of the array response vector of the BS in mmWave system, we finally obtained a closed form sub-optimal solution.

Compared with the coverage of the Distributed Algorithm which is introduced in literature [8], our proposed method has better performance. The main contributions of this paper are as follows:

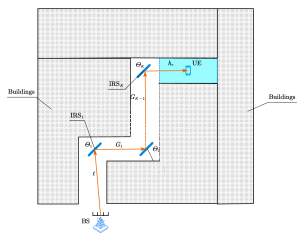

1. As shown in Fig. 2, different from the previous work, we design a cascaded multi-IRS assisted (three or more) scheme to improve the UE received SNR and guarantee the coverage of mmWave wireless systems in dense urban area.

2. Based on the designed scheme, we formulate a constrained non-convex optimization problem, and then employ the channel sparsity of the mmWave system and the progressive orthogonality of the BS’s multi-antenna to decompose our problem into multiple simpler sub-problems. Finally, we yield a sub-optimal solution of the optimization problem by solving the sub-problems.

3. The simulation results show that comparing with DA method, our proposed method has better coverage performance .

The rest of this paper is organized as follows. In Section II, we introduce the radio environment, put forward channel model and derive out the system model. Section III outlines the problem formulation. In Section IV, we solve the constrained optimization problem and come up with a sub-optimal solution. Based on this solution, we draw two interesting conclusions. In Section V, we simulate the proposed algorithm compared with other methods to prove the advantage of our algorithm. We conclude the paper in Section VI.

## Ii System Model and Channel Model

In this section, firstly, we introduce the radio environment of dense urban area and the channel model, and then we derive the system model.

As shown in Fig. 4, we assume that there is a dense urban area with a tortuous path and a time division duplex (TDD) mmWave wireless system is deployed. In this system, a single BS with antennas is placed outside of the dense urban area. There are cascade IRSs placed at the corners of outside, every single IRS contain reflecting elements (REs). The -th IRS is named as , where , and its PS matrix is , where and , . There is a single antenna UE stay in blue area of the dense urban area. The distance between the UE and the is . The wireless links between the BS and the , between the UE and the , between every two adjacent IRSs and are visible. All the rest wireless links are ignored due to severe blocked. Our target is to improve the coverage of this scenario in the dense urban area.

### Ii-B Channel Model

As shown in Fig. 2, let , , and denote the wireless channel from BS to the first IRS (), from the -th IRS () to -th IRS (), and from the -th IRS () to UE, respectively, where .

For the mmWave wireless system, many researchers [14, 15, 16, 17] employ the extended Saleh-Valenzuela (SV) channel model. In this paper, we also employ this model to derive all above wireless channels.

According to the extended SV model, the wireless channel between the and can be modeled as

 Gk=√M2LL∑l=1gl,kΛt,kΛr,kαr,l,k(θl,k)αHt,l,k(ϕl,k), (1)

where denotes the complex path gain of the -th path, denotes the normalized receive array response vector associated with the AoA , , and the denotes the normalized transmit array response vector associated with the AoD , , and denote the antenna gain of the transmitter and receiver respectively.

Compared to sub-6 GHz wireless channels, the number of channel paths is normally a small number in mmWave wireless channels. For simplicity, we can assume , thus (1) can be abbreviated as

 Gk=√M2gkΛt,kΛr,kαr,k(θk)αHt,k(ϕk), (2)

Let , , and , we can further simplify (2) as

 Gk=μkαkβHk, (3)

where , , .

Following the same method, the wireless channel can be modeled as

 hr=√MLL∑l=1gl,rΛt,KΛr,KαHt,l(ϕl,r), (4)

where is the complex path gain of the -th path, and is the normalized transmit array response vector at transmitter associated with the AoD, , and represent the antenna gain of the transmitter and receiver respectively.

For simplicity, similar to , we can also assume that . Thus, (4) can be abbreviated as

 hr=√MgrΛt,KΛr,KαHt(ϕr). (5)

Let , and , we can further simplify (5) as

 hr=μKβHK, (6)

where .

Following the same method, the wireless channel also can be modeled as

 t=√MNLL∑l=1gl,tΛt,0Λr,0αr,l(θl,t)αHt,l(ϕl,t), (7)

where denotes the complex path gain of the -th path, denotes the normalized receive array response vector associated with the AoA , , the denotes the normalized transmit array response vector associated with the AoD, , and denotes the antenna gain of the transmitter and receiver respectively.

For simplicity, similar to and , we can also assume that . Thus, (7) can be abbreviated as

 t=√MNgtΛt,0Λr,0αr(θt)αHt(ϕt), (8)

where , .

Let , , and , we can further simplify (8) as

 t=μ0α0βH0. (9)

The complex gains , and which are mentioned in (2), (5) and (8

) are generated according to a complex Gaussian distribution. For simplicity, we employ

to represent all of them as

 g∼CN(0,10−PLd10), (10)

where denotes the path-loss of distance . Here represents , and as show in Fig. 4, and it can be express as

 PLd=PLd0+10nlog(d)(dB), (11)

where denotes the path loss of the distance m, denotes the path-loss exponent, and denotes the path loss of reference distance .

### Ii-C System Model

As shown in Fig. 2, the wireless channel , and is LOS, where

. All the rest wireless channels are neglected due to serious blocked, we assume the channel state information (CSI) can be estimated through the method in literature

[18]. Each IRS can adjust the PS of its REs through the central controller [19]. With above settings, the received signal of UE can be written as

 y=(hHrΘKGK−1ΘK−1…G1Θ1tw)x+N0, (12)

where

denotes the transmitting signal of BS, which is independent and identically distributed (i.i.d.) random variable with zero mean and unit variance.

denotes received signal for the UE. denotes the precoding vector of the BS, denotes the transmit power of the BS, , denotes the additive complex Gaussian noise with zero-mean and variance that the UE received.

## Iii Problem Formulation

In this section, based on the system model, firstly, we derive the UE received signal power and SNR, then formulate a constrained optimization problem to maximize the SNR of the signal received by UE.

According to system model, the received power of the UE can be expressed as

 PRX=|hHrΘKGK−1ΘK−1…G1Θ1tw|2, (13)

Based on (13), we can know the SNR of the signal received by UE can be expressed as

 γ=|hHrΘKGK−1ΘK−1…G1Θ1tw|2N0. (14)

Our target is to maximize the UE received signal power by jointly optimizing the precoding vector at BS and the PS matrix of the cascaded multi-IRSs, subject to the power constraint on the precoding vector at BS and uni-modular constraints on the PS matrix. Mathematically, the optimization problem can be formulated as

 (P1):max |hHrΘKGK−1ΘK−1…G1Θ1tw|2, (15) s.t ∥w∥22≤P Θk=diag([ejθk,1,ejθk,2,ejθk,2,…,ejθk,M])

This optimization problem is non-convex and NP hard, so it is difficult to solve. In next section we will employ the characteristic of mmWave wireless channel to simplify and solve it.

## Iv Proposed Method

In this section, firstly, we employ the characteristic of the mmWave system to simplify and solve the constrained optimization problem which is formulated in section III, and then obtain a sub-optimal solution.

Before solving this problem, we need to define two variables. The first variable is defined as

 uk=β∗k+1∘α∗k, (16)

where denotes the normalized transmit array response vector of the transmitter of the -th IRS, denotes the normalized received array response vector of the receiver of -th IRS, the denotes the element-wise product, , . The second variable is defined as

 θk=[ejθk,1,…,ejθk,M], (17)

where the denotes the PS vector of and . Recalling that we have defined a similar variable which is the PS matrix of the -th IRS and , we can find the relationship between them can be expressed as

 Θk=diag(θk). (18)

Substituting (3), (16) and (17) in problem (P1). After a series of simplifications, we can get the problem (P2):

 (P2):max |K∏i=0μiθKuKθK−1uK−1…θ1u1βT0ω|2 (19) s.t ∥ω∥22≤p θk=[ejθk,1,…,ejθk,M],

By investigating the structure of problem (P2), we can find the product of the PS vector of the -th IRS and is a complex scalar. Therefore, we can reformulate the problem (P2) as

 (P3):max |K∏i=0μiK∏k=1(θkuk)βT0ω|2 (20) s.t ∥ω∥22≤p θk=[ejθk,1,…,ejθk,M],

Based on above analysis, we can know that the PS vector of the -th IRS is determined by . Also from (16), we can know that is determined by and . Therefore, the PS of every IRS is independent with each other. Simultaneously, we know that one optimal solution for the precoding vector of BS is employing the MRT method, which can be described as

 w⋆=√P(βT0)H√∥βT0∥22. (21)

From above analysis, we can find that the problem (P3) can be decomposed into independent sub-problems. These independent sub-problems include sub-problems as

 (P4):maxθk θkuk (22) s.t. θk=[ejθk,1,…,ejθk,M],

and one sub-problem which is the optimization problem of the precoding vector of BS . However, the last sub-problem has been solved by MRT method in (21).

It is easy to know that under the condition of , the optimal solution of the problem (P4) is a real number of .

Based on above analysis, we can collect all the optimal solutions of sub-problems together, and then we can simplify the objective function as

 hHrΘKGK−1ΘK−1…G1Θ1tw⋆ (23) =√P∏Ki=0μi∏Kk=1(∑Mi=1|uk,i|)βT0(βT0)H√∥βT0∥22.

If the number of BS antennas is large enough, the normalized transmit array response vector can be regarded as asymptotically orthogonal . We know that the wavelength of mmWave system is very small, and thus the BS’s antennas can be a large number. By employing this characteristic of mmWave wireless system, we have

 βT0(βT0)H≈1, (24)

Substituting (24) in (23), we can finally get a closed-form sub-optimal solution of the optimization problem (P1) which can be expressed as

 P⋆RX=P(∏Ki=0μi∏Kk=1(∑Mi=1|uk,i|))2∥(βT0)H∥22, (25)

where denotes the UE received signal power. Simultaneously, we can get the SNR of the signal received by UE as

 γ⋆=P(∏Ki=0μi∏Kk=1(∑Mi=1|uk,i|))2∥(βT0)H∥22N20, (26)

Substituting (3), (9) and (6) into (26), we can get

 γ⋆= (27) M2KNP(grgt∏K−1i=1gi∏K+1i=1Λt,iΛr,i∏Kk=1(∑Mi=1|uk,i|))2∥(βT0)H∥22N20.

As we know that the modulus of normalized array response vector is 1. Therefore, and . Based on these two equations, we can simplify (27) as

 γ⋆= (28) M2KNP(grgt∏K−1i=1gi∏K+1i=1Λt,iΛr,i∏Kk=1)2N20.

It should be noted that (28) is complicated and contains random variables, we can give three assumptions to simplify it to yield some conclusions.

Firstly, we assume the and are 1, where . Secondly, we know , and where are random variables as described in (10). For simplicity, we assume all of them can be expressed as

 g=10−PLd10, (29)

where the is the same as (11). Similarly, we can also define as

 g0=10−PLd010, (30)

where denotes the reference distance. At last, we assume that the distance between any neighbor IRSs is the same with each other.

Base on above assumption, we can simplify (28) as

 γ⋆K=M2KNPgK+10dnrdntdn(K−1)IRSN20, (31)

where denotes the SNR of the signal received by UE within the coverage of the -th IRS.

As show in Fig. 4, a UE is located at the blue area, the distance between UE and the is . Then we deploy a new IRS at the corner as show in Fig. 3, and move the existing UE to a new location in green area, the distance between the UE and the is . For simplicity, we assume .

Based on the same principle, we can know that if add a new IRS, the SNR of the signal received by UE can be express as

 γ⋆K+1=M2(K+1)NPgK+20dnrdntdnKIRSN20, (32)

where denotes the SNR of the signal received by UE at the new location.

Comparing (31) with (32), we can observe that if we want to let the SNR of the signal received by UE at the new location not less than the original location, we need the number of reflecting elements of each IRS is larger than which can be express as

 Mmin=√dng0. (33)

From (33), we can know if the number of reflecting elements of the IRSs is smaller than , it will cause the SNR of the signal received by UE decrease as the deployed IRS increases. In other words, if we want to deploy more IRS without the SNR of the signal received by UE decrease, we need the reflecting elements of IRS to be large enough.

## V Simulation Results

In this section, we simulate and compare our proposed method with distributed algorithm (DA) proposed in literature [8]. The simulation results prove the effectiveness of our proposed algorithm.

For the simulation, we consider the frequency of the mmWave system is 28 Ghz, and thus its wavelength is 0.01 m. we assume the reference distance is 1 m, and its path-loss is dBm for the LOS scenario. The transmit power of BS is 46 dBm, and its antenna number is 128. The additive complex Gaussian noise power of the UE received is -94 dBm. As show in Fig. 4, we assume there is a single antenna UE moving from point A to point B along the dotted line in blue area of the dense urban area. The distance between the UE and the is . The distance between the point A and the is , and the distance between the ending point B and the is . Based on above definitions, we can know . We set m, m, m, and m. Based on above parameters and (33), we can yield is nearly , which is a very large number.

As shown in Fig. 5, we assume the number of REs of each IRS is 1000. We plot the SNR of the signal received by UE versus the distance between the UE and , under various number of cascaded multi-IRSs . We can observe that as the number of cascaded multi-IRSs increases, the received SNR of UE gradually increases, since is much smaller than .

As shown in Fig. 6, we assume number of cascaded multi-IRSs is 3. we plot the SNR received by the UE versus the distance between the UE and , under various numbers of the REs of each IRS. We can observe that as the number of the REs of IRS increases, the received SNR of UE gradually increases.

As shown in Fig. 7, we assume the numbers of cascade IRSs is 3 and the REs of each IRS is 1000. We compare our proposed with a extend version of DA proposed in literature [8]. The DA is a low complexity algorithm to jointly design the PS at IRS and precoding vector at the BS for single IRS assisted point-to-point multiple-input single-output (MISO) wireless system. Therefore, it cannot be benchmarked with our proposed algorithm. Thus, we extend it to the cascaded multi-IRSs system. We plot the SNR of the received SNR of UE versus distance between the UE and the . We can observe that our proposed algorithm has a better coverage performance than DA.

## Vi Conclusion

In this paper, we focus on the mmWave system’s coverage improvement in dense urban areas by employing cascade multi-IRSs scheme. After formulating a constrained optimization problem to maximize the received SNR of UE, we finally solve it and yield a sub-optimal solution. The simulation result shows that our method has better coverage performance than DA.
