1. Introduction

Distributed renewable resources are starting to play an increasingly important role in energy generation. For example, the installation of photovoltaic (PV) panels across the world has grown exponentially during the past decade (TimilsinaEtAl2012). These renewable resources tend to be different from traditional large-scale generators as they are often spatially distributed, leading to many small generation sites across the system. The proliferation of these individual renewable generators (especially PV) has allowed for a much more flexible system, but also led to operational complexities because they are often not coordinated (Winter1991). Recently, there has been strong regulatory and academic push to allow these individual generators to participate in a market, hoping to achieve a more efficient and streamlined management structure (Heinrichs2013; Kalathil2017). Therefore, in this paper we study an investment game where individual firms decide their installation capacities of PV panels and compete to serve the load.

Currently, there are several lines of fruitful research on the investment of solar energy resources. The common challenge in these works is to address the pricing of solar energy, since once installed, power can be produced at near zero operational cost. In (CoutureEtAl2010), feed-in tariffs (fixed prices) are used to guide the investment decisions. In (WustenhagenEtAl2013; FletenEtAl2007), risks about future uncertainties in prices are taken into account, although these prices are assumed to be independent of the investment decisions. Instead of exogenously determined feed-in tariffs, (MenanteauEtAl2003; Hirth2013; NegashEtAl2015) study incentive based pricing, arguing that the price of solar energies should match their market value, which is the revenue that those resources can earn in markets, without the income from subsidies. However, the investment question of how to decide the capacity of each solar installation is not considered.

A common assumption made in existing studies is that an operator (or utility) makes centralized decisions about the capacity of the solar installation at different sites (GrossmannEtAl2013; Aragones-BeltranEtAl2010), although each installation may participate in a market to determine the exact pricing of energy. It is rare that the two problems–capacity investment and pricing–are considered at the same time. On the other hand, since small PV generation is mostly privately owned, it is arguably more realistic to consider an environment where both the investment and the pricing decisions are made in a decentralized market. In this market setting, the PV owners compete by making their own investment and price bidding decisions, based on the information they have, as opposed to a centralized decision made by a single operator. In this paper, we are interested in understanding these strategic decisions, particularly in the electrical distribution system.

The competition between individual producers in a decentralized market for electricity is normally studied either via the Cournot model or the Bertrand model (Kirschen2004). In the former, the producers compete via quantity, while in the latter they compete via price. In this work, we adopt the Bertrand competition to model price bidding since it is a more natural process in the distribution system, where there is no natural inverse demand function (required by the Cournot competition model) (BorensteinEtAl2003; Crampes06capacitycompetition). Then the investment game becomes a two-level game as shown in Fig. 1. For any given capacities, the producers compete through the Bertrand model to determine their prices to satisfy the demand in the system. Then the outcome of this game feeds into an upper level capacity game, where each producer determines its investment capacities to maximize its expected profit.

Solar energy producer determines investment capacity to maximize expected profit.

Given capacity, each producer competes through Betrand model and maximizes revenue.

optimal revenue
Figure 1. An illustration of the two level game between a group of solar energy producers. In the higher level, the producers determine their investment capacity to maximize expected profit (revenue minus investment cost), and the lower game determines the pricing of solar energy through a Betrand competition and returns the expected revenue to the upper game.

This type of two-level game was studied in (AcemogluEtAl09) in the context of communication network expansion. They showed that Nash equilibria exist, but the efficiency of any of these equilibria are bad compared to the social planner’s (or operator’s) solution. More precisely, as the number of players grows, the social cost of all of the equilibria grow with respect to the cost of the social planner’s problem. Therefore, instead of increasing efficiencies, competition can be arbitrarily bad. A similar intuition has existed in traditional power system investment problems, where the market power of the generators is highly regulated and closely monitored (Wu2006).

In this paper, we show that contrary to the result in (AcemogluEtAl09), the investment game between renewable producers leads to efficient outcomes under mild assumptions. More precisely, 1) the investment capacity decisions made by the individual producers match the capacity decisions that would be made by a social planner; 2) as the number of producers increases, the equilibria of the price game approaches a price level that allows the producers to just recover their investment costs. The key difference comes from the fact that renewables are inherently random. Therefore instead of trying to exploit the “corner cases” in a deterministic setting as in (AcemogluEtAl09; Wu2006), the uncertainties in renewable production naturally induces conservatism into the behavior of the producers, leading to a drastic improvement of the Nash equilibria in terms of efficiency. Therefore, uncertainty helps rather than hinders the efficiency of the system.

To analyze the equilibria of the game, our work builds on the results in (TaylorEtAl16). In (TaylorEtAl16), the authors discuss the price bidding strategies in markets with exactly two renewable energy producers. They show that a unique mixed pricing strategy always exists given that the capacity of those producers are fixed beforehand. They extend it to a storage competition problem in later work (TaylorEtAl17). However, this work did not address the strategic nature of the capacity investment decisions, nor did it consider markets with more than two producers.

In our setting, we explicitly consider the joint competition for capacity considering each player’s investment cost, as well as the bidding strategy to sell generated energy. This problem is neither studied in traditional capacity investment games (randomness is not considered) (Reynolds1987; SmitEtAl2012)111The work in (GoyalEtAl2007; FrutosEtAl2011) studies an investment game where the demand curve is uncertain, but under a very different context than ours nor in competition of renewable resources (investment strategy is considered) (MenanteauEtAl2003; LangnissEtAl2003). To characterize the Nash equilibria in the two level capacity-pricing game, we consider two performance metrics. The first is social cost, which is the total cost of a Nash equilibrium solution with respect to the social planner’s objective. The second is market efficiency, which measures the market power of the energy producers. As a comparison, the results in (AcemogluEtAl09) show that in a deterministic capacity-pricing game, as the number of producers grows, neither the social cost nor the efficiency improves at equilibrium. In contrast, we show that a little bit of randomness leads to improvements on both metrics. Specifically, we make the following two contributions:

  1. We consider a two level capacity-pricing game between multiple renewable energy producers with random production. We show that contrary to commonly held belief, randomness improves the quality of the Nash equilibria.222This is conceptually similar to the results obtained in (ZhangEtAl2015), where randomness increases the efficiency of Cournot competition.

  2. We explicitly characterize the Nash equilibria and show that the social cost and efficiency improve as the number of producers grows.

The rest of the paper is organized as follows. Section 2 motivates the problem set up and details the modeling of both the decentralized and centralized market. Section 3

formally introduces the evaluation metrics for our setting. Section

4 presents the main results of this paper, i.e., the relationship between the proposed decentralized market and the social planner’s problem, and the analysis on the efficiency of the game in the decentralized market. Proofs for the main theorems are left in the appendices for interested readers. The simulation results are shown in Section 5 followed by the conclusion in Section LABEL:sec:conclusion.

2. Technical preliminaries

2.1. Motivation

Traditionally, power systems are often built and operated in a centralized fashion. The system operator acts as the social planner by aggregating the producers and makes centralized decisions on investment and scheduling (as shown in Fig. 2). The goal of the social planner is to maximize the overall welfare of the whole system— this includes optimizing the costs incurred due to the investment and installation, and the cost paid by the consumers.

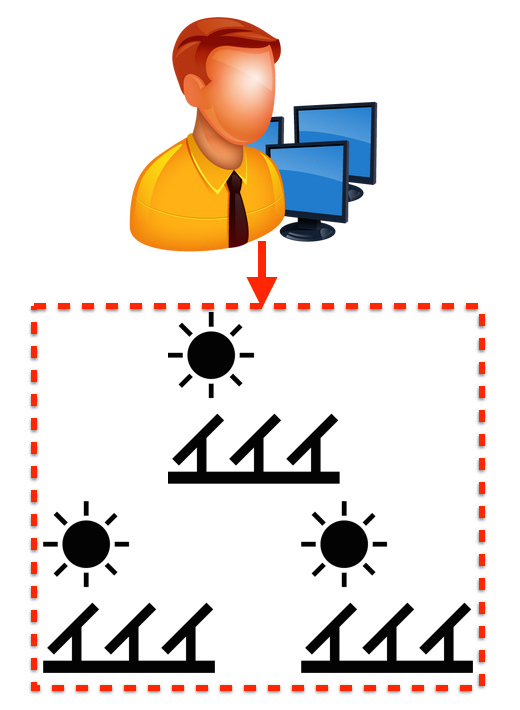

(a) Centralized.

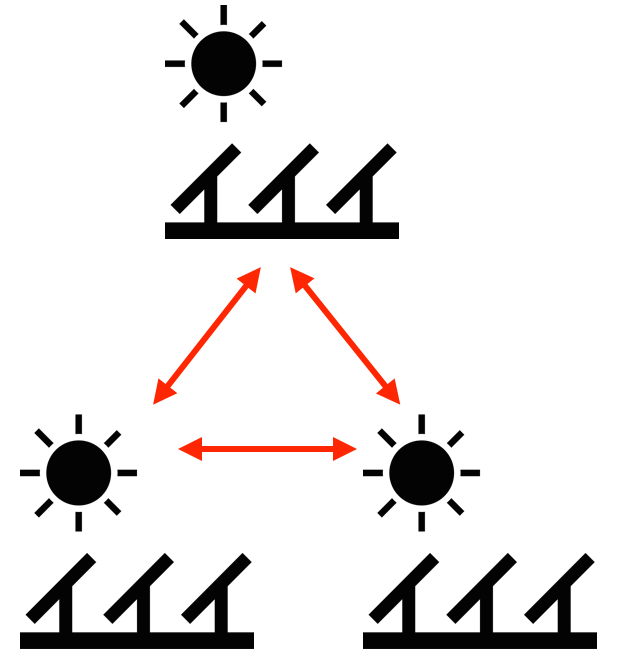

(b) Decentralized.
Figure 2. Centralized vs. decentralized market setup.

However, as distributed energy resources (DERs) start to disperse across the power distribution network, the centralized setup becomes difficult to maintain and manage. DERs such as rooftop PV cells are small, numerous, and owned by individuals, allowing them to act as producers and choose their own capacities and prices. Consequently, managing these resources through a decentralized market (as shown in Fig. 2) is starting to gain significant traction in the power distribution system.

Several issues arise in a decentralized market. Chief among them is that it is not clear whether the decentralized market achieves the same decision as if there were a central planner maximizing social welfare. The competition between energy producers is suboptimal if the following occurs:

  • If the investment decisions by the competing producers deviate from the social planner’s decision: this means that the competition is sub-optimal when it comes to finding a socially desirable investment plan.

  • If the bidding strategy leads to a higher payment from electricity consumers than that from the social planner’s decision, it means that the energy resource producers are taking advantage of the buyers and the market is not efficient.

Both of these adverse phenomena can happen in decentralized markets in the absence of uncertainty (AcemogluEtAl09; JohariEtAl2010; OzdaglarEtAl2011), even when there are a large number of individual players. However, the rest of this paper shows that neither of them occur in a decentralized market with renewables resources having random generation. We show that the inherent uncertainty in the production naturally improves the quality of competition. We start by formally introducing the game in the next section.

2.2. Renewable Production Model

Throughout this paper, we denote some important terms by the following:

  • : Random variable representing the output of producer

    , scaled between 0 and 1. The moments of

    are denoted as , and .

  • : Capacity of producer .

  • : Total electricity demand in the market

  • : Number of producers in the market.

  • : Investment cost for unit capacity for producer .

  • : Efficiency of the game equilibrium.

  • : The quantities chosen by all other producers except , that is .

  • .

  • .

Renewable Production Model: When producer invests in a capacity of , its actual generation of energy is a random variable given by . That is, due to the randomness associated with renewables, its realized production may not equal its maximum capacity.

We make the following assumption on the ’s:
[A1] We assume that the random variable has support

and its density function is bounded and continuous on its domain. This assumption is mainly made for analytical convenience and captures a wide range of probabilistic distributions used in practice, e.g., truncated normal distribution and uniform distribution. Furthermore, we assume that

is not a constant, so .

2.3. Competition in decentralized markets

Consider renewable producers who compete in a decentralized market. Each producer needs to decide two quantities: capacity (sizing) and the corresponding everyday price bidding strategy. To make this decision, each producer needs to take into consideration the fact that larger capacities lead to higher investment costs but may also result in enhanced revenue due to increased sales. If the invested capacity is low, then the investment cost is low but the producer risks staying out of the market because of less capability to provide energy. Therefore competition requires non-trivial decision making by the decentralized stakeholders. In this paper, we consider the case where each producer has the same investment cost, that is, for all . This assumption is true to the first order since the solar installation cost in an area is roughly the same for all the consumers. Since the producers need to compete for capacity based on revenue (which is determined by optimal bidding), we refer to the capacity competition—how much to invest—as the capacity game and the pricing competition, i.e., how much to bid, as the price sub-game.

2.4. Capacity game

The ultimate decision for the producers is to determine the optimal capacity to invest in. Suppose that the capacity is denoted by for each producer , then each producer’s objective is to maximize its profit, which is specified as:

(1)

where is the payment (revenue) from consumers to producer when its capacity is fixed at and the others’ capacities are fixed at . This payment is determined by the price sub-game given that a capacity decision is already made, i.e., : we leave a detailed discussion of the revenue and the price sub-game to Section 2.5. The term represents the investment cost.

Since we are in a game-theoretic scenario, the appropriate solution concept is that of a Nash equilibrium. Specifically, a capacity vector

is said to be a Nash equilibrium if:

(2)

The Nash equilibrium shown in (2) is interpreted as the following: each producer chooses a capacity such that given the optimal capacity strategy of the others, there is no incentive for this producer to deviate from this capacity . Note that while choosing its capacity, each producer implicitly assumes that its resulting revenue is decided by the solution obtained via the price sub-game.

2.5. Price sub-game

In this section, we explicitly characterize the payment function at the equilibrium solution of the price sub-game for a fixed capacity vector . The producers now compete to sell energy at some price . This is known as the Bertrand price competition model, where the consumer prefers to buy energy at low prices. In this model, consumers resort to buying at a higher price only when the capacity of all the lower-priced producers are exhausted. Suppose that the profit for producer when the producers bid at is denoted by . We make the following assumption about the prices:
[A2] The customers have the options to buy energy at unit price from the main grid.
This assumption follows the current structure of a distribution system, where customers have access to the main grid at a fixed price, and here we normalize the price to . Equivalently, this can be thought as the value of the lost load in a microgrid without a connection to the bulk electric system (Katiraei2006).

As shown in (AcemogluEtAl09; TaylorEtAl16), there is no pure Nash equilibrium on for the price sub-game. Intuitively, this means that no player can bid at a single deterministic price and achieve the most revenue, since the other players can undercut by a tiny amount and sell all their generation. Therefore no player settles on a pure strategy. Such a situation particularly arises where each producer is small (), but the aggregate is large (, where denotes the total demand in the market).

However, there exists a mixed Nash equilibrium on price , where the optimal bids follow a distribution such that the bids of each DER are independent of the rest. Informally, this implies that each producer draws its price from a distribution , which maximizes its expected revenue given the distributions of the other producers. For example, the price distribution of a two player Bertrand model is given in (TaylorEtAl16). For our purpose, the exact form of the optimal price distribution is not of particular interest. The quantity of interest is the form of the revenue function , i.e., the expected payment, resulting from this random price bidding. Let us denote the expected payment to producer based on the optimal random price by . Proposition 2.1 characterizes the optimal payment to each producer:

Proposition 2.1 ().

Given any solution having , the expected payment received by producer in the equilibrium of the pricing sub-game is given by:

(3)

Moreover, if the capacity is symmetric, i.e., , then:

(4)

A complete proof of Proposition 2.1 is deferred to the Appendix. Let us now understand Proposition 2.1 for the symmetric investment solution. Equation (4) denotes the payment received by producer when it bids deterministically at price and all of the other producers bid according to their mixed pricing strategy. By assumption A2, this player bids at the highest possible price. Then the amount of energy sold equals the minimum of the leftover-demand from the market ( and the player’s actual production (). Since belongs to the support of the mixed pricing strategy adopted by this player, one can use well known properties of mixed Nash equilibrium (AcemogluEtAl09; TaylorEtAl16) to argue that producer ’s payment at this price equals the expected payment received by this producer at the equilibrium for the pricing sub-game.

3. Evaluation metrics

3.1. Social planner’s problem

One essential characteristic of a game is its cost as compared to a centralized decision. In this section, we present the benchmark cost that we consider; in particular, we focus on the social cost minimization achieved by a social planner controlling the producers. In Section 3.2 we give more details on the definition of game efficiency as compared to this benchmark.

Suppose that these producers are managed by a social planner in a centralized manner. The purpose of the social planner is to fulfill demand while minimizing the total cost by deciding the investment capacities of the producers. The social planner thus wants to minimize social cost in the following form:

(5)

where is the optimal capacity decision from the social planner for each producer . The social cost presented in (5) is composed of two terms. The first term is the total investment cost which is linear in the capacities, and the second term is the imbalance cost in buying energy from electricity grid if the renewables cannot satisfy the demand. These two terms represent the tradeoff between investing energy resources and buying energy from conventional generators in order to meet the electricity demand.

3.2. Performance of the decentralized market

Given the definition of the equilibrium solutions due to both price and capacity competition, a natural question is to evaluate the performance of the decentralized market: i.e., does competition result in efficiency?. As mentioned previously, we measure this efficiency via two metrics: the social cost of the decentralized capacity investment compared to that achieved by the social planner, and the total investment cost compared to the payments made by the demand.

Example. Let us consider a one-player case, where there is only one producer participating in the electricity market. We further assume that the random output of this plant follows a uniform distribution, i.e., . Suppose that , otherwise there is no incentive to enter the market. The social planner’s optimization is reduced to :

(6)

where . In this case, the total investment cost is : in a centralized scenario, one can imagine that this is the price charged by the social planner to the demand, and thus there is no ‘markup’.

Let us now take a look at the decentralized market. Since there is only one producer, the decentralized investment strategy clearly coincides with that of the social planner. The payment from the demand to the producer as per (4) is (when ). This suggests that the producer is exploiting its market power to considerably improve its profit and the benefits of renewables are not being transferred to the consumers.

Market Efficiency As noticed in the above example, inefficiency arises due to the high prices felt by the demand in the decentralized market. Formally, we define market efficiency as the ratio between the investment cost paid by the producers to the total payment received by the producers at any equilibrium of the capacity price game. Therefore, efficiency takes the following form:

(7)

A “healthier” game should achieve a higher that is as close as to 1. This means that the producers should bid at the prices that cover their investment cost, so that bidding is efficient and does not take advantage of the electricity consumers. A particularly interesting question is whether competition leads to increased efficiency as the number of producers in the market increases. We formalize this notion below.

Definition 3.1 ().

We define the efficiency of a Nash equilibrium in a capacity game illustrated in (1) by . The capacity game is asymptotically efficient when as for every Nash equilibrium.

Now the question of interest is 1) whether uncertainty in generation deteriorates or improves the market efficiency of the game, and 2) whether efficiency increases as the number of players in the game increases. In the following sections, we will see that without randomness in the generation, the producers are able to charge a relatively high price for energy, which makes the game less efficient. Interestingly, when producer’s generation becomes uncertain, the game becomes more efficient as more producers are involved in the decentralized market.

Inefficiency due to Social Cost: When there are multiple producers, it is possible that even the investment decisions may not coincide with that of the social planner. Therefore, a second source of inefficiency is the social cost due to the capacity investment, as defined in (5). More concretely, we compare the social cost of the equilibrium solution with that of the social cost of the planner’s optimal capacity — clearly, the latter cost is smaller than or equal to the former.

3.3. Deterministic game

Before moving on to the main results, we highlight the (in)efficiency of the equilibrium in the deterministic version of the capacity game, i.e., one without production uncertainty where

with probability one. Understanding the inefficiency of this deterministic game is the starting point for us to better gauge the effects of uncertainty in investment games.

We begin with the social planner’s problem, which in the absence of uncertainty can be formulated as follows:

(8)

Every solution with non-negative capacities that satisfies
optimizes the above objective — this includes the symmetric solution . Moving on to the decentralized game with deterministic energy generation, we can directly characterize the equilibrium solutions using the results from (AcemogluEtAl09). Specifically, by applying Proposition 13 in that paper, we get although there are multiple equilibrium solutions, every such solution satisfies , and . The second result implies that at every equilibrium, each producer charges a price that is equal to the electricity price of one from the main grid. Finally, by applying (7), we can characterize the efficiency in terms of the investment cost :

(9)

Why is this result undesirable? First note that when , (9) implies that the deterministic game is inefficient at every Nash equilibrium. In fact, using the results from (AcemogluEtAl09), one can deduce that the system is inefficient even when different producers have different investment costs. Perhaps more importantly, the costs of investment as well as the market price of renewable energy have dropped consistently over the past decade and are expected to continue doing so in the future (taylor2015renewable; barbose2017tracking; margolis2017q4). In this context, Equation (9) has some stark implications, namely that as (the investment price) drops in the long-run, the efficiency actually becomes worse ( as ), i.e., the improvements in renewable technologies do not benefit the electricity consumers.

4. Main results

In this section, we first characterize the capacity decision from the social planner’s problem. We then illustrate the relationship between the decentralized market, and the social planner’s problem in the centralized market. We also give a thorough analysis on the efficiency of the decentralized market. We begin by considering the case where the capacity generated by the producers are independent of each other and then move on to the correlated case. All of the proofs from this section can be found in the appendix.

4.1. Social planner’s optimal decision

An immediate observation of the socially optimal capacity as described in (5) is that if the randomness is independent and identical across different producers, the socially optimal capacity is symmetric:

Theorem 4.1 ().

If the random variables are i.i.d. and satisfy assumption A1, then the optimal capacity obtained by (5) is symmetric, i.e., .

Theorem 4.1 states that when the investment cost per unit capacity is the same across all producers, and the random variable is i.i.d., then the optimal decision for the social planner is to treat all producers equally and invest the same amount of capacity for each producer. In reality, the randomness due to renewable sources can be correlated and Section 4.4 shows that Theorem 4.1 stills holds under some conditions on the nature of the correlation.

4.2. Existence and Social Cost

Now that we have captured the structure of the socially optimal capacity decision, we want to address the issue of whether or not the capacity price game admits Nash equilibrium solutions in the decentralized market. A second question concerns the social cost of Nash equilibria when compared to the optimum investment decision adopted by a social planner. As discussed in Section 3.2, one of the two sources of inefficiency in decentralized stems from the fact that the social cost of equilibrium solutions may be larger than that of the central planner’s solution. Theorem 4.2 addresses both of these questions by proving the existence of a Nash equilibrium that coincides with the socially optimal capacity decision.

Theorem 4.2 ().

There is a Nash equilibrium that satisfies (2), which also minimizes the social cost. That is, is a Nash equilibrium.

Therefore, existence is always guaranteed in our setting. More importantly, Theorem 4.2 provides an interesting relationship between the centralized decision that minimizes social cost, and the decentralized decision where producers seek to maximize profit. It states that the game yields a socially optimal capacity investment solution as if there were a social planner controlling the producers. In addition, as we will show later in Section 4.5, this Nash equilibrium is the unique symmetric equilibrium in the capacity game. For the following sections, we use to denote both the socially optimal capacity decision and this Nash equilibrium.

4.3. Efficiency of Nash equilibrium

Although the capacity price game studied this work admits a Nash equilibrium that minimizes the social planner’s objective, there may also exist other equilibria that result in sub-optimal capacity investments. How do these (potential) multiple equilibria look like from the consumers’ perspective, i.e., is the price charged to consumers larger than the investment? In this section, we show a surprising result: the two-level capacity-pricing game is asymptotically efficient. That is, as , the total payment made to the producers approaches the investment costs for every Nash equilibrium. The reason for this startling effect is that as the number of producers competing against each other in the market increases, with the presence of uncertainty, the market power of these producers decreases and the efficiency of the game equilibrium increases. We first present our main theorem with i.i.d. generation.

Theorem 4.3 ().

Let denote any Nash equilibrium solution in an instance with producers and . Then, as long as the ’s are i.i.d and satisfy assumption A1, we have that:

where are constants that are independent of . Therefore, as , , where denotes the market efficiency due to any Nash equilibrium solution.

Combining Theorems 4.2 and 4.3 yields that if we restrict the game to only have the symmetric equilibrium, then the equilibrium minimizes the social cost and the game is asymptotically efficient. Moving beyond the symmetric equilibrium, Theorem 4.3 states that any Nash equilibrium obtained from the capacity game is efficient, that the collected payment (revenue) tends to exactly cover the investment cost. This further suggests that the capacity game described in (1) elicits the true incentive for the producers to generate energy.

4.4. Correlated generation

In reality, renewable generation due to multiple entities in a power distribution network is usually correlated with each other because of geographical adjacencies. We assume that the randomness of each producer’s generation can be captured as an additive model written as the following:

(10)

The model in (10) captures the nature of renewable generation. We can interpret as the shared random variable for a specific region. For example, the average solar radiation for a region should be common to every PV output in that region. On the other hand, can be seen as the individual-level random variable for the particular location of each PV plant , and this random variable can be seen as i.i.d. across different locations.

For analytical convenience, we make the following assumptions on :
[A3] Both and in (10) satisfy assumption A1, the ’s are i.i.d, and are independent of for all .

If the correlation is captured as in (10), the optimal capacity decision is still symmetric, i.e., is a valid solution to (5). This is stated in Theorem 4.4.

Theorem 4.4 ().

If the random variable is captured as in (10) and assumption A3 is satisfied, then the optimal capacity vector that minimizes the planner’s social cost is symmetric, i.e., .

In addition, note that Theorem 4.2 does not require the i.i.d assumption on . Therefore, we infer that the symmetric solution that minimizes social cost is a Nash equilibrium even when the generation is correlated. In what follows, we further show that correlation does not tamper the efficiency of any Nash equilibria in the capacity game.

Theorem 4.5 ().

Suppose that denotes any Nash equilibrium solution in an instance with producers and . Then, as long as the random variable , is captured in (10), and assumption A3 is satisfied, we have that:

where are constants that are independent of .

Theorem 4.5 extends the statement in Theorem 4.3 from i.i.d. random variables to correlated random variables. This indicates that if the randomness of each producer is captured by an additive model interpreted as the sum of shared randomness and individual-level randomness, then the decentralized market is efficient and that both producers and electricity users benefit from this market.

4.5. Uniqueness of the Symmetric Equilibrium

Although our setting could admit many equilibrium solutions, we know that one of these solutions must always be symmetric, i.e., every producer has the same investment level. This solution is of particular interest as it minimizes the social cost. We now show that the symmetric Nash equilibrium is unique in Theorem 4.6.

Theorem 4.6 ().

Under assumption A1, the symmetric Nash equilibrium in the capacity game (1) is unique.

Theorem 4.6 states that there is only one symmetric Nash equilibrium in the capacity game. This indicates that if the decentralized market is regulated such that each producer behaves similarly in the presence of uncertainty, then it is guaranteed that the competition is both efficient and socially optimal in the investment decision.

5. Simulation

In this section, we validate the statements by providing simulation results based on both synthetic data and real PV generation data. For convenience, we use the symmetric Nash equilibrium as the solution of interest in our simulations.

5.1. Two-player game

Let us assume that the generation distribution is uniform, i.e., . Suppose that the investment price is the same for all players, i.e., , then following the analysis in Section 4, we know that the optimal capacity satisfies . Assuming that the demand is normalized to 1, we solve the social optimization in (5) with equal investment price . The optimal solution leads to a total capacity of , where . The result is shown in Fig. 3.

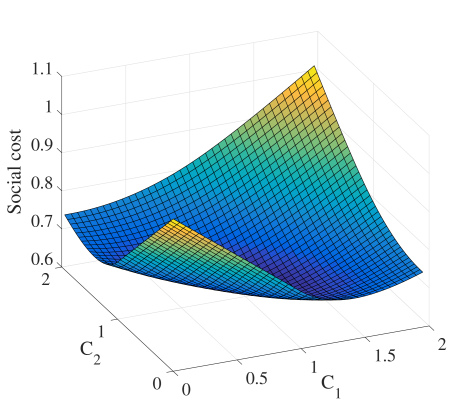

Figure 3. Social cost with respect to total capacity when investment price is the same.

To verify that is indeed a symmetric Nash equilibrium, we vary the capacity from and study how player ’s profit changes. The analysis for player 2 proceeds in the same way because of symmetry. We show the result of optimality for player 1 in Fig. 4 in terms of profit, with a fixed capacity for player 2 where .

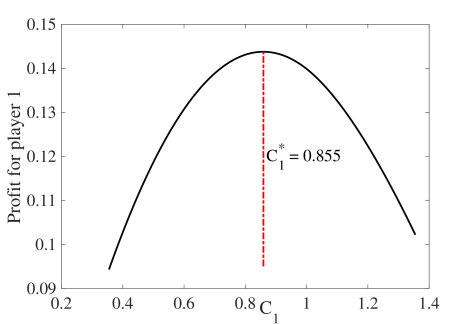

Figure 4. Profit for player 1 when its capacity deviates from .

As can be seen from Fig. 4, the profit for player 1—when the other player’s capacity is fixed at —peaks at . By symmetry, we can argue that player ’s profit is maximized at when player ’s capacity remains fixed. Therefore, is indeed a Nash equilibrium as neither player has any incentive to deviate from its investment strategy. In other words, the socially optimal capacity is also a Nash equilibrium for the game shown in (1).

5.2. N-player game

To illustrate that the Nash equilibrium is efficient with respect to the metric defined in (7), we need to show that the payment collected from users in the game exactly covers the investment costs of the producers when the number of producers increases. We therefore simulate the capacity game with identical players () with i.i.d. generation (uniform distribution). We then compute the efficiency when there are players in the game. The results are shown in Fig. 5.

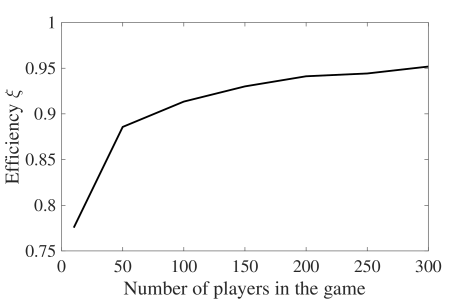

Figure 5. Efficiency of the symmetric Nash equilibrium in the game as a function of number of players.

In Fig. 5, we see that the efficiency is growing with the number of players in the game. We therefore infer that the competition is healthy as the producers only bid their true costs and do not exploit the consumers of electricity.

5.3. Case study using real data

In this section, we simulate the efficiency of the game equilibrium using a real PV generation profile obtained from the National renewable energy laboratory (nrel). Our data comes from distributed PVs located in California with a 5 minute resolution. Typical PV profiles after normalization are shown in Fig. 6. From Fig. 6, we see that the randomness of PV generation from different locations is strongly correlated. The correlation between those PV profiles is also symmetric across different PV plants, as shown in Fig. 7.

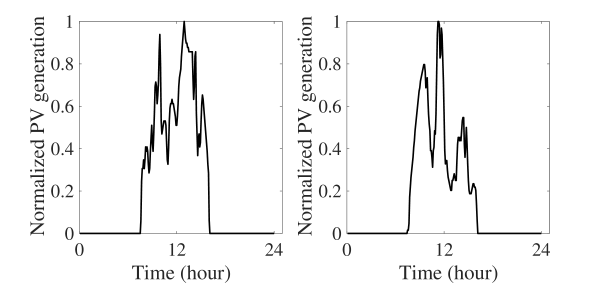

Figure 6. PV generation profile in different locations.

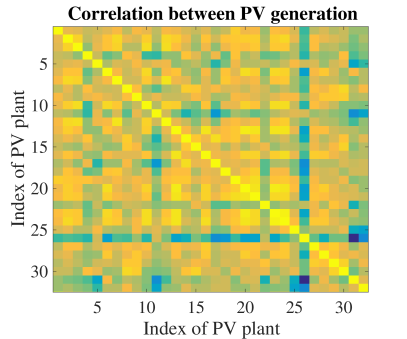

Figure 7. Correlation of PV generation in different locations. A lighter color (yellow) represents stronger correlation and dark colors (blue) represent weak correlation.

We then use these PV profiles to obtain the game equilibrium as we vary the number of PV participants. The result is shown in Table LABEL:table:eff, with the assumption that . As we can see from Table LABEL:table:eff, in the absence of randomness when the producers are assumed to generate energy deterministically, the efficiency is the investment price as described in Equation (9). On the other hand, the efficiency of the game with uncertainty improves as the numbers of producers in the market increases.
