1 Introduction
Imagine yourself walking through the city center with your smartphone. Because there are crowds of people with smartphones walking around as well, the density of smartphones is very high. In practice, whenever there are smartphones close by, i.e., one smartphone is in the WiFi range of another phone and vice versa, they can be connected via freely available direct wireless connections (e.g., WiFi Direct or Bluetooth). Thus, one can set up a wireless ad hoc network between smartphones, where the direct wireless communication mode enables the phones to send large amounts of data to each other. We assume routing in the ad hoc network to be for free as messages are transmitted directly and no third party is involved.
In general, it would be much faster to communicate only via a cellular network since the network coverage in cities is very high.
This, however, is only possible up to a limited amount of data.
Usually, smartphone owners have a contract with cellphone providers which offers a limited data volume.
Once the data volume has been exceeded, messages can only be exchanged at very low speed in the cellular network.
To maximize the lifetime of the data contracts while also being able to exchange almost unlimitedly data, it is evident to exchange the data only via an ad hoc network whereas the cellular infrastructure is used to find nearly optimal routing paths.
Finding nearly optimal routing paths in the ad hoc network is a nontrivial task, since sparse regions of of the ad hoc network can lead to radio holes.
In general, natural and human made obstacles like buildings cause radio holes in the ad hoc network of smartphones.

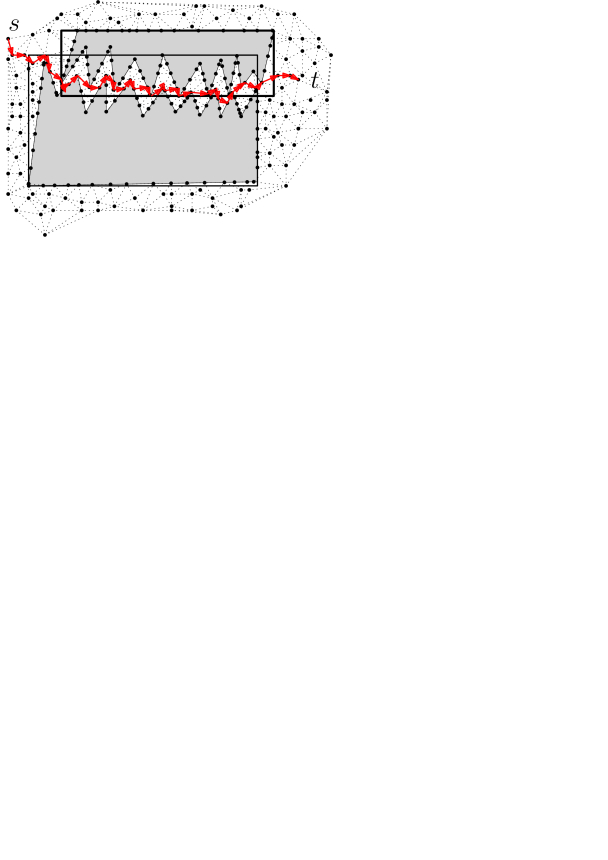

Complex shapes of radio holes, e.g., zigzag shapes, make competitive local roting extremely difficult [15].
Messages that are simply forwarded into the direction of the destination might stuck at a dead end or are routed on very long detours, when there is no knowledge about the ad hoc network.
Unfortunately, the computation of global knowledge about the entire ad hoc network, i.e., knowledge about the exact location and shape of radio holes, would be too expensive when only using longrange links since potentially many people are located on the boundaries of holes.
Therefore, we address the following question: Can longrange links be used effectively to find nearshortest paths in the ad hoc network?
The authors in [10] provide an approach that combines both communication modes in a Hybrid Communication Network. The longrange links via a cellular infrastructure are used to establish an overlay network that computes the convex hulls of each radio hole to find near shortest routing paths that only consist of ad hoc links (i.e., the WiFiinterfaces of nodes). They assume that convex hulls of holes do not intersect. In this work, we improve their results concerning two aspects. We propose an overlay network based on bounding boxes which only requires a constant number of nodes per hole for finding routing paths. Moreover, we consider intersections of bounding boxes, where the difficulty is that a path leading through an area of intersecting bounding boxes can be arbitrarily complex (see Figure 1). We prove both theoretically and with simulations that our approach outperforms classical online routing strategies for geometric ad hoc routing significantly.
1.1 Model
The model and definitions of this work are close to those of [10]. We model the participants of the network as a set of nodes in the Euclidean plane, where . Each node is associated with a unique ID (e.g., its phone number). For any given pair of nodes , we denote the Euclidean distance between and by . Nodes have different communication modes. For short distances, they can communicate via their WiFiinterface. Additionally, a node can communicate with every other node whose ID is known via the cellular infrastructure. More formally, we model our network as a hybrid directed graph where the node set represents the set of cell phones, an edge is in whenever knows the phone number (or simply ID) of , and an edge is also in the ad hoc edge set whenever can send a message to using its Wifi interface. For all edges , can only use a longrange link to directly send a message to . The concrete edges contained in and are defined in later sections. Since WiFicommunication can only be used over short distances, can only contain edges which are part of the Unit Disk Graph of (). , is a bidirected graph that contains all edges with . Assume to be connected so that a message can be sent from every node to every other node in by just using ad hoc edges.
While the potential ad hoc edges are fixed, the nodes can change over time:
If a node knows the IDs of nodes and , then it can send the ID of to , which adds to .
This procedure is called IDintroduction.
Alternatively, if deletes the address of some node with , then is removed from .
There are no other means of changing , i.e., a node cannot learn about an ID of a node unless is in ’s UDGneighborhood or the ID of is sent to by some other node.
Moreover, we consider synchronous message passing in which time is divided into rounds.
We assume that every message initiated in round is delivered at the beginning of round .
1.2 Objective
Our objective is to design a competitive routing algorithm for ad hoc networks, where the source of a message knows the ID of the destination , or in other words, . We call a routing strategy competitive, if the length of a path obtained by the strategy has length at most times the length of an optimal path for a constant . The authors in [13] have shown that any online routing algorithm that only has local knowledge about the network cannot be competitive. Based on these results, the authors in [10] proposed a strategy that makes use of a Hybrid Communication Network to obtain information about location and shapes of holes. They have proven that in case the convex hulls of radio holes do not intersect, their approach finds competitive paths in the ad hoc network.
In this paper, we aim for a reduction of the number of cellular infrastructure nodes that have to be considered for the computation of competitive paths. To do so, we replace the computation of convex hulls of holes by the computation of bounding boxes. In addition to [10], we also propose a strategy for intersecting bounding boxes.
1.3 Our Contributions
We consider any hybrid graph where the Unit Disk Graph of is connected. Let be the set of radio holes in and denotes the length of the perimeter of a radio hole . For every radio hole, the nodes with maximal/minimal  and coordinates are called extreme points. Our main contribution is:
For any distribution of the nodes in that ensures that UDG() is connected and of bounded degree, where the bounding boxes of the radio holes do not overlap, our algorithm computes an abstraction of UDG() in communication rounds using only polylogarithmic communication work at each node so that competitive paths between all sourcedestination pairs outside of bounding boxes can be found in an online fashion.
The storage needed by the four extreme points of each radio holes is . For every other node, the space requirement is constant.
We also consider intersecting bounding boxes. We prove that in case we can find a competitive path between outer intersection points of bounding boxes, we can also find a competitive path between all sourcedestination outside of bounding boxes. Since the computation of
competitive paths between outer intersection points is a hard problem, we provide a heuristic solution in this paper. We show via simulations that our approach outperforms classical online routing strategies for ad hoc network with holes significantly, both for intersecting and nonintersecting bounding boxes.
1.4 Related Work
In the context of geometric routing in ad hoc networks, several routing techniques have been investigated. One of the early approaches is GPSR [11], in which greedy routing is used whenever possible. In case a packet reaches a dead end, the packet is routed along the perimeter of the hole via the righthand rule. As soon as greedy routing is applicable again, the routing mode is changed to greedy routing. A similar approach is Compass Routing [12]. The algorithm considers the direct line segment connecting the source node and the target node . At every step the edge with smallest slope to the direct line segment is chosen. This, however, does not lead to a delivery guarantee in all kinds of graphs. An example for a graph with delivery guarantee is the Delaunay Graph which in addition is a spanner of the Euclidean metric [19]. The value for is . MixedChordArc is the latest competitive routing strategy for Delaunay Graphs which has been recently published by Bonichon et al. [3]. The authors in [12] introduce a strategy that combines compass routing with face routing to obtain a routing strategy with delivery guarantee for all kinds of connected geometric graphs. Several extensions of these original ideas have been investigated. Some of these extensions are FACEI, FACEII, AFR, OAFR, GOAFR and GOAFR+ [5, 14, 15, 13]. In [15, 13] it is proven that the strategies GOAFR and GOAFR+ are asymptotically optimal. GOAFR and GOAFR+ achieve path length which have a quadratic competitiveness compared to the shortest path. INF [7] is an approach that combines greedy forwarding with randomness. In case a packet gets stuck via greedy routing, a random intermediate location is chosen. This, however, requires some global knowledge to choose a random node which is not too far away from the location. Additionally, INF does not ensure delivery guarantee.
In [20], also greedy routing with a modification of face routing is used. To overcome potential bottlenecks which avoid a guaranteed delivery, a restricted flooding procedure is used. In a slightly different setting, namely nodes on the grid, a packet is routed along multiple paths and is hence comparable to a restricted flooding procedure [18]. In their model, alive node and crashed nodes exist on the grid. The crashed nodes behave like obstacles on the grid which have to be avoided by routing paths.
In addition to the just mentioned local routing, there are also routing strategies that use a portion of global knowledge about the network.
BoundHole [8], for instance, uses a preprocessing phase at each node which is located at the boundary of a hole.
These hole nodes send out a packet which is routed using the right hand rule around the perimeter of the hole until it reaches the source of the message.
On the way, the packet collects information about the boundary of the hole.
With knowledge about the boundary, the authors are able to find better paths than strategies which only use local information.
For a survey on all mentioned strategies, we refer the reader to [1].
To combine local and global routing strategies, where the goal is to use only few global knowledge, Hybrid Communication Networks have been introduced [10]. Hybrid Communication Networks have also been proposed in different contexts. In practical applications, the term Hybrid Communication Network usually combines wired with wireless networks like in [17, 6]. Closer to our application is the scenario presented in [9]. The authors assume an external network which is not under control of the network participants. The participants can, however, control an internal network. The authors show that the combination of both networks allows to evaluate monitoring problems of the external network much faster than in classical approaches which only use the links of the external network.
The approach we extend in this work makes use of global information as well [10].
The global information is gathered via a Hybrid Communication Network.
In a Hybrid Communication Network, nodes can communicate with other nodes in their ad hoc range for free.
In addition, they can use longrange links to communicate with any other node of the network.
These longrange links, the Cellular Infrastructure, are costly.
The solution they propose is to compute an Overlay Network in which holes are represented by their convex hulls.
It is assumed that the convex hulls of the holes do not intersect.
The storage requirements for some nodes are asymptotically in the size of the sum of all holes.
In this work, we aim to reduce the storage requirements for these nodes and investigate also the challenging question of competitive routing through intersections of hole abstractions.
2 Preliminaries
Initially, we define our ad hoc network topology and provide some general results about routing in the ad hoc network.
2.1 Properties of the ad hoc network
In this paper, we assume that the nodes of the ad hoc network are in general position, i.e., there are no three nodes on a line and no four nodes on a cycle. Moreover, we assume that the coordinates of each node are unique and thus there are no two nodes on the same position. We consider a 2localized Delaunay Graph as topology for the ad hoc network which is related to the Delaunay Graph. Let be the unique circle through the nodes and and be the triangle formed by the nodes and . For any , the Delaunay Graph of contains all triangles for which does not contain any further node besides and . The localized Delaunay Graph is a structure that only allows edges which do not exceed the transmission range of a node. In localized Delaunay Graphs, a triangle for nodes of satisfies that all edges of have length at most and the interior of the disk does not contain any node which can be reached within hops from or in UDG(). The localized Delaunay Graph is defined to consist of all edges of localized triangles and all edges for which the circle with diameter does not contain any further node . For , we obtain the localized Delaunay Graph which is also a planar graph [16]. 2localized Delaunay Graphs can be constructed in a constant number of communication rounds [10]. Since localized Delaunay Graphs do not contain all edges of a corresponding Delaunay Graph, one cannot simply use routing strategies for Delaunay Graphs in our scenario. We denote faces of the localized Delaunay Graph which are not triangles as holes. For the formal definition of holes, we distinguish between inner and outer holes. The definition of inner holes is similar to the definition used in [8]. [Hole] Let . An inner hole is a face of with at least nodes. Furthermore, let be the set of all edges of the convex hull of . Define to be the graph that contains all edges of the 2localized Delaunay Graph and . An outer hole is a face in with at least nodes, that contains an edge with . Nodes lying on the perimeter of a hole are called hole nodes. Note that the hole nodes of the same hole form a ring, i.e., each hole node is adjacent to exactly two other hole nodes for each hole it is part of. The choice of the localized Delaunay Graph as network topology is motivated by its spannerproperty. The Delaunay Graph contains paths between every pair of nodes and of which are not longer than times their Euclidean distance. Delaunay Graphs are proven to be geometric spanners [19]. Xia argues that the bound of also relates to localized Delaunay Graphs [19]. However, these graphs are not spanners of the Euclidean metric but of the Unit Disk Graph. For the ease of notation, whenever we say that there is a competitive path in the 2localized Delaunay Graph we mean that the path has length at most times the length of the shortest possible path in the Unit Disk Graph of the same node set.
2.2 Competitive Routing in 2localized Delaunay Graphs
In general, we cannot apply routing strategies for the Delaunay Graph in 2localized Delaunay Graphs since 2localized Delaunay Graphs contain holes.
In this section, however, we prove that 2localized Delaunay Graphs and Delaunay Graphs do not differ in dense regions and hence we can apply routing strategies for the Delaunay Graph
between visible nodes, i.e., pairs of nodes which direct line segment does not intersect any hole.
Let be a 2localized Delaunay Graph and such that the line segment does not intersect any hole of .
Then, there exists a path between and in such that
To prove Section 2.2, we make use of a definition which was introduced by Bose et al. [4].
Let and be nodes of a Delaunay Graph.
Bose et al. considered the chain of triangles intersected by the line segment .
Each of these triangles contains an edge which either lies completely above or below .
If we consider only these edges, we can see that these edges form a polygon.
Walking along all edges lying above describes a path between and .
This path is called upper chain of and () and the corresponding path for all edges which lie below is called lower chain of and ().
Xia has proven that between any pair of nodes and in a Delaunay Graph a path with length at most exists [19].
The path construction of Xia uses only edges which connect nodes of and .
We use this knowledge and show that in Delaunay Graphs a polygon described by an upper and a lower chain of nodes and never contains any edge with a length larger than , provided and are visible from each other in the corresponding 2localized Delaunay Graph.
Afterward, we conclude that between any pair of visible nodes and in a 2localized Delaunay Graph a path with length at most exists.
Lemma 1.
Given a 2localized Delaunay Graph and two nodes and such that the line segment does not intersect any hole of . Let be the Delaunay Graph to the same point set . The polygon described by and in does not contain any edge with .
Proof.
There are three types of edges which are part of the polygon with boundaries and in .
Edges that cross the line segment , edges which lie completely above and edges that lie completely below .
We prove for every type of edges that these cannot be larger than one in case and are visible from each other in .
Case 1: Edges crossing :
Without loss of generality, let be a triangle which is intersected by and an edge that crosses .
Assume .
This immediately implies that crosses a hole since intersects a face with at least nodes which is a contradiction to our assumption.
Case 2: Edges above :
Without loss of generality, let be a triangle which is intersected by and an edge that lies above with .
With this knowledge we can conclude that and potentially lie on the perimeter of a hole if and are not hole edges themselves.
Again we can easily see that would cross a hole in this case which is a contradiction to our assumption.
Case 3: Edges below :
We can apply the same argumentation as for Case here.
Since every possible type of edges cannot have a length larger than , we have proven Lemma 1.
∎
Lemma 1 implies that we can apply routing strategies for Delaunay Graphs also between visible nodes in 2localized Delaunay Graphs. This leads to the relation between our routing strategy and Visibility Graphs. In the Visibility Graph of a set of polygons, represents the set of corners of the polygons, and there is an edge in if and only if a line can be drawn from to without crossing any polygon, i.e., is visible from . De Berg et al. showed that it is enough to consider nodes of obstacle polygons for finding shortest paths in polygonal domains [2]. Hence, if we consider the Visibility Graph of holes of the 2localized Delaunay Graph, we can translate a path in the Visibility Graph to a path in 2localized Delaunay Graph by applying a routing strategy for Delaunay Graphs along every edge on the path in the Visibility Graph. As we do not want to store large routing tables, we are interested in online routing strategies for the Delaunay Graph. In this work, we make use of the online strategy MixedChordArc [3] which finds competitive paths between every source and target node in the Delaunay Graph. To sum it up, knowledge about the Visibility Graph of holes enables us to find competitive paths in the 2localized Delaunay Graph between any pair of nodes by applying the MixedChordArcstrategy along every edge of the shortest path between and in the Visibility Graph.
3 Geometric properties of bounding box paths
We have seen that knowledge about the Visibility Graph of holes enables us to find competitive paths in the 2localized Delaunay Graph.
In general, however, the node set of a Visibility Graph can be very large since potentially many nodes could lie on the boundary of holes.
To reduce the space constraints and to speed up the computation of competitive paths, we aim for a reduction of the number of nodes in the Visibility Graph while still being able to find competitive paths.
To do so, we reduce the Visibility Graph by only considering the bounding boxes of holes.
The following definition defines the axisparallel bounding box of a hole.
[Bounding Box]
Let be a polygon.
Let and and be defined analogously.
These points are called extreme points of .
The (axisparallel) Bounding Box of is a polygon with the following nodes:

(topleft)

(topright)

(bottomleft)

(bottomright)
The nodes are connected via the direct line segments and . In the following, we see how we can embed bounding boxes of holes in the 2localized Delaunay Graph and that considering only bounding boxes of holes allows us to find competitive paths between every source and target node that lies outside of any bounding box.
3.1 Embedding of Bounding Boxes
In general, nodes of bounding boxes of holes do not match with any nodes of the ad hoc network (see Figures 3 and 3). In this section, we propose an embedding of bounding boxes in the 2localized Delaunay Graph and prove later on that we can find competitive paths with help of the embedding. Since we consider a given 2localized Delaunay Graph with node set and edge set , we have to find nodes in that represent nodes of bounding boxes. Nodes of bounding boxes of holes are called real bounding box nodes whereas nodes of that represent real bounding box nodes are denoted as representatives of a real bounding box.
The solution is to choose those nodes of as representatives of real bounding box nodes which have the shortest distance to a real bounding box node.
More formally, let be a 2localized Delaunay Graph with corresponding Voronoi Diagram .
A real bounding box node is represented by the node of the Voronoi Cell with .

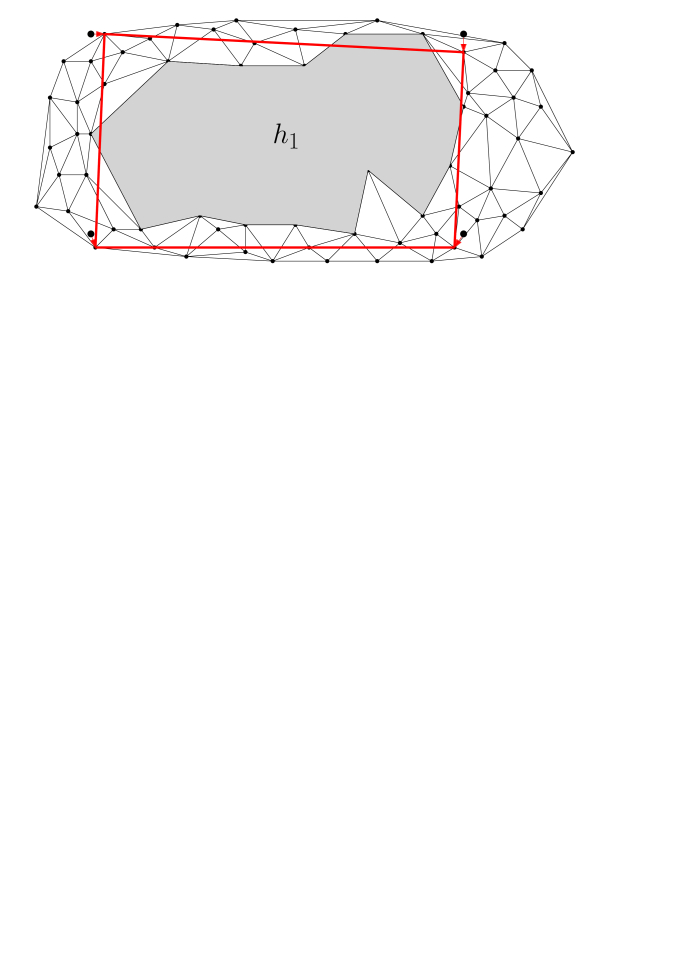

The resulting bounding box (see Figure 3) does not necessarily enclose the entire hole anymore but we prove that it has similar properties as a real bounding box.
Since we have proven that competitive paths between visible nodes in 2localized Delaunay Graph exist, our idea is to use the direct line between real bounding box nodes for routing decisions.
We call this direct line virtual Axis.
[Virtual Axis]
Consider a 2localized Delaunay Graph with nodes .
Let and be the cells of the corresponding Voronoi Diagram with and .
Additionally let with and but and .
We call the line segment a virtual Axis between and in .
For the ease of notation, we simply write .
In our scenario, we use a virtual Axis between visible real bounding box nodes.
After clarifying the definition of virtual Axes, we can introduce the main theorem of this section.
We prove that there exists a path with length at most times the Euclidean distance between the real bounding box nodes between two nodes and representing two adjacent real bounding box nodes.
Let be a 2localized Delaunay Graph with . For any with endpoints and that does not intersect any hole of , there exists a path between and in with length at most:
We split the proof of Theorem 3.1 into two lemmas. Lemma 2 bounds the length of the line segment and Lemma 3 proves that is a candidate for the shortest polyline (see creftypecap 2) between and . The combination of both yields Section 3.1.
Lemma 2.
Let be a 2localized Delaunay Graph with a pair of nodes and let be a virtual Axis between and that does not intersect any hole of . The endpoints of are denoted as and . Then,
Proof.
By the triangle inequality . Next, we bound the length of the line segments and . We argue that the length of each line segment is at most . is the representative of since is the node with smallest distance to of all nodes in . lies either in or on the boundary of a triangle that has as a node. Each edge of this triangle has length at most due to the properties of 2localized Delaunay Graphs. When considering triangles, it is easy to see that the endpoints of a triangle – in our case – are those nodes which have the largest distances to each other in the triangle. Consequently, the worst possible case is that falls exactly on the half of an edge with length . In this case the closest point is at distance which is an upper bound for . We can use the same arguments for the line segment .
Thus, we can bound the length of as follows:
Further, , due to the definition of holes. Thus we obtain a final bound on :
∎
After being able to express the length of in terms of , we start with proving that a competitive path between and exists.
The proof is inspired by the path construction for Delaunay Graphs introduced by Xia.
We need two definitions which have been introduced by Xia [19].
Definition 1 (Chain of Disks).
A finite sequence of disks is called chain of disks if it has the following two properties:
Property 1:
Every pair of consecutive disks and intersects but neither disk contains the other.
Denote by and the arcs on the boundary of that are in and respectively. These arcs are denoted as connecting arcs of .
Property 2:
The connecting arcs of do not overlap for , however they can share an endpoint.
Two points and are called terminals of if lies on the boundary of and is not in the interior of and lies on the boundary of and is not in the interior of .
Definition 2 (Shortest polyline between and ).
Given a chain of disks with terminals and . Let be the centers of . The polyline is called the centered polyline between and . For , let and be the intersections of the boundaries of and . Without loss of generality, all ’s are assumed to be on one side of the centered polyline and all ’s are on the other side. For notational convenience, define and . Let be the shortest polyline from to that consists of line segments where for .
With these definitions, we can state Lemma 3.
Lemma 3.
Let be a 2localized Delaunay Graph with a pair of nodes and let be a virtual Axis that does not intersect any hole of with endpoints and . Further let be the chain of disks with terminals and obtained by the circumcircles of all triangles intersected by . Then, we can bound the shortest polyline as follows:
Proof.
In [19], the author argues that any sequence of disks obtained by the circumcircles of triangles along a line segment in a Delaunay Graph is a chain of disks. Due to Lemma 1 we know that does not intersect any hole. Consider the chain of disks with terminals and obtained by the circumcircles of all triangles intersected by . See Figure 4 for a visualization. The main observation for our proof is that the polyline fulfills the requirements of creftypecap 2 and is a candidate for the shortest polyline between and . Thus, is an upper bound for . Hence:
∎
The combination of Lemma 2 and Lemma 3 helps us to prove Section 3.1. Xia states that the shortest connection between two terminal nodes and along a chain of disks is at most [19]. Thus, we obtain that there exists a path between and with length at most:
So far, we concentrated on proving the existence of such a path.
Nevertheless, we are also able to find a competitive path via the MixedChordArcalgorithm.
To do so, we slightly modify the algorithm such that we do not use the direct line segment between two representatives as referencing segment but the virtual axis connecting the real bounding box vertices.
The analysis of MixedChordArc [3] proves that the path found along the virtual axis has length at most times the length of the virtual axis.
The entire path has length at most times the length of the virtual axis since the connection between and the first node along the path and and the last node on the path has length at most times the length of the virtual axis.
This leads to the following corollary.
Let be a 2localized Delaunay Graph with .
For any with endpoints and that does not intersect any hole of , there exists an online routing strategy that finds a path between and in with length at most:
The results of this section enable us to reduce the problem of finding competitive paths in the 2localized Delaunay Graph to finding competitive paths in Visibility Graphs as it is done in the next section.
3.2 Competitive Paths via nonintersecting Bounding Boxes
Based on our results of Section 3.1, we reduce the problem of finding competitive paths via bounding boxes to finding competitive paths in Visibility Graphs.
Therefore, we introduce a special class of Visibility Graphs, namely Bounding Box Visibility Graphs.
In Bounding Box Visibility Graphs, each obstacle (holes in our case) is represented by its axisparallel bounding box.
Consequently, consists of the nodes of the axisparallel bounding box of each obstacle.
Moreover, consists of the edges of each bounding box as well as of edges between visible nodes of different bounding boxes.
In this setting, we call two nodes to be visible from each other in case their direct line segment does not intersect any bounding box.
Let be a set of polygonal obstacles, and a source and a targetlocation.
Further let and be the nodes of an axisparallel bounding box representing a polygon .
A Bounding Box Visibility Graph is defined as follows:
[Bounding Box Visibility Graph]
A geometric graph is called Bounding Box Visibility Graph if and .
Additionally, and .
For two nodes of different bounding boxes , the edge if does not intersect the bounding box of any obstacle .

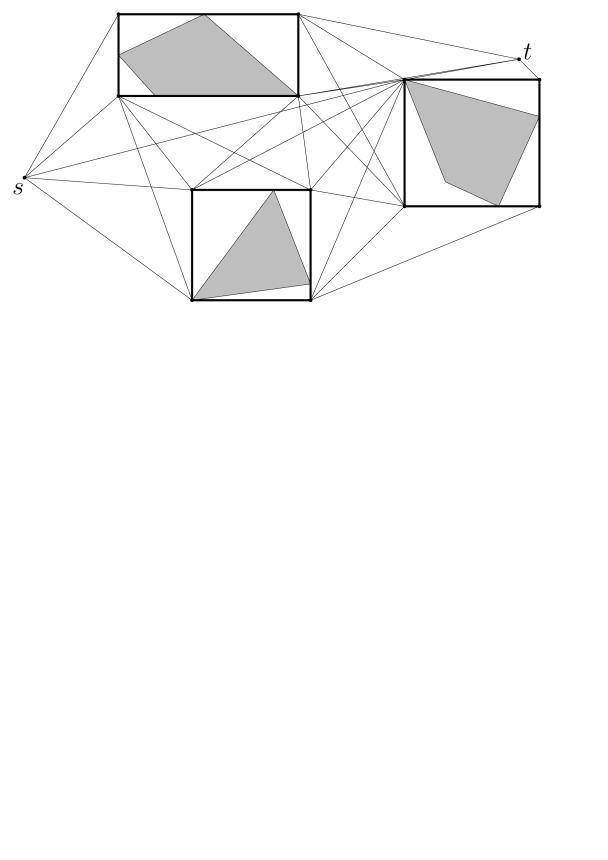

Figure 5 provides a visualization of a Bounding Box Visibility Graph.
To provide an intuition about the proof ideas, we initially assume that the considered Bounding Box Visibility Graph contains only a single bounding box.
Additionally, we assume that the startinglocation and the targetlocation do not lie inside of the bounding box.
The nodeset of the corresponding Bounding Box Visibility Graph contains , and the nodes of the bounding box.
More formally: .
The rest of the section deals with proving Theorem 3.2 which states that there always exists
a path of length at most between and in the described setting.
Let be a Bounding Box Visibility Graph containing a single bounding box with a startinglocation and a targetlocation .
Then, there exists a path between and in with length at most .
For the proof of Theorem 3.2 we need a useful property of right triangles.
Whenever we consider a right triangle with legs and and hypotenuse , we can prove that walking along and is not longer than a constant times walking along . Lemma 4 deals with this property.
Lemma 4.
Let be the legs of a right triangle with hypotenuse . Then, .
Proof.
The Pythagorean Theorem states . We compute the ratio of and and bound it afterward.
The equivalence holds as , and are greater than zero. After applying the Binomial Theorem, we obtain:
We analyze the properties of the latter addend and prove:
Since quadratic numbers are always positive, our claim holds and we can finally plug all results together and finish the proof.
∎
Proof of Theorem 3.2.
Without loss of generality, we assume .
We distinguish two cases concerning the size of the bounding box.
In Case , we consider bounding boxes that fit completely into the bounding box around and .
Case deals with bounding boxes that exceed the bounding box around and .
We consider the surrounding bounding box with nodes and .
See Figure 6 for a visualization.
Case 1: The bounding box of the obstacle is completely cointained in the bounding box with nodes and .
The worst case is that the bounding box of the hole and the bounding box with nodes and coincide.
In that case, we see that the shortest connection from to is the combination of the line segments and . The combination
of and has the same length.
By applying Lemma 4, we obtain:
The last inequality holds because the Euclidean distance between and is the shortest possible length of a path between and .
The distance of and in the Unit Disk Graph has to be larger or equal.
If the two mentioned bounding boxes do not coincide, the shortest path among nodes of bounding boxes is still smaller than a path along the comprising bounding box.
Thus, we obtain as an upper bound for the length of the shortest path among nodes of a bounding box.
Case 2: The bounding box of the obstacle exceeds the bounding box with nodes and .
In this case, it is enough to consider the cases in which and or and are intersected by .
Otherwise, we can apply the same argumentation as in Case since there is a path which is completely contained in the box with nodes and .
Without loss of generality, we assume that both and are intersected. We can use the same proof for the other case by turning the view about 90 degrees.
Let be the highest point of the hole polygon and the lowest point respectively.
The shortest geometric connection between and has to pass either or .
Without loss of generality, we assume that the shortest geometric connection passes .
The shortest possible (not necessarily realistic) connection would be and .
We can upper bound the length of this connection by giving the legs of two right triangles as maximal path length.
Consider the points and .
The longest possible path over bounding box points would be , and .
Since this path uses the legs of right triangles with hypotenuses and , we can apply Lemma 4 and obtain that the maximal length is at most .
See Figure 7 for a visualization of both right triangles.
The last inequality holds since the distance between and in the Unit Disk Graph cannot be smaller than the shortest possible geometric connection between and .
∎
So far, we have analyzed the maximal length of competitive paths we can achieve for a single bounding box in Bounding Box Visibility Graphs.
It remains to combine these insights with our knowledge about virtual Axes to bound the length of bounding boxpaths in 2localized Delaunay Graphs.
Consider a 2localized Delaunay Graph which contains a single hole with bounding box . Between any pair of nodes and with but , there exists a path from to that contains representatives of bounding boxes such that:
Additionally, there exists an online routing strategy that finds a path from to such that:
Proof.
If we reduce the 2localized Delaunay Graph with to a Bounding Box Visibility Graph only containing and all nodes of , we know that it contains a path between and with length at most . If we use the nodes in that are closest to the nodes of as representatives for , we can apply virtual Axis routing and obtain that between two adjacent representatives of a path of length at most times their Euclidean distance exists (Section 3.1). Finally, we can combine both insights and conclude that in 2localized Delaunay Graphs containing a single hole with bounding box there is a path between any pair of nodes of length at most which proves the Corollary. For the online routing strategy, we can conclude based on Section 3.1 that we can find paths of length .
∎
We continue with considering multiple nonintersecting bounding boxes. Let be a Bounding Box Visibility Graph that contains multiple nonintersecting bounding boxes and a source and a targetlocation and . There exists a path between and in with:
To prove Lemma 4, we define a special class of paths in geometric graphs which helps us to construct paths in Bounding Box Visibility Graphs which are competitive to the shortest path in usual Visibility Graphs.
Therefore, we compare the covered distance in vertical direction as well as the covered distance in horizontal direction of both paths.
[Monotone Paths]
A path in a geometric graph is called increasing xmonotone if for all .
Analogously, such a path is called increasing ymonotone if for all .
Similarly, paths are called decreasing /monotone if for all .
A path is called monotone if it is either increasing or decreasing monotone.
Analogously, a path is called monotone if it is either increasing or decreasing monotone.
For the proof of Theorem 4, we compare the shortest path between a pair of nodes and in a Visibility Graph to a path between and in the corresponding Bounding Box Visibility Graph .
Observe that walks along a sequence of polygons from to .
Whenever walks from a polygon to a polygon , is  and monotone for that part, as follows a direct line segment between and .
The key idea for our proof is to construct a path in that has the same monotonicity properties as for every pair of consecutive visited polygons and of .
Therefore, we introduce a greedy routing strategy for that constructs paths having the same monotonicity properties as .
Our greedy strategy is called Greedy Visibility Routing (GreViRo) and is defined as follows:
Let be a shortest path between two points and in a Visibility Graph that contains polygons with nonintersecting bounding boxes.
The sequence of polygons visited by is denoted as and the direct line segment walked by from polygon to is denoted as .
In addition, the intersection points of with and are defined as and respectively.
Further, let be the corresponding Bounding Box Visibility Graph.
Consider a line segment of .
GreViRo connects two nodes and of provided and as well as and are visible from each other and the path has the same monotonicity properties as .
GreViRo always chooses the node of a bounding box intersecting the face with nodes and that does not violate the monotonicity properties of and minimizes the distance to until is visible.
Figure 8 depicts a path construction of GreViRo.
Observe that GreViRo is defined to fulfill the same monotonicity properties as .
We are left with proving the correctness of GreViRo.
Lemma 5.
Let and be defined as described above. GreViRo constructs a path in between and .
Proof.
Without loss of generality, assume is increasing  and increasing monotone. Observe that the same proof can be used for all other cases by turning the view and degrees around. Turning the view degrees around yields an increasing  and decreasing monotone path, degrees yields a decreasing  and decreasing monotone path and degrees yields a decreasing  and increasing monotone path.
We prove by contradiction that GreViRo constructs a path between and .
Assume GreViRo has reached a node and cannot proceed further because is not visible and all other visible nodes violate increasing  and monotonicity.
Since is not visible from , there has to be a bounding box which is intersected by the line segment .
Consider a visible node of .
Due to our assumption, and .
Further consider the node which has been visited before proceeding to .
Due to our assumption, GreViRo gets stuck at node hence, and .
The crucial observation is that has already been visible from .
Observe that there cannot be a third bounding box intersecting the line segment since
nodes of this bounding box would have been preferred by GreViRo to as these are closer to .
Hence, GreViRo would have chosen the node instead of which is a contradiction to our assumption.
We refer to Figure 9 for a visualization of the contradiction.
∎
GreViRo is an analysis tool that allows us to construct a path in that fulfills the same monotonicity properties as the original path in .
For structuring the proof of Theorem 4, we split it into two lemmas.
Initially, we assume that is  and monotone (Lemma 6).
Using this assumption makes the proof easier and thus helps to understand the overall proof ideas.
Afterward, we drop this assumption in Lemma 7 and assume that is either  or monotone but not both.
Finally we drop any monotonicity assumption and can prove Theorem 4 with our knowledge of Lemmas 6 and 7.
Lemma 6.
If is  and monotone, then there exists a path between and in with length at most .
Proof.
The proof idea is to construct a path in which is also  and monotone such that we can conclude that does neither walk a longer distance in horizontal nor in vertical direction than . Without loss of generality, we assume is both increasing  and monotone. The proofs for the other cases can be obtained by turning the view , and degrees around. Consider the sequence of hole polygons () which is visited by the shortest path . Observe that when walking from to , intersects either the lower edge of or the left edge of . Note that the edges of are not part of but are used here to understand the path construction in
