1 Introduction

Data-driven methods are conditioned on the data which are available during the model development but are to be applied on real world data. Considering that the former data distribution is , which is the result of applying a sampling function to the real world distribution . Typically, is separated into different splits and

, used to train the model and validate its behaviour respectively, with the latter process driving model selection. A data distribution shift can be described as the condition where the joint distribution

of inputs and outputs differs between the training and test stages [1].

This is an actual problem that many practical applications face, affecting their overall performance, robustness and reliability. The phenomenon is more prominent in tasks where annotated data collection is difficult and has been generally addressed in the literature as the domain shift [2] or the generalization of data-driven models [3, 4], or otherwise as out-of-distribution robustness [5]. More information about out-of-distribution (OOD) learning and generalization can be found in recent surveys [6, 7, 8].

Up to now, most works approach this problem in its general setting via zero-shot cross-dataset transfer experiments that aim at assessing model performance under a general distribution shift, considering two different samplings and , as seen in Figure 1. A recent benchmark [9] provided simultaneously data for sub-population shift, a special case of distribution shifts, and a generic domain generalization shift across a number of datasets and tasks.

(a)

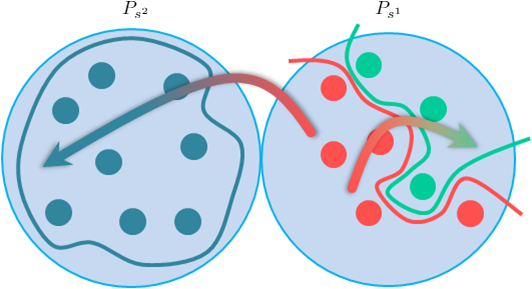

Figure 1: Typical training setting vs. zero-shot cross-dataset transfer. Each light blue disk represents a distinct sampling of , a dataset. Red/green represent the typical train/test splits and dark blue a zero-shot cross-dataset transfer test split. For simplicity, we omit the validation splits, considering them part of the train splits.

In this work, we contribute a novel benchmark for distribution shift performance assessment, in the context of a computer vision task notorious for its complex data collection processes; monocular depth estimation. The novelty of our benchmark lies in the decomposition of generalized shift into components, expressed separately or in combination, via targeted test splits.

2 The Pano3D Dataset

Our benchmark relies on two recent 3D building scan datasets, Matterport3D (M3D) [10] and GibsonV2 (GV2) [11], using modern synthesis to produce high quality spherical panoramas coupled with depth maps. Sample images can be found in Figure 2. Specifically, we use M3D as a traditional in-distribution model development dataset and GV2 as a zero-shot cross-dataset transfer, out-of-distribution benchmark dataset.

(a)
Figure 2: Rendered panoramic images of Matterport3D (top) and GibsonV2 (bottom).

For M3D, we consider its standard partitioning into train , validation and test splits. The GV2 splits represent another sampling of the real world domain, or otherwise a zero-shot cross-dataset transfer experiment. Nonetheless, GV2 itself is partitioned into different splits, the tiny , medium , full and fullplus splits111For the remainder of the document we ignore the full split, which is kept aside for future training purposes.. After synthesizing coupled color and depth panoramas for all splits of both datasets, we analyze them and observe that it is possible to decompose them into three core distribution shifts. More on the characterization and decomposition of distribution shift can be seen on [12, 13, 14]:

A covariate distribution shift represents a shift of the input domain, which in our case is the color image’s domain. As we rely on a synthesis approach (i.e. raytracing) to generate our data, we are also in control of the camera color transfer function. Consequently, we can generate a shifted input distribution using the M3D test split , where only the color domain has been shifted.

After examining the different splits’ statistics we also observe a priorprobability distribution shift manifesting at the tiny, , and medium, , splits which corresponds to , meaning that the output depth distribution has shifted from the training one . Yet, the input (color) distribution is similar as the color camera transfer function is the same, and the context is also preserved to residential scenes.

Finally, analysing the fullplus split, we observe a concept distribution shift, which is the shifted context of the depicted scenes. While Matterport3D (i.e. ) only contains indoor residential scenes, the fullplus split presents varying scenes like supermarkets, garages, under construction buildings, etc., corresponding to . At the same time though, the input (color) and output (depth) distributions are preserved between and .

Notably, our benchmark decomposes the wider domain shift into three distinct distribution shifts. But since we rely on synthesis processes, it is straightforward to combine distribution shifts, producing and by re-rendering the corresponding splits with a shifted color transfer function, essentially adding a covariant shift to the prior and concept ones. This provides two extra combined distribution shift splits, with only the simultaneous prior and concept shifts missing.

Details can be seen in Figure 3. All of our data are publicly available at: vcl3d.github.io/Pano3D.

(a)

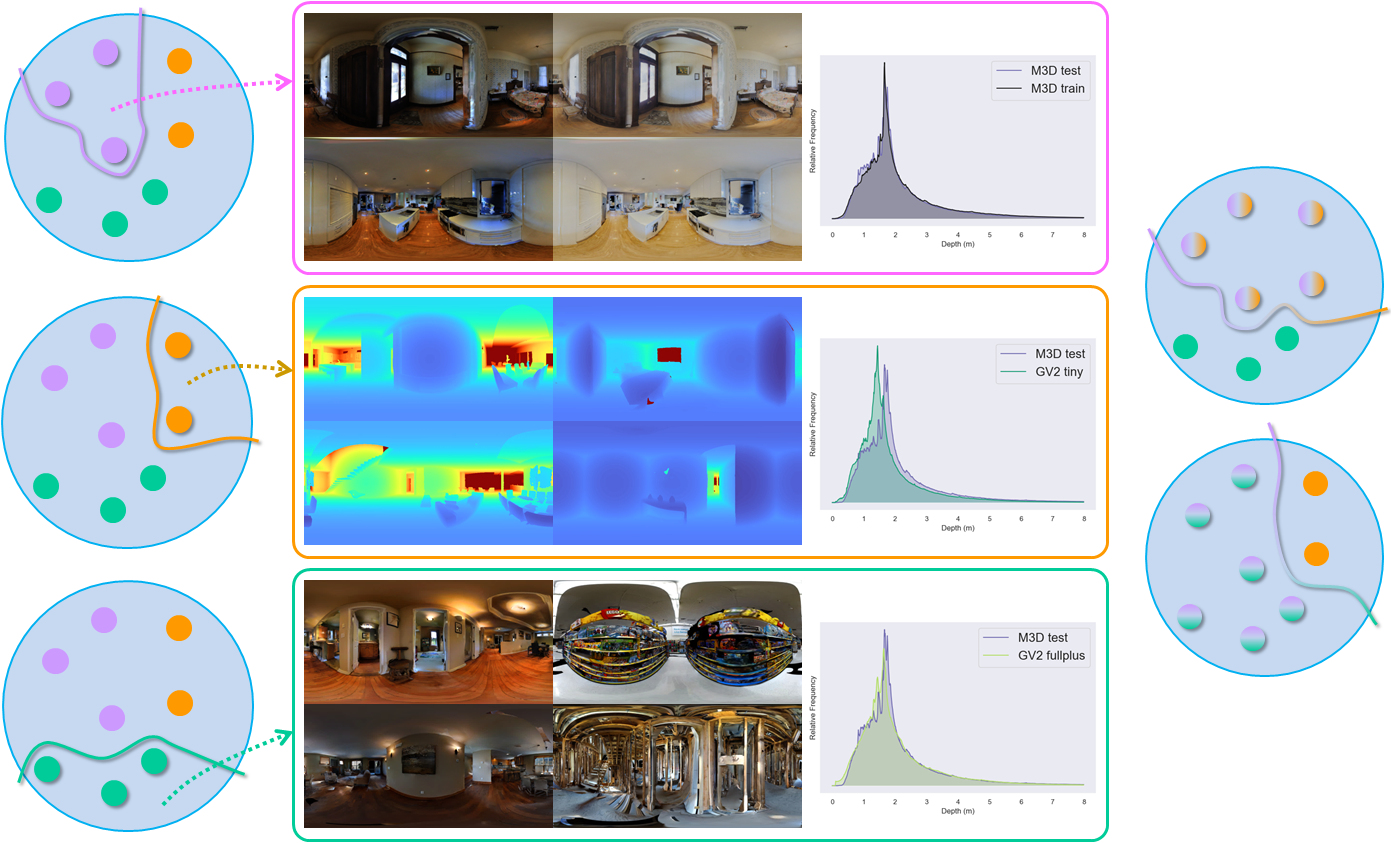

Figure 3: Disentangled distribution shifts. The left column represents the three singular shifts, namely covariate, prior and concept. In the middle, details regarding the composition and characteristics of the shifts can be found. The right column illustrates two stacked shift combinations.

3 Analysis

We support our benchmark with a set of zero-shot cross-dataset transfer experiments across the different distribution shifts. We use a standard UNet [15] architecture training a supervised model with a complex objective similar to [16]:

(1)

where is an L1 loss, is an angular loss defined on the surface normals, is the multi-scale gradient matching loss from [17], and is the virtual normal loss [18]. All the independent term weights are equally weighted, i.e.  We initialize our model using [19] and optimize it using a batch size of and the Adam optimizer [20], using a learning rate of and its default momentum parameter values.

When training we only use and for all experiments we calculate standard metrics for depth estimation [21], as well as boundary [22, 23] and normals RMSE and accuracies [24]. We aggregate performance across the different traits (direct depth, boundary and smoothness) them using a set of indicators:

(2)
(3)
(4)

where and are the depth and normal angular errors respectively, is the accuracy boundary error from [22], is the F1-score for different edge thresholds from [23], and and are the accuracy under thresholds for the depth and surface normals from [21] and [24] respectively.

Through these indicators we present an holistic view of how task performance is affected from the different distribution shifts. In the following subsections, we examine isolated distribution shifts as well as some of their combinations.

Decomposed Shifts: Varying the input, output and combined domains. After training a supervised model on M3D’s train split, we examine its performance on the different distribution shifts we have generated compared to that of the in-distribution test set. Figure 4 illustrates the results using the indicators from Eq. (2). We observe a performance drop for all distribution shifts, with the covariate (magenta box) and prior (orange box) being at about the same level, while the concept shift (cyan box) presents the largest performance loss. At the same time, combining two distribution shifts hurts performance even more, as shown by the combined distribution shifts (violet box).

(a)
(b)
(c)
Figure 4: The effect of each distribution shift and their combinations.

Photometric augmentations for covariate shift. Next, we examine the effect of training with photometric augmentations (i.e. brightness, contrast, hue shifts, and gamma corrections) and testing on the different (combined or not) distribution shifts. Figure 5 presents the results comparing training with and without augmentations. It is generally acknowledged that photometric augmentations address camera domain or color transfer function shifts, and our experiments verify this, as performance gains are only observed in the splits where covariate shifts manifests.

(a)
(b)
(c)
Figure 5: Photometric augmentations effect on the different distribution shifts.

Pretraining for generalization boost.

Another common assumption is that pretraining on large image datasets like ImageNet

[25] helps address domain shifts. We perform another experiment, this time using the PNAS model [26]

with all hyperparameters preserved, and train one model initialized with pretrained weights and another one initialized using

[19]. Figure 6 presents the results when tested on our benchmark’s different shifts. Interestingly, we observe a performance boost in the splits where only a single distribution shift is present, where in contrast, the ones with two stacked distribution shifts show minimal gains. This indicates that pretraining does not necessarily improve generalization – in the form of more transferable initial features – but, instead, only provides a better parameter initialization leading to higher quality parameters’ optimization.

(a)
(b)
(c)
Figure 6: The effect of pretraining on our benchmark’s different distribution shifts.

The full array of the conducted experiments and their detailed results can be found in Table 1.

4 Conclusion

Distribution shifting is pivotal to the real-world application of data-driven methods. In this work, we contribute a distribution shift benchmark for an ill-posed dense computer vision task, with notoriously difficult data collection process. Seeking to facilitate future research towards addressing this challenging problem, we decompose distribution shift to input (covariate), output (prior) and their relationship (concept), providing an experimental baseline for further experimentation and understanding.

Model

Split Direct Depth Depth Discontinuity Depth Smoothness
Error Accuracy Error Accuracy Error Accuracy
RMSE RMSLE AbsRel SqRel dbeacc dbecomp prec prec prec rec rec rec RMSEo

UNet

PM3Dtst 0.452 0.130 0.115 0.081 36.68% 60.59% 88.31% 96.96% 98.73% 1.270 3.888 58.97% 57.54% 51.85% 43.96% 36.69% 28.59% 16.021 61.80% 76.58% 81.70%
Pcov 0.546 0.130 0.135 0.113 29.08% 52.44% 83.47% 83.68% 95.28% 1.526 4.404 63.64% 63.33% 57.23% 36.15% 29.03% 20.73% 17.398 59.82% 75.62% 81.10%
Pprior 0.472 0.206 0.173 0.141 21.85% 41.67% 81.49% 81.62% 95.73% 1.473 4.338 61.43% 64.51% 60.21% 46.53% 40.67% 33.08% 17.357 57.01% 74.59% 80.71%
Pconc 0.617 0.266 0.184 0.193 23.41% 42.42% 76.21% 76.44% 92.30% 1.723 5.037 54.45% 56.37% 52.31% 34.61% 29.07% 23.02% 22.059 46.84% 66.09% 73.41%
Pcovprior 0.545 0.232 0.185 0.185 22.82% 42.82% 79.43% 79.58% 93.73% 1.694 4.844 57.63% 59.49% 53.19% 37.47% 31.28% 23.22% 19.219 53.24% 71.44% 78.00%
Pcovconc 0.737 0.297 0.220 0.411 20.96% 38.47% 70.20% 70.46% 87.99% 1.948 5.560 50.65% 50.90% 44.46% 26.76% 21.28% 15.46% 23.898 43.54% 63.06% 70.69%

UNetaug

PM3Dtst 0.433 0.068 0.109 0.073 37.36% 63.11% 89.59% 89.76% 97.42% 1.360 3.876 64.82% 64.94% 60.41% 44.96% 37.02% 27.96% 15.099 63.99% 77.98% 82.83%
Pcov 0.469 0.073 0.117 0.091 35.35% 61.31% 88.20% 88.40% 96.83% 1.443 4.156 64.27% 63.79% 58.79% 42.17% 34.00% 25.21% 15.653 63.92% 78.34% 83.34%
Pprior 0.458 0.084 0.170 0.102 20.43% 39.73% 81.19% 81.32% 96.19% 1.448 4.268 62.69% 66.19% 62.27% 47.56% 41.51% 32.90% 16.307 59.48% 76.41% 82.16%
Pconc 0.601 0.103 0.176 0.152 23.61% 42.70% 76.98% 77.22% 92.78% 1.704 5.006 56.24% 58.18% 53.33% 35.45% 29.78% 23.07% 20.870 49.29% 68.06% 75.09%
Pcovprior 0.475 0.087 0.174 0.114 20.22% 39.51% 80.39% 80.52% 95.70% 1.533 4.392 60.69% 63.32% 59.43% 44.54% 38.01% 29.63% 16.669 58.74% 75.78% 81.62%
Pcovconc 0.624 0.108 0.183 0.170 22.78% 41.57% 75.56% 75.80% 92.06% 1.769 5.148 54.64% 55.56% 50.02% 32.85% 26.91% 20.50% 21.234 48.58% 67.49% 74.58%

Pnas

PM3Dtst 0.561 0.085 0.133 0.120 32.69% 56.94% 96.30% 95.38% 97.95% 2.654 5.730 38.73% 30.26% 23.58% 18.74% 10.48% 8.48% 20.118 53.88% 69.81% 75.65%
Pcov 0.703 0.109 0.160 0.159 23.45% 45.12% 76.27% 77.79% 92.06% 2.869 6.075 36.70% 28.00% 18.99% 12.33% 6.80% 5.32% 21.486 52.07% 68.75% 74.91%
Pprior 0.562 0.098 0.188 0.146 19.67% 38.39% 76.37% 77.53% 94.28% 2.651 5.243 34.12% 29.20% 23.15% 18.43% 11.70% 9.68% 19.929 52.64% 70.83% 77.51%
Pconc 0.693 0.117 0.200 0.196 21.27% 39.37% 72.84% 73.10% 90.80% 3.192 7.277 32.20% 25.87% 19.51% 13.69% 8.32% 6.68% 24.433 44.01% 63.45% 71.07%
Pcovprior 0.663 0.116 0.192 0.170 21.21% 40.24% 74.54% 74.72% 91.12% 3.266 7.251 29.89% 24.68% 17.70% 11.58% 7.01% 5.58% 22.493 47.89% 66.76% 73.90%
Pcovconc 0.842 0.145 0.222 0.244 18.50% 34.75% 65.66% 65.93% 85.70% 3.674 7.881 28.13% 21.04% 13.40% 8.15% 4.65% 3.70% 26.583 39.92% 59.69% 67.72%

Pnaspre

PM3Dtst 0.467 0.070 0.107 0.086 40.90% 64.98% 90.38% 90.56% 97.33% 2.217 5.019 44.35% 37.55% 31.57% 25.78% 15.54% 11.60% 17.785 59.34% 73.58% 78.80%
Pcov 0.492 0.074 0.114 0.094 39.53% 62.86% 88.92% 89.14% 96.92% 2.304 6.118 44.83% 37.46% 31.06% 24.20% 14.55% 10.87% 18.066 60.24% 74.64% 79.93%
Pprior 0.501 0.087 0.172 0.112 18.89% 37.30% 80.83% 80.99% 96.34% 2.307 5.936 40.62% 37.67% 34.14% 26.48% 18.37% 14.72% 18.003 57.90% 74.54% 80.52%
Pconc 0.616 0.103 0.174 0.149 23.20% 41.88% 77.59% 77.87% 93.24% 2.658 6.712 38.10% 32.81% 27.60% 20.23% 13.14% 10.46% 22.060 49.32% 67.63% 74.63%
Pcovprior 0.531 0.093 0.189 0.130 16.68% 32.96% 78.06% 78.21% 95.67% 2.400 6.094 39.70% 36.16% 32.07% 24.74% 16.74% 13.23% 17.949 58.22% 74.70% 80.59%
Pcovconc 0.649 0.109 0.184 0.161 21.98% 39.44% 75.48% 75.77% 92.34% 2.790 6.918 37.29% 31.64% 25.48% 18.25% 11.48% 9.10% 22.019 49.63% 67.78% 74.69%
Table 1: Three-axis depth performance across models and data-splits. The worst, 2nd worst and 3rd worst performance drops per model are denoted in color respectively.

This work was supported by the EC funded H2020 project ATLANTIS [GA 951900].
