4D Segmentation Algorithm with application to 3D+time Image Segmentation

11/21/2021
by   Markjoe Olunna Uba, et al.
0

In this paper, we introduce and study a novel segmentation method for 4D images based on surface evolution governed by a nonlinear partial differential equation, the generalized subjective surface equation. The new method uses 4D digital image information and information from a thresholded 4D image in a local neighborhood. Thus, the 4D image segmentation is accomplished by defining the edge detector function's input as the weighted sum of the norm of gradients of presmoothed 4D image and norm of presmoothed thresholded 4D image in a local neighborhood. Additionally, we design and study a numerical method based on the finite volume approach for solving the new model. The reduced diamond cell approach is used for approximating the gradient of the solution. We use a semi-implicit finite volume scheme for the numerical discretization and show that our numerical scheme is unconditionally stable. The new 4D method was tested on artificial data and applied to real data representing 3D+time microscopy images of cell nuclei within the zebrafish pectoral fin and hind-brain. In a real application, processing 3D+time microscopy images amounts to solving a linear system with several billion unknowns and requires over 1000 GB of memory; thus, it may not be possible to process these images on a serial machine without parallel implementation utilizing the MPI. Consequently, we develop and present in the paper OpenMP and MPI parallel implementation of designed algorithms. Finally, we include cell tracking results to show how our new method serves as a basis for finding trajectories of cells during embryogenesis.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 7

page 10

page 11

page 12

page 32

page 33

page 35

page 36

06/22/2020

A Proximal-Gradient Algorithm for Crystal Surface Evolution

As a counterpoint to recent numerical methods for crystal surface evolut...
10/03/2007

Colour image segmentation by the vector-valued Allen-Cahn phase-field model: a multigrid solution

We propose a new method for the numerical solution of a PDE-driven model...
04/19/2021

Two-phase image segmentation by the Allen-Cahn equation and a nonlocal edge detection operator

Based on a nonlocal Laplacian operator, a novel edge detection method of...
07/17/2020

Anisotropic Mesh Adaptation for Image Segmentation Based on Mumford-Shah Functional

As the resolution of digital images increase significantly, the processi...
06/17/2020

A parallel hybrid implementation of the 2D acoustic wave equation

In this paper, we propose a hybrid parallel programming approach for a n...
08/25/2017

Linear Differential Constraints for Photo-polarimetric Height Estimation

In this paper we present a differential approach to photo-polarimetric s...
11/01/2010

Volume-Enclosing Surface Extraction

In this paper we present a new method, which allows for the construction...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In image processing and computer vision, it is well known that image segmentation is one of the fundamental and most studied problems. Consequently, there are several approaches to image segmentation in literature

segm5 ; segm2 ; segm3 ; segm4 ; segm1 ; segm7 ; segm8 ; sethianb ; segm6 . However, in this paper, we will study and use the level set method for image segmentation. The idea of following the interfaces in immiscible fluid flow by the Eulerian approach was proposed by Dervieux and Thomasset levelset1 ; levelset2 , and Osher and Sethian oshersethian then introduced the general level set methodology. The level set method is the evolution of curves and surfaces by means of a dynamical embedding function (often referred to as the level set function). In other words, the level set method is the implicit representation of boundaries, curves (or surfaces). Furthermore, in the level set formulation, the subjective surface (SUBSURF) method for image segmentation will be the focus of this paper. This method, in the context of image processing, was introduced in sartietal ; subsurf , studied and applied in several biomedical research cmssga ; faure ; app1 ; balasz ; kmnapmr ; kmikula ; mprs ; app4 ; app2 ; sartietal ; subsurf ; app3 . SUBSURF segmentation method is based on the idea of evolution of segmentation function governed by a nonlinear diffusion equation cmssga ; sartietal ; subsurf ; zcrmbmpa which can be understood as an advection-diffusion model mprs . Hence, a segmentation seed (the starting point that determines the approximate position of an object in the image) is usually needed to segment an object. Then an initial segmentation function is constructed with reference to the segmentation seed. Finally, this segmentation function is allowed to evolve to the final state following the SUBSURF model. Ideally, the evolution process ends up with a function whose isosurfaces all have the object’s shape that is intended to be segmented. At each time step in the evolution process, the values of the segmentation function are locally rescaled to interval . After the last time step in the evolution, the contour is chosen as the approximate boundary of the segmented object.

In this paper, we introduce a generalization of the classical SUBSURF model. This generalization is due to the fact that in real applications where the object intended to be segmented possesses internal structures or edges, it is usually challenging to obtain optimal results using the classical SUBSURF segmentation approach. The reason is that this approach works with edge information throughout the segmentation process. Hence, edges within the internal structures in an object of interest are also respected during segmentation. To overcome the effect of the internal structures or edges, we introduced thresholding of image intensity values within a ball of appropriate radius around the object center. This local thresholding serves to eliminate the internal structures or edges. Additionally, we combined the information obtained from thresholding and original image intensities to get an accurate final segmentation result. Unlike the works in kmikula ; mprs ; app4 ; msarti ; app2 ; app22 , at each segmentation step, the values of the segmentation function are rescaled to interval . Finally, considering that the computation task involving 4D microscopy images requires solving a linear system with several billion unknowns, we developed an efficient parallel implementation of the method for the generalized model in the case of 4D images.

The remaining part of this work is organized as follows: Section provides an overview of the SUBSURF method and some numerical examples of the application of the SUBSURF segmentation method to artificial and real data. Section contains the details of the proposed generalization of the classical method. It contains the studied model combining thresholded image information and original image data, the numerical scheme for solving the model, the stability of the numerical scheme, experimental order of convergence, an overview of the computer implementation, and parallel implementation using OpenMP and MPI. Furthermore, the application of the new segmentation algorithm to D image segmentation was presented in Section . Finally, cell tracking based on the result of the new segmentation algorithm was presented in Section .

2 The SUBSURF segmentation method

The SUBSURF segmentation method is based on the idea of evolution of segmentation function, which is governed by an advection-diffusion model. The SUBSURF model was proposed by Sarti, Malladi, and Sethian subsurf and is given by

(1)

where is the unknown segmentation function, , is image to be segmented, and is a smoothing kernel. is a smooth nonincreasing function such that and as . The function was introduced by Perona and Malik in pm and has the following typical example:

(2)

Equation (1) is accompanied by Dirichlet boundary conditions

(3)

or Neumann boundary conditions

(4)

where is unit normal to , and with the initial condition

(5)

Dirichlet boundary condition is used in the image segmentation, and without loss of generality may be assumed. The zero Neumann boundary conditions are used, e.g., in morphological image smoothing (see, e.g., cmssga and references therein).

In computations involving model (1), one possible choice of initial segmentation function, , is the following function

(6)

where corresponds to the focus point, and gives a maximum of whose peak is centered in a “focus point” inside the segmented object app2 . This function can also be considered only at a circle with center and radius . Outside this circle, the value of is taken to be . If (1) is accompanied by zero Dirichlet boundary condition, then finally is subtracted from such peak-like profile. In the case of small objects, a smaller choice of value for can be used to speed up computations. Also, is another possible choice of initial segmentation function.

We now present some numerical and illustrative examples to demonstrate the application of the SUBSURF model to image segmentation. The model (1) for surface reconstruction was tested on artificial examples and applied to real data representing 3D microscopy images of cell nuclei. For the first numerical experiment, a sphere and a sphere with holes were generated, as can be seen in the first column of Figure 1. Afterward, model (1) was used to reconstruct the shapes of these spheres, and the results obtained after reconstruction are shown in the second column of Figure 1. In the second experiment, the model (1) was applied to real data representing 3D microscopy images of cell nuclei and membrane. In the first column of Figures 2, 3, and 4, 3D image of these microscopy images are shown, whereas, in the second column of Figures 2, 3, and 4 the results obtained after application of model (1) are shown and colored in black.

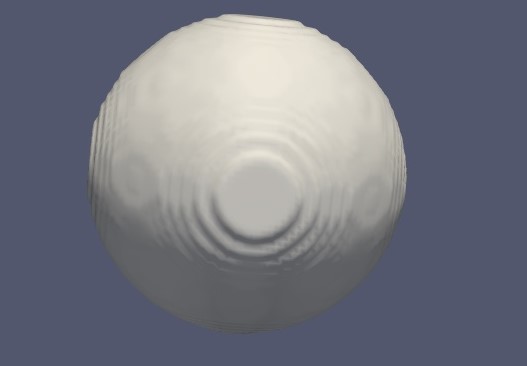

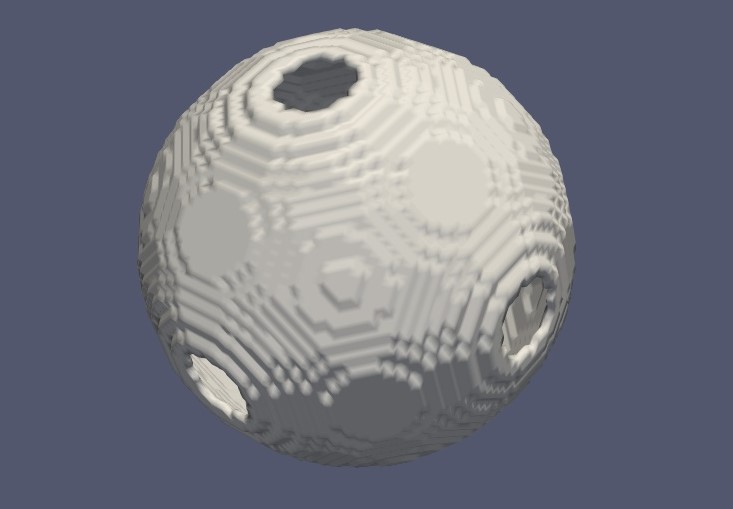

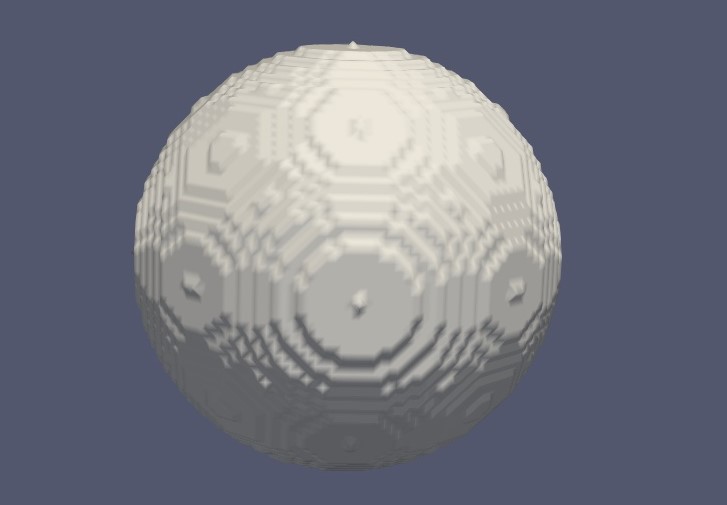

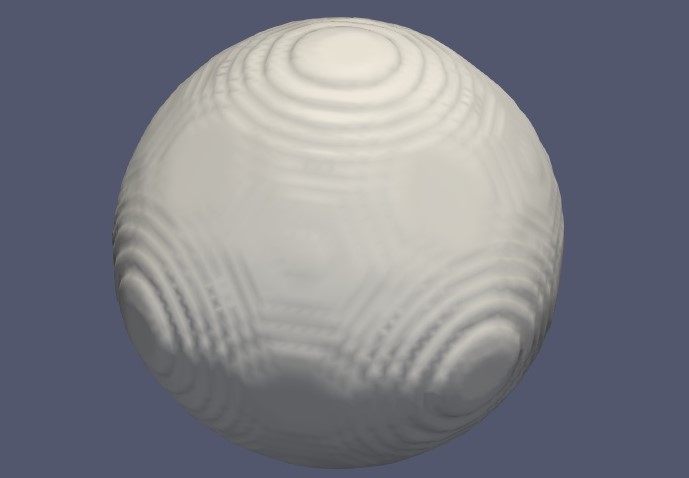

Figure 1: First column shows a solid sphere and sphere with six symmetric holes, whereas the second column shows results of the segmentation after the application of the model (1).

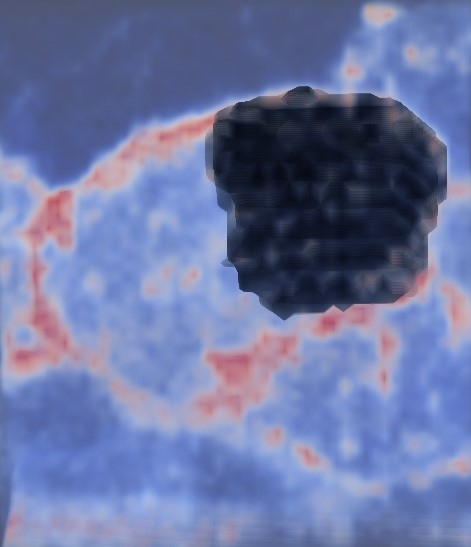

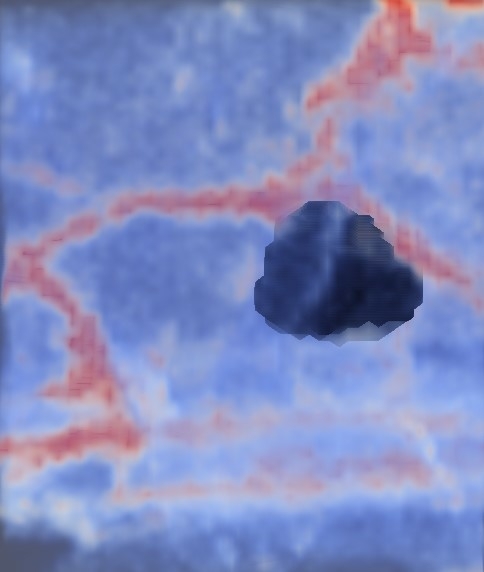

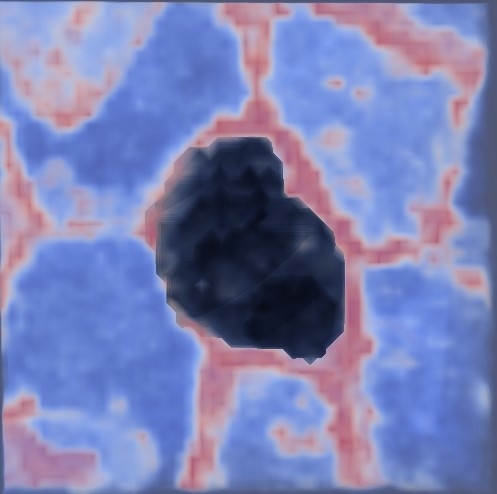

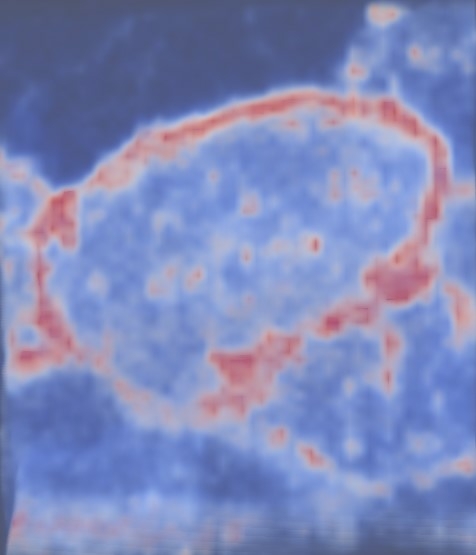

Figure 2: First column of this figure shows the 3D microscopy image of cell membrane to be segmented, whereas the second column shows the result after application of the model (1); the cell membrane of interest and its corresponding result after segmentation (which are depicted in black) is located approximately at the center of each picture.

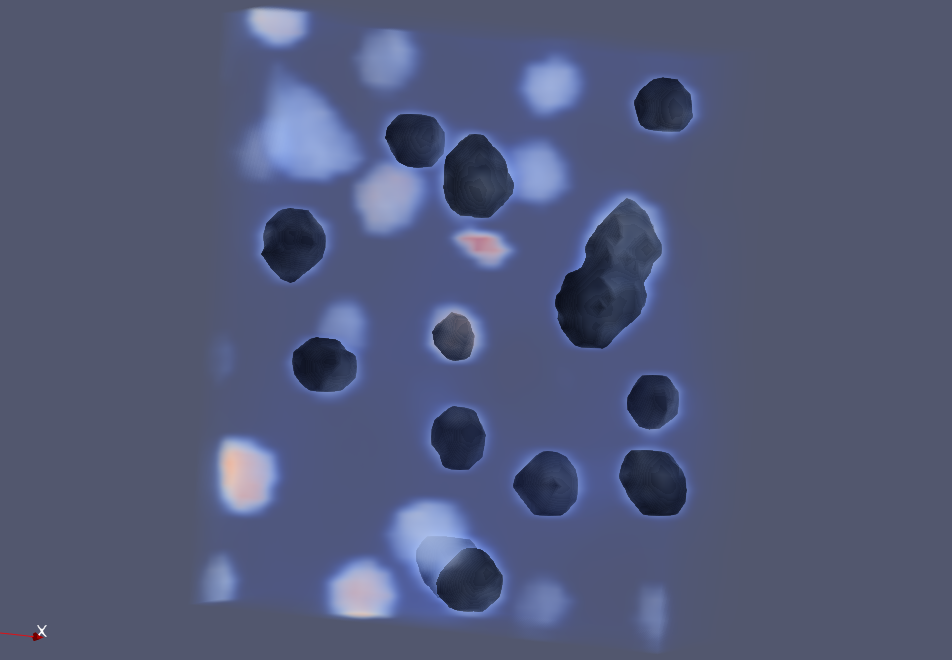

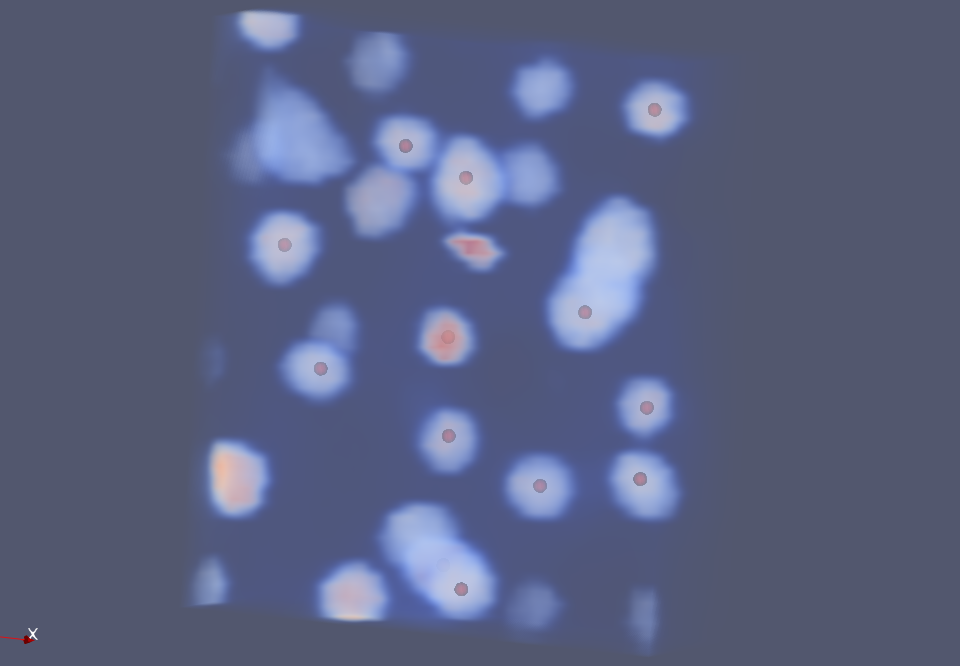

Figure 3: First column of this figure shows the 3D microscopy image of cell nuclei together with approximate cell centers (these are points marked in red color), whereas the second column shows the 3D image of microscopy image of cell nuclei after application of (1) to the cells with centers marked in red color.
Figure 4: First column of this figure shows the 3D microscopy images of cell nuclei to be segmented, whereas the second column shows the result after application of the model (1); the cell nuclei of interest and their corresponding results after segmentation (which are depicted in black) are located approximately at the center of each picture.

3 4D Image Segmentation Algorithm

In the previous section, we presented the SUBSURF segmentation method and some of its successful applications. However, in many real applications where the object to be segmented has internal structures or edges, it is usually challenging to obtain optimal results using the SUBSURF segmentation approach (see, e.g., Figures 5, 6, and 7). The reason is that this approach works with edge information throughout the segmentation process. Hence, edges within the internal structures in an object of interest are also respected during segmentation. For instance, Figures 5, 6, and 7 show the results of segmentation using the classical SUBSURF approach for D images of zebrafish cell nuclei, cell membrane, and mouse embryo cell nuclei, respectively. The results of segmentation in these figures are colored in black, and the shapes of interest are located approximately at the center of each image.

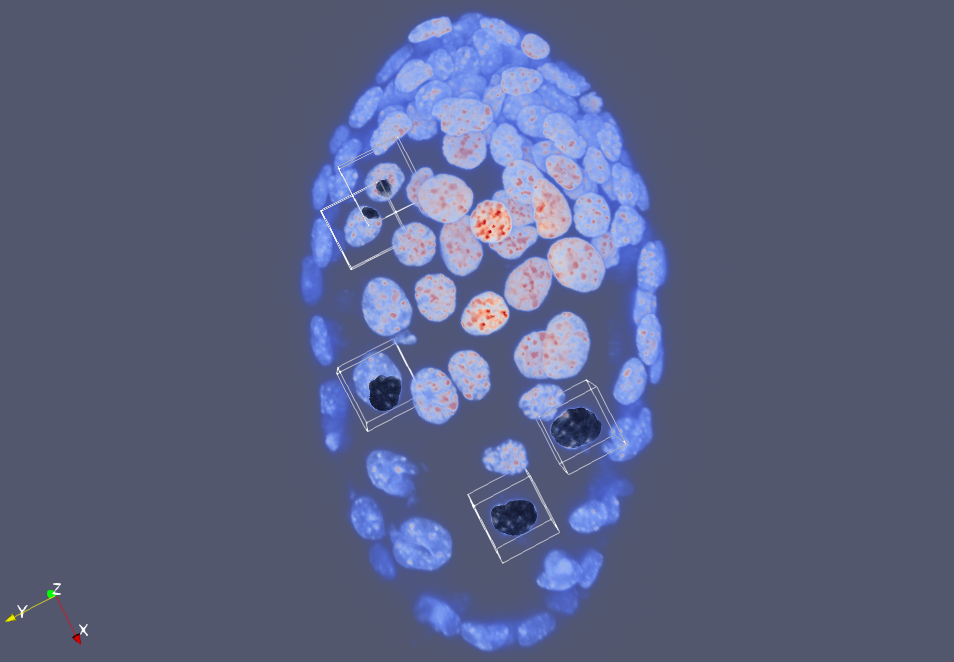

Figure 5: This figure shows the D microscopy image of mouse embryo cell nuclei segmentation result using classical SUBSURF approach.

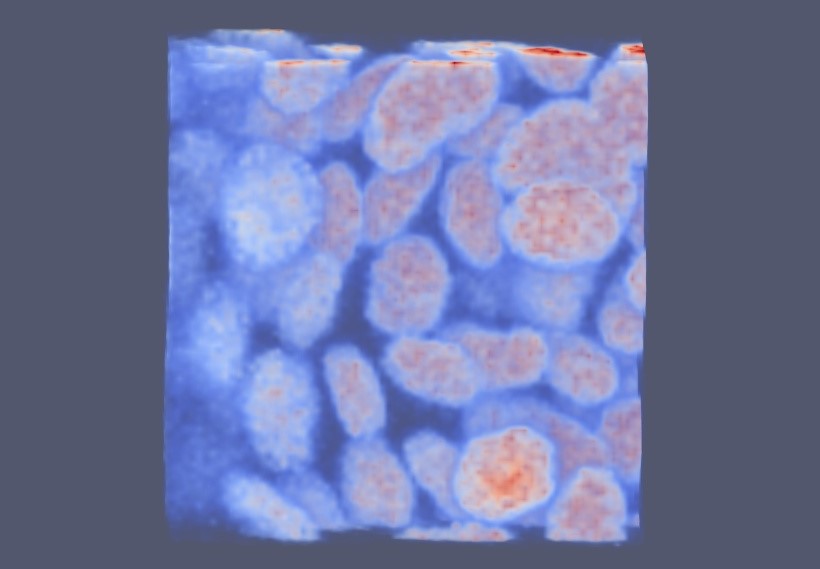

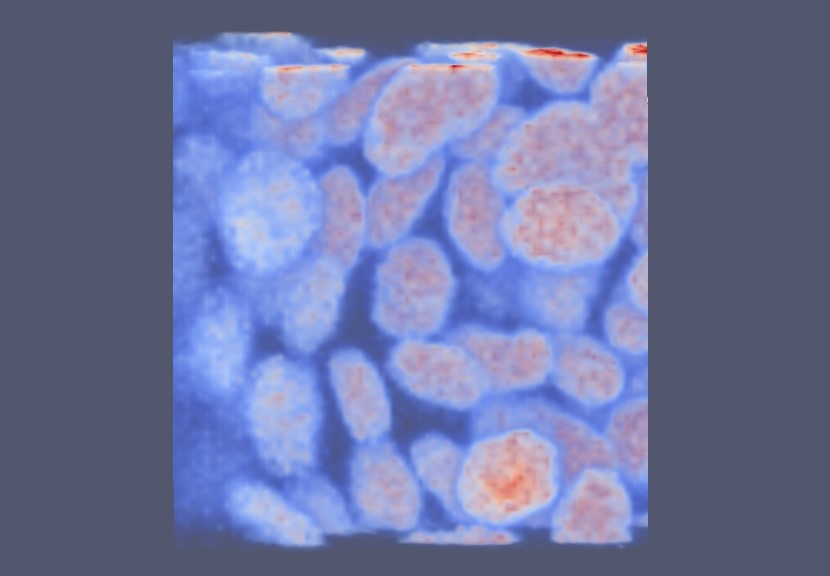

Figure 6: First column of this figure shows the 3D microscopy images of cell nuclei to be segmented, whereas the second column shows the result of segmentation using the classical SUBSURF approach.

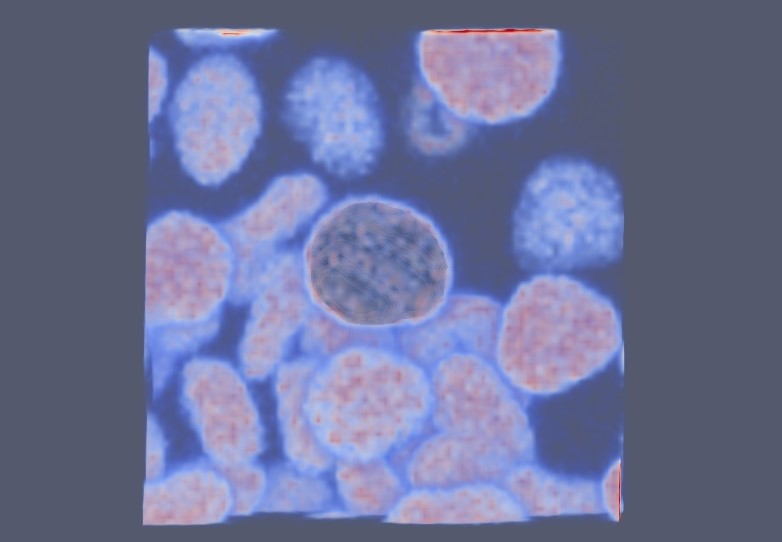

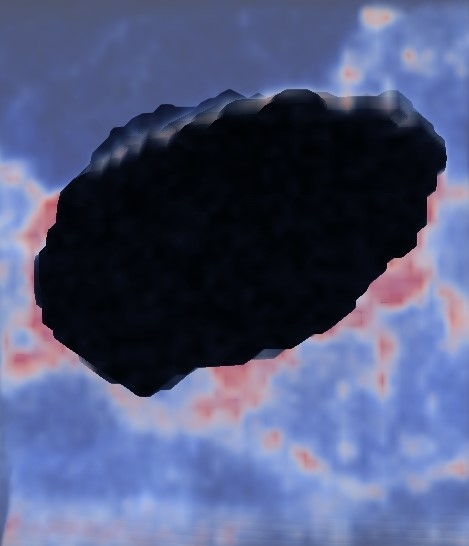

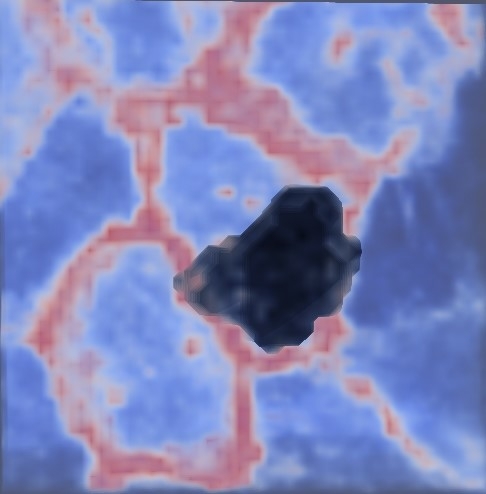

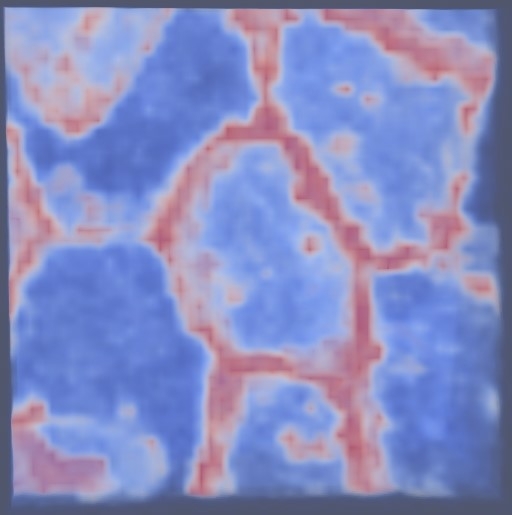

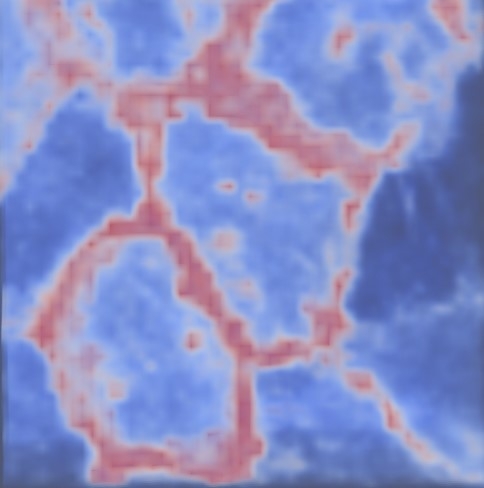

Figure 7: First row of this figure shows the 3D microscopy images of cell membranes to be segmented, while the second row shows the result of segmentation using the classical SUBSURF approach.

In this section, to overcome the effect of the internal structures or edges, we introduce the thresholding of values within a ball of appropriate radius around the object center. This local thresholding serves to eliminate the internal structures or edges. Finally, we combine the information given by thresholding and original image intensities to get a segmentation result. For example, in D segmentation (see also ubaetal ; ubaetalm ) of nuclei and membranes images shown in Figures 57 using this approach, we obtained the results presented in Figures 810, which is clearly much more accurate compared to the results, shown in Figures 57, obtained using the classical method.

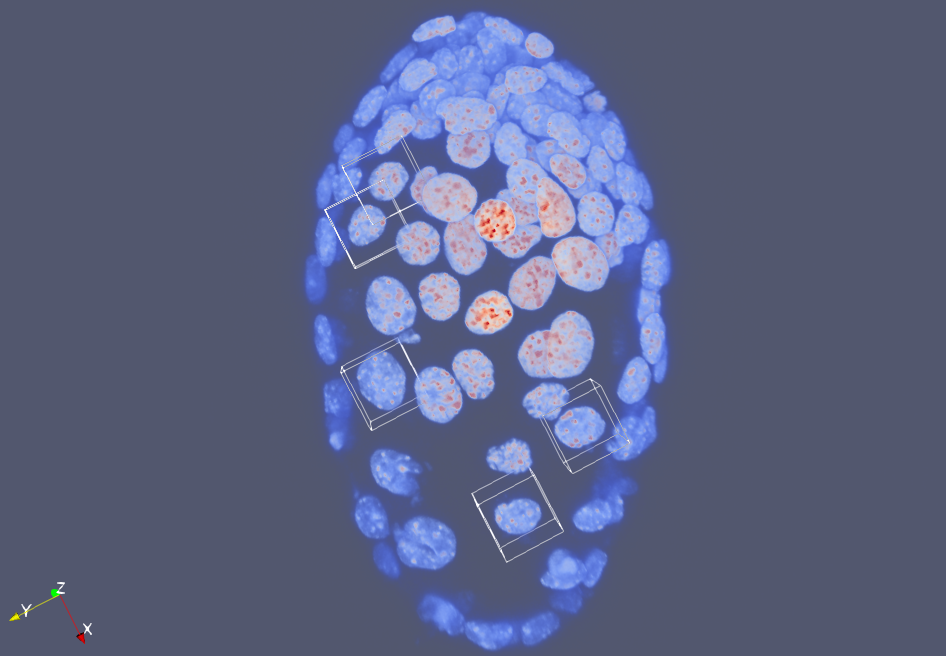

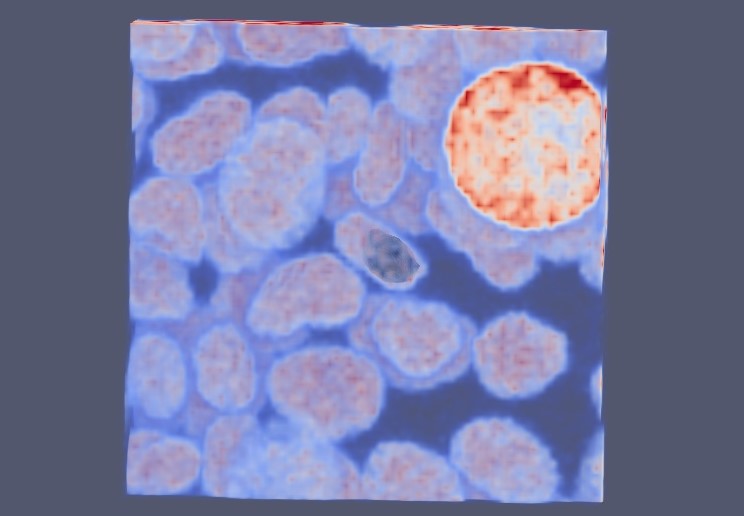

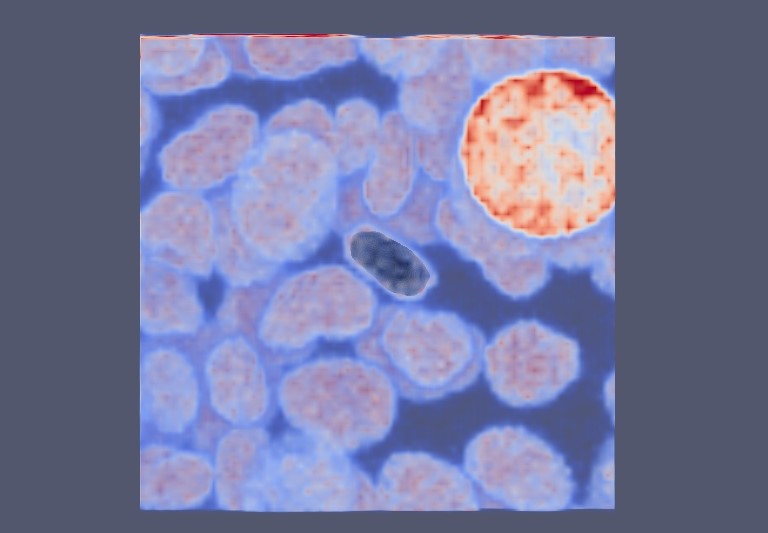

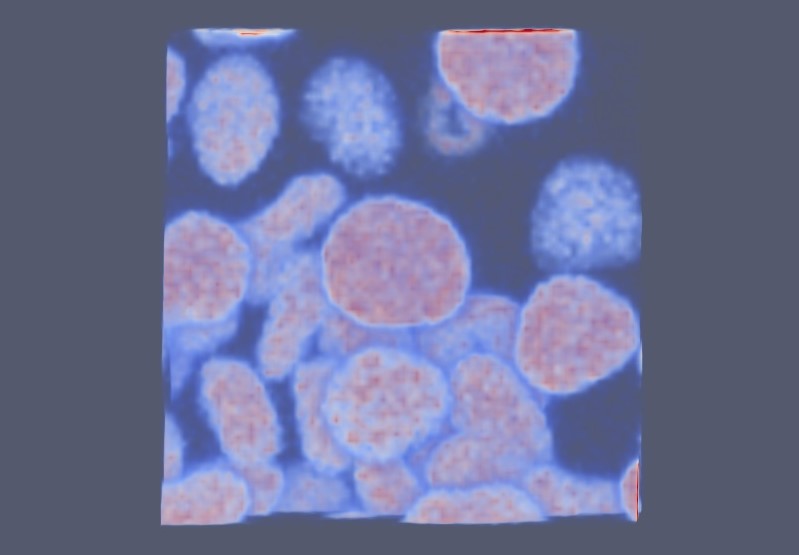

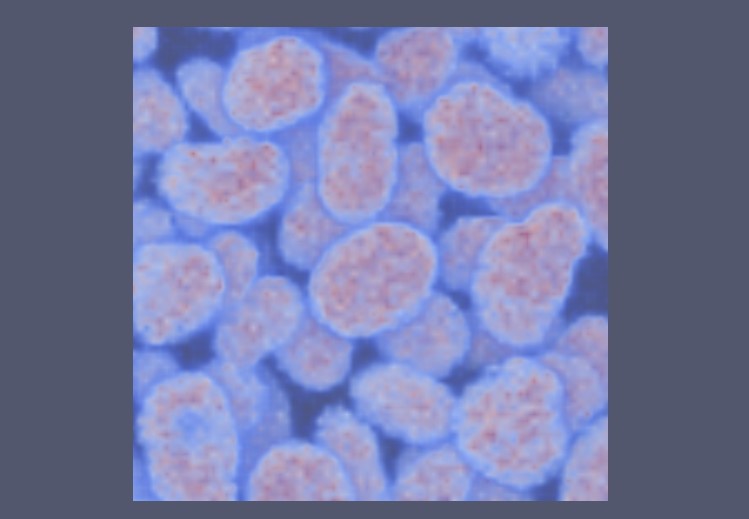

Figure 8: This figure shows the D microscopy image of mouse embryo cell nuclei.

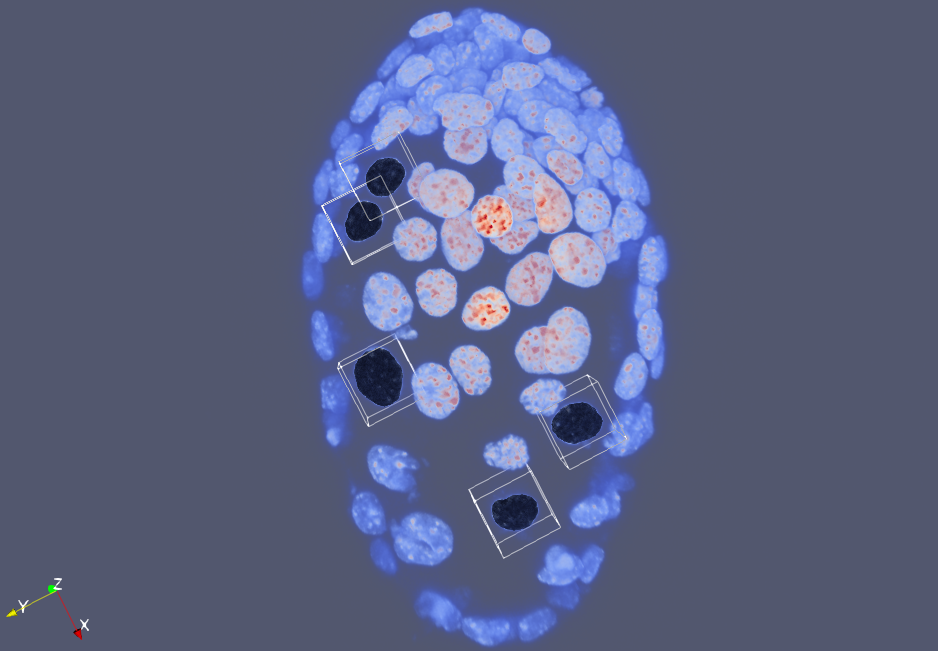

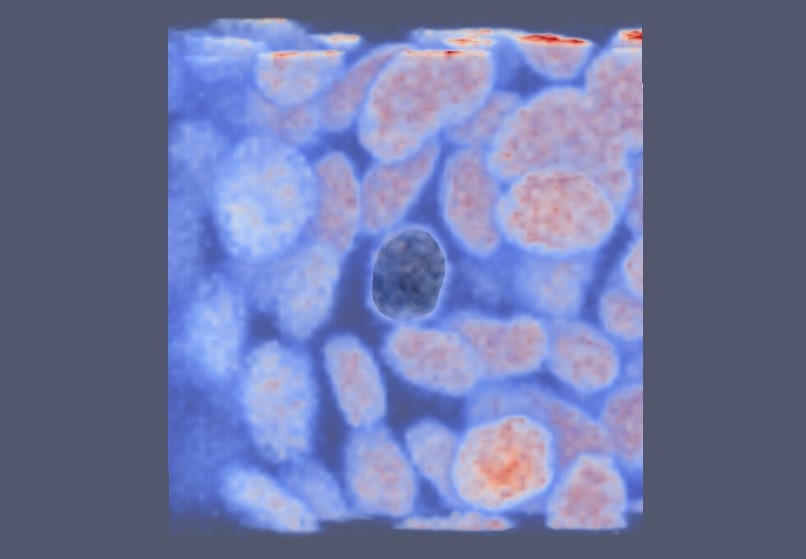

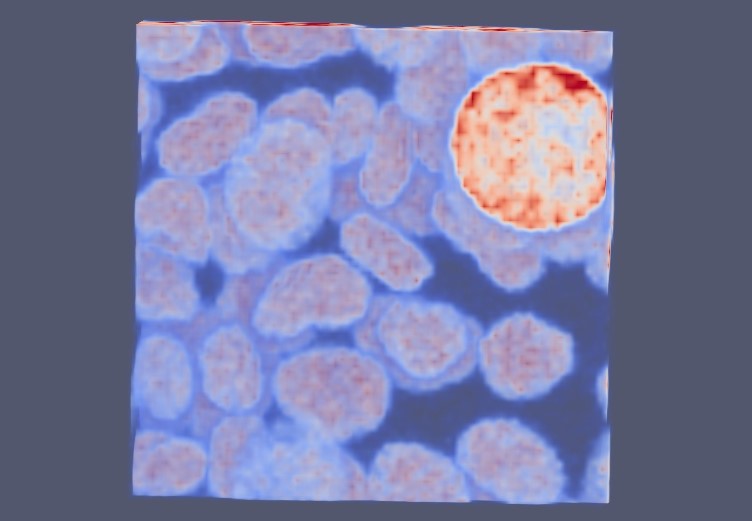

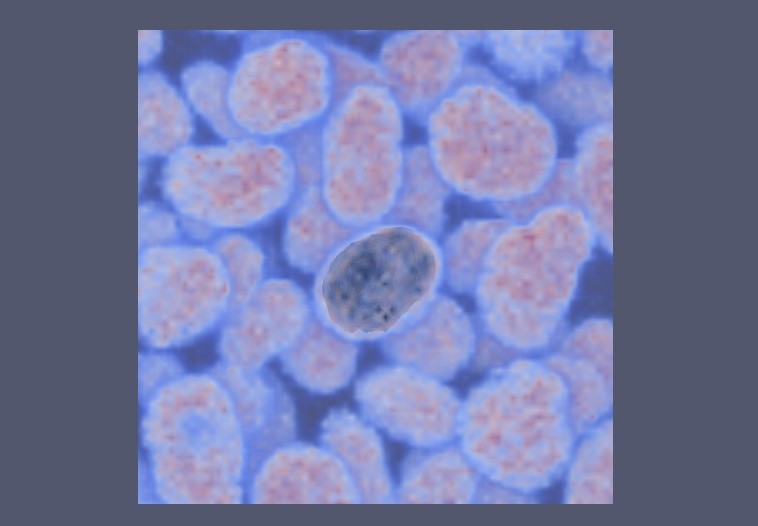

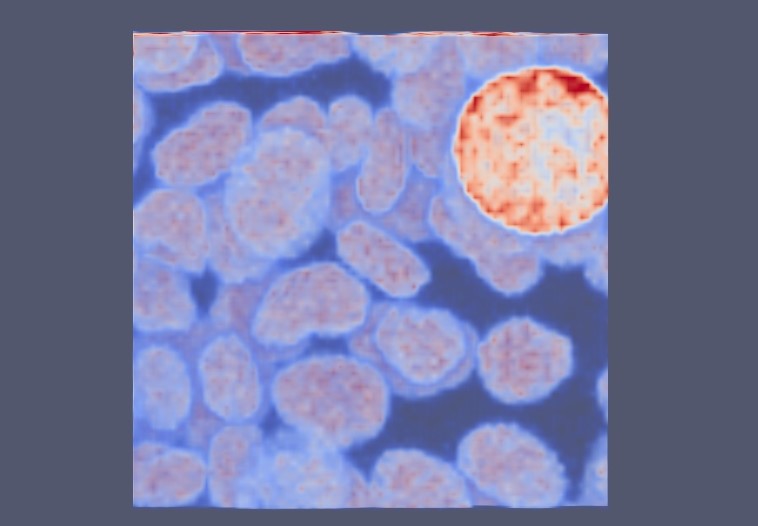

Figure 9: In this figure, first row shows the D microscopy images of four different cell nuclei; second row shows segmentation result using thresholded image intensity information and original image intensity information in 3D case of (7). That is, the result after application of the 3D case of (7) with and .

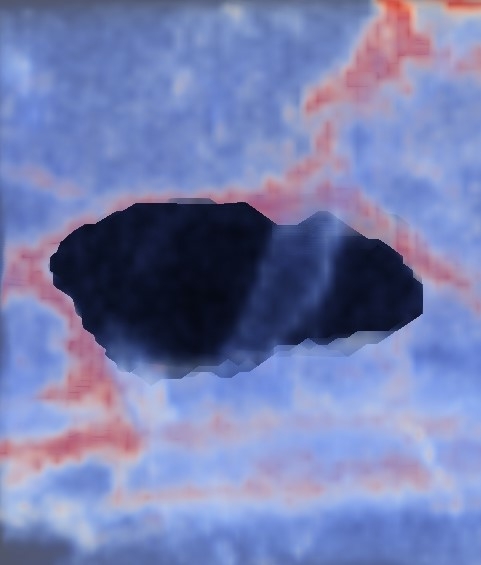

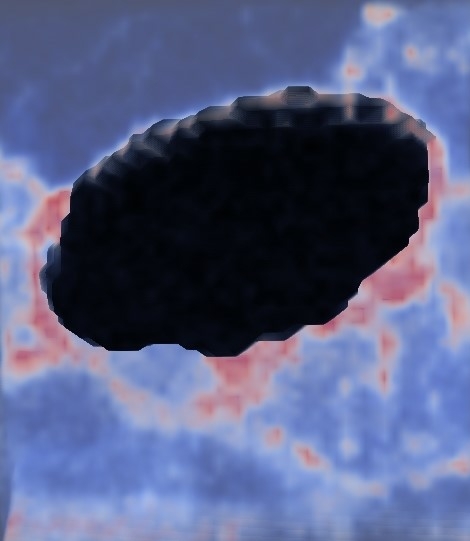

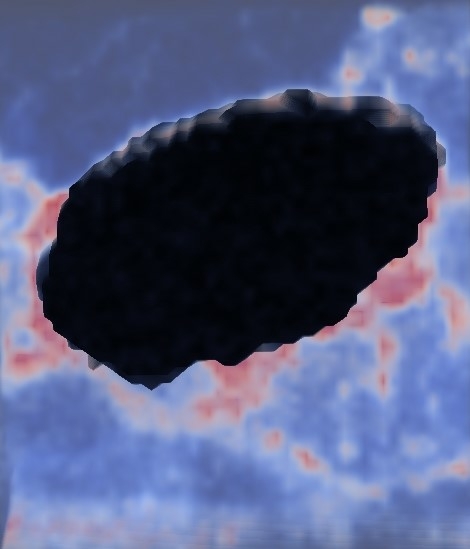

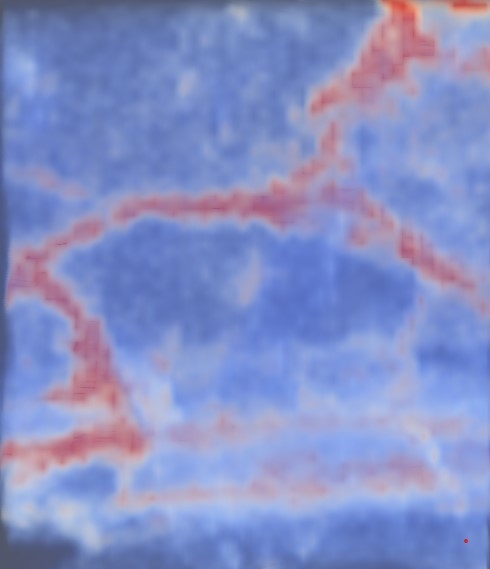

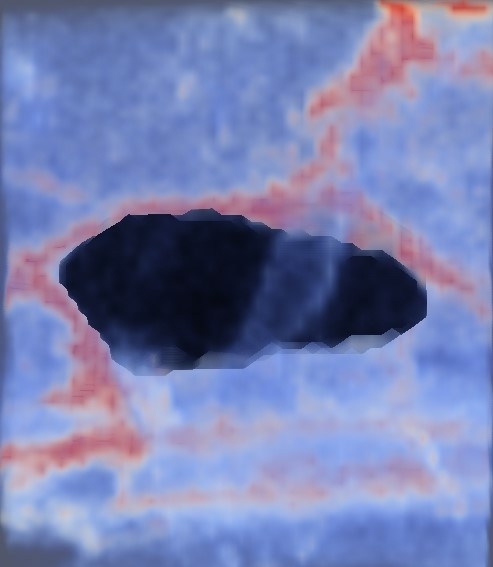

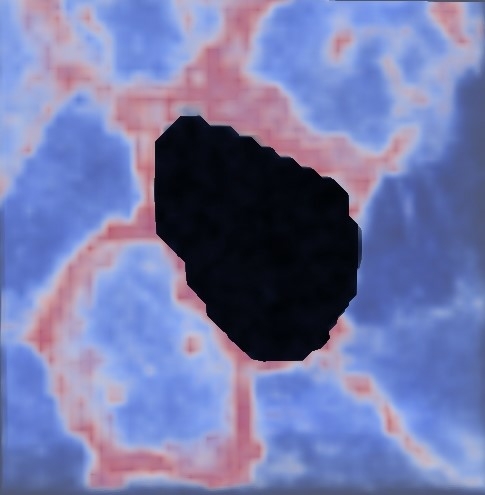

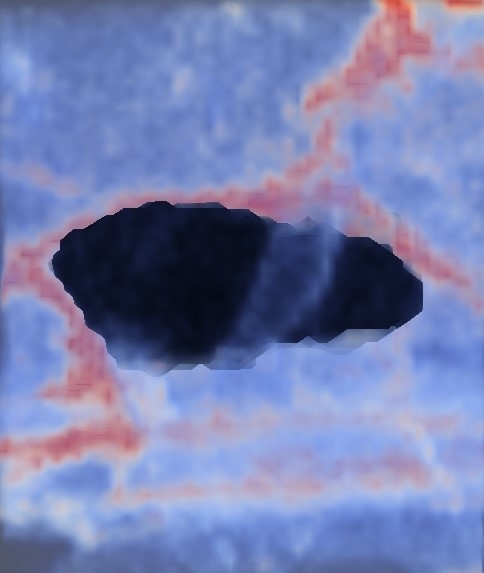

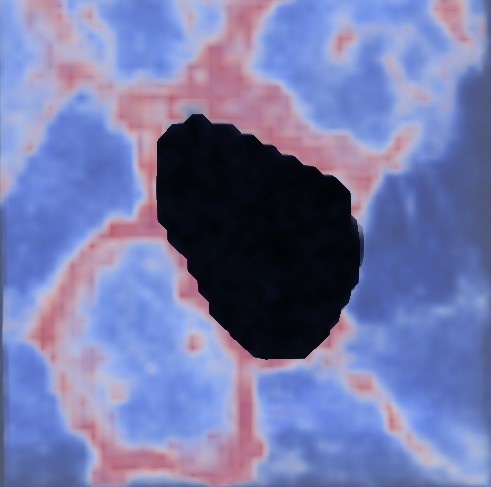

Figure 10: First column of this figure shows the D microscopy images of cell membrane to be segmented. The second, third, and fourth columns show the result after the application of (7) in 3D with and , and , and and , respectively.
