3D Printed Stencils for Texturing Flat Surfaces

05/31/2016 ∙ by Vaibhav Vavilala, et al. ∙ 0

We address the problem of texturing flat surfaces by spray-painting through 3D printed stencils. We propose a system that (1) decomposes an image into alpha-blended layers; (2) computes a stippling given a transparency channel; (3) generates a 3D printed stencil given a stippling and (4) simulates the effects of spray-painting through the stencil.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Stencils have long been used for decorating walls, fabrics, and even food. Application of stencils involves placing a thin sheet against a flat surface, and spray-painting through the holes in the sheet. These stencils have been generated by hand as well as using image editing applications like Adobe Photoshop. Recently, the generation of stencils has been automated  [Jain et al. 2015]. By segmenting images into piecewise constant layers using the Graph Cut Algorithm and fixing the topology [Chen et al. 2011], an arbitrary image can be decomposed into a series of stencils, with one color assigned per layer. We implement this system in MATLAB (see Figure 1). We observe that such stencils are limited to hard-boundaries and only a finite number of colors; the final composite cannot capture the millions of colors present in the input image.

Figure 1: Hard-stencil generation for a flower (bottom left). Composite shown on bottom right.

Here, we propose using 3-D printed stencils to produce richer composites more faithful to the original image. Our stencils can reproduce the spectrum of values, as opposed to only or . Elevation of the stencil away from the surface enables a blend between holes drilled into the stencil.

2 Procedure & Results

Figure 2: Computing six soft-segmented layers. Blending these layers produces a chromatically rich composite.
Figure 3: (Left) Input image. (Center) Importance sampling result. (Right) Result after Lloyd’s relaxation. dots.

Our method takes as input an image and outputs a sequence of 3D printed stencils. We first decompose the input image into a user-specified number of layers. We then produce stipplings of each layer. We finally engineer a 3D model corresponding to each stippling layer. Our contribution also includes a spray-paint simulator that will predict the effects of spray-painting through an arbitrary stencil.

2.1 Image Decomposition

We outline our method for decomposing images into layers, that when alpha blended, produce a composite as close to the original as possible. We rely on the Porter-Duff over operator for our compositions [Porter and Duff 1984], defined as:

(1)

where there are layers, is the composite pixel color after layers, is the color associated with layer , and is the opacity at pixel and layer . We also compute a background color for where at every pixel. This background layer can be interpreted as ”priming” the surface.

The image decomposition problem aims to compute layers of values and colors associated with these layers. We define an energy function that takes into account the attributes we’d like to be true of a solution.

Data Term We minimize the difference between composite and input pixel value as follows:

(2)

where is the input image, is the composite, and there are pixels. The three terms correspond with three color channels, .

Smoothness Term Our smoothness term aims for smoothly varying transparency values in each layer. Since we are blending adjacent stippling dots, local sharp changes in transparency are difficult to reproduce. Let be the computed channels. We define our smoothness term as follows:

(3)

where refers to the eight neighbors of pixel .

Sparsity Term We begin with the presupposition that it is easier to replicate painted regions with or , and there will be more error associated with intermediate values. We introduce a sparsity term to drive transparency values to these extremes by penalizing intermediate values. Driving the sum of the values among the top layers to 1, independently for each pixel, achieves this goal.

(4)

We then set up a convex optimization problem, solving for layers sequentially, then solving for all the colors at once, and repeating until convergence. If we let , and tune the relative strength of the energy terms, the final objective function is:

(5)

Given a target number of layers, K-means and quantization are valid methods for generating initial color guesses for each layer. Then, we can assign each pixel to the nearest color among the

choices to initialize the layers. These layers and colors are then modified by our sequential quadratic programming with blocked coordinate descent method.

2.2 Stippling

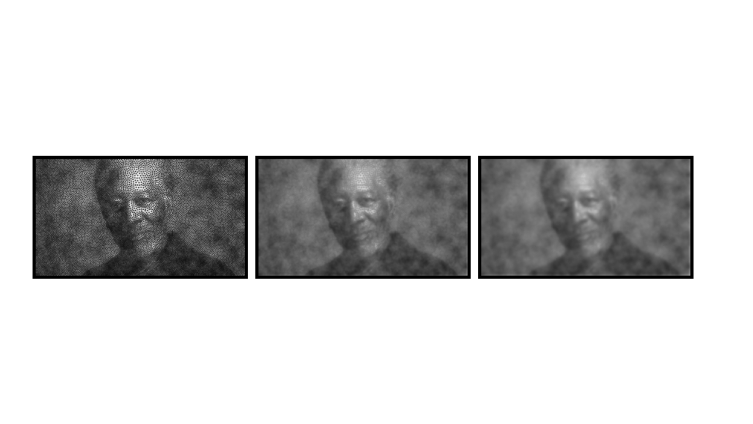

Figure 4: Spray-paint simulation with (Left) , (Center) (Right) .

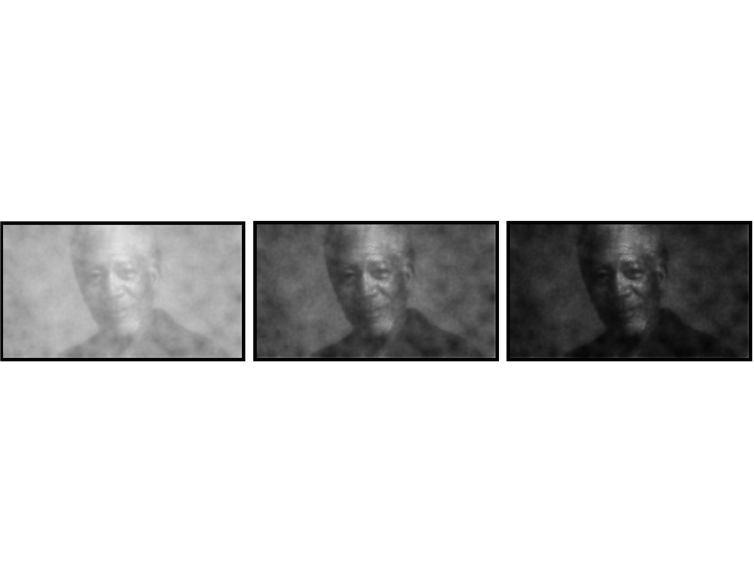

Figure 5: Effects of spray-painting for increasing amounts of time.

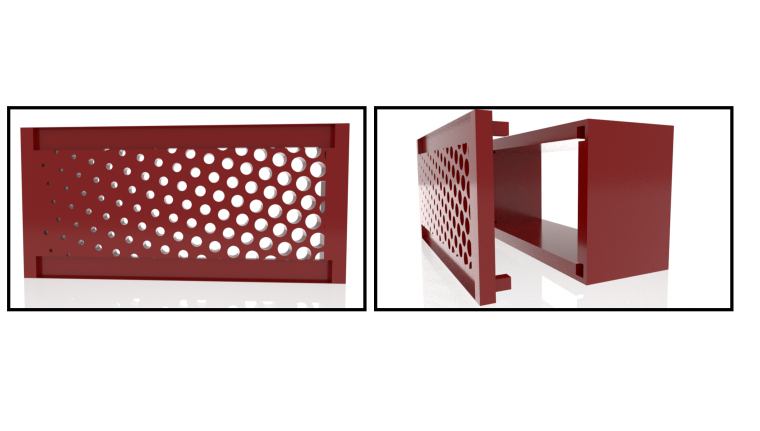

Figure 6: Renders of our 3D printed stencils showing a sample stippling pattern. The stencil and wall fit like lock and key, so walls of different heights can be applied to the same stencil.
