The capacity to employ common-sense reasoning, analogous to human intuition, is necessary for unconstrained interaction with an arbitrary environment. In particular, the ability to understand the effect of applied forces on objects is vital for general purpose robotic applications. Traditionally, mobile navigation approaches consider all objects as static, rigid obstacles. Similarly, in robotic grasping applications, objects are often considered rigid and non-deformable at the perception level, with the resultant deformations only taken into account at the later control stage. However in the real world, many objects are non-rigid and change in shape/size when subjected to external forces. The ability to infer likely deformations is of great use for predictive control. Forward simulators based on Finite Element Models (FEM) are typically used to compute body deformations. Although they are highly accurate, a full mesh representation of a solid is required, unable to work with incomplete depth views of an object, such as those available to a robot in the real world. Moreover, they are computationally costly, unable to be used in real-time. As an alternative, we explore conditional deep models to learn the underlying physics of deformation.
Latent space generative models like Generative Adversarial Networks (GANs) and Variational AutoEncoders (VAEs) learn a mapping from a latent encoding space to a data space. The latent space learned by these models is often organised in a near-linear fashion, so that neighbouring points in latent space map to similar points in data space. Generative networks have been applied with success to the problem of reconstructing 3D objects from partial views or synthesizing 3D objects [Yang et al.2017, Han et al.2017].
Conditional Variational Autoencoders (cVAEs) offer a natural way to encode the effects of physical properties and applied forces. On the other hand, a useful property of GANs is that the discriminator network implicitly learns a rich, feature-level similarity metric.VAE-GANs, first introduced in [Larsen et al.2016], combine the ability of VAEs to encode data into a latent space and the ability of GANs to produce sharper, high quality models.
We propose a novel deep network that combines a variational autoencoder and a discriminator, trained on synthetic data from an FEM-based physics simulator. Given a single depth image of the deformable object and conditioning input which includes the properties of the material, the strength of the force, and the location of the force, the network is able to output a predicted 3-D deformation of the solid. This prediction can then be used for tasks as diverse as robot manipulation and grasping, terrain deformation assessment, and in general for predicting the effect of forces on non-rigid objects in the context of end-to-end learning of intuitive physical models of the environment.
The main intuition is that it is possible for the network to learn the properties of the body of interest from physical quantities that describe the elasticity and compression properties of the material. This enables the network to generalise over a wide range of materials, relaxing the need for a large training set.
The material composition of an object can be estimated from RGB images using available approaches such as the recent Differential Angular Imaging for Material Recognition framework[Xue et al.2017], which was trained on the GTOS (Ground Terrain in Outdoor Scenes) material reflectance database, containing 40 material classes.
The conditions can be entered as real values in an efficient way, enabling arbitrarily fine-grained values. A single prediction is more than three orders of magnitudes faster that an equivalent FEM simulation, at the cost of lower resolution; this makes the approach useful for online evaluation for time-sensitive tasks.
We evaluate the proposed approach on both synthetic and real objects, and discuss the effect of different encodings of the conditions.
The main contributions of this work are:
3D-PhysNet, a novel architecture for learning non-rigid body deformations of 3D objects with a conditional VAE-GAN architecture
We also propose a Cascaded-3D-PhysNet, with a 3D reconstruction GAN followed by a cVAE-GAN, for predicting deformations from a single depth image
A natural way of conditioning the network on continuous, real valued physical quantities that reflect the real world, rather than discrete material classes
To our best knowledge, this is the first work on learning 3D deformations from arbitrarily rotated depth image views
2 Related Work
2.1 Intuitive Physics
In [Frank et al.2014] the authors estimated the elasticity parameters of an object by interacting with it and by correlating applied forces and the resulting surface deformations.
In [Wu et al.2015] the authors first proposed to use deep generative networks for learning intuitive physics from videos, such as the effect of gravity and friction on objects rolling down a slope. The key idea was based on inverting a physics engine to obtain model dynamics from observations. Deep networks have been subsequently used for predicting the stability of tower blocks [Lerer et al.2016] and object dynamics [Mottaghi et al.2016].
Predicting how actions affect the world is an open challenge. In [Finn et al.2016] a deep model was trained in an unsupervised way to predict action-conditioned future video images of moving objects, using a technique called Convolutional Dynamic Neural Advection (CDNA) and action-conditioned LSTMs. Another approach to predicting future video snippets given conditions was proposed in [Vondrick et al.2016]. Applications of intuitive physics to robotics have been recently explored in [Byravan and Fox2017]
. The network predicts rigid body motions from 3-D point cloud inputs given a force vector applied to it, using a layer that encodes per-pixel SE(3) transformations.
Recently, [Wu et al.2017] decouples the future prediction problem by learning an abstract physical representation of the world using a perception network, and using the physical representation as input to a physics engine and and a rendering engine in order to generate visual data, that can be then matched to the visual input.
2.2 Generative Networks
Deep generative models such as GANs [Goodfellow et al.2014] and VAEs [Kingma and Welling2013] have recently shown outstanding results in high-dimensional representations and generalisation ability. GANs have been successfully applied in a number of different domains such as natural language understanding [Bingning Wang2017], learning of latent spaces [Chen et al.2016] and 3-D reconstruction [Yang et al.2017].
In Conditional GANs (cGANs) the generated output is conditioned on external conditional information. cGANs addresses problems where the input-to-output mapping is of the type one-to-many.
Invertible conditional GANs (IcGANs) [Perarnau et al.2016] combine an autoencoder with a cGAN and have been shown to be able to learn a good latent representation of the inputs. Conditional GANs have been recently used to learn mappings between input and output images with both paired [Isola et al.2016] and unpaired [Zhu et al.2017] images.
3 The Proposed Approach
3.1 Problem Formulation
The problem of predicting 3D deformations from incomplete depth views can be split into two problems: learning a reconstruction from an input depth view to a full 3D shape , and learning a smooth mapping that maps a 3D shape into a deformed 3D shape , given a condition . In our case, , and are discretized into voxel grids of dimensions , while the condition is a vector of real values, therefore the problem is defined as:
3.2 Main Framework
layer 1 Conv.
, Max pool.
, ReLU activ.
|layer 5 Conv. , Stride , Max pool. , Sigmoid activ.|
|layer 6 FC 5000 Dense ReLU|
|layer 7 FC 800 FC 800|
|layer 1 FC 32768 Dense ReLU|
|layer 2 Deconv. , Stride , ReLU activ. CONCAT|
|layer 5 Deconv. , Stride , ReLU activ. CONCAT|
|layer 6 Deconv. , Stride , Sigmoid activ. CONCAT|
|layer 1 Conv. , Stride , Max pool. , ReLU activ.|
|layer 2 Conv. , Stride , Max pool. , ReLU activ.|
|layer 5 Conv. , Stride , Max pool. , Sigmoid activ.|
|layer 6 FC 32768|

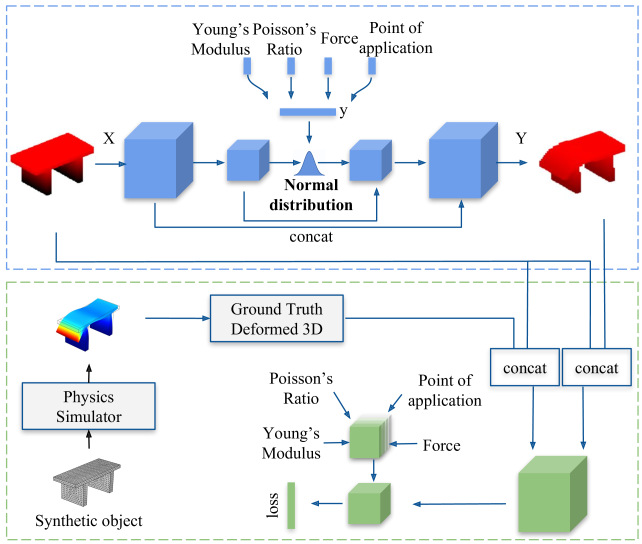

Figure 1 shows the architecture of the proposed 3D-PhysNet. It is composed of two main networks: a generator network and a discriminator network , that are competing against each other.
Broadly, the generator maps the undistorted 3-D model into a deformed 3-D model, conditioned on the supplied parameters. The discriminator is used during training only and is a classifier that determines whether its input is drawn from the ground-truth or the output of the generator. The generator and discriminator are adversarial i.e. they each get better over time. We now describe each network in detail.
The network takes as input a voxel grid of size 646464, representing a 3-D point cloud. which is obtained by voxelizing the input 2.5D depth image.
The generator is implemented as a variational autoencoder network that is able to learn a normally distributed latent representation from the input voxel grid. To facilitate the replication of local structures and object details the convolutional and deconvolutional layers have skip connections between the input and the output samples.
The encoder E has five 3-D convolutional layers.The encoder is followed by a fully-connected layer flattening the 3-D representation into a 1-dimensional vector, in turn followed by two layers and , representing the reparameterized mixture of gaussians from which we extract random samples.
The condition vector encapsulates the material elasticity properties, the magnitude of the force, the location of the force (see Section 3.6), and is concatenated with the latent vector.
The generator G follows the inverse of the encoder, composed of five deconvolutional layers which are followed by ReLU activations except for the last layer which is followed by a sigmoid function. The details of E and D are shown in Table1.
The loss for the variational autoencoder is:
where is a specialized form of Binary Cross-Entropy (BCE), as in [Brock et al.2016], and is given by:
where is the true binary value for each voxel (0,1), is the output value predicted by and is in the range (0,1), is a parameter that balances false positives against false negatives.
The second term of the loss is the Kullback-Leibler divergence of the latent representation from a normal distribution:
The adversarial loss for the generator is described by:
The total loss is:
where is a weight that balances the VAE loss and the GAN loss. Intuitively, the VAE loss guides the coarse 3D reconstruction of the object, and is important in the first phase of training, while the GAN loss is useful for learning to generate more plausible predictions, in particular the subtle shape deformations caused by the condition vector.
The role of the discriminator is to evaluate whether the predicted deformations from the generator are realistic, by classifying them as real or fake compared to the real input.
Similar to the encoder, it is composed of five 3-D convolutional layers. Implementation details reported in Table 1.
The discriminator takes as input pairs of ‘real’ ground truth voxel grids as informed by the physics simulator and ‘fake’ generated voxel grids from the generator, in addition to the condition. The condition is reshaped so that it can be concatenated with the voxel grid. As the problem of shape deformation is high-dimensional, instead of outputting a binary value, the discriminator outputs a dense vector representing voxel similarities. The loss is based on WGAN-GP [Gulrajani et al.2017] which adopts Wasserstein Distance as a metric of similarity:
We also propose a cascaded framework, Cascaded-3D-PhysNet, in which the output of a 3D reconstruction network is fed into the input of 3D-PhysNet, as shown in Figure 2. In this configuration we factor the learning of the mapping functions (Section 3.1) into two separate, independently trained problems, the first performing 3-D reconstruction from a 2.5D point cloud and the second responsible for deforming the 3-D model. In our experimental results section we demonstrate that this cascaded approach is superior to directly inputting 2.5D partial views into 3D-PhysNet and attempting to perform both reconstruction and deformation in a single network. Our intuition is that the latent encoding provided by the GAN is more suited for learning high resolution reconstruction, subject to arbitrary rotation, whereas the normal encoding of the VAE is better suited for representing the physically-based smooth functions representing the material properties and applied force. We are agnostic to the reconstruction network used, in our approach we adopt the recent 3D-RecGAN framework [Yang et al.2017]. To simplify the task of 3D-PhysNet PCA is to used to align the rotated shape along its principal axes.
3.6 Encoding Physical Properties
In 3D-PhysNet, we take the novel approach of using the continuous material properties as the conditioning input, rather than the material class. This is more generalisable and can be arbitrarily quantized, enabling deformation estimation for previously unseen materials.
describes the deformation of a solid, which can be defined as
where is the set of points representing the undeformed solid and represents a deformation field. In our case we make the assumption that the body is composed of a homogeneous material, isotropic and linearly elastic.
For continuous media the following relationship (an extension of the well-known Hooke’s Law for uniaxial deformation) relates applied force (stress) to resultant deformation (strain):
is the stress tensor,is the strain tensor and is the Cauchy tensor mapping strain to stress.Under the assumption that the material is isotropic, only depends on two physical parameters: the Young’s modulus and Poisson’s ratio .
The Young’s modulus describes the force needed to enlarge or compress a material by a fixed amount and is defined by the ratio of stress to strain in the direction of the applied force. In practice, denotes the stiffness (or its reciprocal, elasticity) of a material.
The Poisson’s ratio denotes the negative ratio of the transverse strain over the axial strain. When a material is compressed in one direction, an expansion is observed in the other two perpendicular dimensions, and vice versa. In practice, denotes the compressibility of a material. Since we assume the material is isotropic, the Poisson’s ratio is the same for every direction of compression/expansion (Figure 3).
The choice of parameter sampling for the condition vector is critical and dependent on the problem of interest. Young’s modulus is measured in GigaPascals (GPa) in the SI system and is in the range . For this reason, we fix an upper bound of , which corresponds to the elasticity of concrete. Since varies over several orders of magnitude, we sample our training set logarithmically over the range and scale to . The Poisson’s ratio varies in the range . Rubber has a Poisson’s ratio of 0.5 (perfect volume conservation), while most materials are in the range 0.25 to 0.48. We therefore sample linearly over the full range.
4.1 Physics Engine and Dataset Generation
The physics engine is used to generate pairs of input and ground truth voxel grids and the corresponding condition vectors for training. In this work we used the COMSOL Multiphysics software in order to generate the training voxel grids, but the network is agnostic to the simulator. The one-dimensional condition vector is obtained by concatenating the object’s Young’s modulus, the Poisson’s ratio, the location of the force and its magnitude.
In order to generate our dataset for each object, we vary the Young’s modulus and the Poisson’s ratio over their whole range, using different sampling approaches, as discussed in the results. We vary the force magnitude over 30 values and the point of application of the force over 10 positions along the top of the object. We generate a second dataset in which we stretch the object along the x-y-z axes. For each axis we stretch over 8 scales. The finite element meshes used for the dataset generation contain on average 3200 triangles. We use a MUMPS solver on an Intel Xeon CPU with a corresponding simulation time for each sample of over 60 s.
We then extract a set of partial views for each sample. We create a virtual depth camera and rotate the object over a total of 125 different angles, with 5 uniformly sampled angles around each rotation axis. For each rotation, a partial voxel grid is extracted representing a partial view. The total number of samples is 50000. The full generated datasets will be released for the sake of reproducibility and testing.
4.2 Implementation Details and Evaluation Setup
The network was implemented with Tensorflow 1.4 and trained on a single Nvidia Pascal Titan X GPU. The network was trained with a batch size of 8 using the Adam optimizer, with, , ,. is set to 10 in Eq. 8. The prediction time for a single input is 35.7ms, which is more than three orders of magnitude faster than an equivalent FEM simulation, allowing for real-time deformation estimation.
In the cascaded configuration we use 3D-RecGAN [Yang et al.2017] for shape reconstruction from rotated partial viewpoints. The network has a comparable prediction time.
We use voxel Intersection-Over-Union (IOU) between two voxel grids as our accuracy metric. IOU is defined as:
where is an indicator function, is the predicted voxel value at position , is the true value of voxel , and is the threshold for voxelization. In our experiments, is set as 0.8. The higher the IOU value, the better the reconstruction of a 3D model.
4.3 Results and Discussion
4.3.1 Latent Representation and Encoding of Physical Parameters

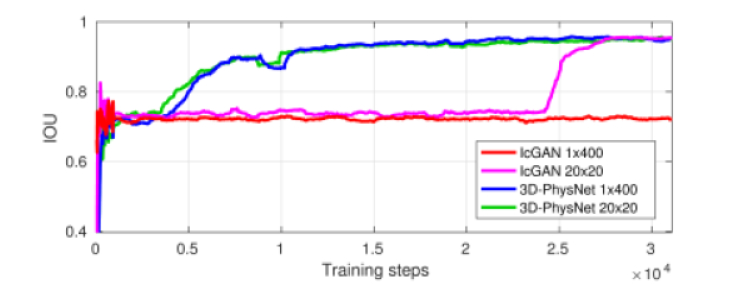

In this experiment we compare the VAE latent encoding with a baseline inspired by IcGAN [Perarnau et al.2016]
. We also show the effects of the joint distribution over physical parameters on training time and convergence. The convolutional layers of the GAN are the same as in our approach, while the latent vector in the GAN is a vector of dimension 5000. All other parameters, as well as the discriminator loss function, are the same as 3D-PhysNet.
We simulate a bridge-like structure, and we first uniformly sample over 400 values keeping constant (termed 1400), then jointly vary both and over 20 values (termed 20). Figure 4 shows the results of the four cases.
The baseline approach does not converge with the 1400 dataset, while it eventually converges with the 2020 one. The poor convergence can be intuitively explained by the fact that no implicit distribution is imposed on IcGAN and it needs to learn the mapping from each value to a particular deformation. For the case of sampling over 400 values of the dimensionality is too high for it to converge, whereas for 2020 the sparser sampling in each dimension allows it to converge after 25k iterations.
3D-PhysNet is able to converge quickly and predict deformation regardless of the dataset. This demonstrates that the normally distributed representation of the latent variables in the VAE is more suited to represent the smooth underlying function capturing the relationships between the conditions and deformation, compared with the arbitrary vector used in IcGAN. The learning curve for the 2020 dataset is marginally faster, possibly due to an underlying joint-relationship between and and the resultant Cauchy stress tensor.
4.3.2 Generalisation over Physical Parameters and Scales
In this experiment we analyse the ability of the network to generalise over the various conditions.
For this experiment we train 3D-PhysNet with full 3D inputs and vary both and over 20 values each. We then test on unseen values of and . The network converges after 14k iterations and has a resultant IOU of 0.98, demonstrating good generalization to arbitrary materials. In all our experiments the object is always resting on the ground.
We then evaluate the generalisation capabilities over scale variations. It should be noted that the scale variations affect the physics of the object, adding to the non-linearity of the problem. The final average IOU for this experiment is 0.98; some qualitative results are shown in Figure 5.

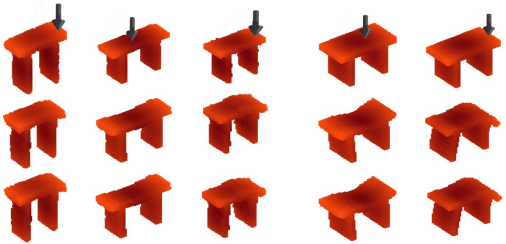

We then investigate the ability of the network to generalise over force strength and location. We train our network on a subset of the dataset composed by 310 samples: 31 different force strengths and 10 points of applications equally spaced over the top of the bridge. By encoding the force location as a real number the network only achieves a final average IOU of 0.9, while a one-hot encoding of the force location achieves an IOU of 0.95. This shows that the force location is the most challenging parameter, since the resulting deformations for different positions of the force are widely different and not smooth. Qualitative results are shown in Figure5.
4.3.3 Prediction from Partial Views and Cascaded Architecture
In this experiment we motivate the use of a cascaded architecture for deformation prediction from partial views.

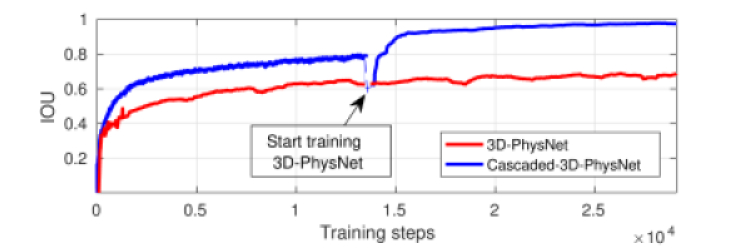

In Figure 6 we show the learning curves for 3D-PhysNet and Cascaded-3D-PhysNet on the full dataset of rotated partial views. For Cascaded-3D-PhysNet, we first train 3D-RecGAN on 3D reconstruction only, then 3D-PhysNet on the PCA-aligned outputs of 3D-RecGAN. We plot the two learning curves consecutively for comparison with the other approaches. It can be seen how 3D-RecGAN learns to reconstruct the objects fast, enabling 3D-PhysNet to converge faster.
Some works on 3D reconstruction, such as 3D-IwGAN [Smith and Meger2017], leave the object of interest still and rotate the camera around it in order to extract partial 2.5D views. This is a simplified way to extract viewpoints, and our network achieves an accuracy comparable to learning from full 3D objects. Figure 7 shows some qualitative results.
4.3.4 Multi-Category and Cross-Category Prediction

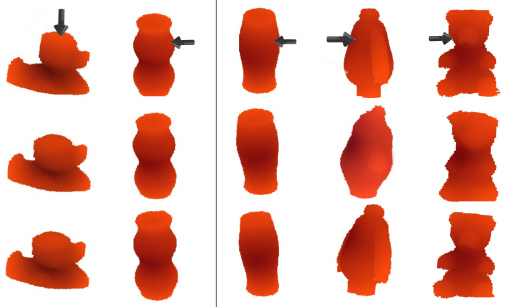

Finally, we show some qualitative prediction results and cross-category prediction. The first two columns of Figure 8 shows prediction results on two different objects. To further investigate the generality of our network we train on a set of cylinder-like objects (second column) and then test on completely unseen objects (last three columns of Figure 8).
We also show some preliminary results from real depth images in Figure 9. A single depth view of the real objects is obtained using a Microsoft Kinect camera. The results show how the network is able to learn from simple primitives and generalise to unseen objects, both synthetic and from the real world. Note how, albeit simplified in its shape, the predicted shapes of the toys are being pushed by the force (the feet are fixed to the ground) and a simulacrum of the arms is present in the predicted shapes.
We presented an application of a conditional variational autoencoder architecture with adversarial training to the problem of predicting structural deformations of 3D shapes under the effect of external applied forces, given a single depth image. The intuition is that the network prediction can be conditioned directly on the elasticity properties of the material, as well as the applied force, enabling the network to learn to approximate non-rigid body deformations of real materials and objects. This makes the approach useful for a variety of tasks in which it is needed to predict in advance the effect of forces acting on the environment, as diverse as industrial robotics, mobile robotics, structural monitoring, and in general for applications that can benefit from knowledge of intuitive physics. The network was validated on a large dataset of different objects and conditions. Future work will be devoted to optimizing the architecture, increasing resolution, and exploring alternative data encodings, such as octrees, surfels, etc.
