3D MRI brain tumor segmentation using autoencoder regularization

by   Andriy Myronenko, et al.

Automated segmentation of brain tumors from 3D magnetic resonance images (MRIs) is necessary for the diagnosis, monitoring, and treatment planning of the disease. Manual delineation practices require anatomical knowledge, are expensive, time consuming and can be inaccurate due to human error. Here, we describe a semantic segmentation network for tumor subregion segmentation from 3D MRIs based on encoder-decoder architecture. Due to a limited training dataset size, a variational auto-encoder branch is added to reconstruct the input image itself in order to regularize the shared decoder and impose additional constraints on its layers. The current approach won 1st place in the BraTS 2018 challenge.


Robust Semantic Segmentation of Brain Tumor Regions from 3D MRIs

Multimodal brain tumor segmentation challenge (BraTS) brings together re...

Multi-channel MRI Embedding: An EffectiveStrategy for Enhancement of Human Brain WholeTumor Segmentation

One of the most important tasks in medical image processing is the brain...

Deep Learning with Anatomical Priors: Imitating Enhanced Autoencoders in Latent Space for Improved Pelvic Bone Segmentation in MRI

We propose a 2D Encoder-Decoder based deep learning architecture for sem...

Factorisation-based Image Labelling

Segmentation of brain magnetic resonance images (MRI) into anatomical re...

Segmentation of Shoulder Muscle MRI Using a New Region and Edge based Deep Auto-Encoder

Automatic segmentation of shoulder muscle MRI is challenging due to the ...

A Two-Stage Cascade Model with Variational Autoencoders and Attention Gates for MRI Brain Tumor Segmentation

Automatic MRI brain tumor segmentation is of vital importance for the di...

Brain Tumor Segmentation using 3D-CNNs with Uncertainty Estimation

Automation of brain tumors in 3D magnetic resonance images (MRIs) is key...

1 Introduction

Brain tumors are categorized into primary and secondary tumor types. Primary brain tumors originate from brain cells, whereas secondary tumors metastasize into the brain from other organs. The most common type of primary brain tumors are gliomas, which arise from brain glial cells. Gliomas can be of low-grade (LGG) and high-grade (HGG) subtypes. High grade gliomas are an aggressive type of malignant brain tumor that grow rapidly, usually require surgery and radiotherapy and have poor survival prognosis. Magnetic Resonance Imaging (MRI) is a key diagnostic tool for brain tumor analysis, monitoring and surgery planning. Usually, several complimentary 3D MRI modalities are acquired - such as T1, T1 with contrast agent (T1c), T2 and Fluid Attenuation Inversion Recover (FLAIR) - to emphasize different tissue properties and areas of tumor spread. For example the contrast agent, usually gadolinium, emphasizes hyperactive tumor subregions in T1c MRI modality.

Automated segmentation of 3D brain tumors can save physicians time and provide an accurate reproducible solution for further tumor analysis and monitoring. Recently, deep learning based segmentation techniques surpassed traditional computer vision methods for dense semantic segmentation. Convolutional neural networks (CNN) are able to learn from examples and demonstrate state-of-the-art segmentation accuracy both in 2D natural images

[5] and in 3D medical image modalities [18].

Multimodal Brain Tumor Segmentation Challenge (BraTS) aims to evaluate state-of-the-art methods for the segmentation of brain tumors by providing a 3D MRI dataset with ground truth tumor segmentation labels annotated by physicians [17, 4, 2, 3]. This year, BraTS 2018 training dataset included 285 cases (210 HGG and 75 LGG), each with four 3D MRI modalities (T1, T1c, T2 and FLAIR) rigidly aligned, resampled to 1x1x1 mm isotropic resolution and skull-stripped. The input image size is 240x240x155. The data were collected from 19 institutions, using various MRI scanners. Annotations include 3 tumor subregions: the enhancing tumor, the peritumoral edema, and the necrotic and non-enhancing tumor core. The annotations were combined into 3 nested subregions: whole tumor (WT), tumor core (TC) and enhancing tumor (ET), as shown in Figure 2. Two additional datasets without the ground truth labels were provided for validation and testing. These datasets required participants to upload the segmentation masks to the organizers’ server for evaluations. The validation dataset (66 cases) allowed multiple submissions and was designed for intermediate evaluations. The testing dataset (191 cases) allowed only a single submission, and was used to calculate the final challenge ranking.

In this work, we describe our semantic segmentation approach for volumetric 3D brain tumor segmentation from multimodal 3D MRIs, which won the BraTS 2018 challenge. We follow the encoder-decoder structure of CNN, with asymmetrically large encoder to extract deep image features, and the decoder part reconstructs dense segmentation masks. We also add the variational autoencoder (VAE) branch to the network to reconstruct the input images jointly with segmentation in order to regularize the shared encoder. At inference time, only the main segmentation encode-decoder part is used.

2 Related work

Last year, BraTS 2017, top performing submissions included Kamnitsas et al. [12] who proposed to ensemble several models for robust segmentation (EMMA), and Wang et al. [20] who proposed to segment tumor subregions in cascade using anisotropic convolutions. EMMA takes advantage of an ensemble of several independently trained architectures. In particular, EMMA combined DeepMedic [13], FCN [15] and U-net [19] models and ensembled their segmentation predictions. During training they used a batch size of 8, and a crop of 64x64x64 3D patch. EMMA’s ensemble of different models demonstrated a good generalization performance winning the BraTS 2017 challenge. Wang et al. [20] second place paper took a different approach, by training 3 networks for each tumor subregion in cascade, with each subsequent network taking the output of the previous network (cropped) as its input. Each network was similar in structure and consists of a large encoder part (with dilated convolutions) and a basic decoder. They also decompose the 3x3x3 convolution kernel into intra-slice (3x3x1) and inter-slice (1x1x3) kernel to save on both the GPU memory and the computational time.

This year, BraTS 2018 top performing submission (in addition to the current work) included Isensee et al. [11] in the 2nd place, McKinly et al. [16] and Zhou et al. [22], who shared the 3rd place. Isensee et al. [11] demonstrated that a generic U-net architecture with a few minor modifications is enough to achieve competitive performance. The authors used a batch size of 2 and a crop size of 128x128x128. Furthermore, the authors used an additional training data from their own institution (which yielded some improvements for the enhancing tumor dice). McKinly et al. [16] proposed a segmentation CNN in which a DenseNet [10]

structure with dilated convolutions was embedded in U-net-like network. The authors also introduce a new loss function, a generalization of binary cross-entropy, to account for label uncertainty. Finally, Zhou et al.

[22] proposed to use an ensemble of different networks: taking into account multi-scale context information, segmenting 3 tumor subregions in cascade with a shared backbone weights and adding an attention block.

Compared to the related works, we use the largest crop size of 160x192x128 but compromise the batch size to be 1 to be able to fit network into the GPU memory limits. We also output all 3 nested tumor subregions directly after the sigmoid (instead of using several networks or the softmax over the number of classes). Finally, we add an additional branch to regularize the shared encoder, used only during training. We did not use any additional training data and used only the provided training set.

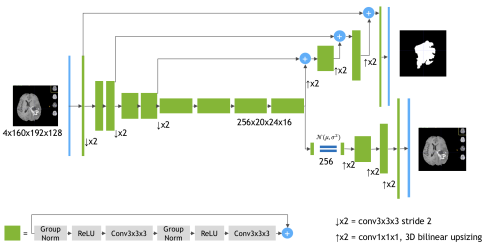

Figure 1: Schematic visualization of the network architecture. Input is a four channel 3D MRI crop, followed by initial 3x3x3 3D convolution with 32 filters. Each green block is a ResNet-like block with the GroupNorm normalization. The output of the segmentation decoder has three channels (with the same spatial size as the input) followed by a sigmoid for segmentation maps of the three tumor subregions (WT, TC, ET). The VAE branch reconstructs the input image into itself, and is used only during training to regularize the shared encoder.
