1 Introduction

The Waymo Open Dataset challenges attracted many participants in the field of computer vision and autonomous driving. The Waymo Open Dataset

[11] that is used in the competition provides high-quality data collected by multiple LiDAR and camera sensors in real self-driving scenarios. In the 2D detection track, three classes: vehicle, pedestrian, and cyclist are annotated with tight-fitting 2D bounding boxes based on the camera images. In self-driving applications accurately and reliably detecting vehicles, cyclists and pedestrians is of paramount importance. Towards this aim, we develop a state-of-the-art 2D object detection system in this challenge.

2 Our Solution

2.1 Base Detectors

With the renaissance of deep learning based object detector, two mainstream frameworks,

i.e., one-stage detector and two-stage detector, have dramatically improved both accuracy and efficiency. To fully leverage different detection frameworks, we employ the state-of-the-art two-stage detector Cascade R-CNN [7] and one-stage detector CenterNet [2] with anchor-free fashion. Cascade R-CNN employs a cascade structure for classification and box regression of proposed candidates, which is good at precisely localizing object instances. In contrast to Cascade R-CNN, CenterNet is anchor-free and treats objects as points with properties, which may be better suited for detecting small objects and objects in crowded scenes. We argue that these two different mechanisms have fair diversity on their detections so that the results can be complementary. We respectively produce detections using these two frameworks and then fuse them as the final detection results.

2.1.1 Cascade R-CNN

Cascade is a classical architecture that is demonstrated to be effective for various tasks. Among the object detection counterparts, Cascade R-CNN builds up a cascade head based on the Faster R-CNN [8] to refine detections progressively. Since the proposal boxes are refined by multiple box regression heads, Cascade R-CNN is skilled in precisely localizing object instances. In this challenge, we utilize the Cascade R-CNN as our two-stage detector counterpart considering its superiority.

2.1.2 CenterNet

Recently, anchor-free object detectors become popular due to its simplicity and flexibility. CenterNet [2] detects objects via predicting the central location as well as spatial sizes of object instances. Since CenterNet does not need the Non-Maximum Suppression (NMS) as the post-processing step, it may be more suitable for crowded scenes where the NMS may wrongly suppress positive boxes if the threshold is not appropriately set. In this challenge, we employ CenterNet as our one-stage detector counterpart whose framework is shown in Figure 2. In contrast to the original CenterNet, we use the Gaussian kernel as in [6] which takes into account the aspect ratio of the bounding box to encode training samples.

Figure 2: CenterNet [2] detector with Hourglass-104 as the backbone. Two hourglass blocks are stacked and the first one only serves as providing auxiliary loss during training.

2.2 Greedy Auto Ensemble

We design a greedy version of the auto ensemble scheme [5] that automatically merges multiple groups of detections according to their detection accuracies, as shown in Figure 3. We note that a group of detections represents the detection results generated from a unique detector framework or a specific inference scheme (e.g., testing with specific image scales) of the same detector framework. As in [5], we consider each group of detections as a node of a binary tree. Let be all the detection groups at the -th level of the binary tree, where is the -th group of detections and is the number of detection groups at the -th level. We denote as the number of levels of the binary tree. Note that indicates all the leaf nodes whose detection results are generated from different models and stands for the total number of detector frameworks and inference schemes used for the ensemble. For each node , it will be evaluated on the validation set and the corresponding accuracy is that is calculated based on the mAP metric. We iteratively merge every pair of children nodes into one parent node in each level of the binary tree until the root node is reached, where the root node serves as the final detection results. Different from [5], our method determines the hierarchical relations of the binary tree dynamically and greedily and therefore reduces much search space. To be more specific, at the -th level, we treat two nodes and as siblings if and are available in the candidate node set and the yields the best accuracy so far, in which is the parent node of and and is the merge operation. After merging and , we delete them from and add into .

For the merge operation , we search several candidate operations and employ the operation that yields the best accuracy. Given two nodes and , we define as:


where is the operation set used in our method. and denotes the traditional NMS and the Adj-NMS [5] respectively. is a simplified version of non-maximum weighted (NMW) [3] that only use confidence scores as weights to merge multiple boxes into one box. In case the detection performance may be degraded after merging, we also introduce and . The overall algorithm of the greedy auto ensemble is presented in Algorithm 1.

1.158 Input : : The detection results generated from different models.
Output : : The final detection results.
1 // Initialization: // Candidate node set initialization
3 for  do
5 end for
6for  do
7       while  do
11       end while
12      if  then
14       end if
16 end for
Algorithm 1 Greedy Auto Ensemble

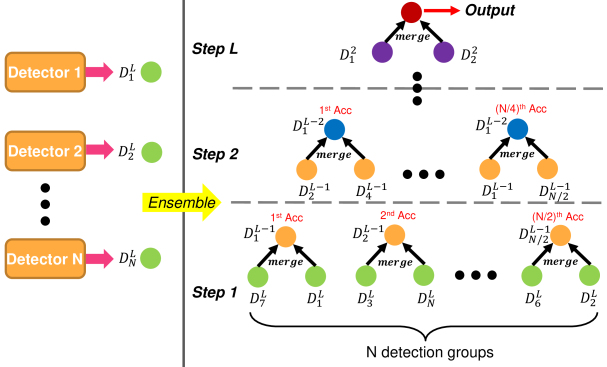

Figure 3: Greedy Auto Ensemble. For groups of detections, we merge each two of them iteratively according to the resulting accuracy, until only one group of detections is left. This greedy scheme is more efficient compared with the original Auto Ensemble in [5].

2.3 Expert Model

Data distribution is highly imbalanced in the Waymo Open Dataset [11]. For example, there are , and instances for the vehicle and pedestrian classes but only instances for the cyclist class in the training set. As a result, the cyclist class could be overwhelmed by pedestrian or vehicle samples in training, leading to poor performance on the cyclist class. To solve this problem, we train multiple expert models for the cyclist, pedestrian, and vehicle classes, respectively. Since the Waymo Open Dataset also provides context information for each image frame such as time of the day (e.g. daytime and nighttime). We also train additional daytime and nighttime expert models using only daytime and nighttime training images, respectively.

2.4 Anchor Selection

In Cascade R-CNN, the anchors are predefined manually. By default, the aspect ratios are set to 0.5, 1, and 2. We add two more anchor aspect ratios of and for the vehicle expert model since we observe some vehicles with very elongated shapes. CenterNet is free of the anchor selection problem.

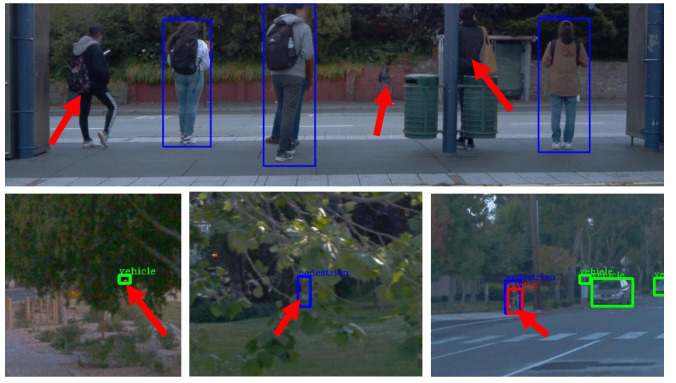

Figure 4: Visualization of some hard examples or inaccurate annotations.

2.5 Label Smoothing

After visually inspecting the annotations, we noticed some hard examples and inaccurate or missing annotations as shown in Figure 4, which may cause problems for the training. Therefore, we employ label smoothing to handle this problem during training.

3 Experiments

3.1 Dataset and Evaluation

Dataset. The Waymo Open Dataset v1.2 [11] contains , and video sequences in the training, validation, and testing sets, respectively. Each sequence has 5 views of side left, front left, front, front right, and side right, where each camera captures - frames with the image resolution of pixels or pixels. Our models are pre-trained on the COCO dataset then fine-tuned on the Waymo Open Dataset v1.2. Due to limited computational resources, we sample frame of every frames from the training set to form a mini-train set, which is used to train the Cascade R-CNN and some CenterNet models. We also sample frame of every frames from the validation set to form a mini-val set for ablation experiments. In our solution, temporal cues are not used.

Evaluation Metrics. According to the Waymo Open Dataset Challenge 2D Detection track, we report detection results on the Level 2 Average Precision (AP) that averages over vehicle, pedestrian, and cyclist classes. The positive IoU thresholds are set to , , and for evaluating vehicles, cyclists, and pedestrians, respectively.

3.2 Implementation Details

Cascade R-CNN Detector. For the Cascade R-CNN detector, we adopt the implementation of Hybrid Task Cascade [1] in mmdetection [4] with disabled semantic segmentation and instance segmentation branches, as pixel-wise annotations are not available in this challenge. We use the ResNeXt--d [9] with deformable convolution [10] as the backbone network. We train one main model with all three classes and three expert models for vehicle, pedestrian, and cyclist classes all on the mini-train set, respectively. The main model is trained for epochs with a warm-up learning rate from -3 to -3, and the learning rate is then decayed by a factor of at the th epoch and th epoch, respectively. We train the expert models for 7 epochs with a learning rate warmed up from -5 to -4 and then decayed by a factor of at the th epoch. We also use the multi-scale training, where the long dimension is resized to pixels while the short dimension is randomly selected from pixels without changing the original aspect ratio. Label smoothing and random horizontal flipping are also applied in training. The batch size for all models is set to .

During inference, we resize the long dimension of each image to pixels and keep its original aspect ratio. We use multi-scale testing with scale factors of as well as the horizontal flipping for all models, except for the vehicle expert which only adopts the horizontal flipping. For each model, we first use the class-aware soft-NMS to filter out overlapped boxes. To merge detections generated by different models, we employ the greedy auto ensemble for the pedestrian and cyclist classes, respectively, and use the Adj-NMS for the vehicle class.

CenterNet Detector. For the CenterNet detector, the image size is set to pixels during training, and the learning rate is set to -4. To save computational resources, we first train the CenterNet detector with COCO pretrained weights on the mini-train set for 25 epochs and use it as the base model. We then fine-tune expert models based on the base model: nighttime expert, daytime expert, pedestrian+cyclist expert, respectively. We also fine-tune another expert models based on the base model using the validation set, the training set, the training set with only pedestrian and cyclist classes, and the training set with only nighttime images for 8-10 epochs. In inference, the horizontal flipping and multi-scale testing with scale factors of , , , , are used. To sum up, we train CenterNet models in total and merge their detections into one group of detections using the weighted boxes fusion (WBF)[13].

Ensemble. One-stage detector and two-stage detector each produces an independent group of detections. To merge the two groups of detections into the final result we use Adj-NMS for the vehicle and pedestrian classes, respectively, and utilize WBF for the cyclist class.

3.3 Results

To study the effect of each module used in our solution, we perform ablation experiments on the mini-val set as shown in Table 1. We first evaluate the Cascade R-CNN baseline with label smoothing that achieves AP/L2. We further improve performance from to on AP/L2 by utilizing the commonly used inference schemes of class-aware soft-NMS and multi-scale testing. To assess the greedy auto ensemble, we merge the results of baseline with those of expert models, which leads to a notable improvement of AP/L2. Finally, we fuse the detections of the Cascade R-CNN and CenterNet, which further improves AP/L2 compare to the results of CenterNet. It demonstrates the effectiveness of combining the one-stage and two-stage detectors.

The 2D detection track is quite competitive among all the five tracks in the Waymo Open Dataset Challenge. To compare our final submitted result with other competitors, we show the leaderboard of the Waymo Open Dataset Challenge - 2D Detection Track in the Table 2. It is seen that our overall detection system achieves superior detection results and ranks the 2nd place among all the competitors.

Method AP/L2
Cascade R-CNN baseline 59.71
+ class-aware softnms 60.42
+ multi-scale testing 61.04
+ GAE + Expert Models 63.28
CenterNet 64.83
Our Solution 66.27

Table 1: Ablation study on the mini-val set. The “GAE” stands for the greedy auto ensemble. The result of CenterNet is obtained by merging the detections of the models described in Section 3.2 using the WBF. Our solution indicates the compound of the above methods.
Method Name AP/L1 AP/L2
RW-TSDet 79.42 74.43
HorizonDet (Ours) 75.56 70.28
SPNAS-Noah 75.03 69.43
dereyly_alex_2 74.61 68.78
dereyly_alex 74.09 68.17

Table 2: Leaderboard of the Waymo Open Dataset Challenge - 2D Detection Track [12], where we only list the top-5 entries. The top-2 results are highlighted in red and blue colors, respectively.

4 Conclusion

In this report, we present a state-of-the-art 2D object detection system for autonomous driving scenarios. Specifically, we utilize both popular one-stage and two-stage detectors to yield robust detections of vehicles, cyclists and pedestrians. We also employ various ensemble approaches to merge detections from various models. Our overall detection system achieved the 2nd place in the 2D detection track of the Waymo Open Dataset Challenges.
